Engineering & Construction Machinery

Home > Product > Loader

Freely Operation Skid Loader 700kg for Small Working Place

XIAMEN LTMG CO., LTD.
  • Certification：CE, ISO9001: 2000
  • Condition：New
  • Rated Load：<1t
  • Transmission：Hydraulic - Mechanical
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled

Base Info

  • Model NO.：LT45
  • Type：Skid Steer Loader
  • Wheelbase：1044mm
  • Operating Weight：2780kg
  • Warranty：1 Years or 2000 Working Hours
  • Max.Dump Height：2266mm
  • Engine：Xinchai
  • Bucket Capacity：0.39m3
  • Rated Capacity：700kg
  • Skip Width：1720mm
  • Turn Radius：2056mm
  • Tire ：10-16.5
  • Transport Package：Container
  • Specification：3535*1735*1979mm
  • Trademark：LTMG
  • Origin：China
  • HS Code：8429590000
  • Production Capacity：800sets,Year

Description

ItemData Item Data Max working height(A)3490mmLoading capacity700KGMax pin height(B)3028mmWeight 2860kgMax height on bucket level state(C)2814mmEngine Diesel engine Max dumping height (D)2266mmRated speed2500r/minMax Dumping distance(F)437mmType of engineFour cylinder, water-cooling, four-strokeWheel base(G)1044mmRated power45KWTotal height(H)1979mmFuel consumption rate on standard240g/KW·hGround clearance196mmFuel consumption rate on max torque238g/KW·hOverall length without bucket(K)2621mmNoise 117dB(A)Total length(L)3400mmGenerator power500WSkip width(M)1720mmVoltage 12VTotal width(W)1665mmStorage battery105AHTread width to center line (P)1425mmSpeed 0-10 Km/hTire's thickness N)240mmDrive mode Hydrostatic four-wheel driveDeparture angle(α)19°Tire 10-16.5Bucket dump angle(β)41°Hydraulic pump flow for running110L/minRetracting angle(θ)18°Hydraulic pump flow for working50L/minTurn radius(R)2056mmSystem pressure15MP


Product Feature


1.Chinese Xinchai engine

2.Hydraulic Control Type: main pump is ITALY BONDIOLI brand, Motor is ITALY SAI, Multiway valve and Pilot handle use ITALY HYDQD.

3.Dual Accelerator Control Model: manual operated + foot operated, easy to operate .

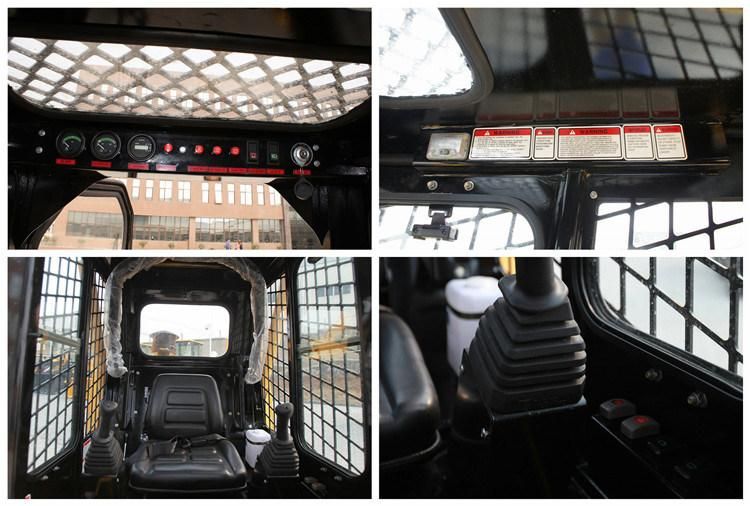

4.Open-type cabin: with shock absorption chair, safety guard bar, removable rear window.

5.Hydraulic quick-change coupler is the same as BOBCAT, and is suitable to our skid steer loader attachments well.

Freely Operation Skid Loader 700kg for Small Working Place

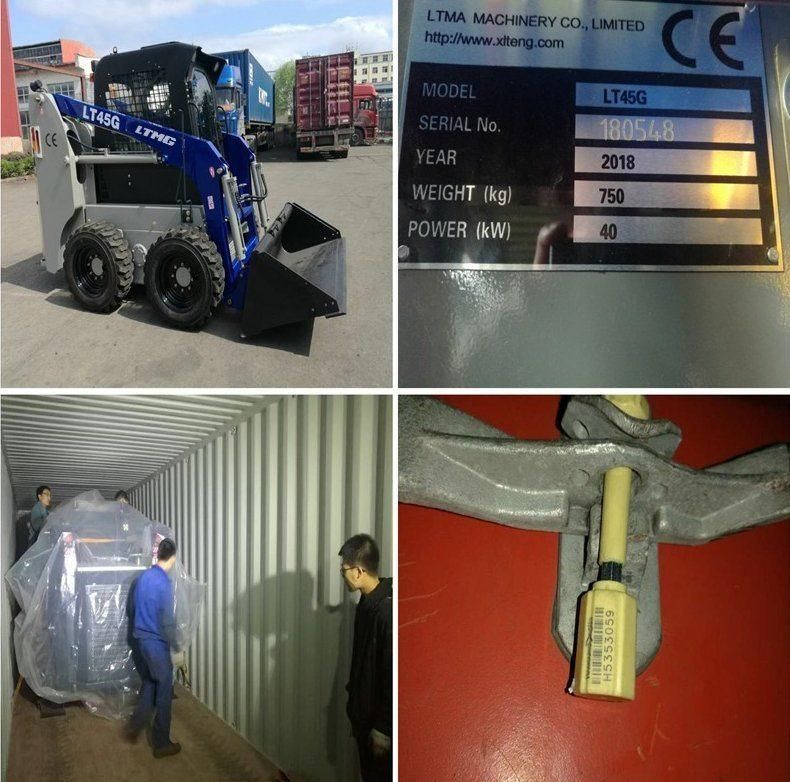

Packing&Shipping

Freely Operation Skid Loader 700kg for Small Working Place


Factory & Customer

Freely Operation Skid Loader 700kg for Small Working Place
Freely Operation Skid Loader 700kg for Small Working Place

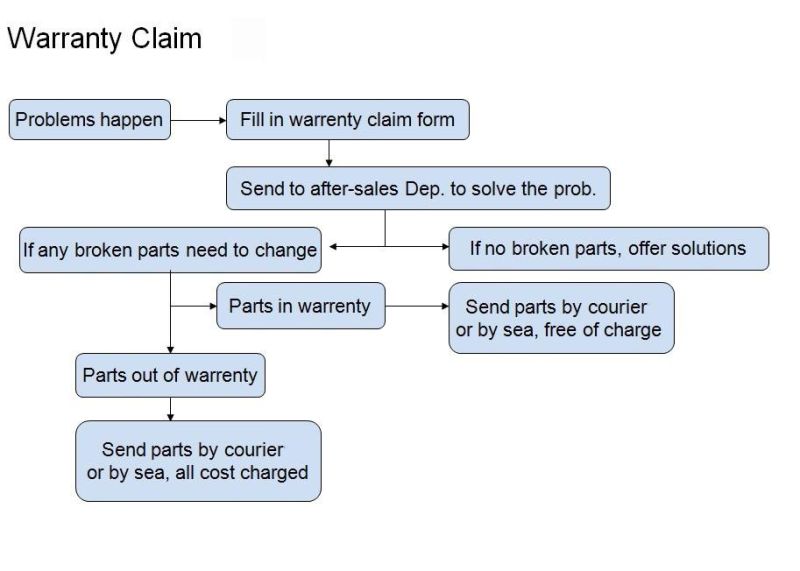

After-sale service

LTMG always treat after-sale service as important as sale.

Nowadays more than 100 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with 1 year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.

Freely Operation Skid Loader 700kg for Small Working Place




FAQ

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.
Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first.
Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
