Construction Machine Multi Function Mini Radlader with Standard Bucket
Shandong Oujin Engineering Machinery Co., Ltd.- Certification：ISO, CE
- Condition：New
- Rated Load：<1t
- Transmission：Hydraulic
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：OJ-08
- Type：Medium-sized Loader
- Brand Name：Oj-08
- Bucket Capacity：0.45m3
- Rated Loading Weight：800kg
- Operating Weight：2900kg
- Engine：Changchai390 Engine
- Rated Power：25kw
- Wheel Base：2100mm
- Tire Type：750-16
- Dumping Height：2350mm
- Dumping Reach：700mm
- L*W*H：4700*1600*2550mm
- Max Grade Ability：30
- Max Speed：25km,H
- Max Torque：67nm
- Drive Mode：4WD
- Transport Package：Nude Packing
- Specification：4700*1600*2550mm
- Trademark：EOUGEM
- Origin：China Shandong
- HS Code：842951000
- Production Capacity：3000pieces,Year
Description

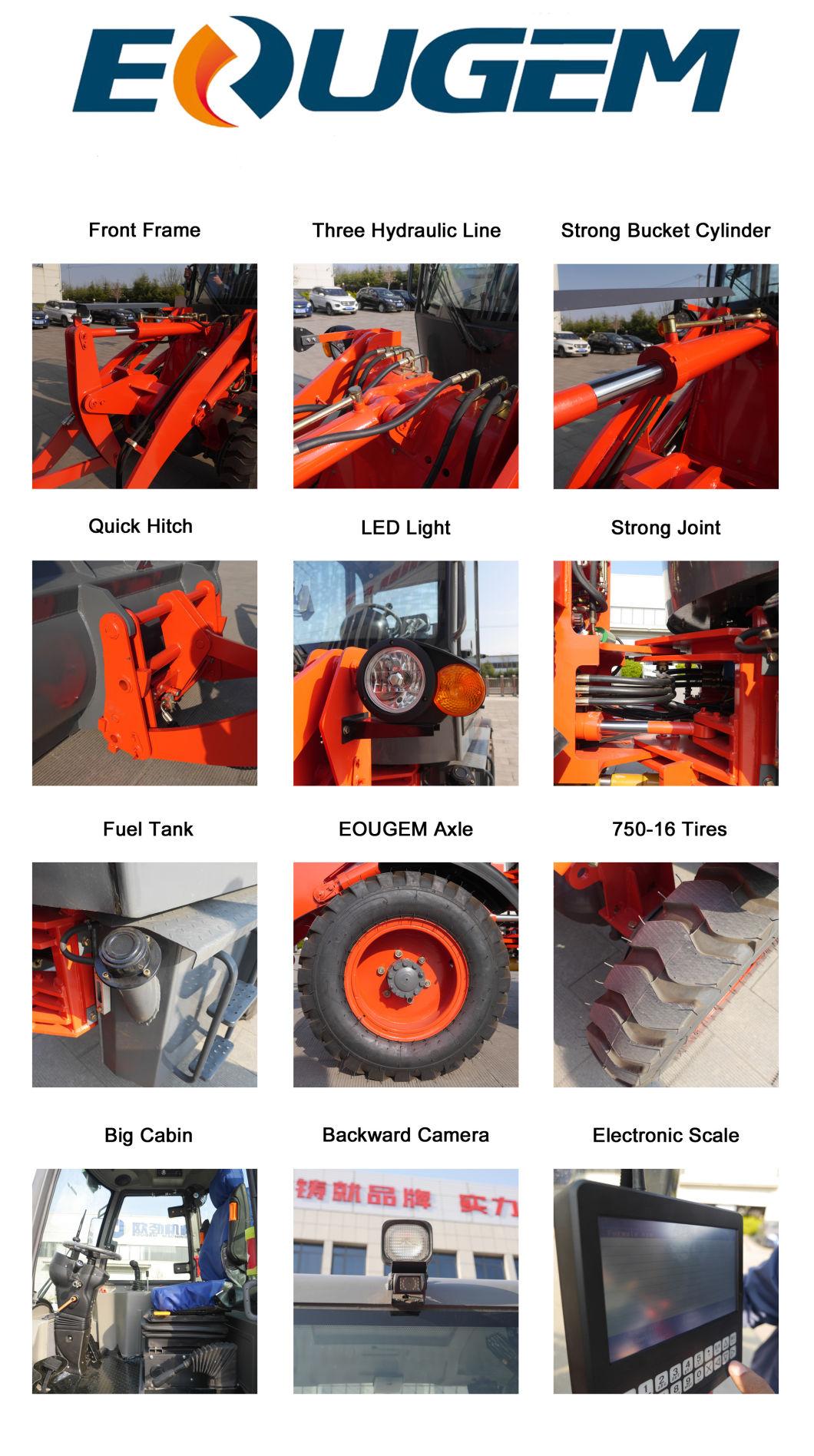

Main Standard Equipments Of OJ-08 Wheel Loader
1) Standard bucket
2) Changchai engine
3) Backward camera, USB, Radio
4) Tipping cabin
5) Mechanical joystick
6) Hydraulic pressure checking system
7) 750-16 tyres
8) Floating function
9) Free service spare parts

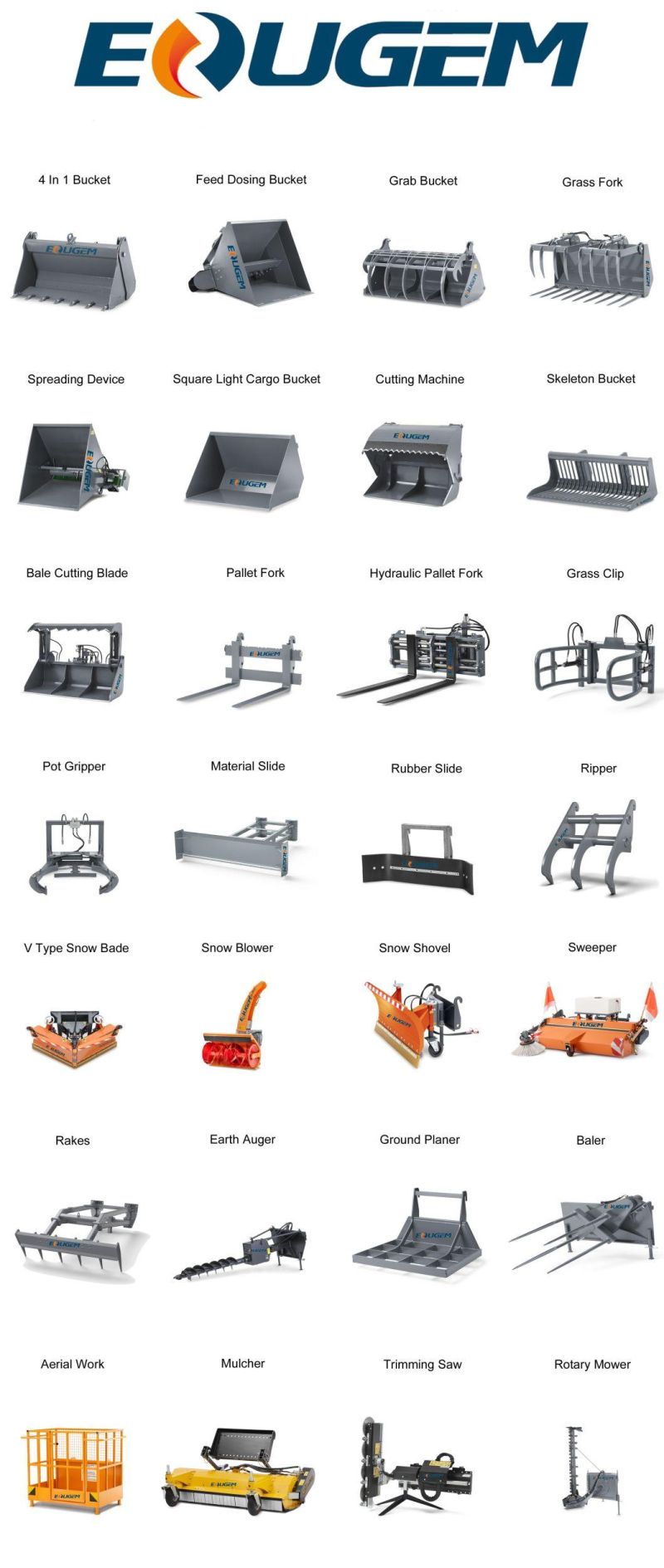

Options For OJ-08 Wheel Loader
1) Quick hitch
2) Electric joystick
3) E4 lamp
4) LED working lamp
5) Extra hydraulic line
1)Different parts choose the corresponding international plate (for example: some parts use high manganese plate), so that the car parts can do not easily deformation, long durability.
2)Equipped with the national famous brand engine, the heavier special drive bridge is adopted, the torque converter matching is optimized, the traction is greatly increased, strong ability to overcome obstacles, and large carrying capacity; energy-efficient,energy intensity is reduced.
3)Optimally designed by the computer, the bucket realizes huge spading force, with single dump cylinder and the "Z" shape turning structure.
4)Due to the overall frame stiffening, top and bottom hinge joint with knuckle bearing, there will be convenient operation and less vibration; the frame is even more stable in harsh working environment, and the safety factor is greatly raised.
5)All series have passed the EU CE certification, with high standard and high quality.
