• Model NO.：CS910
• Type：Small Loader
• Model Number：CS910
• Engine：Xinchai
• Load：1000kg
• Bucket Capacity：0.5m3
• Rated Power：32.4kw
• Rated Speed：2400 R,Min
• Working Type：Hydraulic Pilot Control
• Max.Tractive Force：35kn
• Operating Weight：2690kg
• Max. Dumping Height：2262mm
• Transport Package：RO-RO or 40 Container
• Specification：4113*1520*2323MM
• Trademark：CAISE
• Origin：Shandong, China
• HS Code：8429510000
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. CS910 Type Small Loader Model Number CS910 Engine Xinchai Load 1000kg Bucket Capacity 0.5m3 Rated Power 32.4kw Rated Speed 2400 R/Min Working Type Hydraulic Pilot Control Max.Tractive Force 35kn Operating Weight 2690kg Max. Dumping Height 2262mm Transport Package RO-RO or 40 Container Specification 4113*1520*2323MM Trademark CAISE Origin Shandong, China HS Code 8429510000 Production Capacity 5000 Sets/Year

Product Description

[Product Description]
1.CS910 small wheel loader uses the inline. Direct injection, water-cooled, four-stroke engine with excellent cod start performance. Powerful energy. Reliable function and efficient energy saving.
2.Full hydraulic drive system. Low consumption drive. Stable and simple operation, 2 gear hydraulic variable speed changes.
3.The streamline design makes the appearance attractive and modern.
4.The driving cab uses hardened molding glass with broad view and more safe.
5.CS910 small wheel loader has flexible link and is equipped with new dashboard and adjustable steering column. Which can reduce vibration and make the operation convenient and comfortable.
6.CS910 small wheel loader has quick change system. Can change the front part very fast.
7.Hydraulic brake system, Drum brake.
8.Manual quick change system. Very easy. One man can operate.
Main Performance and Parts Specifications· Standard Equipment

Rated load	1000kg
Bucket capacity	0.5m3
Unload height	2262mm
Unloading Clearance	741mm
Max tractiv force	35kN
Kerb weight	2690kg
Turning Angle	35°
Mini Turning Radius	3879 mm
Ground Clearance mm	240 mm
Engine	XINCHAI EURO III, B490BPG, diesel, 4 cylinders, direct injection,32.4 kW/2400rpm,
Transmission	Hydrostatic transmision . 4WD Fully hydraulic drive .2 gear hydraulic variable speed changes
Speed
Forward I	0 - 7 km/h
Forward II	0 - 24 km/h
Reverse I	0 - 7 km/h
Reverse II	0 - 24 km/h
Working Hydraulic Pressure	22Mpa
Lifting time	4s
Lowering time	3.5s
Three cycle time	9s
Tyres	10.0-16.5 (optional 12.0-16.5, 16.5/70 tractive)
(Length*width*height)mm	4450/1430/2370
track base	1160 mm
wheel base	1710 mm
Optional: Xinchai EURO III engine,Japan EPA Yanmar engine. Canopy,Cabin, Pallet Fork, Grass Fork, Log Grapple,Snow Dozer, 4 in1 Bucket, Sleeve Bucket, Bigger Tyres

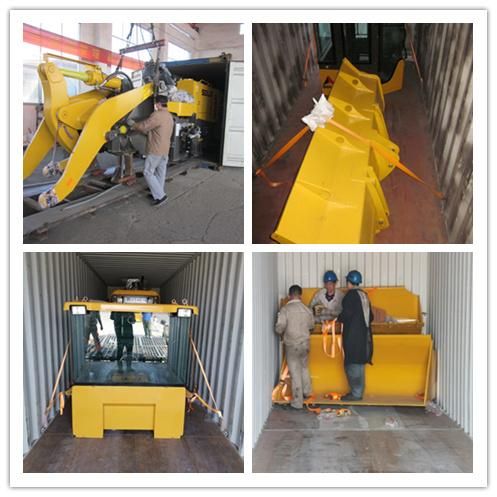

[Packing&shipping]

RO-RO and Container
(1) Complete machine nude packed, small parts with necessary packing and big component naked packing after disassembly for the container.
(2) Spare parts in paper case or wooden carton, big parts nude packing.



[Company Information]

Shandong Weiyang Construction Machinery Co., Ltd ( WYCM ) has been offering a complete range of most reliable and cost-effective construction equipments from China to rest of the world which include but not limited to wheel loader, backhoe loader, motor grader, road roller, excavator, truck crane, bulldozer , and etc.

As one of the biggest export distributors of China machines spare parts, our business has reached more than 60 regions or countries world widely. The 2000 CBM warehouse and convenient transportation will guarantee you the high availability and short lead time.

Each of our team is rich in construction machinery background and committed to create the most values to our customers.

[Customer&Exhibition]

Any interests, feel free to contact me!
