• Model NO.：TPJ-1.5
• Certification：ISO9001: 2000, CE
• Condition：New
• Machine Weight：850kg
• Power：8kw
• Moving Speed：0.8-6m,Min
• Paving Width：2500mm
• Transport Package：Wooden Case
• Specification：3000*1800*720mm
• Trademark：ENWEI
• Origin：China
• HS Code：8479102100
• Production Capacity：500 Piece,Month

Basic Info.

Model NO. TPJ-1.5 Certification ISO9001: 2000, CE Condition New Machine Weight 850kg Power 8kw Moving Speed 0.8-6m/Min Paving Width 2500mm Transport Package Wooden Case Specification 3000*1800*720mm Trademark ENWEI Origin China HS Code 8479102100 Production Capacity 500 Piece/Month

Product Description

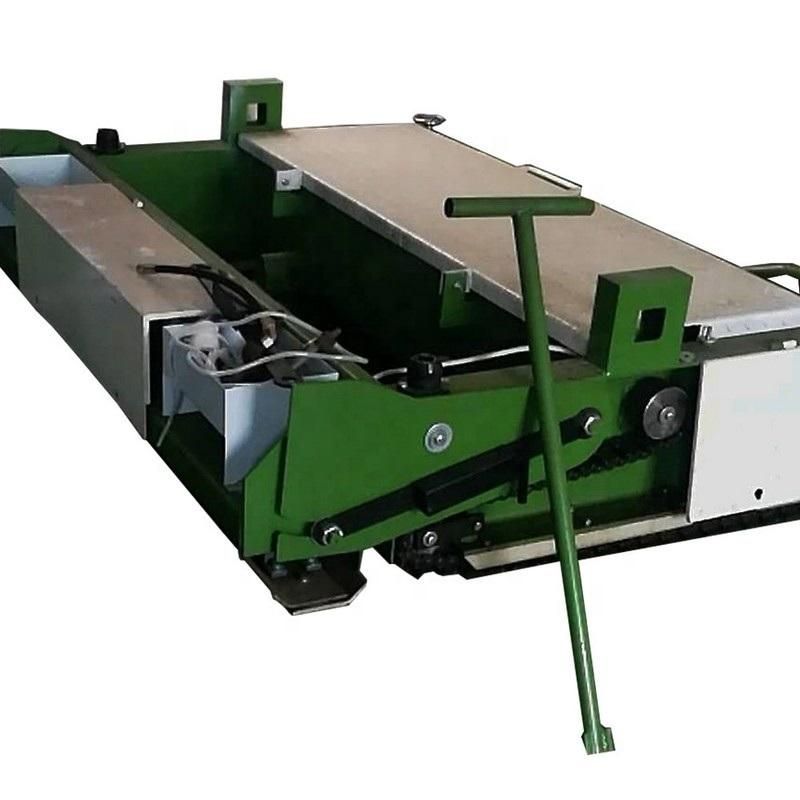

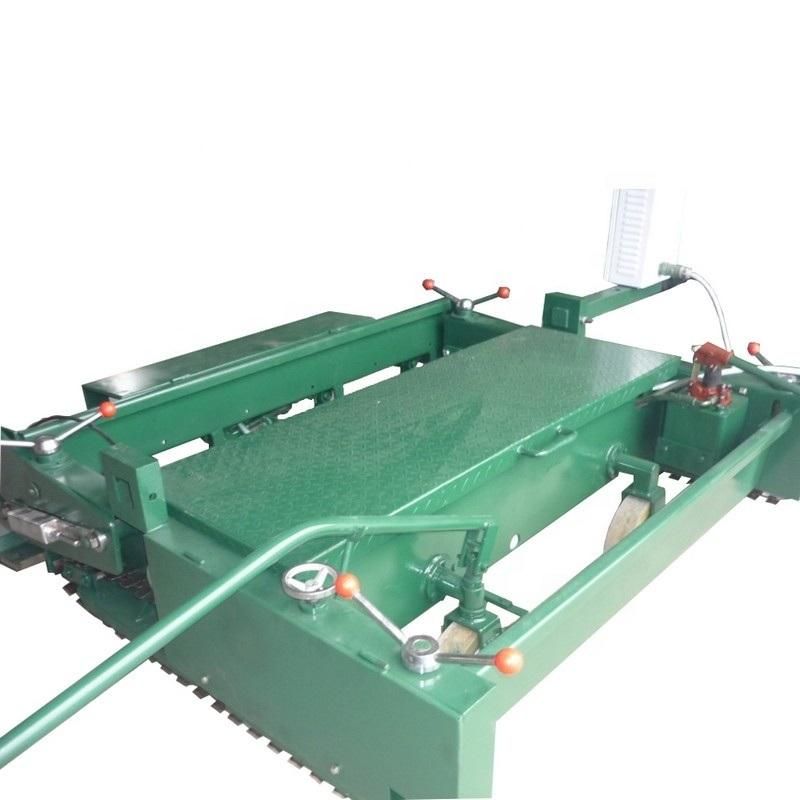

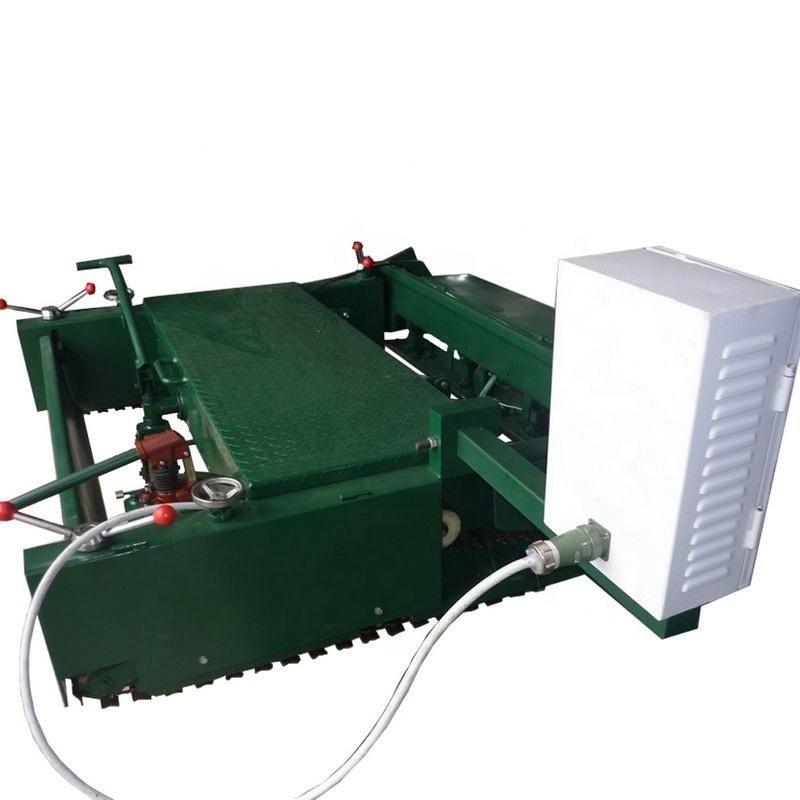

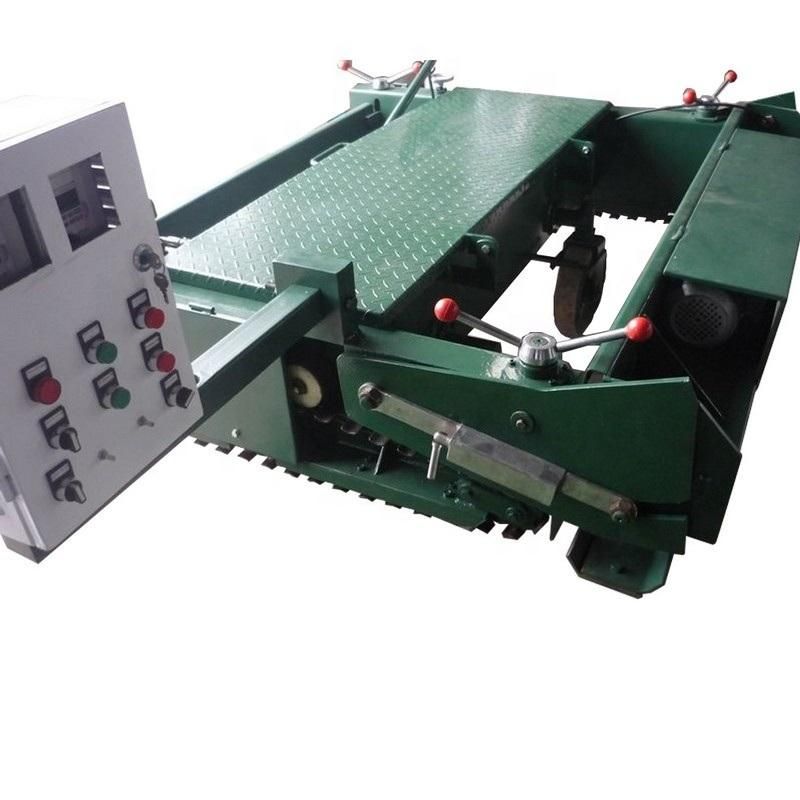

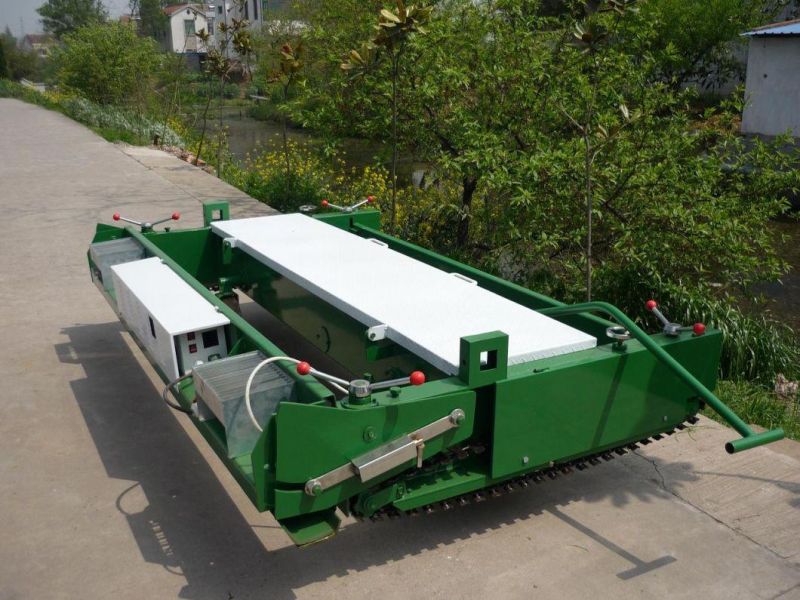

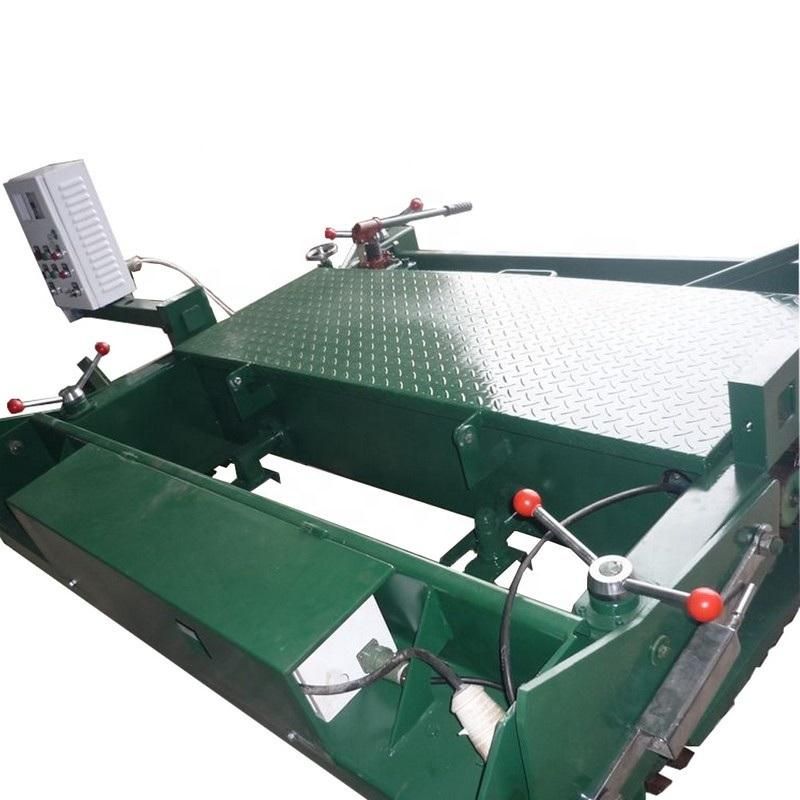

TPJ-2.5 Rubber Paver Machine For Plastic Track

TPJ-2.5-type paver machine is a technology with higher levels of plastic track laying machine, which employs advanced technology and Siemens frequency stepless speed regulation of hydraulic gear to increase their degree of automation built performance of the construction of venues able to satisfy the requirements of the quality of the playing field to achieve target, with high efficiency, low consumption, high-quality and easy operation, with long-term use of authentication, by the majority of users at home and abroad.
Detailed Product Description

Structure&Function:

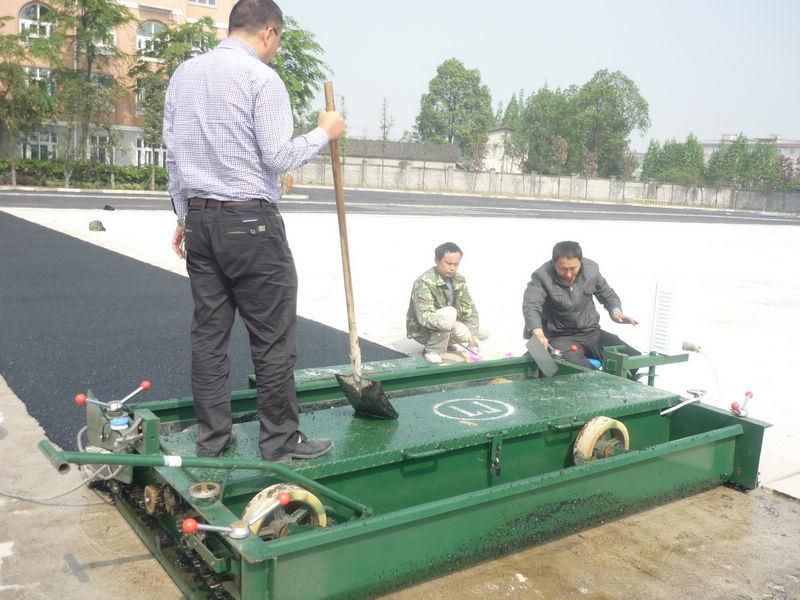

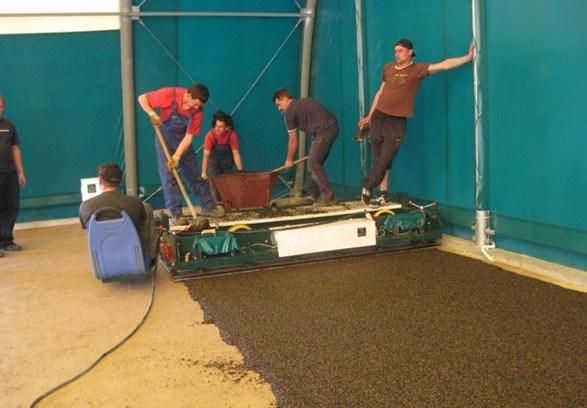

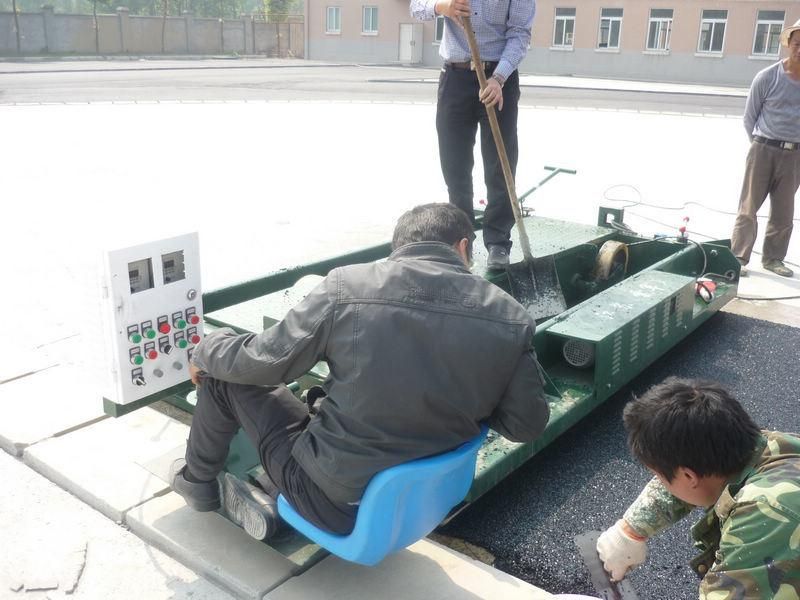

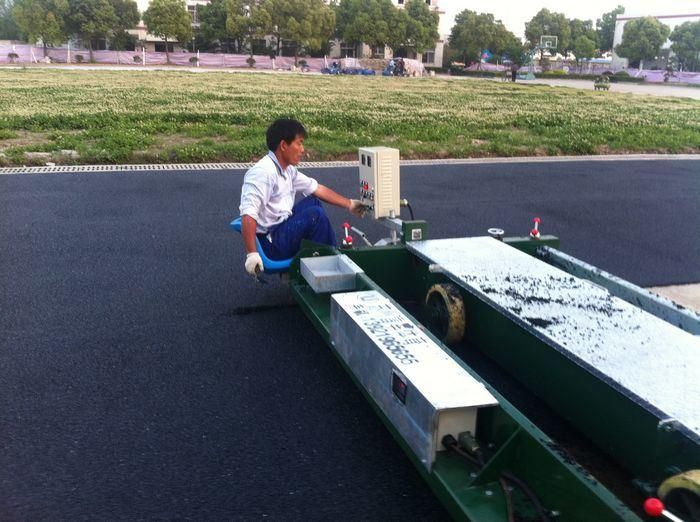

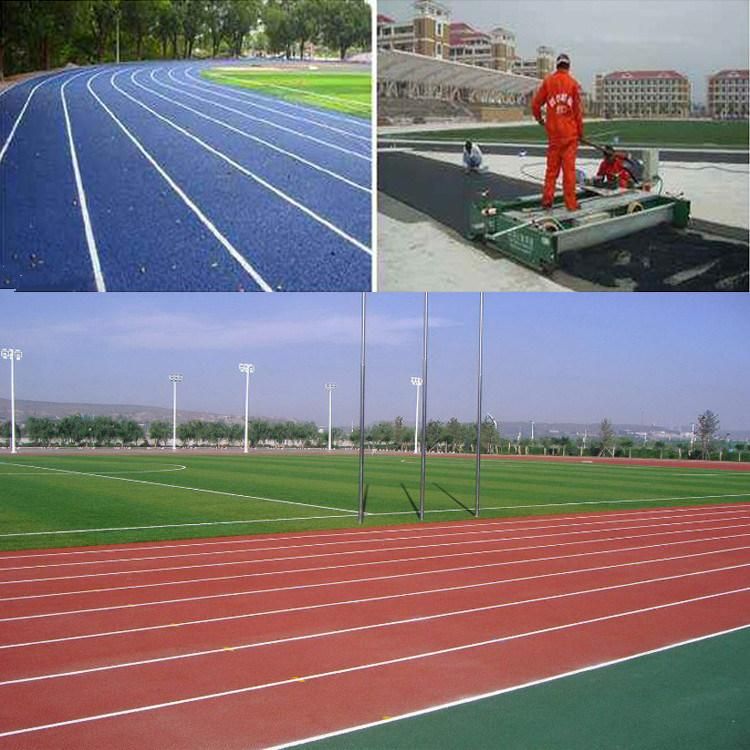

1 Used for spreading, paving the bottom layer of plastic cement stadiums.
2 Framework: with a firm and stable welded H-type structure, and a rust-proof paint layer, it may accommodate any poor condition in the construction site.
3 Front scratch board: welded joint structure, the ground clearance is manually adjustable through a screw, which control the thickness of the floor layer. The width may be adjusted through a limiting board.
4 Driving device: the main driving system is a motor-driven caterpillar chain, with the speed smoothly controlled by a frequency converter, which is feature as stably and precisely moving ahead or back in an motion. It may be equipped with different caterpillar belt for different bottoms.
5 Walking Mechanism: the spreading machine may be manually moved or relocated through a walking mechanism consisting of a hydraulic cylinder and lift.
6 Screed: The screed has four functions, viz. the adjustment of height, angle, temperature, and vibration. The plastic cement material is vibrated, compacted and paves while passing through the
screed.

Product parameters:


Name	Paver machine
Model	TPJ-2.5
Actual Width	About 2800mm
Paving  Width	2500mm
Moving  Speed	0.8-6m/min
Paving   Capability	300 sq.m./h
Power	8kw
Value adjustment of hydraulic system	8Mpa
Temperature adjustment for electric heating board	120 centigrade
Machine  Weight	850kg
Dimension	3000*1800*720mm
