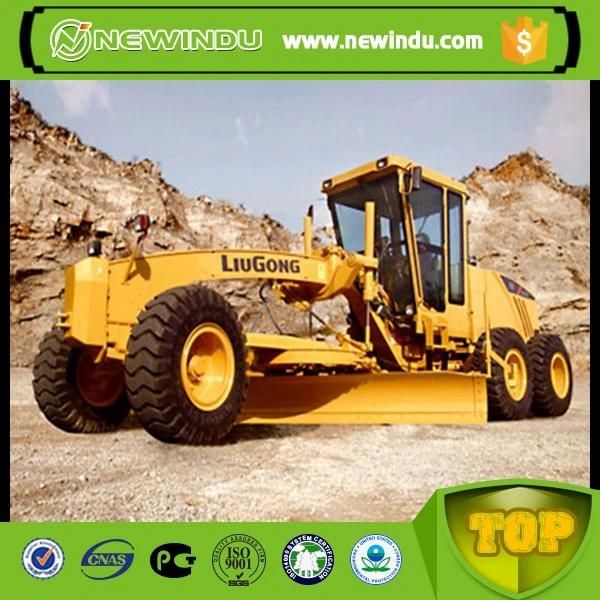

Liugong 215HP Hydraulic Motor Grader Clg4215 for Road Construction
Newindu Construction Engineering (Shanghai) Co., Ltd.- After-sales Service：Online Support
- Warranty：1 Year
- Certification：TUV, UL, ISO, RoHS, CE
- Condition：New
- Application：Railway, Mine, Farmland, Highway
- Transmission：Hydraulic
Base Info
- Model NO.：CLG4215
- Walking Mode：Wheeled
- Type：Medium-sized Grader
- Rated Power：100kw
- Operating Weight：11200kg
- Min. Turning Radius：6.6m
- Engine：Cummins,Weichai
- Transport Package：Comply with Export Packaging Requirements
- Specification：8726*2600*3400mm
- Trademark：Chinese Brand
- Origin：Jiangsu, China (Mainland)
- HS Code：84295100
- Production Capacity：100units,Month
Description
Basic specification
Engine model
6BT5.9
Rated power/speed
100/2200kw/rpm
Dimension(L*W*H)
8015×2380×3050mm
Operating weight(Standard)
11200kg
Performance specification
Travelling speed ,forward
5,8,13,20,30,42km/h
Travelling speed ,reverse
5,13,30km/h
Tractive force(f=0.75)
61.3KN
Max. grade ability
30%
Tire inflation pressure
300kPa
Working hydraulic pressure
16MPa
Transmission pressure
1.3~1.8MPa
Operating specification
Max. steering angle of front wheels
±49°
Max. lean angle of front wheels
±17°
Max. oscillation angle of front axle
±15°
Max. oscillation angle of balance box
16
Frame articulation angle
±27°
Min. turning radius using articulation
6.6m
Blade
Maximum lift above ground
410mm
Maximum depth of cutting
515mm
Maximum blade position angle
90°
Blade cutting angle
54°-90°
Circle reversing rotation
360°
Moldboard width X height
3710×610mm
Photos for Reference
