• Model NO.：PY100
• Walking Mode：Wheeled
• Type：Small Grader
• Overall Weight：6.2 Ton
• Lxwxh：6900X2050X3200mm
• Engine Type：Yu Chai Engine
• Rated Power：85kw
• Gears：Four Forwardfour Reverse
• Tyre Type：16,70-24
• Length of Blade：3000mm
• Transport Package：Nude
• Specification：6900x2050x3200mm
• Trademark：Strongbull
• Origin：China
• HS Code：8429209000
• Production Capacity：5000 Sets,Year

General SpecificationOverall weight6200 kgLxWxH6900x2050x3200 mmEngine YuChaiRated power85 kwTypeInline,water-cooled,four-stroke,direct injectionDetail SpecificationMin.ground clearance of front axle450 mmMin.ground clearance of rear axle410 mmWheel tread1590 mmWheelbase(front/rear)4590 mm  Max. swing angle of front axle±16°Max. steering angle of front wheel±45°Steering angle of articulated frame±23°Blade InformationBlade size (LxHxT)3000x480x18 mmBlade plate diameter1250 mmSteering angle of blade360°Groud clearance of blade450 mmCutting depth of blade260 mmInclination angle of bladeForward 47° backward 5°Sliding range of bladeLeft 550mm right 550mmTransmission SystemMax. speed (Forward/reverse)40km/h   30km/hGearbox typeFixed shaft power stageTorque converterSingle-stage single-phase three-elementGearsForward 4 reverse 4Tire type16/70-24Hydraulic systemOpen type systemPressure16MpaFuel capacity90LHydraulic oil capacity70L

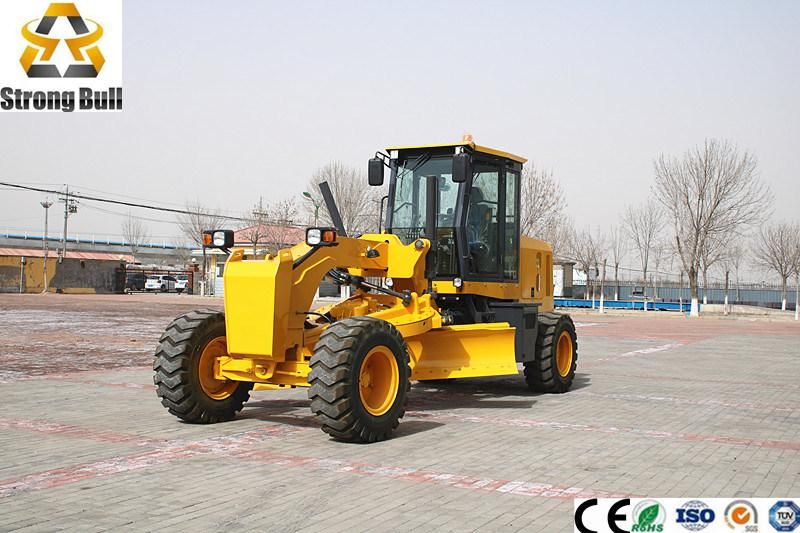

PY9120 motor grader is a kind of multipurpose grader with high speed, high efficiency and high precision. It is based on the advanced technology of Europe, mainly used in road levelling, landscaping, ground smoothing, slope scraping, bulldozing, snow clearing, placing materials, mixing and etc. Applying in highway, airport, road construction, irrigation and water conservancy. Due to the smart form and operation, it is specially used on rural construction and flatting ground of small area. Customers can choose the front bulldozer, the middle bulldozing device, the rear ripper and other appliances if they need. It can meet the diverse needs and have get very high reputation from customers.

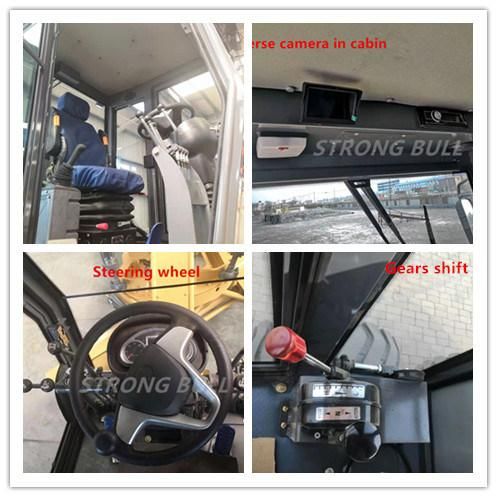

DETAILS INTRODUCTION

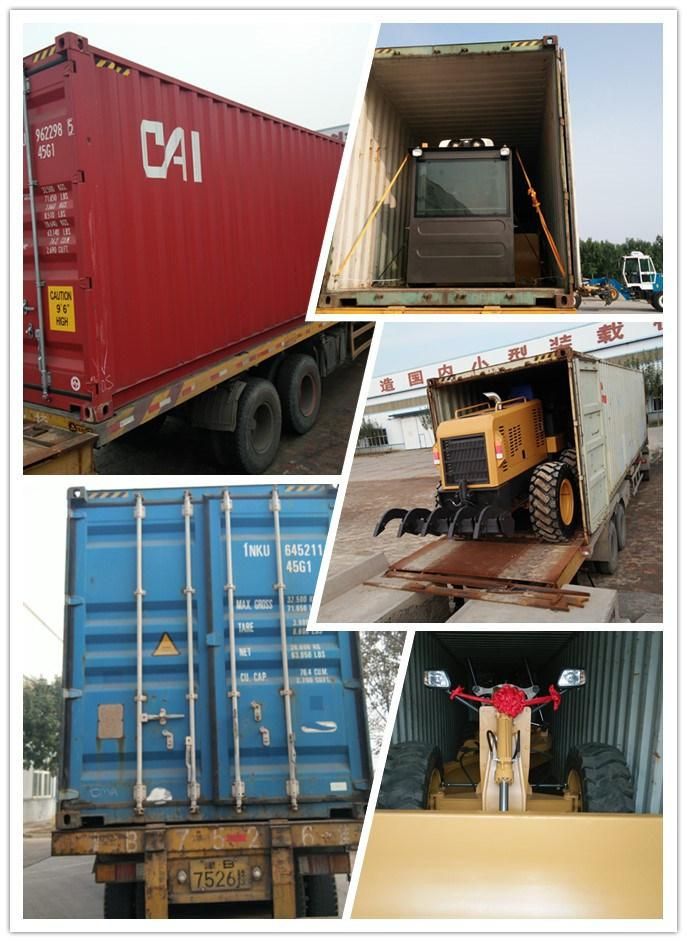

SHIPMENT&DELIVERY
40HC container can load 1 set PY9120 motor garder with the cabin taken off.
Delivery in 20 days after pay deposit

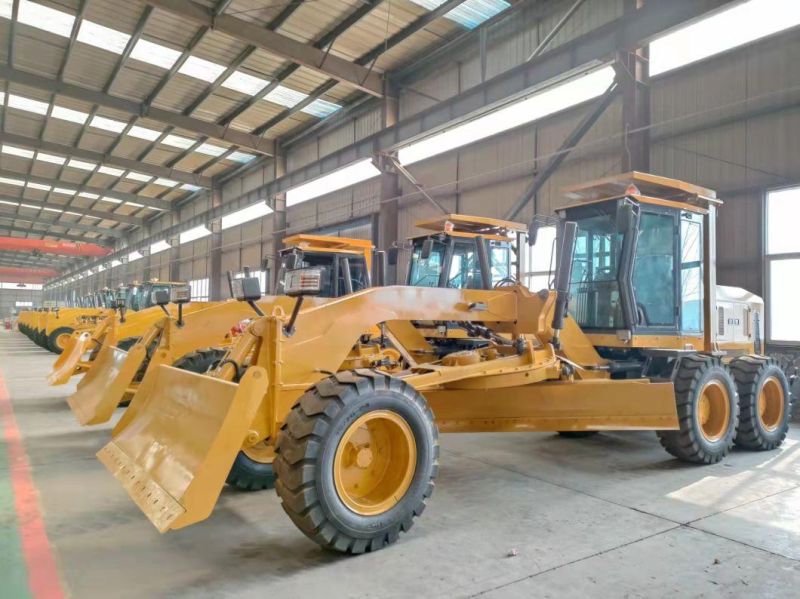

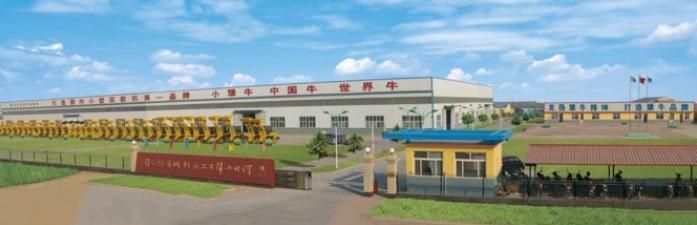

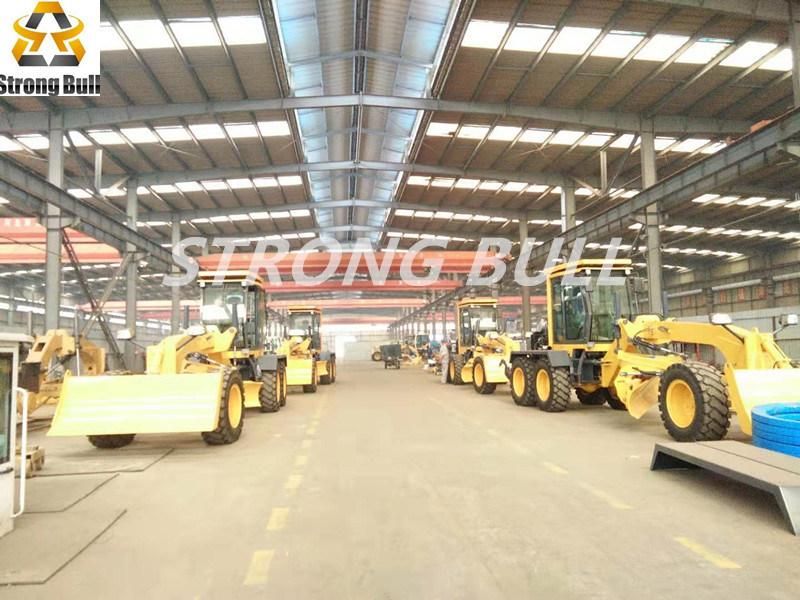

FACTORY SHOW

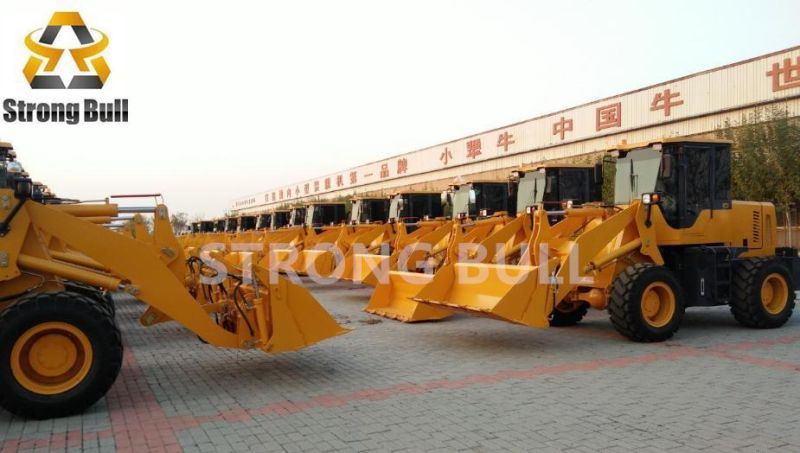

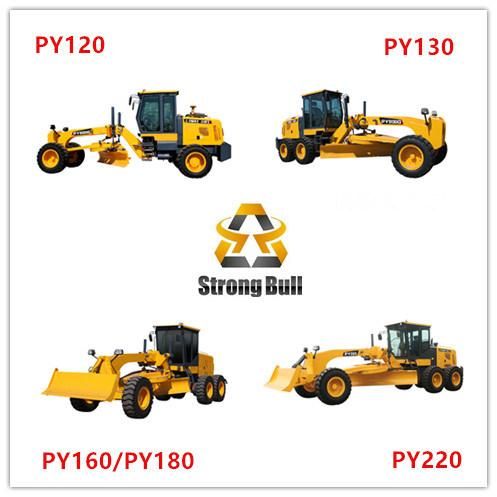

Hebei Xiaojiangniu Engineering machinery Co.,Ltd is a professional manufacture of motor garder from 80HP to 220HP and wheel loader from 800kg to 5000kg. Sincerely hope we can cooperate and welcome to visit our factory!!




MOTOR GRADER HOT SALE ALL OVER THE WORLD
