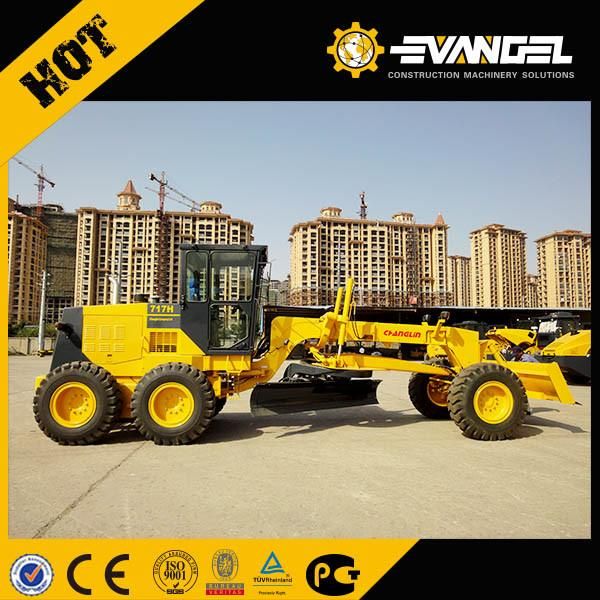

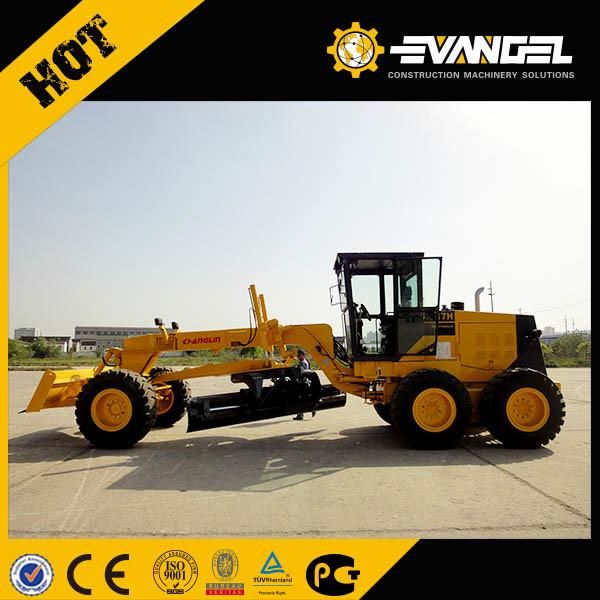

• Model NO.：PY165H
• Specification：CE
• Trademark：Changlin
• Origin：Jiangsu, China
• HS Code：84292090
• Production Capacity：300 Sets,Month

Overall Dimension
Length
8630mm
Width
2600mm
Height(To the top of the cab)
3370mm
Wheel base
6100mm
Tread
2120(mm)
Main Technical Specification
Operating weight
14500kg
Blade length
3660mm
Blade height
645mm
Blade width
18mm
Max lifting height
450mm
Max grading depth
535mm
Min. turning radius
7300mm
Pivot angle frame
+260
Max turning angle(front wheel)
+ 490
Oscillating angle of front axle
320
Front axle center ground clearance
610mm
Traveling speed(Km/h), 6 forward and 3 reverse
(1)  I gear forward
6.5
(2)  II gear forward
11.4
(3) III gear forward
14.6
(4)  IV gear forward
24.8
(5)  Vgear forward
30
(6)  VI gear forward
49.2
(7)  I gear reverse
6.5
(8) II gear reverse
14.6
(9) III gear reverse
30
Diesel engine
Model
Cummins 6BT5.9-C168
Chinese engine D6114ZG9B
Type
Direct injection. Turbocharged. Water cooling
Rated output
125kW
125kW
Inter-bore of cylinder/Stroke
102/120 (mm)
114/135 (mm)
Total exhaust of cylinder
5.9(L)
8.3(L)
Power of start motor
4.5(KW)
7.5(KW)
Voltage of starting motor
24(V)
24(V)
Rated speed
2200(r/min)
2200(r/min)
Max. Torque
733(N. M)
600(N. M)
Starting type
Electric
Electric
Min. specific fuel consumption
201(g/Kw. h)
226(g/Kw. h)
Net weight
452(kg)
640(kg)
Transmission System
1. Torque Converter
Model
WG180 ( technology)
Type
3-elements. single stage
Torque ratio
2.52
Cooling type
Pressure oil circulating
2. Transmission case
Model
WG180 ( technology)
Type
power shift, single-shift lever, natural-shift lock device
Gear shift position
6 Forward and 3 reverse gears
