• Model NO.：PY120
• Walking Mode：Wheeled
• Type：Small Grader
• Machinery Type：Road Construction Machinery
• Other Name：Motoniveladora
• Sale Type：Motor Grader Wholesale
• Engine Model：Weichai or Cummins Engine
• Gears：4 Forward 4 Reverser or Optional
• Operating Weight：7450kg or Customized

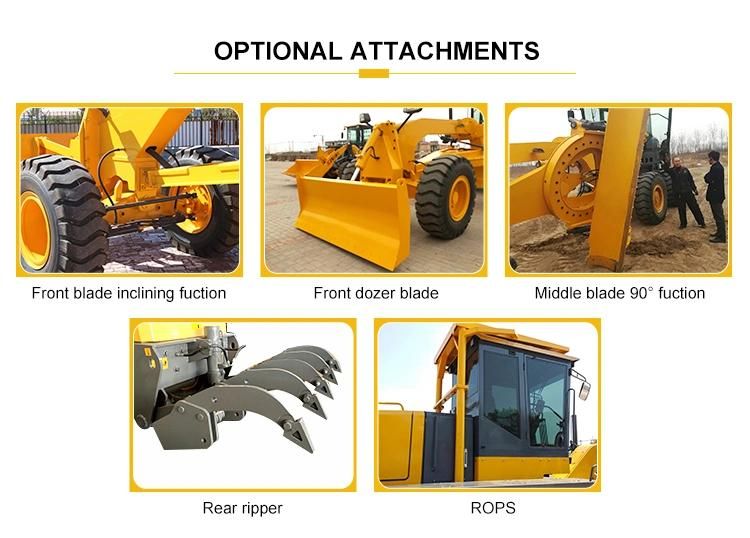

• Optional Attachments：Front Blade, Rear Ripper, Rops&Fops
• Middle Blade Size：3350mm
• Speed：Forward 40km,H, Backward 30km,H
• Tires：16,70-24
• Torque Converter：Hydraulic Torque Converter
• System Pressure：16MPa
• Fuel Tank：160L or Customized
• Hydraulic Oil：110L
• Transport Package：Nude
• Specification：7900*2050*3200mm
• Trademark：Strong Bull
• Origin：China
• HS Code：8429209000
• Production Capacity：5000pieces,Year

Model  PY100PY120PY9140 LxWxH (A*B*C)
mm 6500*2050*30508000*2050*30508500*2200*3250Min.ground clearance of front axle(D)
mm 450450500Ground clearance of rear axle(E)
mm 410410440Wheel tread(F)
mm1590Wheelbase (front/rear)(G)
mm 495061206360Length of blade (H)
mm 304033523658Wheelbase of rear axles(I)
mm -14101510EngineBrand Yuchai or as customer requirementYunnei or as customer requirementDeutz or as customer requirement Rated power/speed
kw/rpm 76/240092/240092/2200Certified capacity
L 4.334.86.75Minimum fuel consumption rate
g/(kw.h) ≤230≤225≤230Overall parametersOverall weight
KG 63007450 Max.swinging angle of front axle
°±16Max.steering angle of front wheel
°±45Steering angle of articulated frame
° ±23±23±25Cutter diameter
mm 125012501500Cutter size (L×H×T)
mm 3040*500*183352*500*183658*590*20Swing angle of blade
° Ground clearance of blade
mm 450Cutting depth of blade
mm260360Inclination angle of blade
°Forward 47/backward 5Forward 40/backward 7Sliding range of blade
mmLeft 475/Right 475Left 550/Right 550Left 550/Right 550Left 600/Right 600Hydraulic systemTypeOpen systemSystem pressure
Mpa16Fill capacityFuel
L 90105180Hydraulic oil
L 7075130 Model PY9160PY9180PY9220  LxWxH (A*B*C)
mm9000*2450*33509000*2450*33509200*2500*3350 Min.ground clearance of front axle(D)
mm560560560 Ground clearance of rear axle(E)
mm500460460 Wheel tread(F)
mm168523502350 Wheelbase (front/rear)(G)
mm684063726372 Length of blade (H)
mm396239624267 Wheelbase of rear axles(I)
mm165015381538 EngineBrandWeichai or as customer requirementWeichai or as customer requirementShangchai or as customer requirement Rated power/speed
kw/rpm105/2200129/2200129/2200 Certified capacity
L6.756.756.75 Minimum fuel consumption rate
g/(kw.h)≤230≤230≤230 Overall parametersOverall weight
KG--- Max.swinging angle of front axle
°±16Max.steering angle of front wheel
°±45Steering angle of articulated frame
°±23±23±23 Cutter diameter
mm150015001500 Cutter size (L×H×T)
mm3962*600*203962*600*204267*600*20 Swing angle of blade
°360Ground clearance of blade
mm450Cutting depth of blade
mm360 Inclination angle of blade
°Forward 40/backward 7 Sliding range of blade
mmLeft 600/Right 600  Hydraulic systemTypeOpen systemSystem pressure
Mpa16Fill capacityFuel
L190 Hydraulic oil
L120

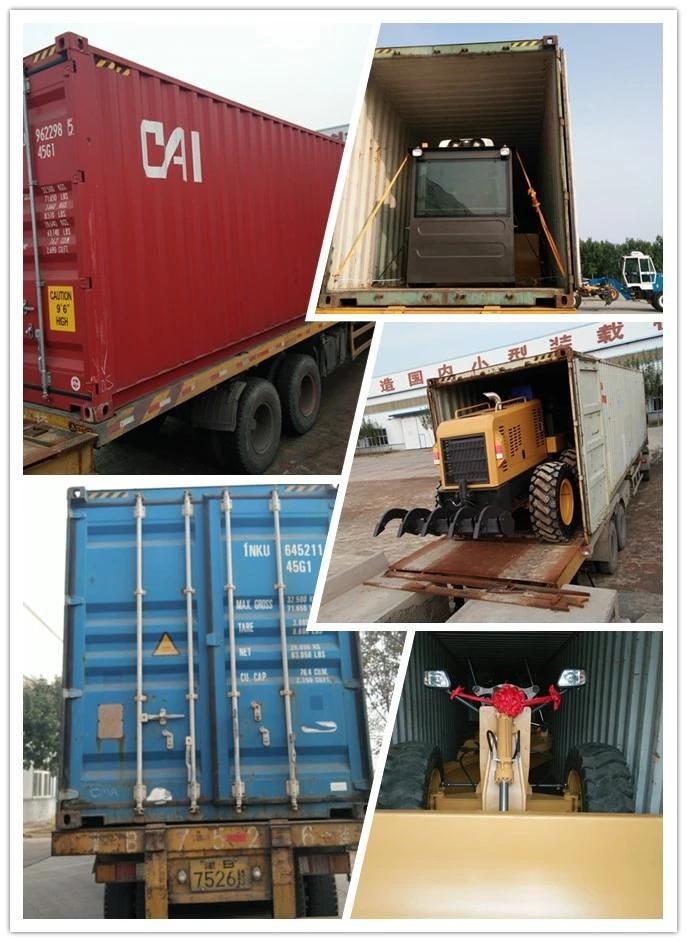

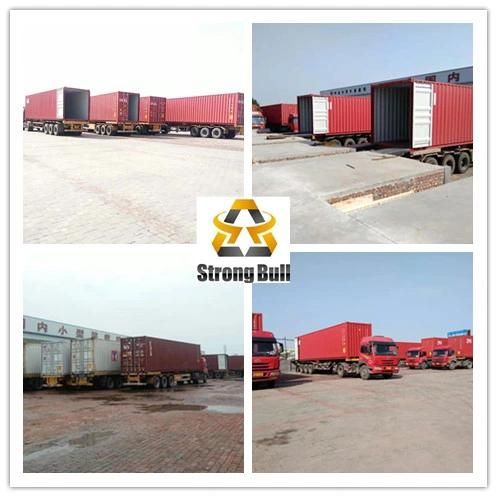

3.  Packing & Shipping

One unit PY120 motor grader can be loaded onto a 40HC container.

4.  Our Exhibitions & Contact Me

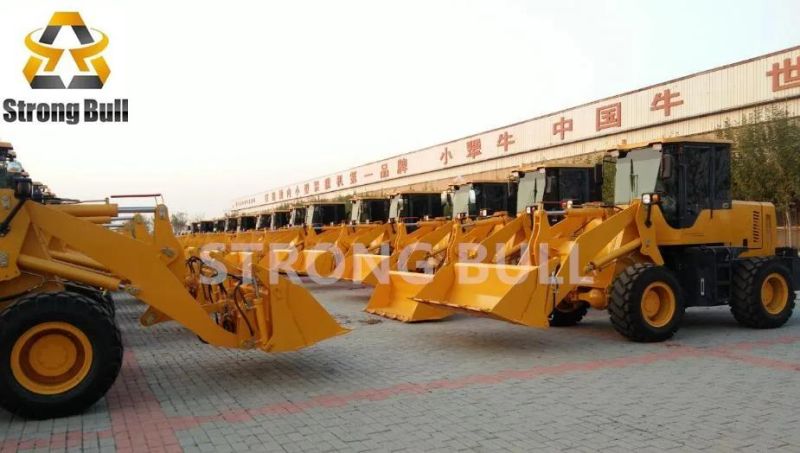

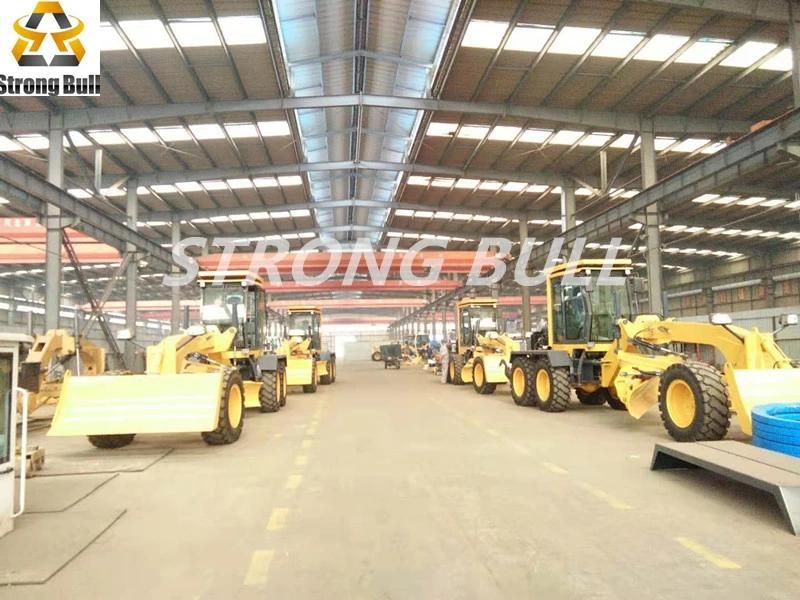

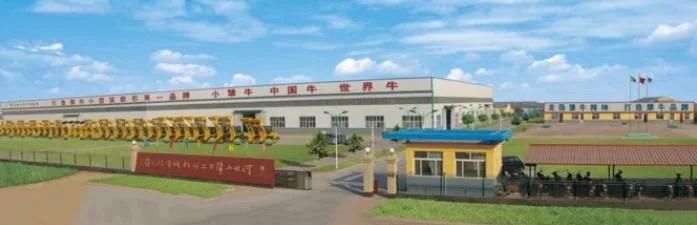

5. Factory showing

Hebei Xiaojiangniu Engineering Machinery Co.,Ltd is located in Huanghua city, Hebei province, very near to Tianjin and Beijing. Our factory is a professional manufacturer of motor grader, wheel loader, all terrain forklift and cold recycling mixer. We have three register brands which are Strong Bull , CGMG and XJN. Our machines are very popular selling all over the world with very good qulity and good after-sale service. Welcome come to visit our factory and sincerely hope cooperation to you!!
