• Model NO.：C-C001. YK02
• Origin：China
• HS Code：9015800090
• Production Capacity：5000

Basic Info.

Model NO. C-C001. YK02 Origin China HS Code 9015800090 Production Capacity 5000

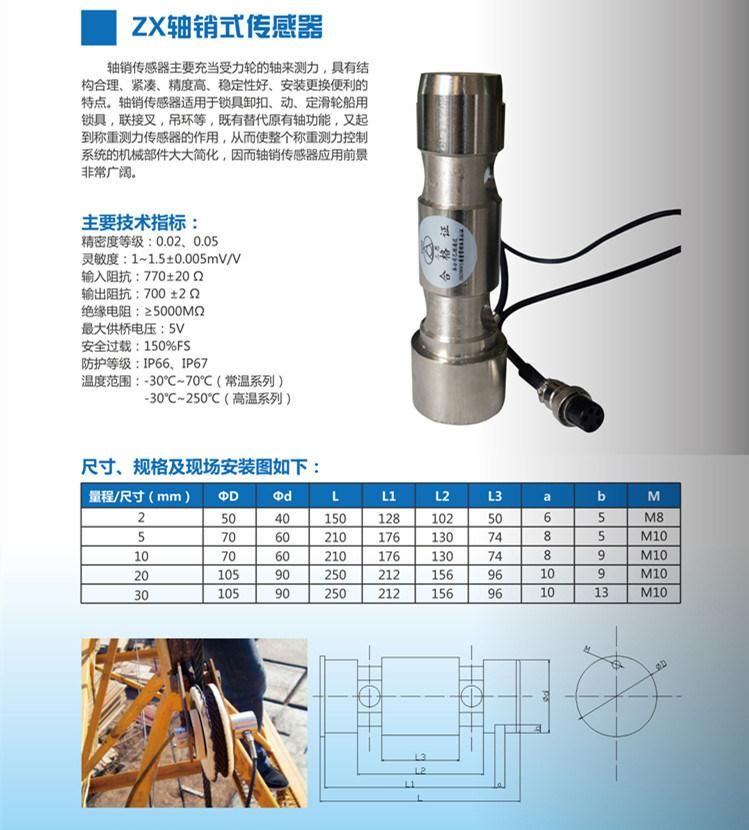

Product Description

Specified load: 10, 15, 20, 25, 30, 40, 50 t temperature's influence on the output: plus or minus 0.02% FS / 10 DHS C

Maximum overload: 250% FS sensitivity: 1.0 + / - 0.005 mV/V

Input impedance: 750 + 20 Ω driving voltage: 10 ~ 12 v DC

Comprehensive error: plus or minus 0.02% FS. Plus or minus 0.03% FS output impedance: 703 + 3 Ω

Biggest driving voltage: 15 v DC creepage distance (30 min) : plus or minus 0.02% FS

Insulation resistance: 5000 m or more Ω sealing IP: IP68

Zero balance, plus or minus 1% FS operating temperature range: - 30 ~ + 70 DHS C

Material: alloy steel zero temperature effect: + 0.02% FS / 10 DHS C
Safety overload: 150% FS cable: Φ 5 mm

The company has a number of mechanical and electrical equipment engineers, experienced, very skillful. Our purpose is to provide clients with high quality products, provide first-class technical services, patient and thoughtful after-sales service, remove trouble back at home for you. The concept of corporate culture is to build a professional team, the honest code of honor, positive enterprising, mutual benefit and win-win.
Focus on the hoisting machinery lifting equipment safety management. China's three major brands OEM load moment indicator system manufacturers. Through our custom WTAU load moment indicator (LMI), the safety monitoring system, the collision system, CCTV camera system, overload limiter, length, Angle sensor, weighing sensor, anemometer, A2B two piece of equipment, etc
