Low Cost Building Passenger and Goods Hoist Small Elevator Price
Shandong Xingdou Intelligent Equipment Co., Ltd.- After-sales Service：Installation
- Warranty：1 Year
- Motor Power：13kw*2, 11kw*3, 11kw*2
- Cage Dimension：3*1.5*2.2m (Changeable )
- Rated Lifting Speed：0-33m,Min, 0-45m,Min, 0-60m,Min
- Max Erection Height：450m
Base Info
- Model NO.：SC100,100
- Mast Section Size：650X650X1508mm (or 800X800X1508mm)
- Mast Section Weight：145-180kg (Double Racks)
- Wall-Tie Adjust Length&Qty：1.9-2.5m(Can Be Adjusted)
- Main Electrical System：Schneider(Can Be Equipped with PLC Fault Sensor )
- Color：Changed
- Voltage：220V-440V,50-60Hz
- Control System：PLC,VFD
- Inverter：with or Without
- Lifting Type：Gear and Rack
- Cable：16,25,35mm
- Rack：M5,M8
- Transport Package：Container
- Specification：40HQ
- Trademark：XINGDOU
- Origin：China
- HS Code：84281090
- Production Capacity：3500 Sets,Year
Description
2x(3x8.5kw)
3x8.5kw
2. Personnel and materials
2x(3x8.5kw)
3x8.5kw
Product Details:
Production process:
Strict material selection- blanking- inspection - welding-inspection- Blasting - inspection -Baking finished or galvanized- inspection -Finished product

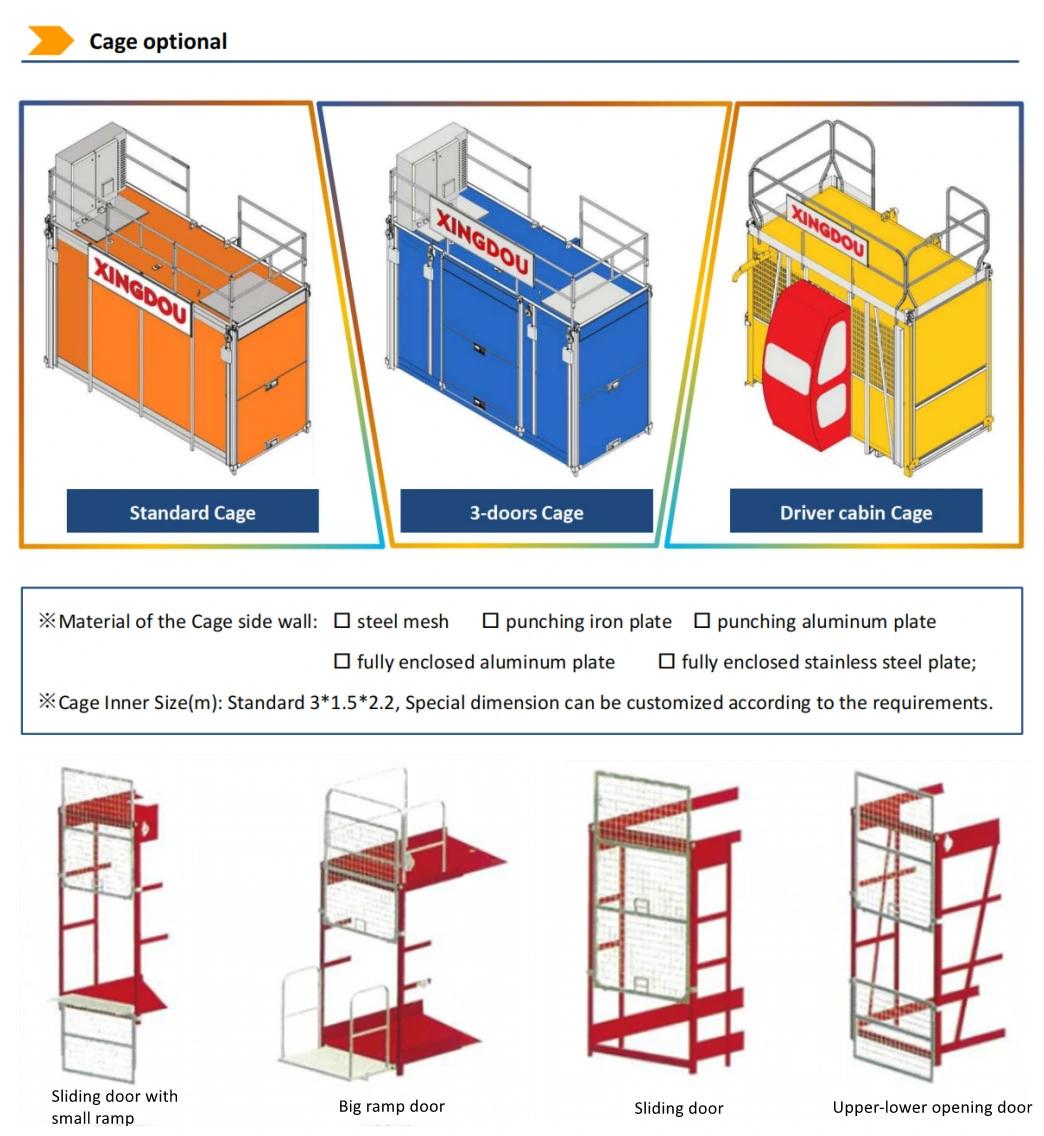

Special design for Cage :
1. bottom and roof of Cage adopt trapezoidal frame
2. Bottom and the roof are full symmetry
3. The plane of symmetry are connected by Bending plate, Bending channel and square pipe which make it firm, straight and balance in use.
4. The wall around cage can be fixed by Punched Aluminium plate, Punched zinc plate, steel wire mesh.
5. Surface Treatment: Blasting, Baking finished,Galvanized
About the mast section
| 1. Steel plates are bented of U-shape to strengthen the mast section. |
| 2. Mast section with galvanized coat or heat spray coat can be chosen. |
| 3. High quality steel plate Q345B bended by special machine: Thickness 4.5mm. |
4. Welded steel tube Q345B and seamless steel tube 20# are also available: Ø76*4.5mm or Ø89*4.5mm |
5. 650*650*1508mm is the most common size fits for clients. Other model of mast section can choose: |
Safety System:
1. Equipping with Anti-falling governor
2. Electrical an Mechanical interlock: Door safety switches, Slack rope switch
3. Safety hook
4. Upper and bottom limit switches, trap door limit switch
5. Overload protector
6. Bottom Buffer
7. Level Calling system and auto leveling device to be choose.
8. Ramp door for (Ex.door of cage).
Certificates:
We own International Certificate and standard CE, ISO9001, EAC, SGS, BV of construction hoist. We export to worldwide every year.
About us:
After nearly 15 years of development, Xingdou already has a sound production and marketing system.

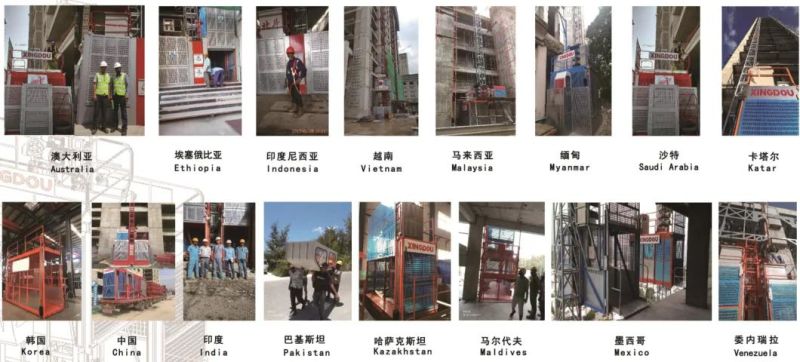

Our customers not only radiated to China, but also opened up our markets in the Middle East, Central Asia, South America, Southeast Asia and other regions. Every year, customers from all over the world came to visit and sign orders. Our products have been well received by customers.

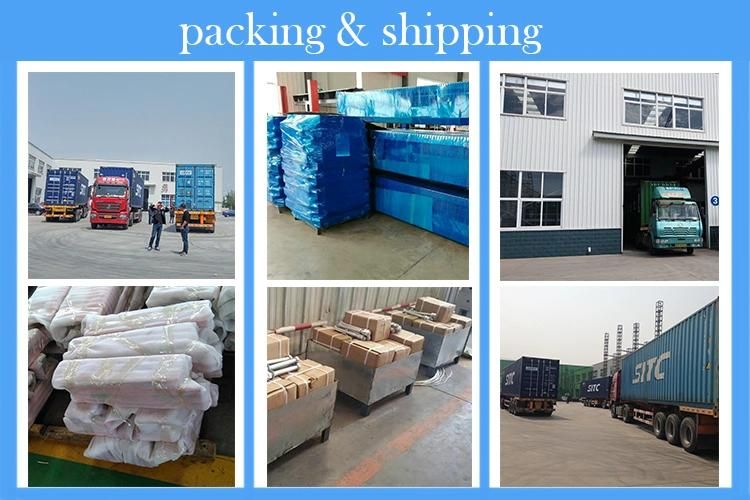

High quality product is the most important matter, but we can not ignore the importance of package. Well package can protect the product from crash, rust ,mess and so on. It is easy for our clients to identify different spare parts, easy loading and unloading. We pay much more attention to the details...
Below photos is our real package site and high praise by our clients.
After-sale services
| 1.Quality Assurance: Good quality is assured by advanced manufacturing technology.and all products will be checked by our quality-control manager. |
| 2.Excellent Package: We provide standard,strong,protective package for our products to prevent is from outer damage. |
| 3.Quickly Response: Detailed information,specific model and price of price of products will be provided quickly after receiving your inquiry. |
Welcome to visit our factory!
