• Model NO.：YN938G
• Type：Medium-sized Loader
• Capacity：1.8 M3
• Rated Load Capacity：3000 Kg
• Dumping Clearance：3000 mm
• Dumping Reach：1105 mm
• Max. Break Force：120 Kn
• Max. Drawing Force：96 Kn
• Max. Grade Ability：30°
• Engine Power：92 Kw,2300 Rpm
• Overall Dimensions：6910*2510*3100 mm
• Whole Operating Weight：10200 Kg
• Transport Package：Naked
• Specification：6910*2510*3100 Mm
• Trademark：YINENG
• Origin：Taian City, Shandong Province, China
• HS Code：8429510000
• Production Capacity：300PCS,Month

Basic Info.

Model NO. YN938G Type Medium-sized Loader Capacity 1.8 M3 Rated Load Capacity 3000 Kg Dumping Clearance 3000 mm Dumping Reach 1105 mm Max. Break Force 120 Kn Max. Drawing Force 96 Kn Max. Grade Ability 30° Engine Power 92 Kw/2300 Rpm Overall Dimensions 6910*2510*3100 mm Whole Operating Weight 10200 Kg Transport Package Naked Specification 6910*2510*3100 Mm Trademark YINENG Origin Taian City, Shandong Province, China HS Code 8429510000 Production Capacity 300PCS/Month

Product Description

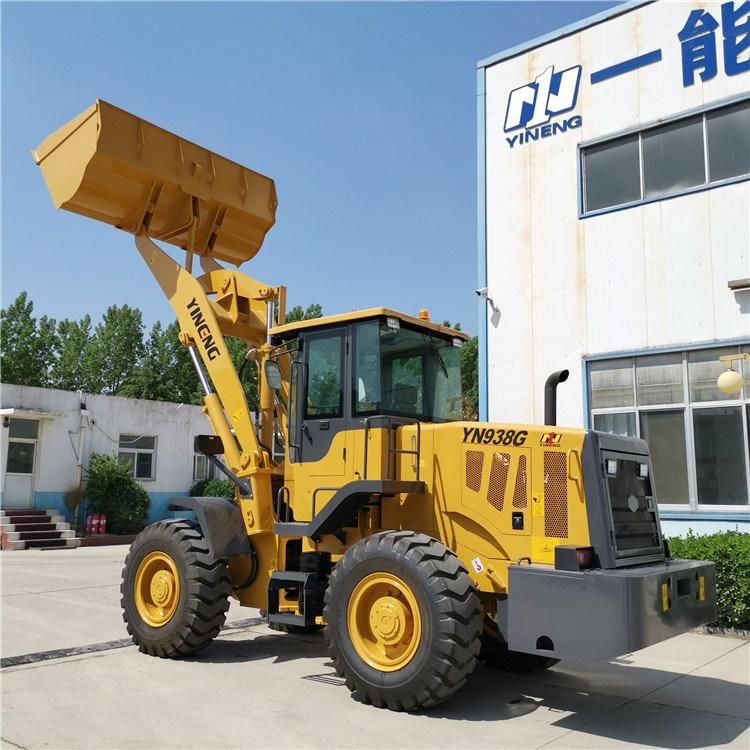

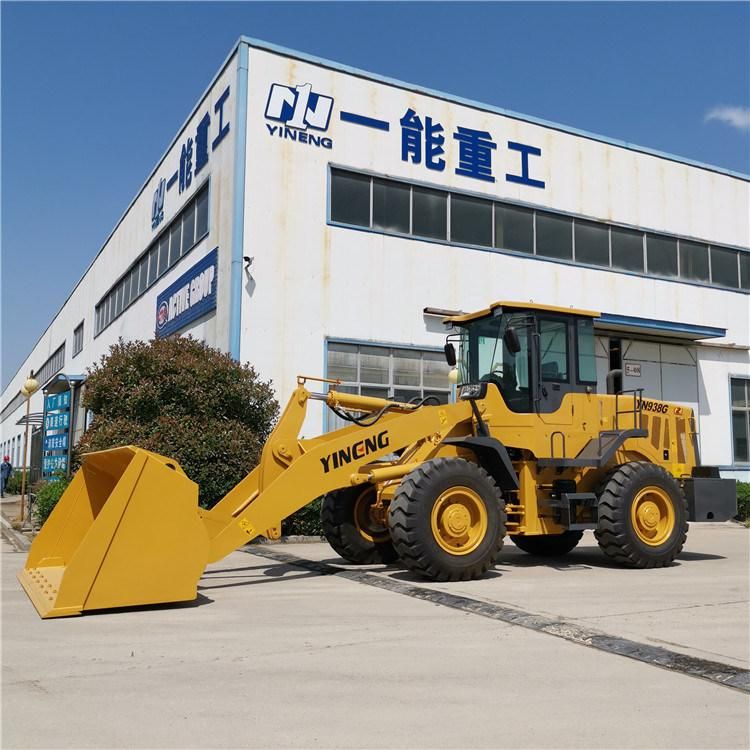

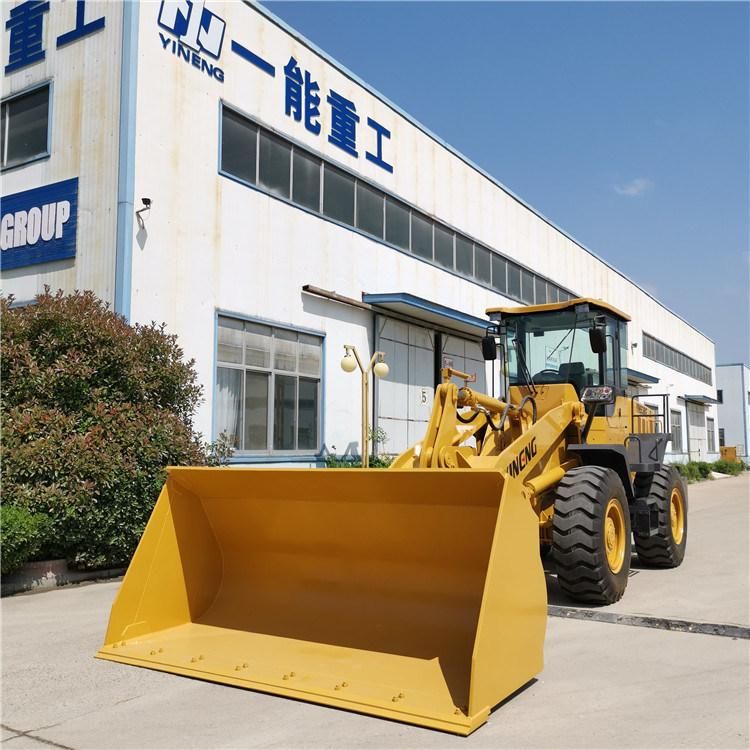

3 Ton Yineng Brand New YN938 Loader

* Weichai DEUTZ diesel engine, higher power and reliability.
* Hangzhou Advance Gear Group ZL50 double-turbine hydraulic torque converter with reasonable structures and higher reliability make the loader obtaining more drawing force.
* Gear-shift with 2 forward and 1 reverse controlled by flexible shaft eases much labor.

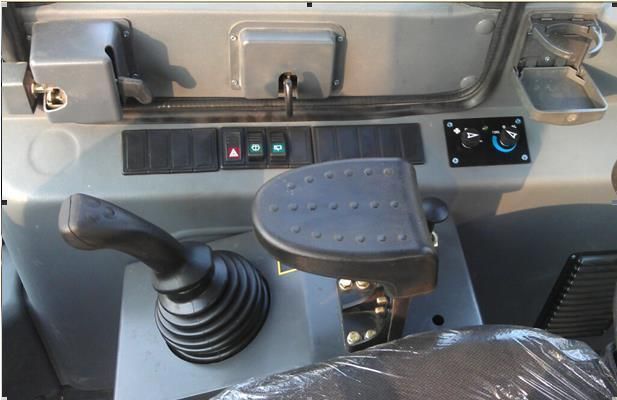

* Single lever joystick control system, comfortable and flexible operation.
* Single pump, split flow working hydraulic system realizes the excellent fuel economy.
* Double sealed hydraulic pipeline joints with 24° Awl and O ring of international standard, avoiding oil leakage;
* Fully hydraulic load sensing steering system, flexible operation and higher reliability.
* Air over hydraulic disks on four wheel brakes.

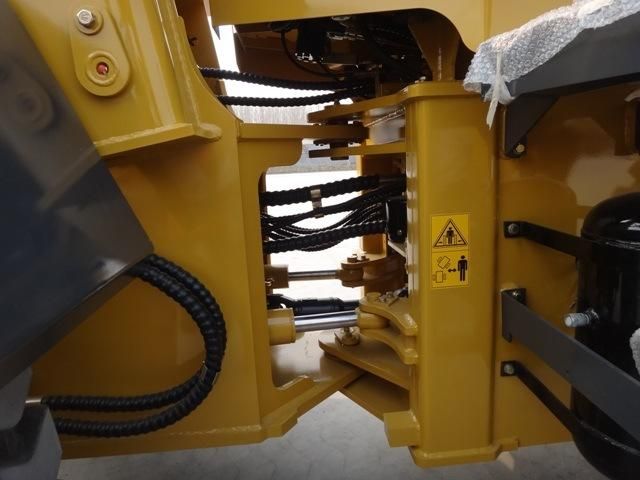

* Large space articulated frames make operation and traveling stable.
* Working device with automatically levelling ability at high position.
* Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.

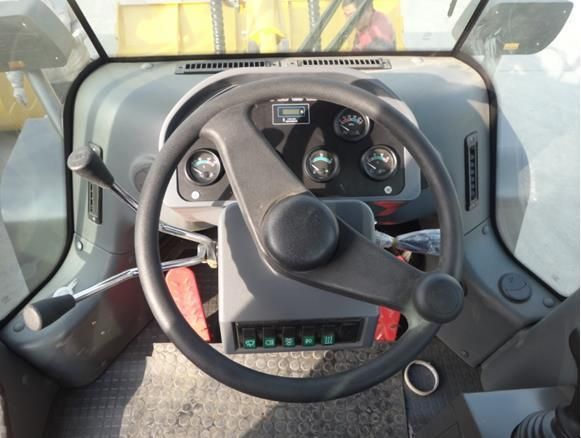

* Integral, luxury instrument board.
* New, luxury cabin.

OPTIONALS:
(1) DongFeng Cummins 6BT5.9-C130 (97kw),
(2) A/C
(3) Quick Hitch
(4) Fork
(5) ROPS

Item	Specifications	Item	Specifications
Capacity	1.8 m 3	Turning radius (outside of rear wheel)	5160 mm
Rated load capacity	3000 kg	turning angle	36º each direction
Dumping clearance	3050 mm	Min. ground clearance	380 mm
Dumping reach	1105 mm	wheel base	2700 mm
Bucket lifting time	5.5 S	wheel tread	1865 mm
Total cycle time	10 S	Engine	WP6G125E22
Max. speed	36 km/h	Engine power	92 kW/2300 rpm
Max. break force	120 kN	Tyresize	17.5-25
Max. drawing force	96 kN	Overall    Dimensions	6910*2510*3100 mm
Max. grade ability	30°	Whole operating weight	10200kg

Company Profile

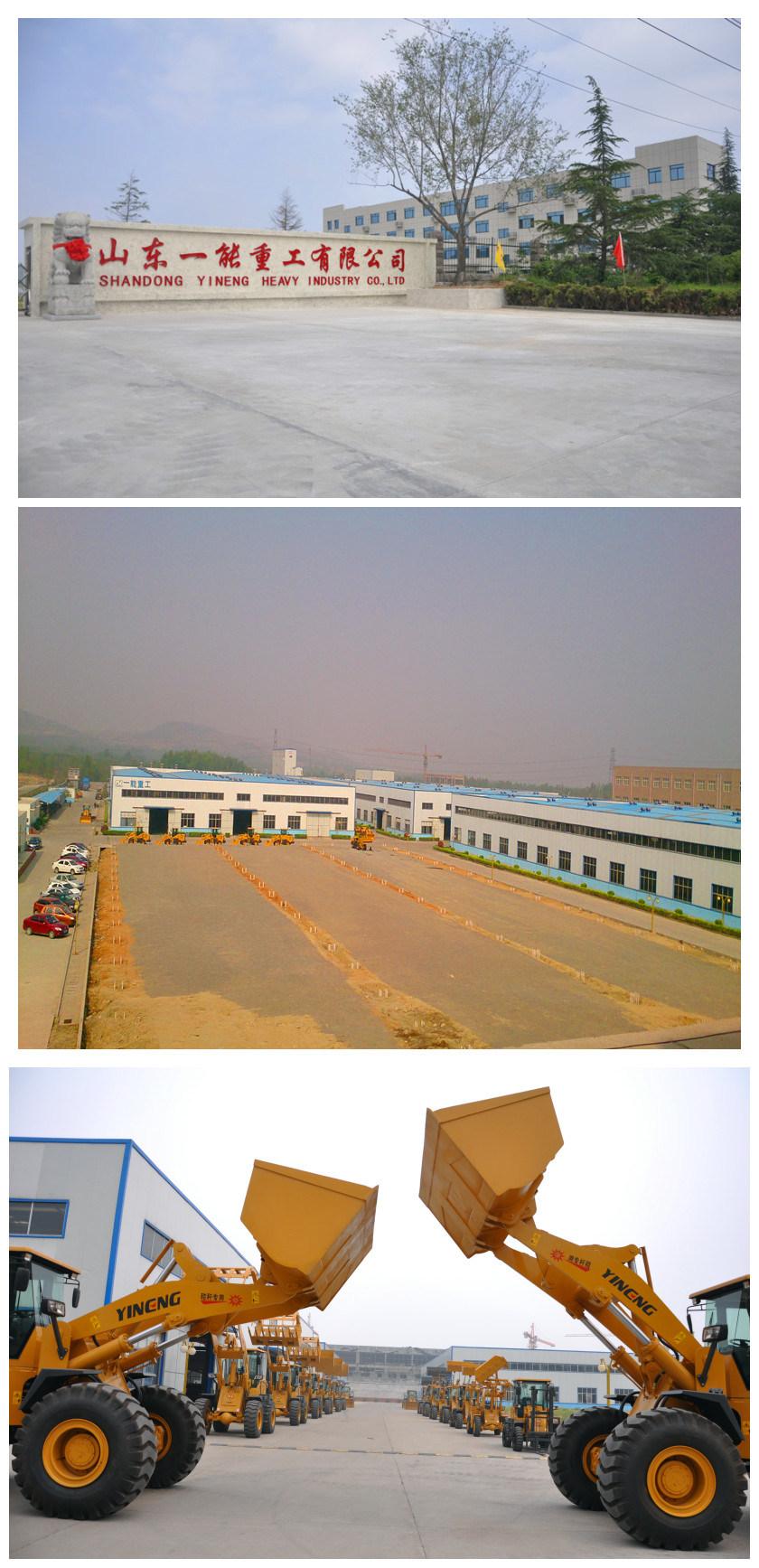

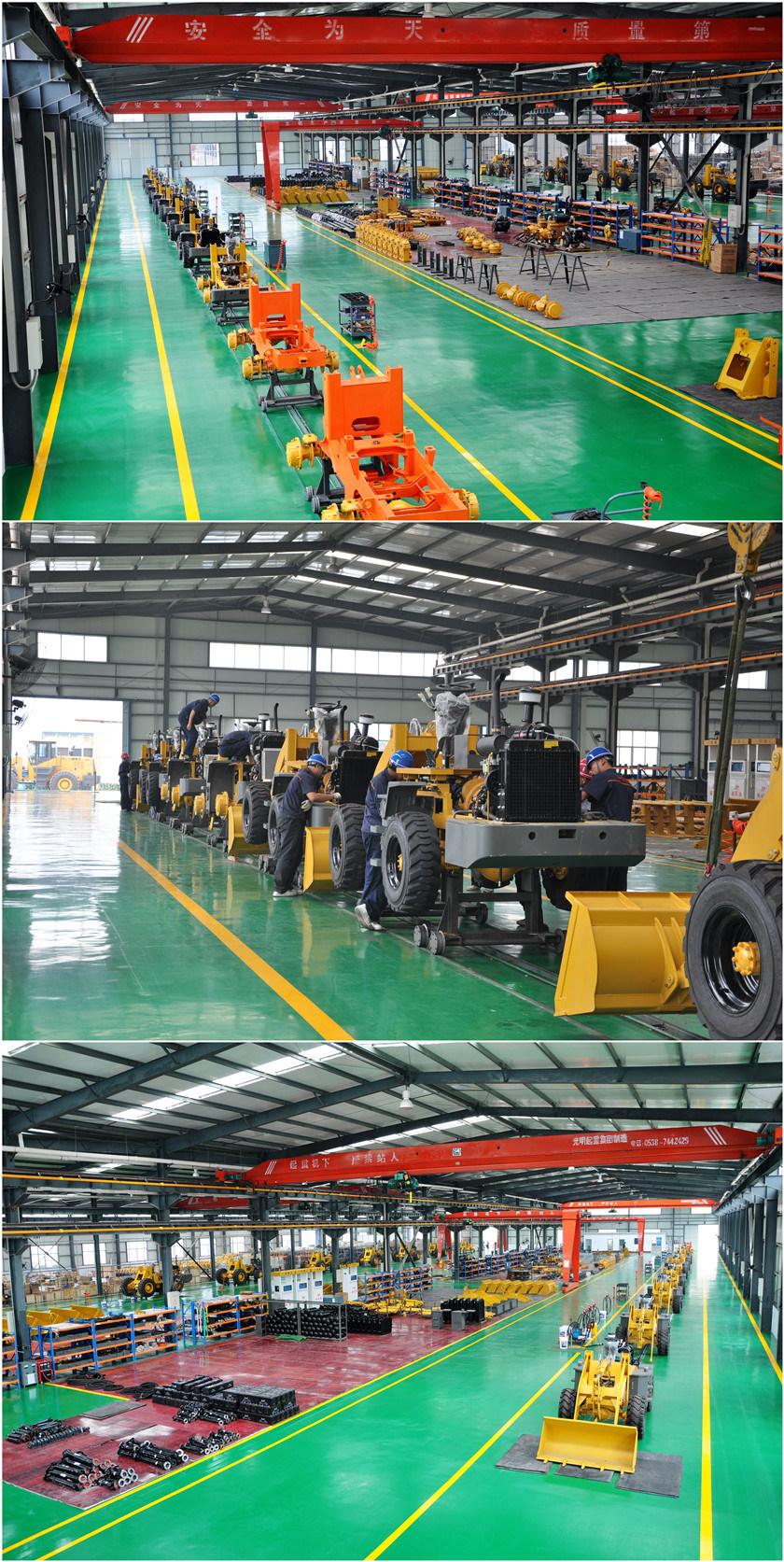

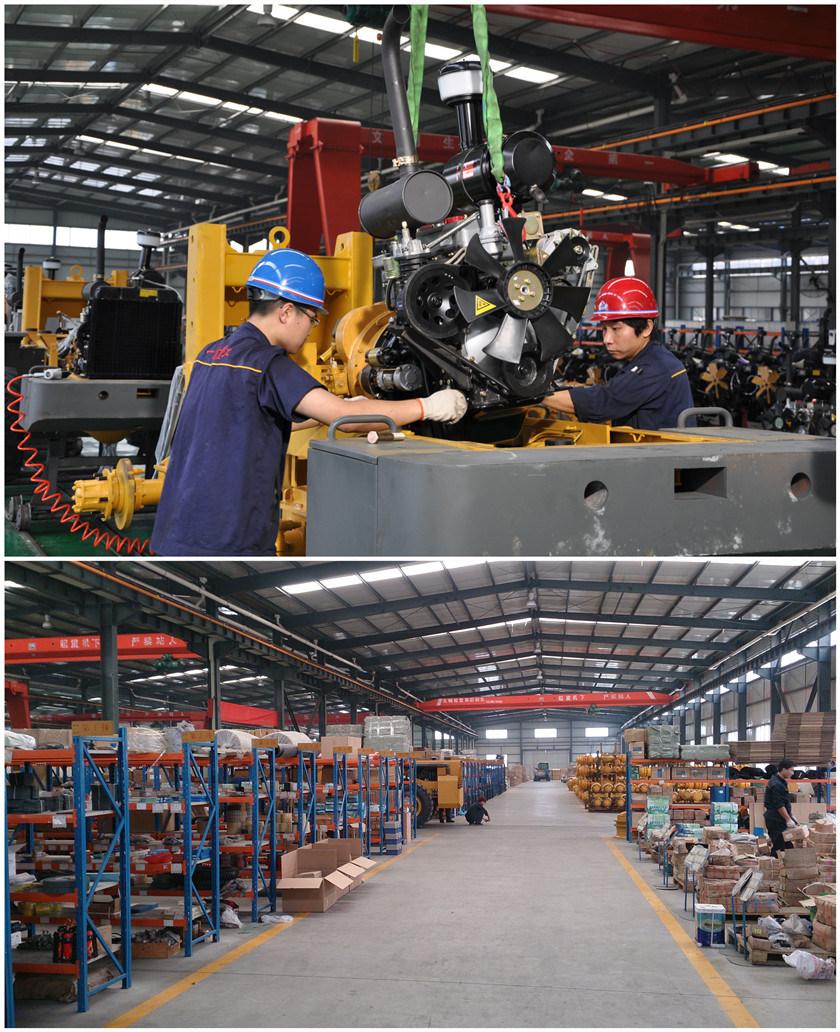

Founded in 1999, Shandong Yineng Heavy Industry Co., Ltd is a large-scale construction and agricultural equipment manufacturing enterprise integrating R&D, production and sales. The company has more than 400 employees, 8 senior engineers and 12 professional technicians. The products cover wheel loaders, underground mining machine, grass grabber, off-road forklift and etc, with 7 series, more than 100 models and equipment in total. Yineng has passed the ISO9001:2000 international quality management system certification and assessment of State Engineering Machinery Quality Supervision & Testing Center.
The company has been invited to participate in large-scale international exhibitions such as the Canton Fair, the Hanover Agricultural Machinery Exhibition in Germany, and the Bauma Fair for more than ten years. With first-class technical standards, top-notch manufacturing processes and personalized customization services, Yineng has established a broad customer network around the world, with customers all over Germany, Russia, Brazil,  Saudi Arabia, Australia, Thailand, South Africa, etc. More than 40 Many countries and regions.
