• Model NO.：SD32D
• Engine Power：147~515kw
• Certification：CE, ISO9001: 2000
• Condition：New
• Color：Orange
• Machine Weight：34100
• Dozing Capacity：10.5 Semi-U
• Type of Ripper：Single Shank,Three Shanks
• Gradeability：30
• Horsepower/Rpm：257,2000
• Emission：China I
• Maximum Torque：1440,1400
• Ground Pressure：83
• Minimum Turning Radius：3800
• Unique Selling Point：High Digging Power
• Maximum Digging Depth of Ripper：1250,842
• Maximum Lifting Height of Ripper：1590
• Fuel Tank Capacity：640
• Engine Model：Nta855-C360s10
• Moving Type：Crawler Bulldozer
• Transport Package：Nude
• Specification：8650*4130*3760
• Trademark：SHANTUI
• Origin：China
• HS Code：8429119000
• Production Capacity：5000pices,Year

PRODUCTSD32DDESERTPERFORMANCE PARAMETERSOperatiing   Weight (kg)34100Rated horsepower (kw/hp)257/345Minimum turning radius (mm)3800Ground pressure (kpa)83ENGINEModelNTA855-C360S10EmissionChina   ITypeIn-line,direct   injection,water cooled,4-cycles,turbochargedNo.of cylinders×Bore×stroke (mm×mm)6×140×152Piston displacement (L)14Horsepower/rpm (kw/rpm)257/2000Maximum torque (N.m/r/min)1440/1400DIMENSIONSLength(mm)8650Width(mm)4130Height(mm)3760TRAVELING PERFORMANCEForward/Reverse(km/h)F1:0-3.6
    F2: 0-6.6
    F3: 0-11.5
    R1:0-4.4
    R2: 0-7.8
    R3: 0-13.5Gradeability(deg)30Clearance(mm)500TRANSMISSIONTorque   convertor 3-element, single stage, 1-phaseGear boxPlanetary   gear and powershift transmission, hydraulically actuated, forced lubricationMain driveSpiral   bevel gear, single-stage speed reduction, splash lubricationSteering clutchWet   multiple disc,coned disc spring loaded, hydraulically actuated, hand   operated,interconnected with steering brakeBrake Wet, contracting band,foot operated with   hydraulic boosterFinal driver spur gear,double reduction ,splash   lubricationUNDERCARRIAGESuspensionSwing   type of sprayed beam,suspended structure of equalizer barTrack gauge (mm)2140Shoe width (mm)560Track length on ground (mm)3150Number of shoes (each side)41Pitch (mm)228.6Carrier rollers (each side)2Track rollers (each side)7WORKING HYDRAULIC SYSTEMPressure   (MPa)14Working pumpGear   pumpValveMulti-way   valveBore of blade lift cylinder (mm)140Bore of blade tilt cylinder (mm)225TANK CAPACITYFuel   tank capacity (L)640Working hydraulic tank capacity (L)97WORKING EQUIPMENTBlade   width (mm)4130Blade height (mm)1710Blade capacity (m³)10.5(Semi-U)Max.Drop below ground of blade1560Lift height of blade560Type of ripperSingle   shank/Three shanksMaximum digging depth of ripper (mm)1250/842Maximum lifting height of ripper (mm)1590

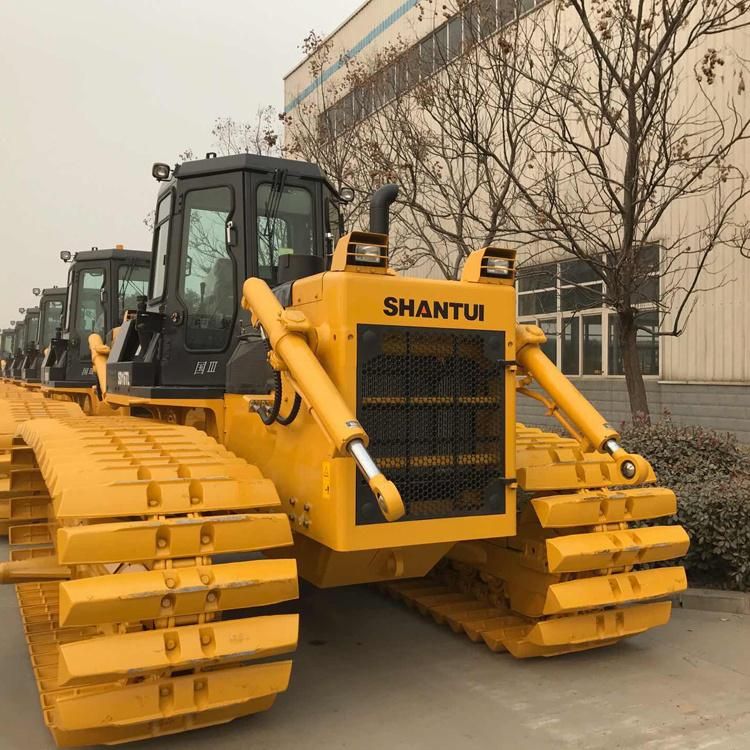

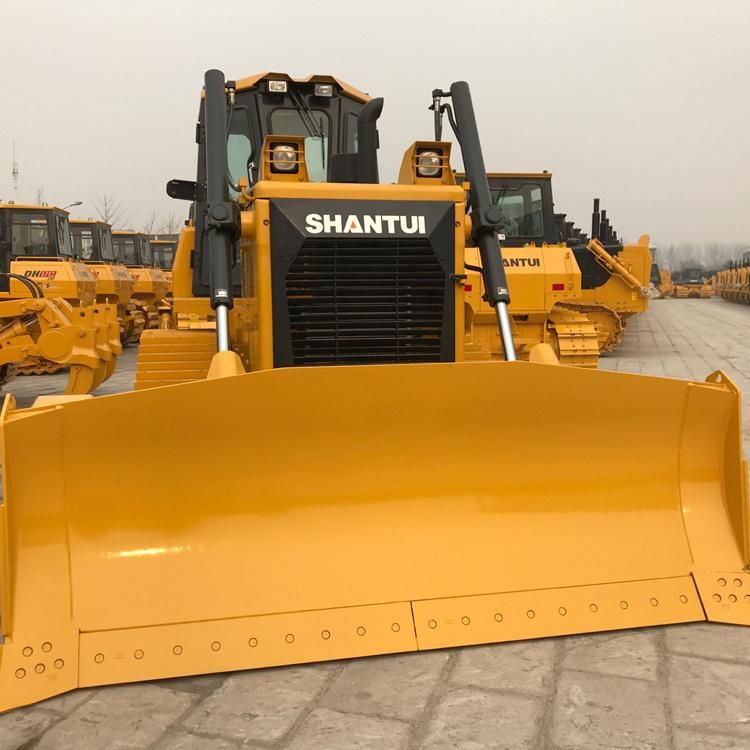

Detailed Images
