• Model NO.：SG14
• Walking Mode：Wheeled
• Type：Medium-sized Grader
• Engine Model：Cummins 6btaa5.9-C160
• Minimum Turning Radius(mm)：6600
• Wheel Base(mm)：5802
• Max.Traction(Kn)：86
• Max.Cutting Depth(mm)：500
• Operating Weight(Kg)：11600
• Blade Width(mm)：3660
• Blade Height(mm)：610
• Max.Lifting Height(mm)：460
• Min.Ground Clearance(mm)：430
• Working Hydraulic System Pressure(MPa)：16
• Brake System Pressure(MPa)：10
• Transport Package：Nude
• Specification：9130*2600*3400 mm
• Trademark：Shantui
• Origin：Shandong, China
• HS Code：84292090
• Production Capacity：10000 Units,Year

Basic Info.

Model NO. SG14 Walking Mode Wheeled Type Medium-sized Grader Engine Model Cummins 6btaa5.9-C160 Minimum Turning Radius(mm) 6600 Wheel Base(mm) 5802 Max.Traction(Kn) 86 Max.Cutting Depth(mm) 500 Operating Weight(Kg) 11600 Blade Width(mm) 3660 Blade Height(mm) 610 Max.Lifting Height(mm) 460 Min.Ground Clearance(mm) 430 Working Hydraulic System Pressure(MPa) 16 Brake System Pressure(MPa) 10 Transport Package Nude Specification 9130*2600*3400 mm Trademark Shantui Origin Shandong, China HS Code 84292090 Production Capacity 10000 Units/Year

Product Description

road construction machinery price     Xs143j Shantui 140hp Grader Sg14 Product Description:
Power system
The Cummins engines and the SDEC engines have reliable and energy-efficient performance.

Drive system
The hydraulic transmissions with 6-gear electric control and from Z*F technologies have the reasonable speed ratio. In addition, the three working gears are available, ensuring the working reliability and flexibility.

Front framework
The box structure welded with the whole plate has the high strength.

Working equipment
SG14 graders are the only ones of which slewing systems adopt the internal gear rings, able to quickly and safely rotate the machine body under the loaded conditions.

Connecting-type swing frame
Easy operation, anti-impact, applicable to operation of great volume in adverse environment.

Brake system
The system is equipped with the international advanced technologies in hydraulic brake control and the famous hydraulic elements, ensuring the brake reliability.

Articulated frame
This frame equipped with the full hydraulic front-wheel steering has the smaller turning radius and flexibility.

Performance Parameters:

Length × width × height (mm)	9130×2600×3400	Operating weight (t)	11.6
Engine model	6BTAA5.9-C180 SC8D190.1G2	Rated power(kW/rpm)	132(180HP)/2200 140(190HP)/2300
Vehicle speed (km/h)	5.4~39.7	Minimum turning radius (mm)	7800
Blade dimension (mm)	3660/635	Rated working pressure (MPa)	16

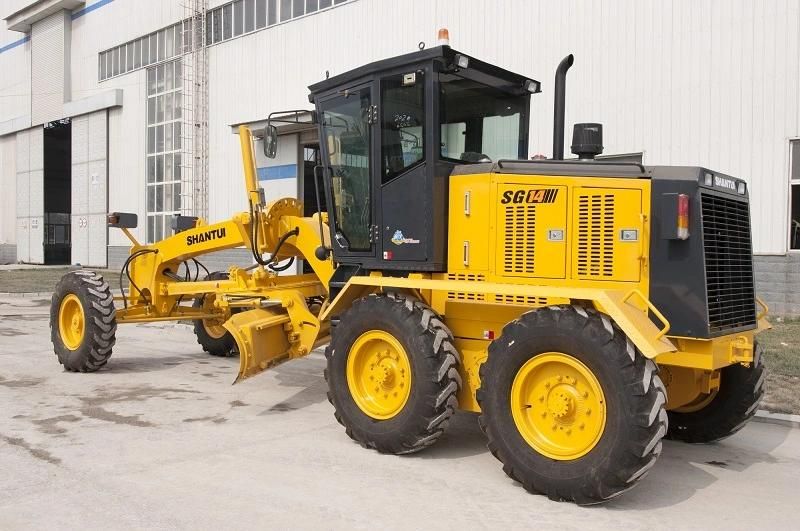

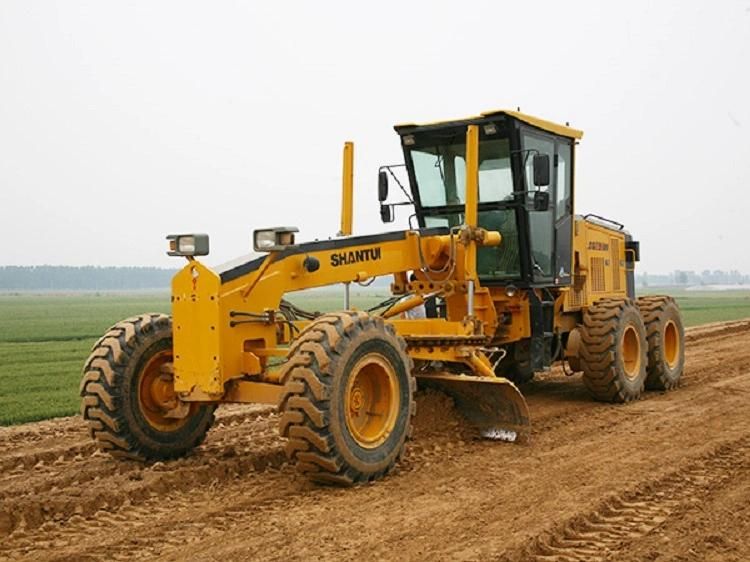

Pictures:





Why choose us:
