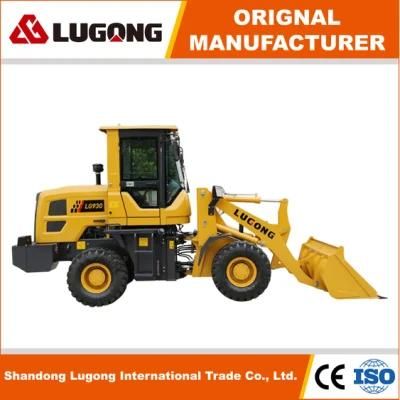

• Model NO.：LG930
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Medium-sized Loader
• Color：Customer′s Requiement
• Dumping Height：3200mm
• Attachments：Log Grapple
• Other Attachments：Fork Grapple
• Tyre：20.5,70-16
• Dumping Distance：750mm
• Bucket Capacity：0.9 Cbm
• Machine Weight：4200kg
• Bucket Width：1900mm
• Engine：Weichai 4102
• Rated Power/Speed：65kw,2400
• Gear Box Pattern：Automatic
• Gear Shift：Double H,L
• Service Brake：Air Hydraulic Disc Brake
• Parking Brake：Hand Brake
• Transport Package：Nude Cargo
• Specification：5500*1850*2760
• Trademark：Lugong
• Origin：Shandong, China
• HS Code：8429510000
• Production Capacity：72000units,Year

Main technical parameters Transmission bucket capacity0.9m³Gear Box PatternAutomaticrated load1800kgGear shiftDouble H/Lmachine weight4200kgTyre20.5/70-16overall dimension (mm)5500*1850*2760mmBraking System bucket width1900mmService brakeAir hydraulic disc brakeMax. dumping height3200mmParking brakeHand brakeEngineWeichai 4102  rated power/speed65kw/2400optional: A/C, Cabin heater, forkliftPallet fork, log grapple, grass fork, etc.Open from big angle, convenient maintenance.
Grid plate adopts stamping process, high structural strength and good ventilation and heat dissipation.

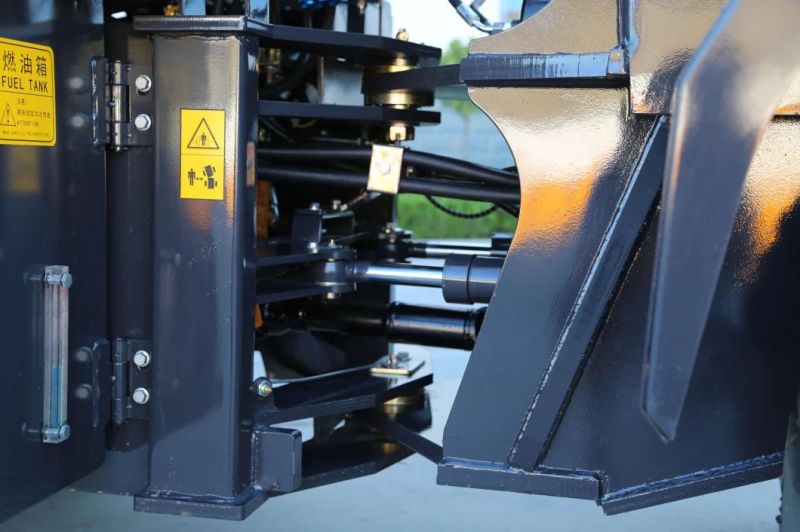

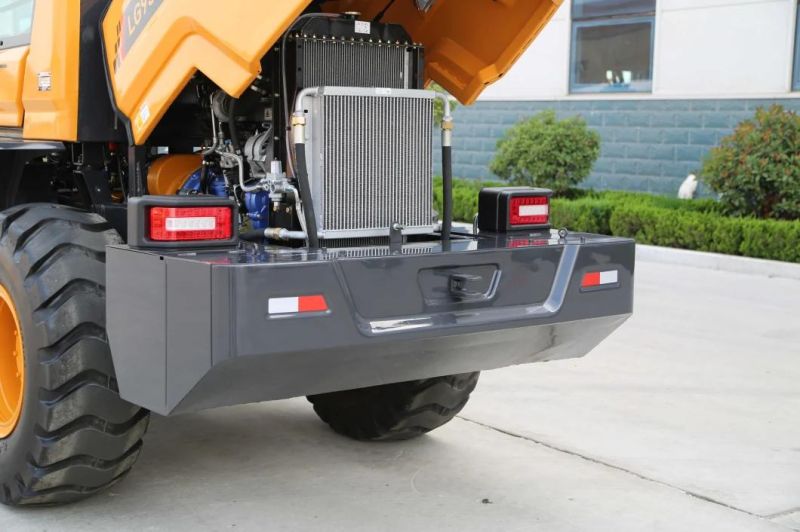

The counterweight adopts stamping and stretching forming technology, which is shapely, and the structural strength becomes higher. The empty counterweight effectively reduces the transportation cost.3 layers of the beam in articulation. lugong makes the
crossbeam cross the front chassis and arrange the turning cylinder an independent middle beam.

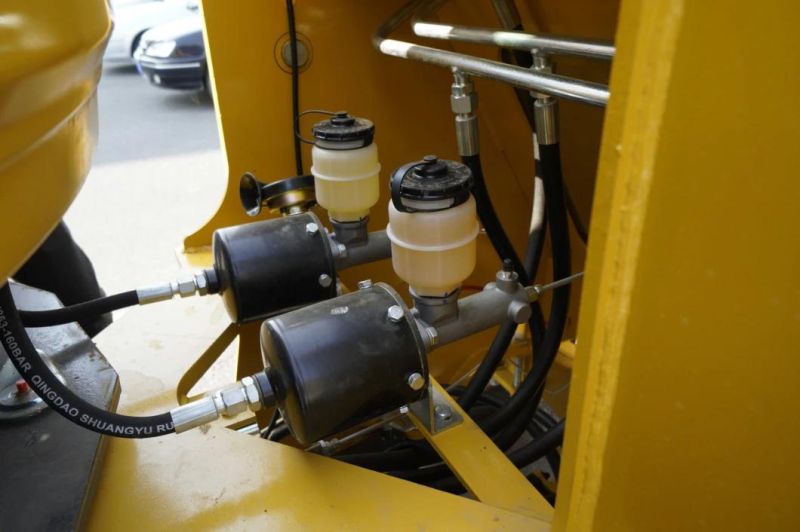

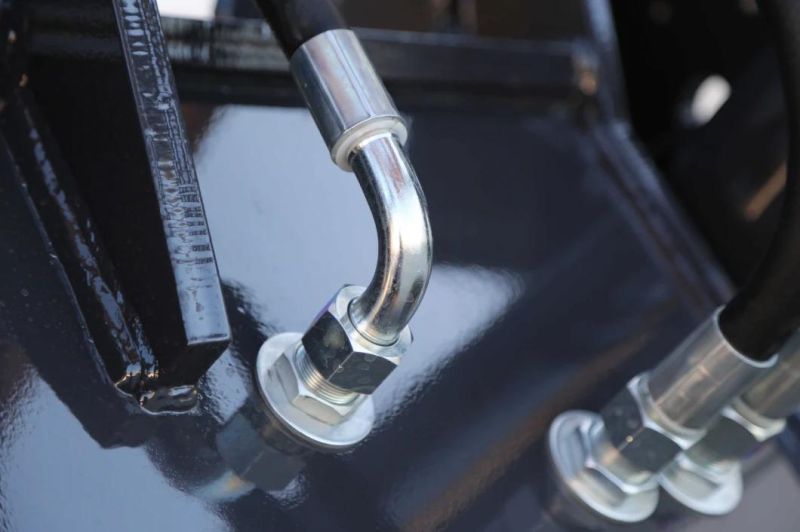

Upgradation of welded pipe and hose connector in hydraulic system achieves lifelong no leak.The welded pipes and hose connectors in Hydraulic system have upgraded to prevent hydraulic oil leakage. Our product uses a 24 degree conical tubing joint, and each H-type oil pipe joint is provided with o ring, which truly achieves a life-long anti-leakage. This is hydraulic parts usually used on excavators. Design of separate control of front and rear brake pumps, avoid both brakes fail.Lugong adopts the design of separate control of front and rear brake pumps to effectively avoid the tragedy that the front and rear axle brakes fail simultaneously due to one of the failures Escort for safe driving

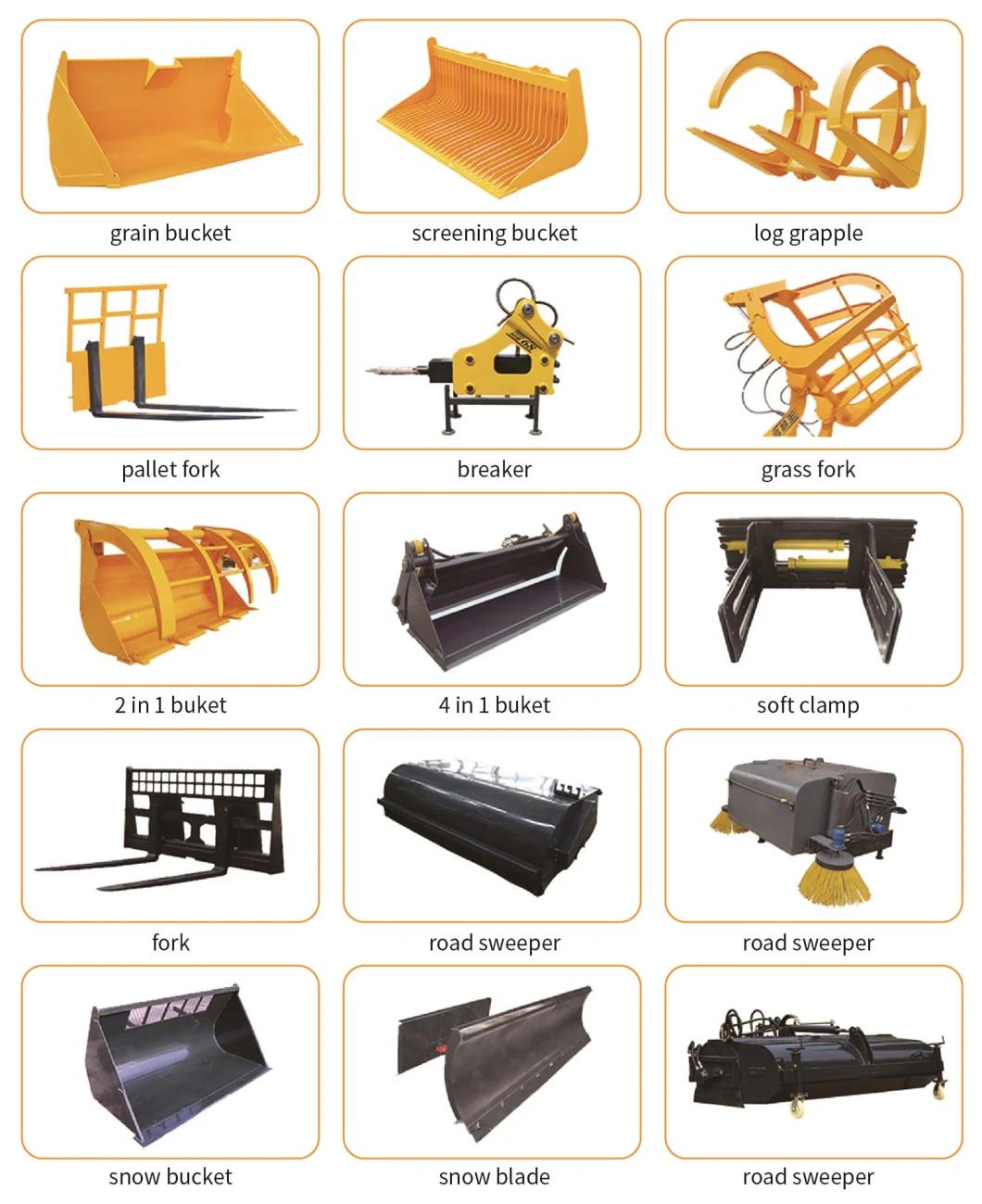

Our Attachments
We have more than 30 kinds of attachments,All kinds of attachments can be replaced,It can be customized to your requirements.
Company Profie
 Shandong Lugong Machinery Co., Ltd. was founded in March 2000. Our company is the backbone enterprise of construction machinery national wide. It covers a land of 200 thousand square meters and has 1100 employees, 88 of whom are engineers and technicians.
Our honors

Certificate

We focus on quality, performance and consider of users as always. In management, we've achieved a new level by adopting ISO 9001:2015 international quality management system.
Exhibition

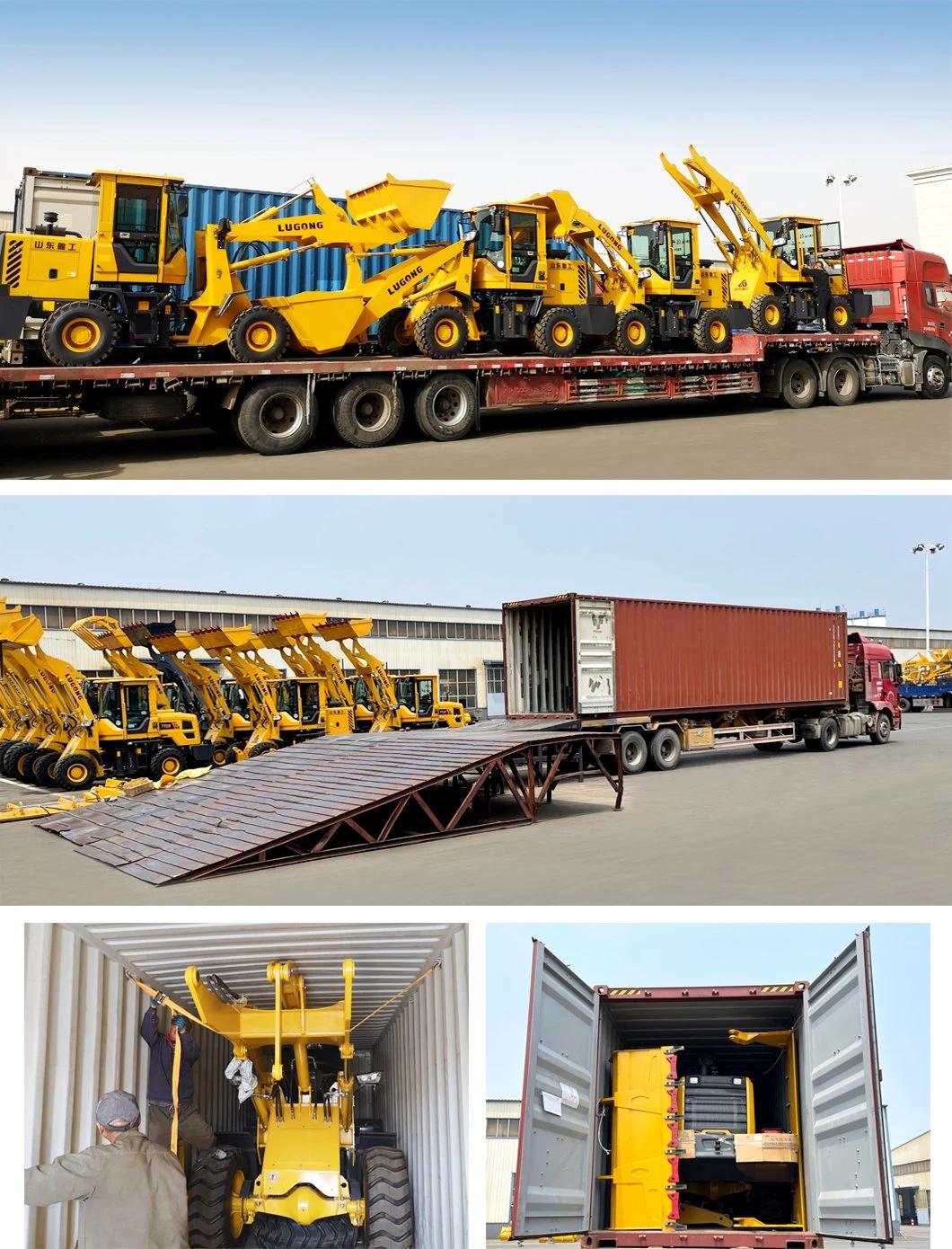

Packing & Delivery

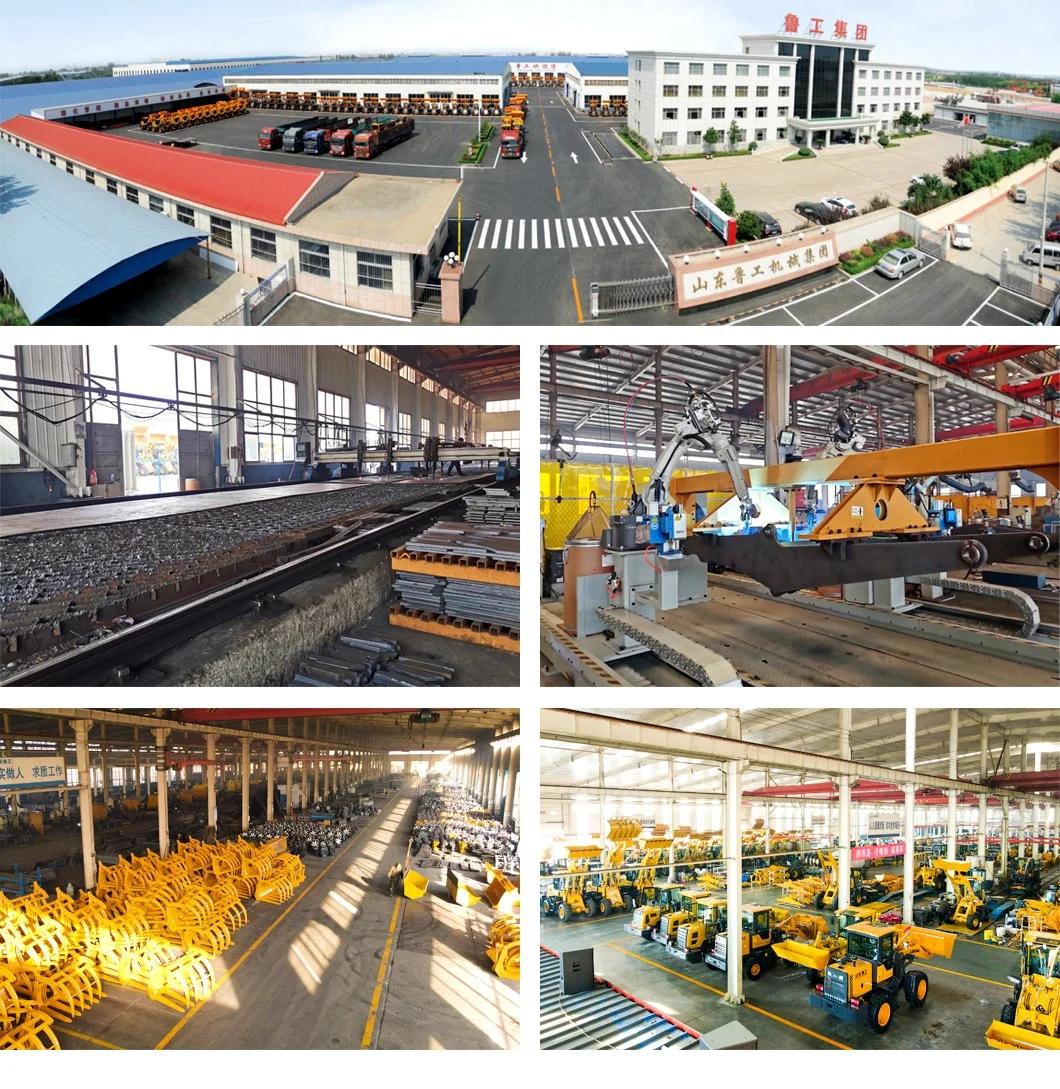

Shandong LuGong Machinery Co., Ltd was founded in March 2000 which located at the junction of three cities(Yantai, Weifang and Qingdao)-Laizhou Shahe industrial trade park and it's the backbone enterprise of construction machinery national wide with fixed asset 500million Yuan. It covers a land of 200 thousand square meters and has 1,100 employees, 88 of whom are engineers and technicians.
Our company mainly produces loaders, excavators, tippers, tricycles etc. Products are mainly sold to over 20 provinces in China and exported to dozens of countries and regions in Africa, Southeast Asia, South America and Russia. The quality and performance of our small farm-use loaders and construction tippers are in leading position of the industry throughout the nation and well received by users. Now, "Lu Gong" brand loaders and tipper have gained acceptance by dealers and uses all over China.
We focus on quality, performance and consider of users as always. In management, we've achieved a new level by adopting ISO9001:2015 international quality management system.
We would like to develop in economic construction by holding our old and new friends and users hands by following our business philosophy of "Driven by science and technology, seeking survival by quality, benefiting by managing and winning market by service" and spirit  of "Pioneering, innovating and pursuing excellence".
