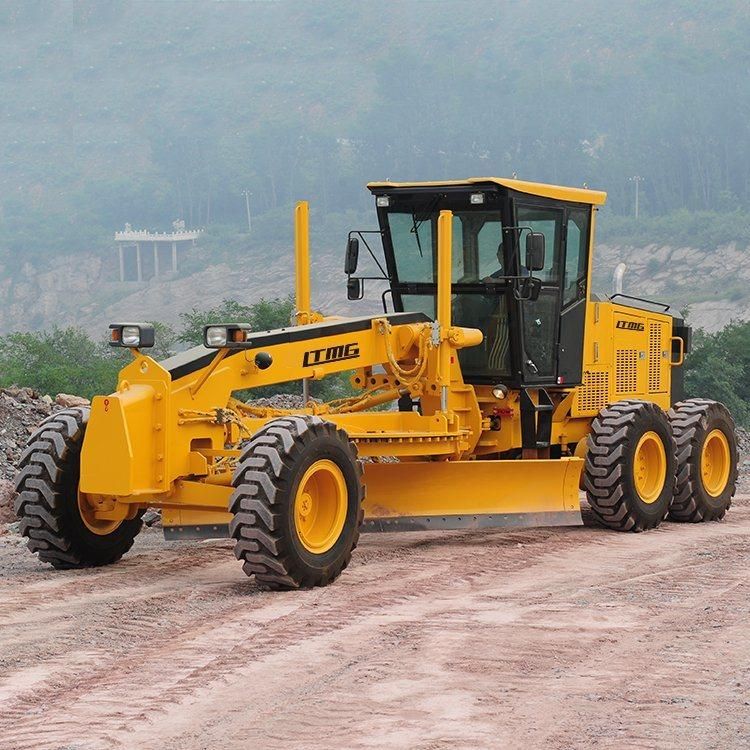

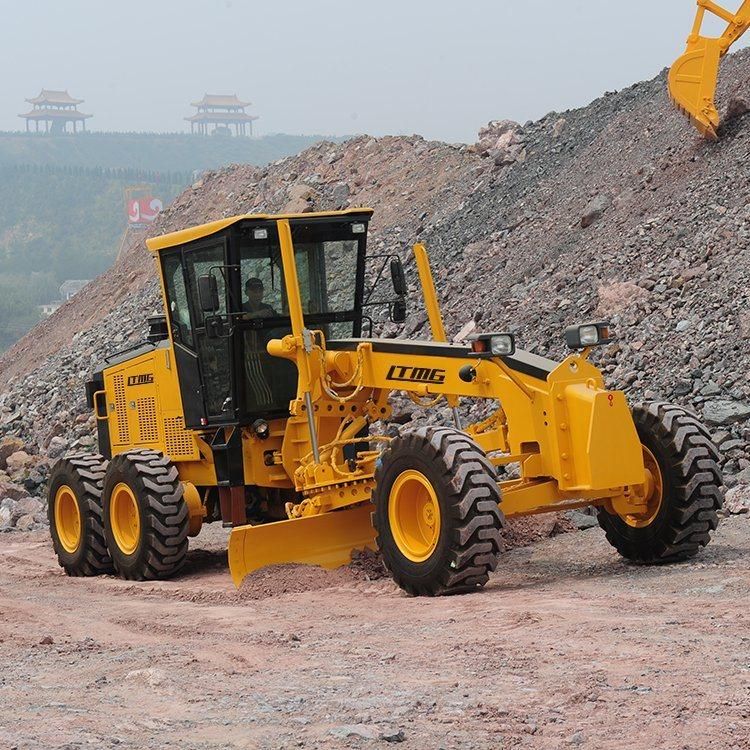

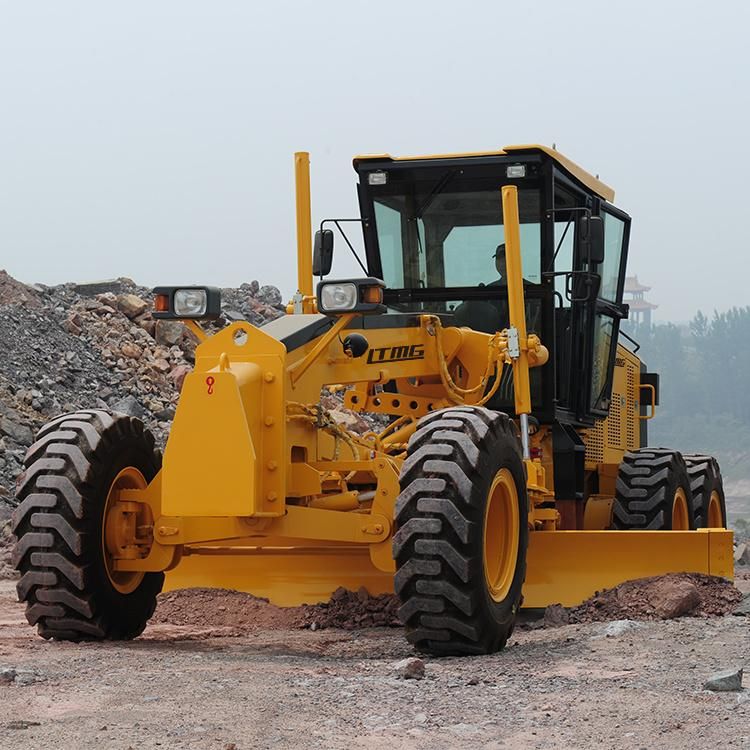

• Model NO.：LG180
• Walking Mode：Wheeled
• Type：Medium-sized Grader
• Operating Mass：16000kg
• Speed Gear Number：F6,R3
• Turning Radius：7800
• Engine Model：6btaa5.9-C180
• Engine Power：8605X2695X3420mm
• Transport Package：Container or by Bulk
• Specification：9015x2600x3400mm
• Trademark：LTMG
• Origin：China
• HS Code：8429510000
• Production Capacity：800sets,Year

Basic Info.

Model NO. LG180 Walking Mode Wheeled Type Medium-sized Grader Operating Mass 16000kg Speed Gear Number F6/R3 Turning Radius 7800 Engine Model 6btaa5.9-C180 Engine Power 8605X2695X3420mm Transport Package Container or by Bulk Specification 9015x2600x3400mm Trademark LTMG Origin China HS Code 8429510000 Production Capacity 800sets/Year

Product Description

MODEL	LG140	LG160	LG180	LG210
Performance parameters
Operating weight of machine (kg)	11600	15100	15900	16800
Wheelbase (mm)	5820	5150	5150	4150
Wheel tread (mm)	2050	2155	2155	2155
Minimum ground clearance (mm)	430	430	430	430
Steering angle of front wheels (°)	±45	±45	±45	±45
Articulated steering angle (°)	±25	±25	±25	±25
Maximum traction force (kN)	65(f=0.75)	79.3(f=0.75	83.5(f=0.75)	88.2(f=0.75)
Turning radius (mm)	6600 (Outer side of front wheel)	7,800 (Outer side of front wheel)	7,800 (Outer side of front wheel)	8200 (Outer side of front wheel)
Maximum gradeability (°)	20	20	20	20
Width of shovel blade (mm)	3660	3660	3660/3965	3660/3965/4270
Height of shovel blade (mm)	615	635	635	635
Blade slewing angle (º)	360	360	360	360
Blade cutting angle (º)	30-68	37-83	37-83	37-83
Maximum digging depth of blade (mm)	500	500	500	500
Length (mm)	8036	8726	9015	9315
Width (mm)	2380	2600	2600	2600
Heigh (mm)	3170	3400	3400	3400
Engine
Engine model	6BTAA5.9-C150	6BTAA5.9-C150	6BTAA5.9-C150	6BTAA5.9-C150
Emission	China-II	China-II	China-II	China-II
Type	Mechanical direct injection	Mechanical direct injection	Mechanical direct injection	Mechanical direct injection
Rated power/rated speed (kw/rpm)	112kW/2200	118kW/2200	132kW/2200rpm	160kW/2200rpm
Drive system
Torque converter	Single-stage single-phase three-element	Single-stage single-phase three-element	Single-stage single-phase three-element	Single-stage single-phase three-element
Transmission	Countershaft power shift	Countershaft power shift	Countershaft power shift	Countershaft power shift
Gears	Six forward and three reverse	Six forward and three reverse	Six forward and three reverse	Six forward and three reverse
Speed for forward gear I (km/h)	5.4	5.4	5.4	5.4
Speed for forward gear II (km/h)	8.3	8.4	9.3	9.4
Speed for forward gear III (km/h)	13.2	13.4	12.2	12.2
Speed for forward gear IV (km/h)	20.6	20.3	20.7	20.5
Speed for forward gear V (km/h)	29.6	29.8	25.6	25.4
Speed for forward gear VI (km/h)	44	39.6	39.7	39.7
Speed for reverse gear I (km/h)	5.4	5.4	5.4	5.4
Speed for reverse gear II (km/h)	13.2	13.4	12.2	12.2
Speed for reverse gear III (km/h)	29.6	29.8	25.6	25.4
Brake system
Service brake type	Hydraulic brake	Hydraulic brake	Hydraulic brake	Hydraulic brake
Parking brake type	Mechanical brake	Mechanical brake	Mechanical brake	Mechanical brake
Brake oil pressure (MPa)	10	10	10	10
Hydraulic system
Working pump	Constant displacement gear pump, with flow at 28ml/r	Constant displacement gear pump, with flow at 28ml/r	Constant displacement gear pump, with flow at 28ml/r	Constant displacement gear pump, with flow at 28ml/r
Operating valve	Integral multi-way valve	Integral multi-way valve	Integral multi-way valve	Integral multi-way valve
Pressure setting of safety valve (MPa)	16	16	16	16
Pressure setting of safety valve (MPa)	12.5	12.5	12.5	12.5
Filling of fuel/oils/fluids
Fuel tank (L)	220	340	340	340
Working hydraulic fuel tank (L)	85	110	110	110
Transmission (L)	28	28	28	28
Drive axle (L)	28	25	25	25
Balance box (L)	2X23	2X38	2X38	2X23
