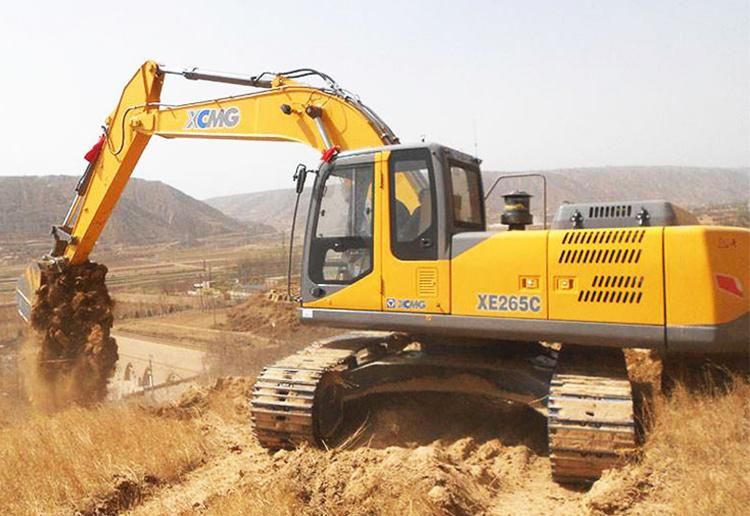

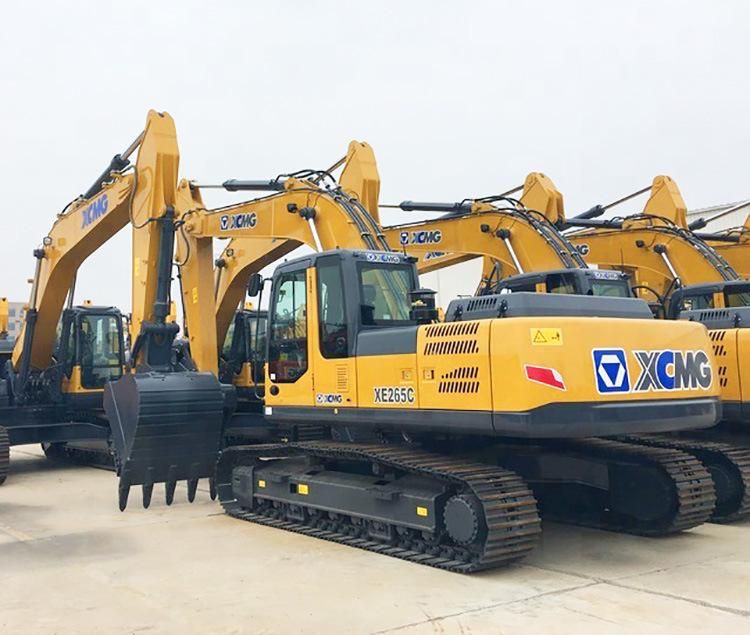

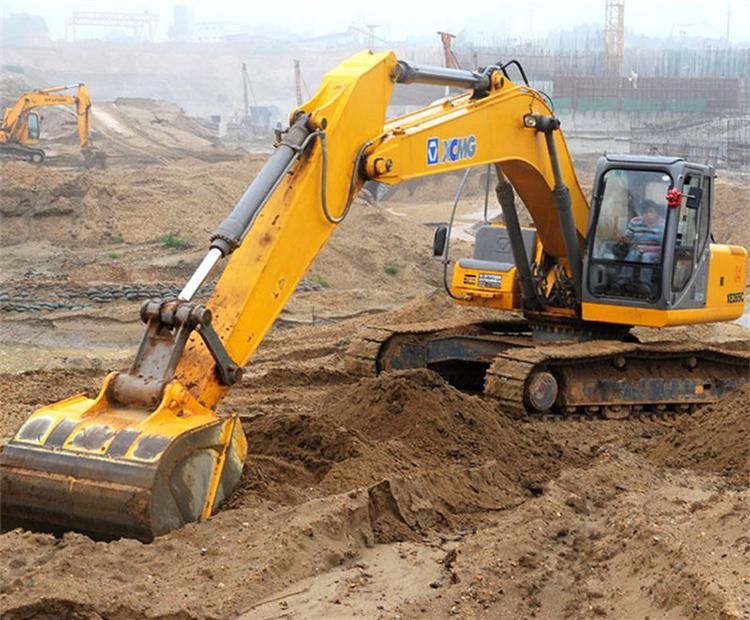

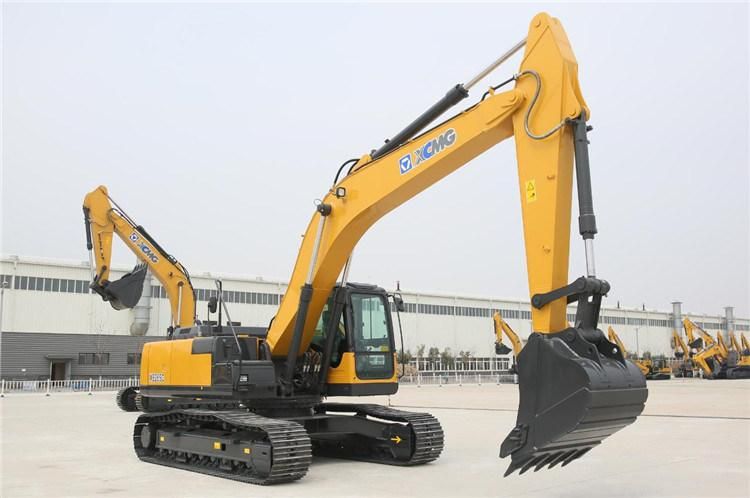

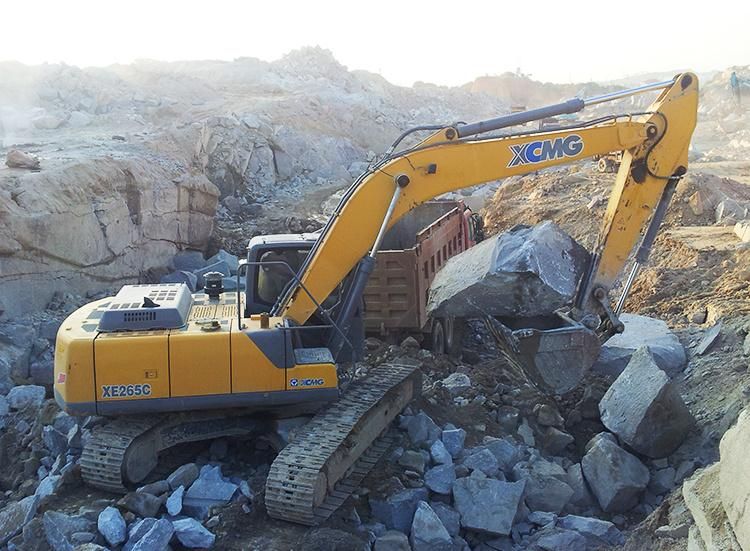

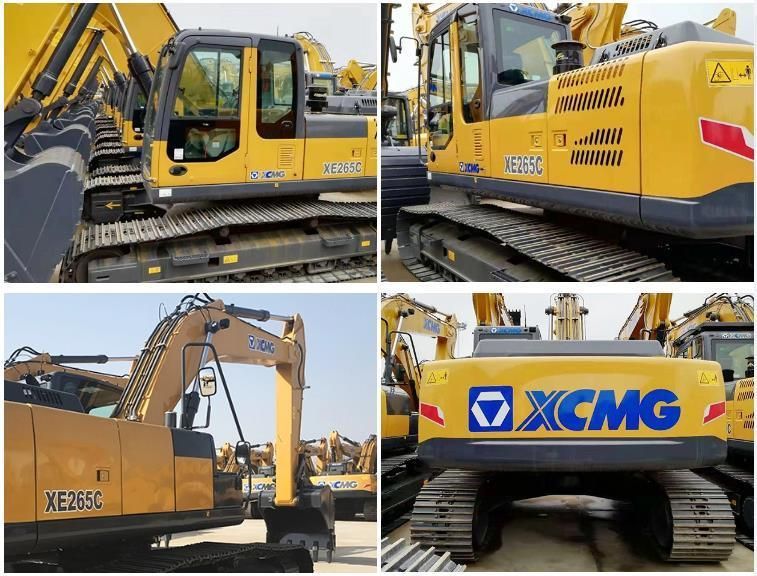

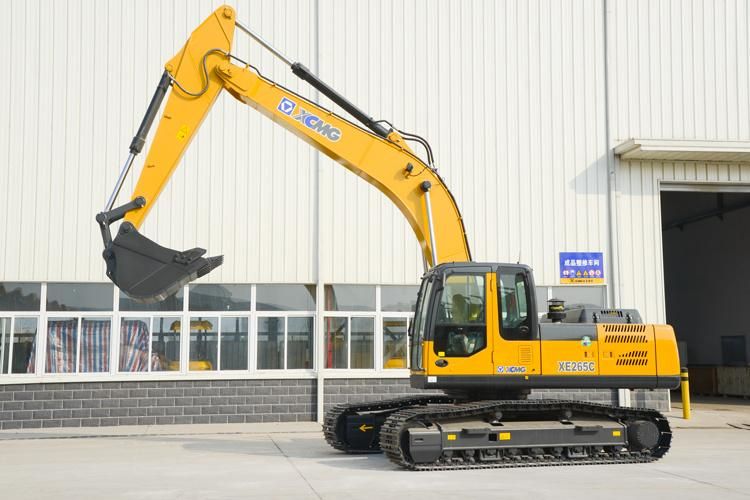

XCMG Xe265c 25 Ton Crawler Excavator for Sale
Xuzhou Construction Machinery Group Co., Ltd.- After-sales Service：Overseas Service Center Available
- Warranty：1year
- Type：Crawler Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
- Transmission：Hydraulic Transmission
- Drive Type：Internal Combustion Drive
Base Info
- Model NO.：XE265C
- Bucket Capacity：1.05-1.25 M3
- Size：Medium-Sized
- Certification：CE, ISO9001: 2000
- Condition：New
- Max.Digging Height：9626mm
- Max.Unloading Height：6810mm
- Max.Digging Depth：6895mm
- Max.Vertical Digging Depth：5480mm
- Transport Package：Comply with Export Packaging Requirements
- Specification：10160*3190*3000mm
- Trademark：XCMG
- Origin：Xuzhou, Jiangsu, China
- HS Code：84295212
- Production Capacity：1000,Year
Description
Overview
Product Description
ISUZU BB-6BG1TRP engine ,135.5kw
Hydraulic system
Product Parameters Unit Parameters Model Operating weight kg 25500 Bucket capacity m³ 1.05-1.25 Engine Engine model / ISUZU CC-68G1TRP-05 Direct injection / √ 4×strokes / √ Water cooling / √ Turbocharging / √ A/A Air-air intercool / √ Cylinders / 6 Output power of engine Kw/rpm 135.2/2150 Max.torque/engine N.m/rpm 637/1800 Displacement L 6.494 Mian pertormance Travel speed km/h 5.9/4.0 Slewing speed r/min 11.3 Gradient capability ° ≤35° Ground pressure kPa 50.1 Digging capacity of tcuket kN 179 Digging capacity of tcuket rod kN 125 Max.traction kN 194 Hydraulic system Main pump / Tow plunger pumps Rated flow of main pump L/min 2×256 Pressure of main safety valve Mpa 34.3/37 Pressure of traveling system Mpa 34.3 Pressure of swing system Mpa 28 Pressure of pilot system Mpa 3.9 Oil volume Fuel tank capacity L 400 Hydraulic tank capacity L 240 Engine oil volum L 25 Apperance size A Total length mm 10160 B Total width mm 3190 C Total heigth mm 3000 D Width of rotary table mm 2830 E Length of track mm 4640 F Total width of chassis mm 3190 G Width of track mm 600 H Wheelbase of track mm 3742 I Track gauge mm 2590 J Counterweight ground clearance mm 1100 K Min.ground clearance mm 485(Track teeth not including) L Min.tail swing radius mm 2985 Working scope A Max.digging height mm 9662 B Max.unloading height mm 6810 C Max.digging depth mm 6895 D Digging depth at the range of 8feets horizontally mm 6750 E Max.vertical digging depth mm 5480 F Max.digging radius mm 10240 G Max.swing height mm 3850 Standard configuration Boom length mm 6000 Length of bucket rod mm 2960 Bucket capacity m³ 1.2 Optional counfiguration Length of bucket rod mm 2500 Bucket capacity m³ 1.25Rock bucket 1.05Earthmovingbucket
Company Profile
FAQ
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
Main parameters:
Bucket capacity:1.2 CBM (standard)
Operating weight:25500kgs
Max digging height:9662mm
Max digging reach:10240mm
ISUZU BB-6BG1TRP engine ,135.5kw
Hydraulic system
Product Parameters
Company Profile
FAQ1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
