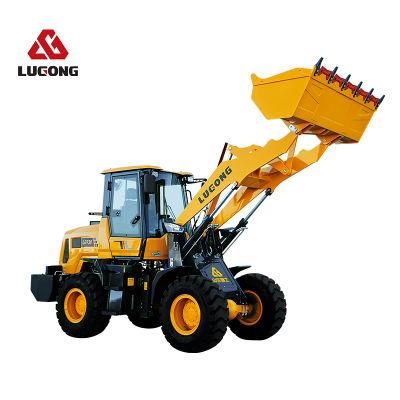

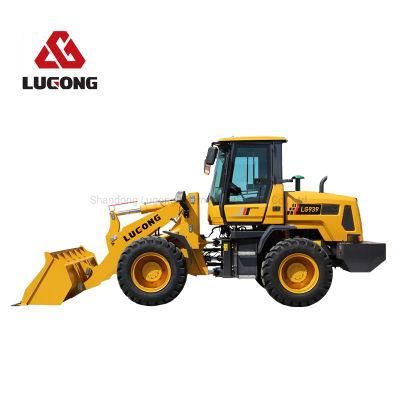

Lugong Small/Mini/ Compact Bucket Shovel Front End Wheel Loader LG940

Shandong Lugong International Trade Co., Ltd.
  • After-sales Service：12 Months
  • Warranty：12 Months
  • Certification：ISO, CE
  • Condition：New
  • Rated Load：1-3t
  • Transmission：Hydraulic - Mechanical

Base Info

  • Model NO.：lg940
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled
  • Type：Small Loader
  • Engine：Yuchai
  • Axle：Awd, Big Hub Reduction
  • Steering：3-Layer Articulation Steering
  • Attachment：Kinds of Attachments
  • Transmission Box：Automatic
  • Color：CAD
  • Turning Radius：6000mm
  • Power：85kw
  • Machine Weight：5750kg
  • Gear Shift：Double H,L
  • Bucket Capacity：1.1 M³
  • Tyre：16,70-24
  • Dumping Height：3800mm
  • Transport Package：Container
  • Specification：6250x2150x2950mm
  • Trademark：LUGONG
  • Origin：China
  • HS Code：84295100
  • Production Capacity：40000 Sets,Year

Description

Main technical parametersBucket capacity1.1m³EngineYuchai 4105 turboRated load2200kgPower85KWMax dumping height3800mmAxleAWD, LG2.5t big hub reductionTurning radius6000mmTyre16/70-24Products Feature:Lugong Small/Mini/ Compact Bucket Shovel Front End Wheel Loader LG940Lugong Small/Mini/ Compact Bucket Shovel Front End Wheel Loader LG940

1. Engine
*High performance engine from YUCHAI, SIDA,WEICHAI-HF;
*Best match for compact loader base on 20 years experience
*CUMMINS, DEUTZ, YUNNEI brands for optional.

2. Axle
*Patented Axle with special design big hub reduction gear;
*Casting process, 200kgs heavier than other brands;
*Large torque, low fuel consumption, low failure rate, more powerful and durable.

3. Steering

*Three-layer articulation steering design uniform stress, prevent deformation;
*Lengthened and widened hinge plate wedge in column get better chassis strength, more durability;
*Trajectory coincidence technology reduce engine load and tire wear, get small turning circle and more flexible operation.

4. Cab
*Exclusively design, welded by high strength rectangular plate. Strong structure provides reliable protection for driver;
*More cab space and curved front windshield bring better driving vision;
*Air-damping luxury aviation seat filled car sponge reduce fatigue of long time driving;
*Optional high quality air conditioner improve driving comfort.

5. Cooling System

*High level water tank, Large hole grid with 32mm double-row radiating pipe increase radiation effect and not be blocked;
*Tank temperature not exceed 80ºC even continuous working 20 hours at surface temperature 50ºC.

6. Appearance
*Drawing stamping sheet metal gets high structural strength;
*Arc design brings good visual effect;
*Electro-coating ensures excellent anti-corrosion property.

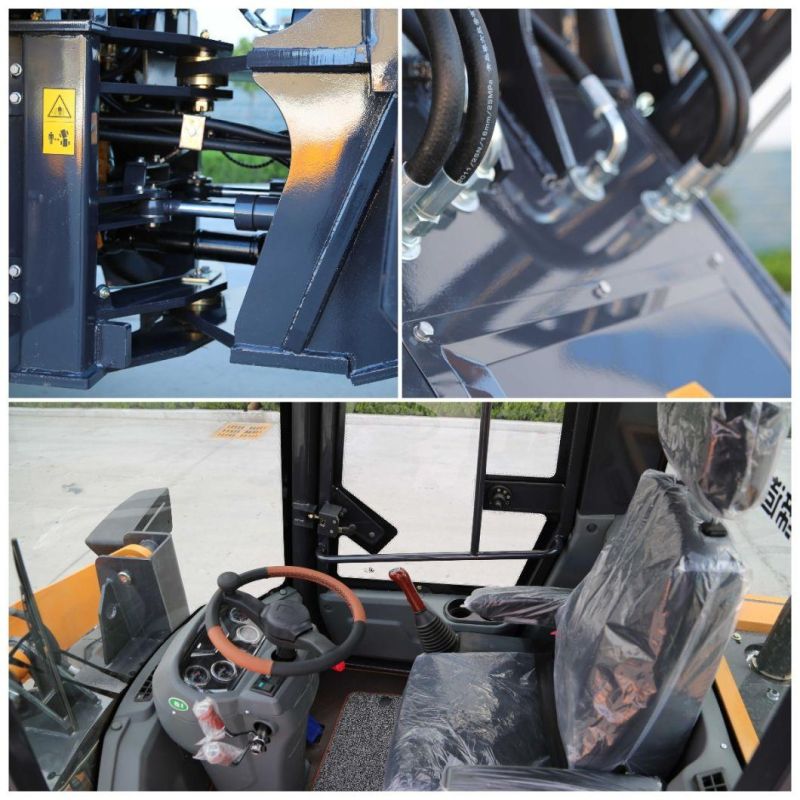

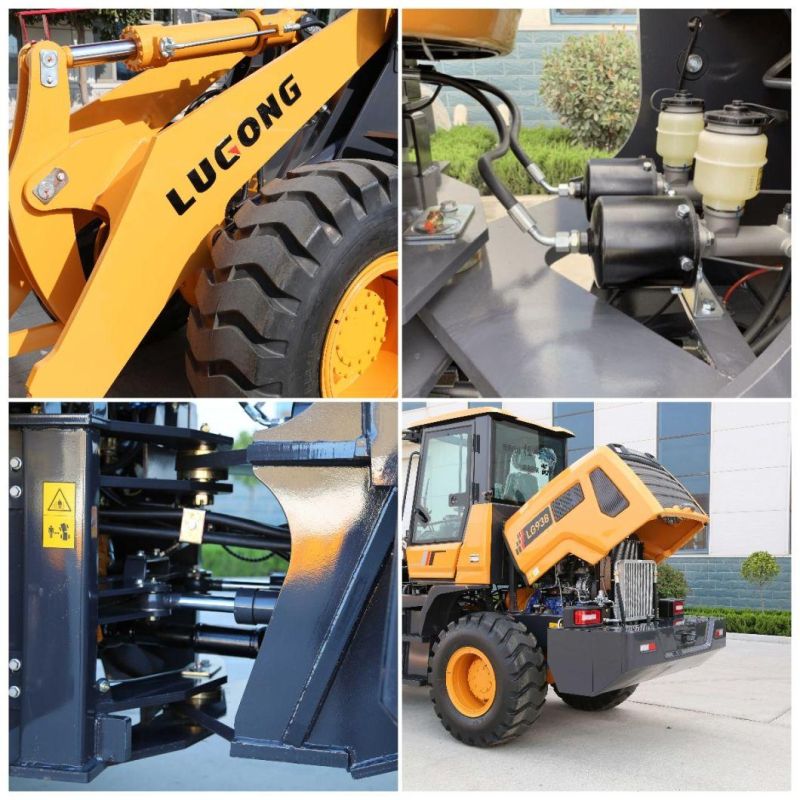

7. More Detail
*Separate design of front and rear brake pumps avoid brake failure;
*Integrated design of pump and valve, cancel flexile hose, increase steering performance and safety;
*H type joint with two sealing ring ensure lifelong no leakage.
*New LED lights bring better brightness and longer life;
*Pickling and phosphating treated oil tank avoid block in hydraulic system;
*Fast joint on air cylinder for blowing dust gun, inflation and grease gun;
*Muffler covered with heat resistant material avoid body scalding and components ageing;
*Shanghai "Steel" brand 18PR Nylon tire.

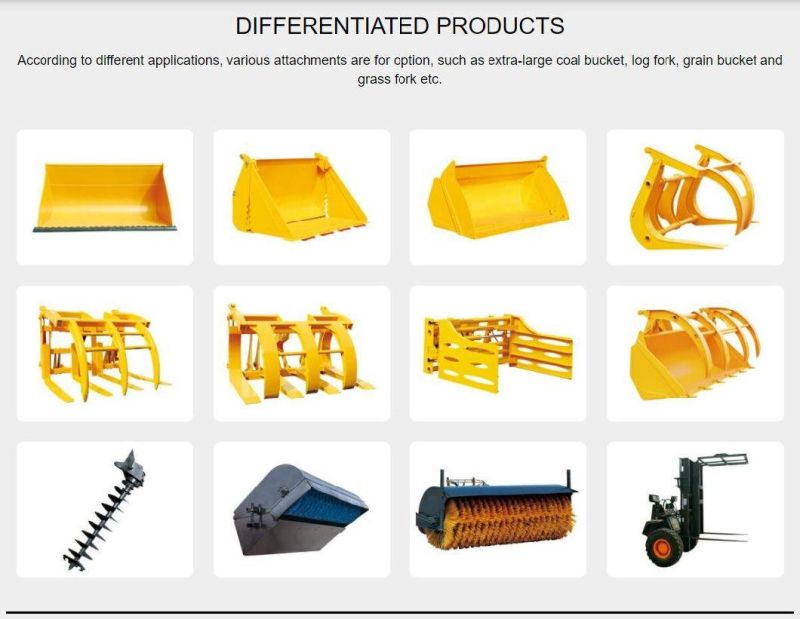

Attachments

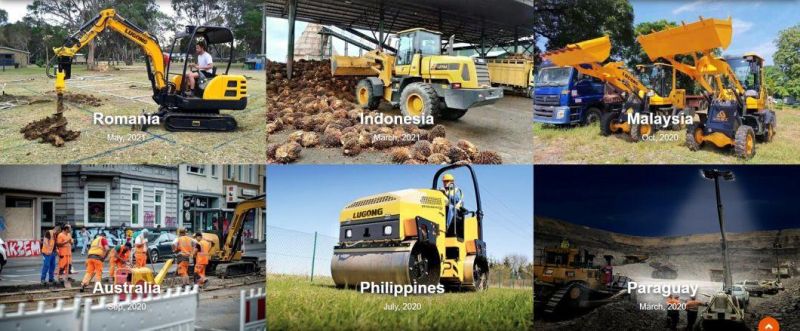

Lugong Small/Mini/ Compact Bucket Shovel Front End Wheel Loader LG940Applications case

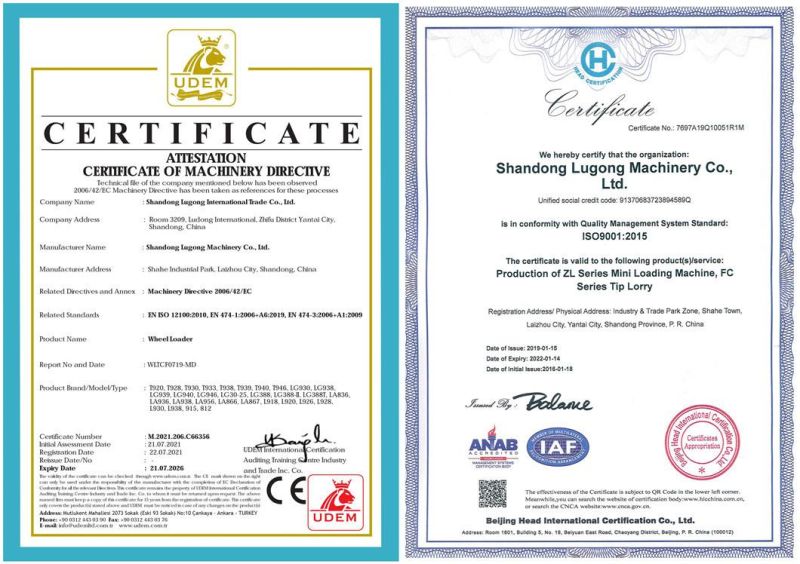

Lugong Small/Mini/ Compact Bucket Shovel Front End Wheel Loader LG940Exhibition and certificate display
Lugong Small/Mini/ Compact Bucket Shovel Front End Wheel Loader LG940Lugong Small/Mini/ Compact Bucket Shovel Front End Wheel Loader LG940Lugong Small/Mini/ Compact Bucket Shovel Front End Wheel Loader LG940
