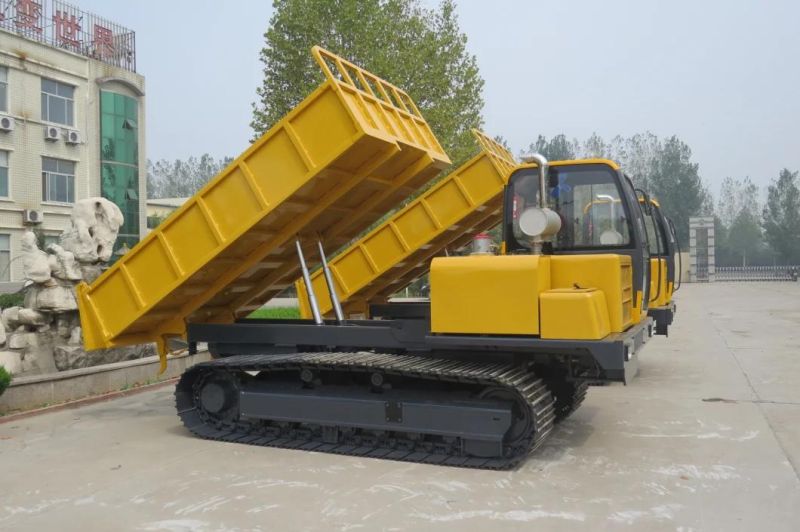

• Model NO.：HY-600

Basic Info.

Model NO. HY-600

Product Description

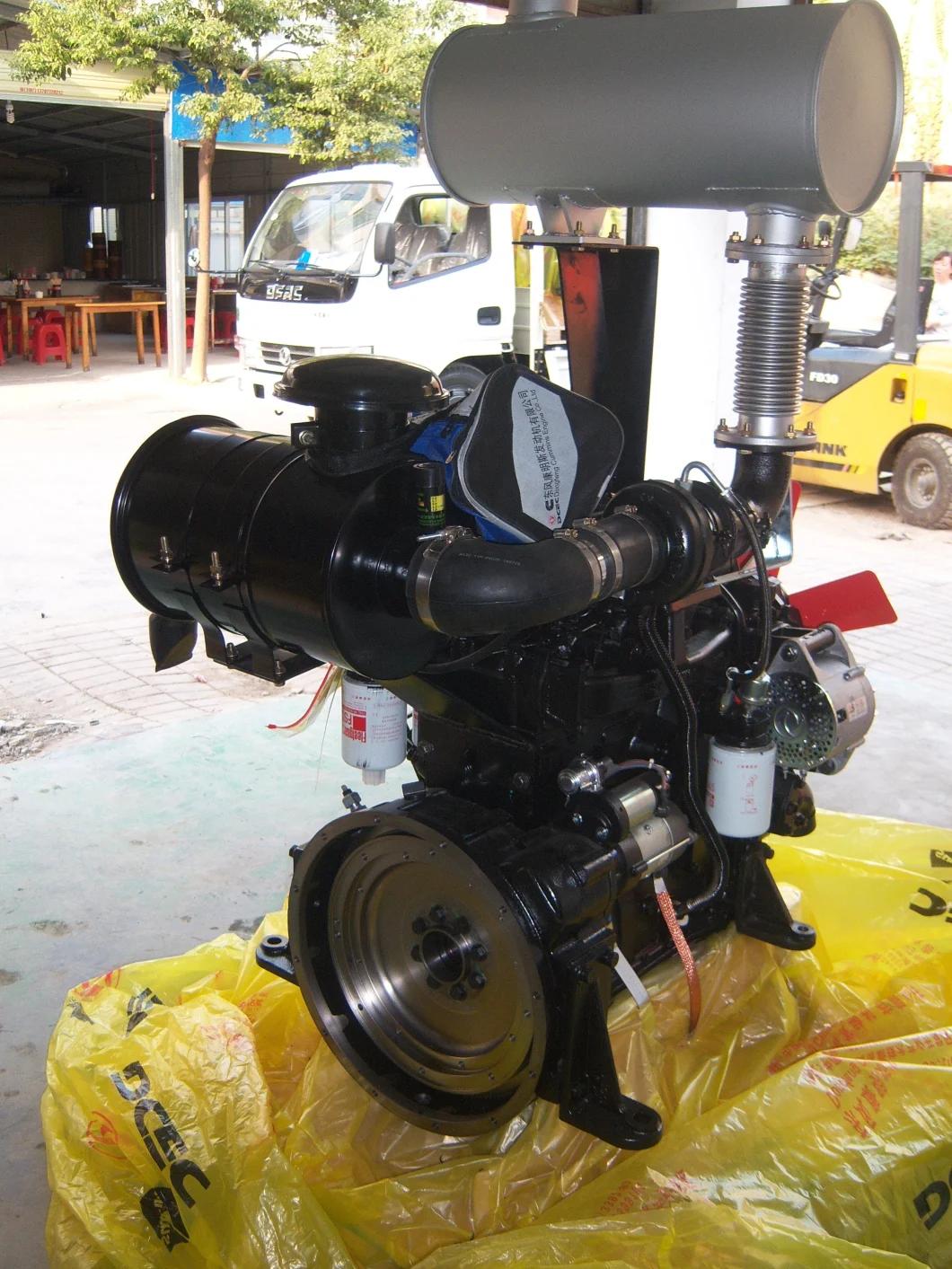

1. Engine: Adopt Cummins diesel engine, excellent performance, low fuel consumption, low noise, large power reserves, long stroke,.
2. Oil tube: Choose high-pressure rubber pipe, which suits all the bad working environment, anti-quake, anti-loose, stand fire.
3. Hydraulic working system: taking advanced of foreign advanced technology, it can reduce wobble with buffer function, and the machine service life can be extend.

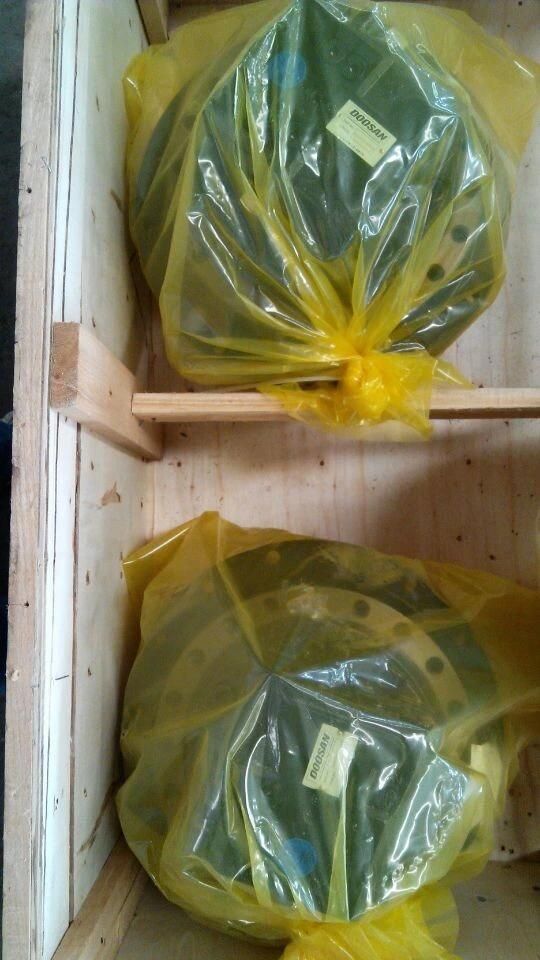

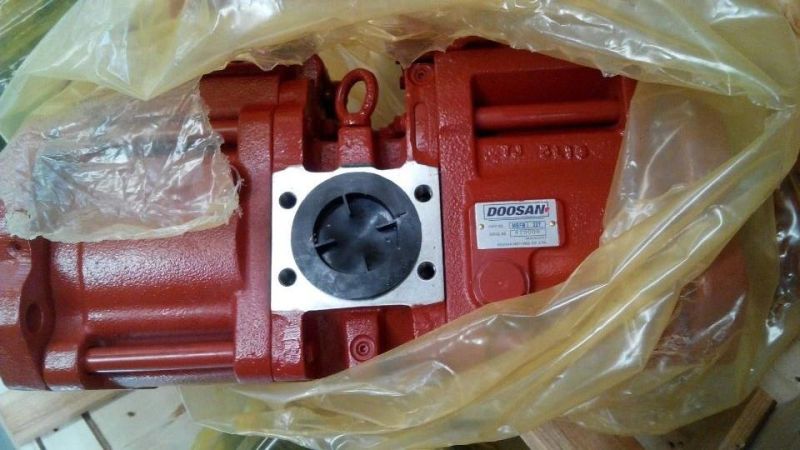

4. Traveling system: South Korea Doosan motors and oil pump.
5. Structure: Choose the domestic manganese steel with excellent quality, improving the strength of structure in a high level, which guarantee the safety of traveling and construction.

1. Surface treatment: derusting with large size shot blast machine, to change welding stress.
2. Surface spray coating: ant rusting paint, finishing paint.

1. Rated Power.................................................................................125HP
2. Total Machine Weight......................................................................10000kg
3. Capacity............................................................................…5000-6000KG
4. Hydraulic System Working Pressure............…..............................................22Mpa
5. Trailer size.........................….........................…...................…3200*2000*450mm
6. Maximum Flux..............................…...............…...…........................100ml/r
7. SLOPE..............................….........................................................…25%
8. Maximum Hauling Force........................................................................…29KN
9. Walking Speed .............................................................................…≤7km/h
10. Overall dimension(L×W×H)  ............…. ....................................…5500×2200×2600mm
11. Wide of track…. .......................................…. .................................…450mm
