China Mini Excavator Construction Machinery Equipment Dig Machine
Qingzhou Changhui International Trade Co., Ltd.- After-sales Service：Key Parts Guarantee
- Warranty：1 Year
- Type：Crawler Excavator
- Usage：Special Excavator, Mining Excavator, GM Excavator
- Bucket：Shovel
- Transmission：Hydraulic Transmission
Base Info

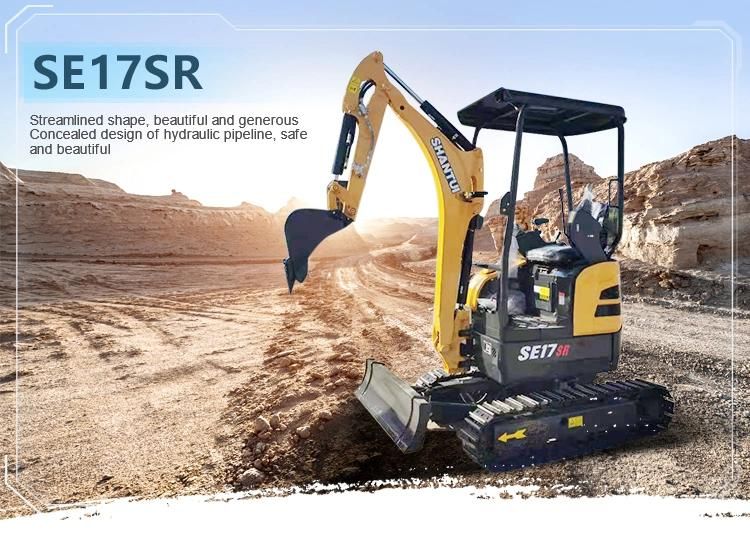

- Model NO.：SE17SR
- Drive Type：Internal Combustion Drive
- Bucket Capacity：0.04m3
- Size：Small-Scale
- Certification：CE, ISO9001: 2000, EPA Euro5
- Condition：New
- Transport Package：Roro Shipment Container Shipment
- Specification：2ton
- Trademark：Shantui
- Origin：China
- Production Capacity：10000 Set,Year
Description
Overview
Product Description
Product Parameters
| Comparative item | SE17SR (Standard version) |
| Overall dimensions | |
| Overall length (mm) | 3575 |
| Ground length (During transport) (mm) | 2440 |
| Overall height (To the top of boom) (mm) | 1105 |
| Overall width (mm) | 990/1300 |
| Overall height (To top of cab) (mm) | 2405 |
| Ground clearance of counterweight (mm) | 460 |
| Minimum ground clearance (mm) | 145 |
| Tail turning radius (mm) | 650 |
| Track length (mm) | 1593 |
| Track gauge (mm) | 760/1070 |
| Track width (mm) | 990/1300 |
| Standard track shoe width (mm) | 230 |
| Turntable width (mm) | 990 |
| Distance from slewing center to tail (mm) | 650 |
| Working range | |
| Maximum digging height (mm) | 3535 |
| Maximum dumping height (mm) | 2445 |
| Maximum digging depth (mm) | 2270 |
| Maximum vertical digging depth (mm) | 1910 |
| Maximum digging distance (mm) | 3910 |
| Maximum digging distance at ground level (mm) | 3845 |
| Working device minimum turning radius (mm) | 1495 |
| Maximum lifting height of bulldozer blade (mm) | 280 |
| Maximum digging depth of bulldozer blade (mm) | 280 190 |
| Engine | |
| Model | kubota D902 |
| Type | Inline, water-cooled and four cycle |
| Displacement (L) | 0.898 |
| Rated power (kW/rpm) | 11.8/2300 |
| Hydraulic system | |
| Type of hydraulic pump | Swashplate variable displacement pump |
| Rated working flow (L/min) | 64.4 |
| Bucket | |
| Bucket capacity (m³) | 0.04 |
| Swing system | |
| Maximum swing speed (r/min) | 9.5 |
| Brake type | Mechanically applied and pressure released |
| Digging force | |
| Bucket arm digging force (KN) | 9.5 |
| Bucket digging force (KN) | 16 |
| Operating weight and ground pressure | |
| Operating weight (kg) | 1880 |
| Ground pressure (kPa) | 29 |
| Traveling system | |
| Traveling motor | Axial variable displacement plunger motor |
| Traveling speed (km/h) | 2.2/4.3 |
| Traction force (KN) | 18 |
| Gradeability | 58% |
| Tank capacity | |
| Fuel tank capacity (L) | 19 |
| Cooling system (L) | 5 |
| Engine oil capacity (L) | 3.7 |
| Hydraulic oil tank/system capacity (L) | 20/21.4 |
