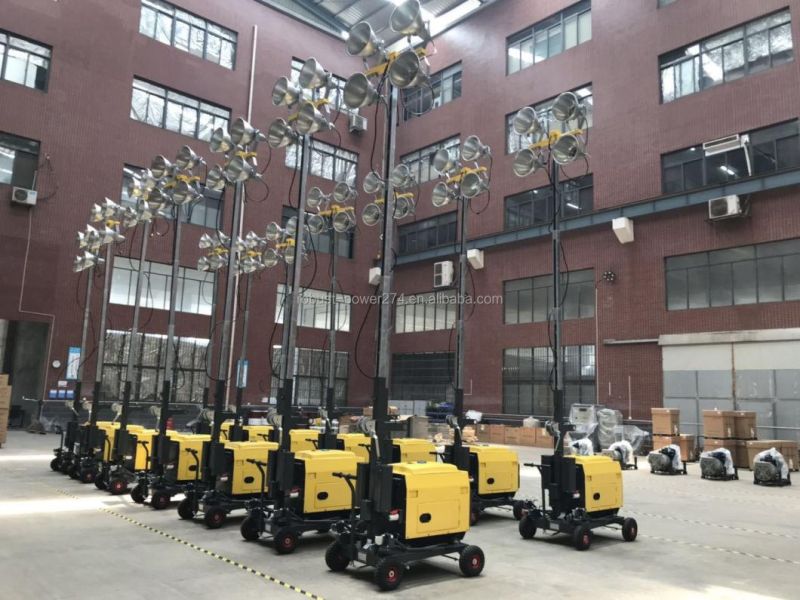

5.5m Telescopic Mast Diesel Generator Construction Light Tower
Fujian Robust Power Co., Ltd.- After-sales Service：Warranty Service
- Warranty：Warranty Service
- Fuel Capacity：1.85L,Hr(15 Litres,Tank)
- Engine：Single Cylinder, 4-Stroke, Air Cooled
- Engine Speed：3000rpm,3600rpm
- Alternator：2-Pole, Brushless
Base Info
- Model NO.：RPLT1600B
- Control System：Digital Control Panel
- Lighting：400W Metal Halide Lamp
- Lumen Output：4*25000 Lumens
- Transport Package：Plywood Case
- Specification：1540*1400*2000mm
- Trademark：robust
- Origin：China
- HS Code：9405409000
- Production Capacity：250sets,Month
Description
Model RPLT1600BTechnical Specifications Mast Maximum extention of mast 4.8m Elevation Manual Raising/lowing mast Winch(Mechanical) Stages 2 Turning angle 358 degrees non-continuous Lamp Total power of lamps 4× 400W Type of lamp Metal halide lamp Light capacity 4× 25000 lumen Frequency 50Hz Working temperature ≤ 85Degrees Celsius Connection Protection index IP54 Characteristics of the generator Model RPD6500I(Made in China) Generator set Prime power 50Hz 4.2kW Engine model RP186FA Diesel Engine speed 50Hz 3000rpm Engine type 1 cylinder, 4-stroke, Air-cooled Engine Aspiration Natural Alternator Type 2-pole, brushless Fuel tank capacity 15L Prime fuel consumption at 100% load 1.85L/h Working hours 8 Control system Mechanical control panel Power Outlets 2 Trailer Stabilier Supports 4 × Manual Anti-wind capacity ≤ 6 Brakes Manual Packing Dimension & Weight Retracted Dimension 1300mm × 840mm × 2600mm Container load (20/40FT) 12/24(At least) Net weight 270kg

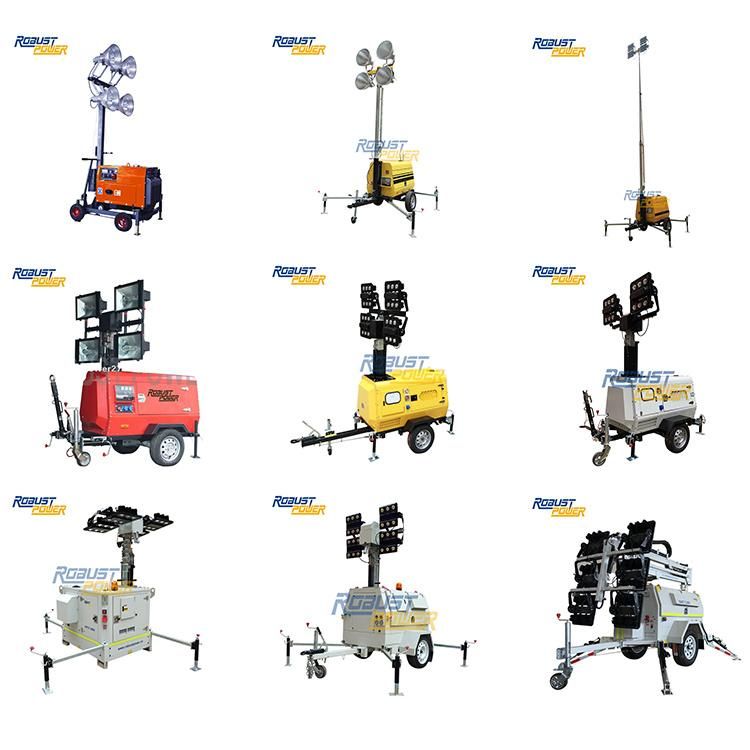

Robust Power Models:
| No. | Model | Mast | Power of Lamps | Engine Model |
| 1 | RPLT1600 | 4.8M Manual | 4*400W Metal Halide Lamp | RP186FA |
| 2 | RPLT1600 | 4.8M Manual | 4*160W LED | RP186FA |
| 3 | RPLT1600 | 4.8M Manual | 2*1000W Metal Halide Lamp | RP186FA |
| 4 | RPLT6000 | 9M Manual | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 5 | RPLT6000 | 9M Manual | 4*240W LED | Kubota D905 (Japan) |
| 6 | RPLT6800 | 8.6M Hydraulic | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 7 | RPLT6800 | 8.6M Hydraulic | 4*1500W Metal Halide Lamp | Kubota D1105 (Japan) |
| 8 | RPLT6800 | 8.6M Hydraulic | 4*480W LED | Kubota D905 (Japan) |
| 9 | RPLT3800 | 7M Hydraulic | 4*480W LED | Kubota Z482 (Japan) |
| 10 | RPLT6900 | 8.5M Hydraulic | 4*480W LED | Kubota D1105 (Japan) |
| 11 | RPLT7200 | 10M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 12 | RPLT7200 | 10M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
| 13 | RPLT7600 | 9M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 14 | RPLT7600 | 9M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
