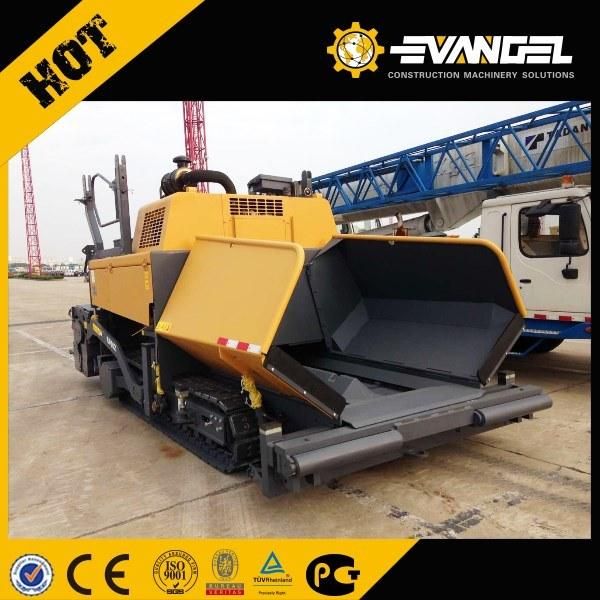

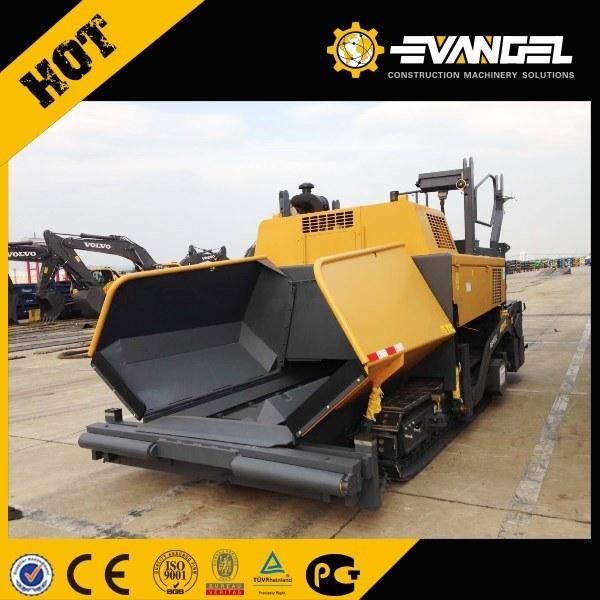

4.5m RP453L Asphalt Concrete Paver
Evangel Industrial (Shanghai) Co., Ltd.- After-sales Service：Free Spare Parts
- Warranty：One Year
- Type：Asphalt Distributor
- Object：Cement Concrete Pavement
- Moving Type：Fixed
- Mixing Method：Intermittent Compulsory
Base Info
- Model NO.：RP453L
- Automatic Grade：Non-Automatic
- Product Capacity：40～400t,h
- Certification：ISO9001: 2000, CE
- Condition：New
- Paving Width：2.5-6,7m
- Max. Paving Thickness: 300mm：Max. Paving Thickness: 300mm
- Usage：Construction
- Power Source：Diesel
- Transport Package：Suitable Package for Shipment
- Specification：ISO, CE
- Trademark：Evangel
- Origin：Jiangsu, China (Mainland)
- HS Code：8701200000
- Production Capacity：1000 Units, Year
Description
Basic Info.
Model NO. RP453L Automatic Grade Non-Automatic Product Capacity 40～400t/h Certification ISO9001: 2000, CE Condition New Paving Width 2.5-6/7m Max. Paving Thickness: 300mm Max. Paving Thickness: 300mm Usage Construction Power Source Diesel Transport Package Suitable Package for Shipment Specification ISO, CE Trademark Evangel Origin Jiangsu, China (Mainland) HS Code 8701200000 Production Capacity 1000 Units/ YearProduct Description
4.5m RP453L Asphalt concrete paverSpecifications
1. Paving width: 2.5-6/7m
2. Max. Paving thickness: 300mm
3. Hopper Capacity: 13 t
1. Paving width: 2.5-6/7m
2. Max. Paving thickness: 300mm
3. Hopper Capacity: 13 t
1. Paving width: 2.5-6/7m
2. Max. Paving thickness: 300mm
3. Hopper Capacity: 13 t
1. Paving width: 2.5-6/7m
2. Max. Paving thickness: 300mm
3. Hopper Capacity: 13 t
| Items | Unit | Parameters |
|---|---|---|
| Basic paving width | m | 2 |
| Max. paving width | m | 4.5 |
| Max. paving thickness | mm | 150 |
| Paving speed | m/min | 0~13 |
| Travel speed | km/h | 0~13 |
| Theoretical Productivity | t/h | 240 |
| Hopper Capacity | t | 12 |
| Gradeability | % | 20 |
| Pavement evenness | mm/3m | 3 |
| Transverse levelling accuracy | % | ±0.03 |
| Centre crown ratio | % | 0~+3 |
| Engine model | 4JR3G1 | |
| Engine power | kw | 55 |
| Engine speed | r/min | 2200 |
| Fuel tank capacity | L | 130 |
| Machine weight | t | 10.5 |
| Dimension | mm | 5690X2070X3590 |
| Auger speed | r/min | 0~73 |
| Conveyor speed | m/min | 0~30 |
| Vibration frequency | Hz | 3~42 |
| Screed heating | Gas heating | |
| Auger and conveyor control | Automatic Control by Ultrasonic Sensors | |
| Automatic levelling control | Simulation Control Simulation control |
| Items | Unit | Parameters |
|---|---|---|
| Screed model | / | EV35Q |
| Type | / | Gas heating, vibration |
| Extension | / | Hydraulic |
| Width | m | 2.0-4.5 |
| Vibrator speed | Hz | 0-42 |
