• Model NO.：TR-HCP120D
• Automatic Grade：Non-Automatic
• Product Capacity：1000 Square Meter,Day
• Certification：ISO9001: 2000
• Condition：New
• Engine：6.0HP Gasoline Engine
• Paint Pump：Double Piston Pump
• Paint Tank：None
• Applicable Paint：Cold-Solvent Paint or Water-Based Paint
• Marking Width：50-500mm
• Recommended Width：150-400mm
• Moving Method：Hand-Push
• Spray Gun：Double Manual
• Transport Package：Plywood Case
• Specification：1800*1050*1350mm
• Trademark：Touran Traffic
• Origin：China
• HS Code：8479109000
• Production Capacity：15,Month

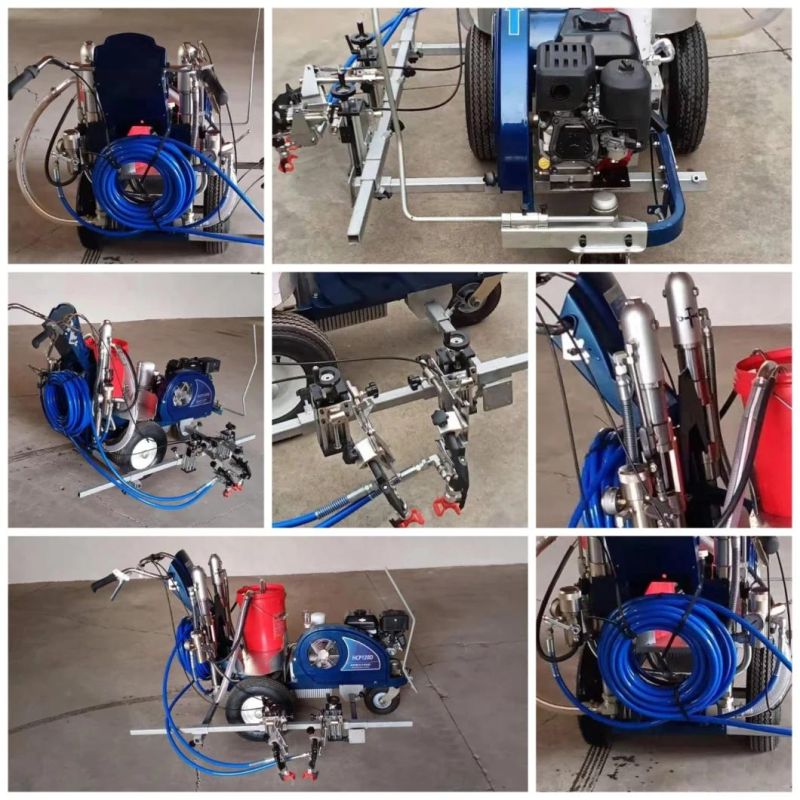

Overview Product DescriptionProduct NameHand-Push Cold Paint High-pressure Airless
Road Marking MachineModel NumberTR-HCP120D TypeMoving MethodHand-push typeControl MethodManual controlBrief introductionIt is one of the most typical cold paint road marking machine, oftentimes called cold paint striper or cold striping machine as well, is widely used for spraying 1:1 two-component paint, also can be used for spraying cold-solvent paint, water-based paint and other single-component paint, can be applicable to double-line with two colors at the same time, various construction environments as well. It has the characteristics of stable performance, flexible operation and convenient construction and so on.Main Parts and Characteristics

· PISTON TYPE HIGH PRESSURE PAINT PUMP
9 L/min super-alloy piston pumps, large flow, stable pressure, painting pressure can be adjusted in the range of 0-25Mpa to meet the different requirement for the line thickness and width.
· AUTOMATIC RECIPROCATING HYDRAULIC CYLINDER
The perfect combination of variable displacement pump and automatic reciprocating hydraulic cylinder, reduces the complex electronic controlling system, supports stable, continuous and durable driving force.
· NEW TYPE HYDRAULIC COOLING SYSTEM
Large capacity hydraulic cylinder, new type cooling fan and radiator keeps the hydraulic system cooled in the continuous process of working, improves the life time of hydraulic system.
· DOUBLE PNEUMATIC SPRAYING GUNS
Can be widely used for spraying two-component paint, Zebra line marking could be done one time if use single component paint, also can be used for spraying road edge stone in two colors through adjusting angle of spraying gun.

 Technical DataApplication Reference

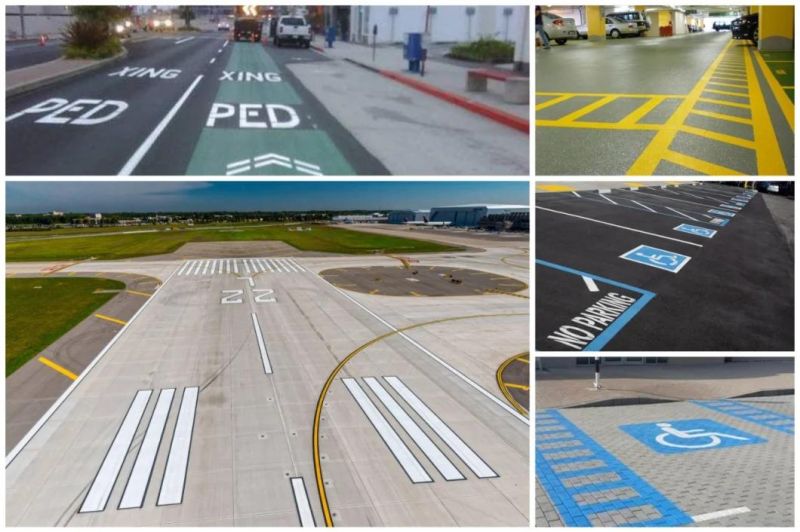

This machine is widely used in airport, urban roads, parking lots, and other areas marking construction.

Company Profile

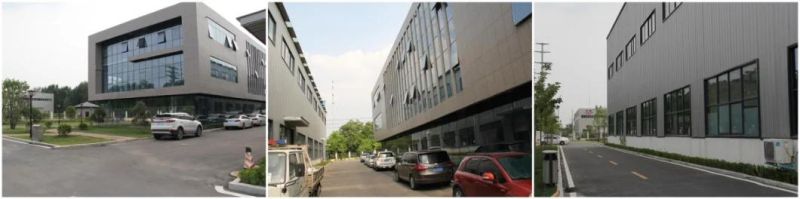

1. Enterpise Scale

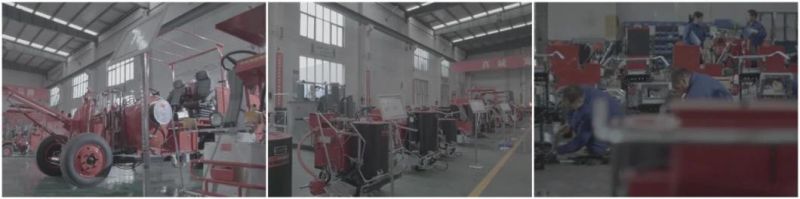

Up to now, the company has established three machinery factories respectively in Zhengzhou, Nantong and Jining. The total construction area reach 100,000 square meters, mainly engaged in the R&D and production of road marking machine, road clearing machine, road crack sealing machine, small roller, sweeper, industrial lighting vehicles and other small pavement machine.

FAQ

1. About Price:
The price is negotiable. It can be changed according to your quantity or package. When you are making an inquiry, please let us know the quantity you want.

2.About Sample:
Samples of traffic safety products are provided and is Free, but the air freight is collect or you pay us the cost in advance.

3.About MOQ:
The MOQ for small size machines is more than 2 sets; for Big size is 1 set. The MOQ for other products, We require a total value of over $5,000.

4.About OEM:
Welcome, you can send your own design and LOGO, we can use your Trademark or Brand instead of the original one.

5.About warranty:
We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. But due to long time shipment there may be some damage to the appearance. But not enough to affect the performance of machine. Any quality issue, we will deal with it immediately.

6.About Payment or other question:
Pls email us or chat with us online directly.
