• Model NO.：PY160
• Walking Mode：Wheeled
• Type：Medium-sized Grader
• Overall Weight：12.2 Ton
• Lxwxh：8900X2100X3500mm
• Engine Type：Cummins 6BTA5.9-C165
• Rated Power：123kw
• Gears：Four Forwardfour Reverse
• Tyre Type：17.5-25
• Length of Blade：3950mm
• Transport Package：Nude
• Specification：8900x2100x3500mm
• Trademark：Strongbull
• Origin：China
• HS Code：8429209000
• Production Capacity：5000 Sets,Year

General SpecificationOverall weight12200 kgLxWxH8900x2100x3500 mmEngine Cummins 6BTA5.9-C165Rated power123 kwTypeInline,water-cooled,four-stroke,direct injectionDetail SpecificationMin.ground clearance of front axle560 mmMin.ground clearance of rear axle500 mmWheel tread1685 mmWheelbase(front/rear)6840 mmWheelbase of rear axles1650 mmMax. swing angle of front axle±12°Max. steering angle of front wheel±45°Steering angle of articulated frame±25°Blade InformationBlade size (LxHxT)3950x590x20 mmBlade plate diameter1610 mmSteering angle of blade360°Groud clearance of blade450 mmCutting depth of blade360 mmInclination angle of bladeForward 23° backward 10°Sliding range of bladeLeft 600mm right 600mmTransmission SystemMax. speed (Forward/reverse)44km/h   33km/hGearbox typeFixed shaft power stageTorque converterSingle-stage single-phase three-elementGearsForward 4 reverse 4Tire type17.5-25Hydraulic systemOpen type systemPressure16MpaFuel capacity125LHydraulic oil capacity190L

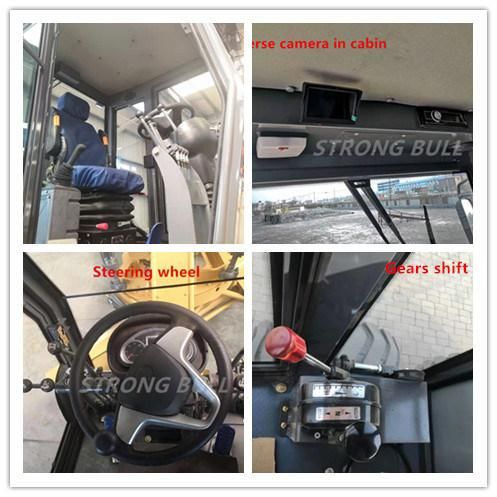

DETAILS INTRODUCTION

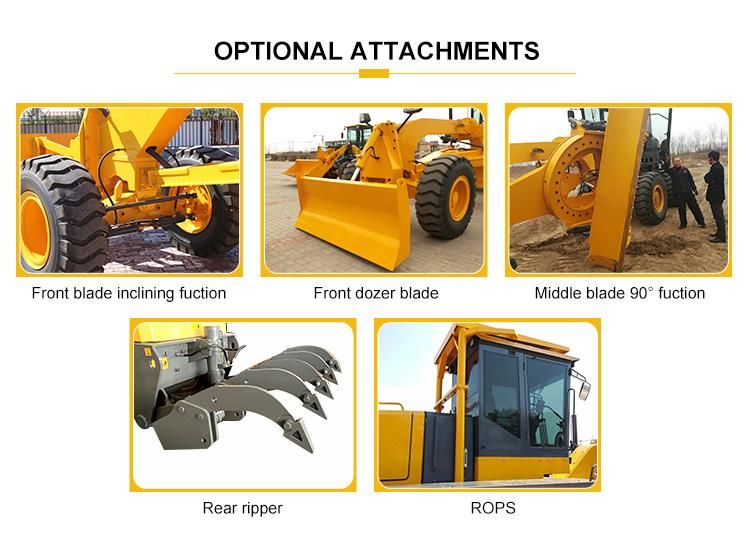

OPTIONAL ATTACHMENTS


SHIPMENT&DELIVERY

40HC container can load 1 set PY9160 motor garder with the cabin taken off.
Delivery in 20 days after pay deposit


HOT SALE ALL OVER THE WORLD!

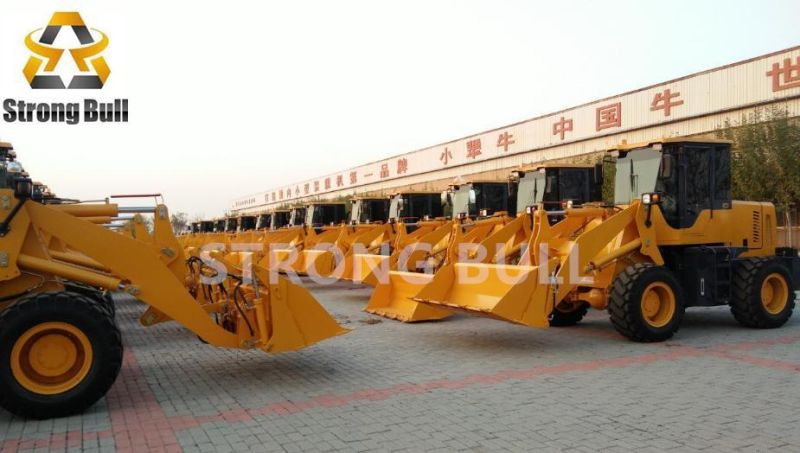

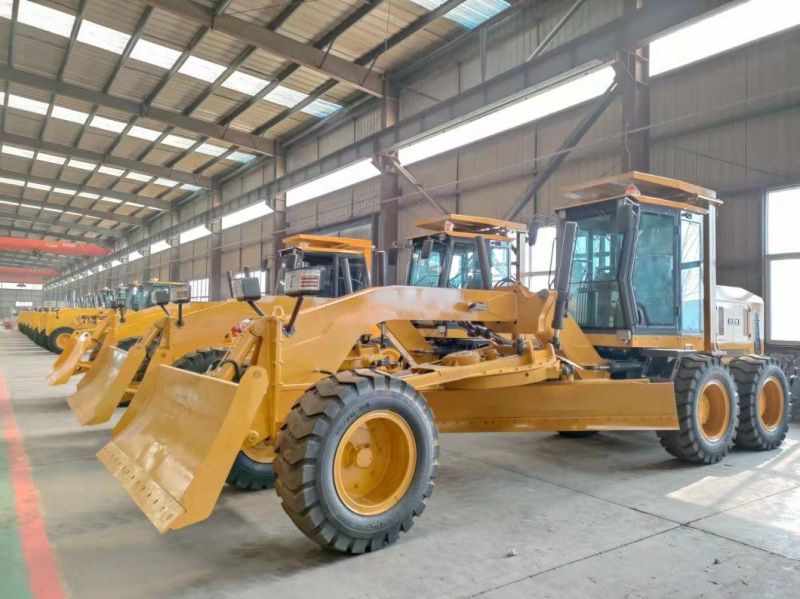

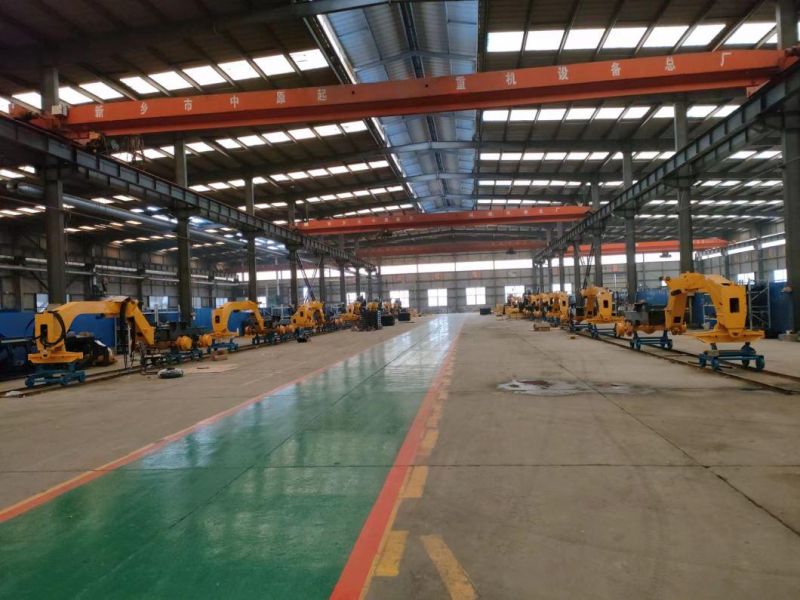

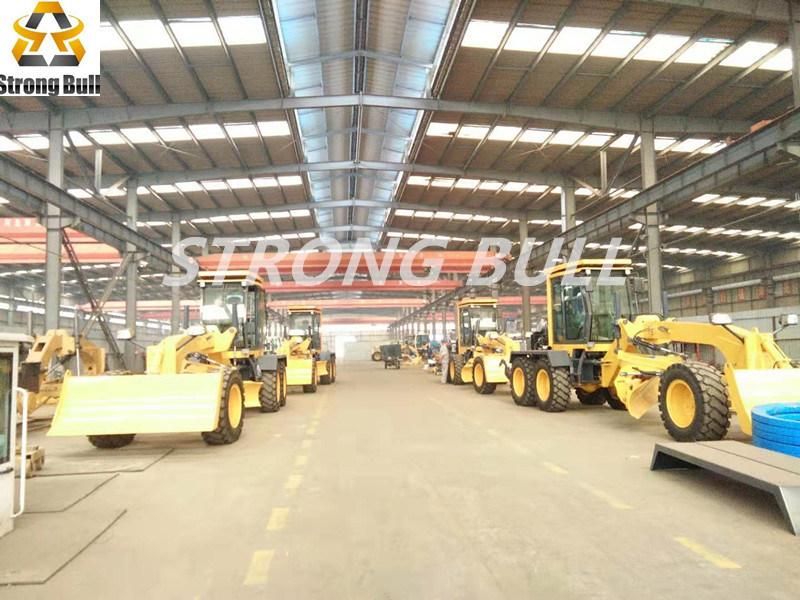

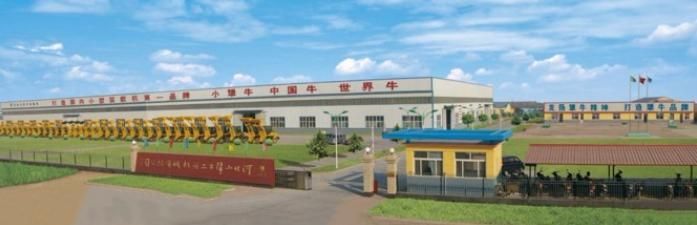

FACTORY SHOW

Hebei Xiaojiangniu Engineering Machinery Co.,Ltd is a professional manufacture factory of wheel loader 1ton-3ton bucket load and motor grader from 80Hp-220Hp in China for more than 10 years. We have got very high reputation about our quality and price from customers all over the world. Warmly welcome to visit our factory and sincerely hope we can cooperate!!


WELCOME TO VISIT OUR FACTORY!!

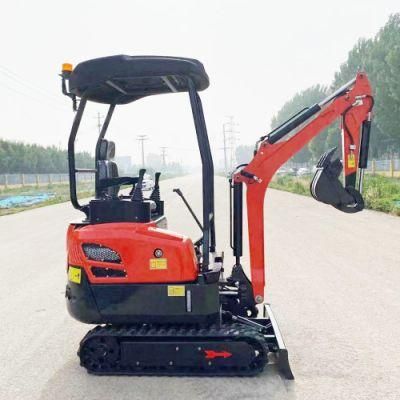

RELATED PRODUCTS
