Hebei Ximai Machinery Twin Wall Pipe for Construction Industry
HEBEI XIMAI MACHINERY EQUIPMENT SALES CO., LTD.- Type：Pipe
- Application：Concrete Pump
- Certification：CE, ISO9001: 2000
- Condition：New
- Material：20# St52 16mn 37mn5 55mn Nm900
- Thickness：4.85mm
Base Info

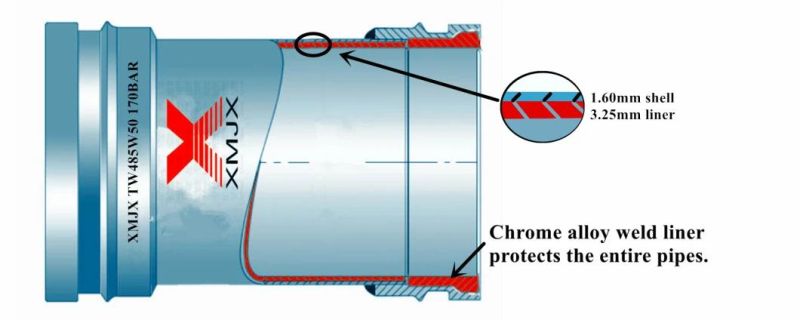

- Wall Thickness：1.65+3.2mm
- Length Deviation：+-1mm
- Length(in/mm)：118.12,3000 or Customized
- Hardeness：up to 68HRC
- Hardened Process：UHF Quenching (400kHz)
- Theoretical Weight(Lbs/Kg)：101,46
- Flange Tape：Sk148 HD157 Zx175 FM175
- Weld Tensile Strength：>480bar
- Test Pressure：>170bar
- Color：Red Black White or Customized
- Surface Coating：Baking Paint
- Transport Package：Standard Export Package
- Specification：DN125,5"
- Trademark：Ximai
- Origin：China
- HS Code：841391
- Production Capacity：500PCS,Per Day
Description
1.We are a professional manufacturer of concrete pump pipes in China.Our products include delivery pipes,elbows,reducers,couplings,rubber hoses,cleaning ball and so on.
2.Our products are top quality in china which have been used on SCHWING ,PM ,KYOKUTO ,SANY ,ZOOMLION ,CIFA,SINOTRUK(CNHTC),FOTON,XUGONG,CHUTIAN,HAINUO etc and have been recognized by them.
3.The HRC of it's inner wall can reach 60~68 degrees and the serving life of it can increase 3~5 times.
4.It is quenched and carried out carburizing chemical treatment on the inner wall.It has a high wear-resistant.
5.OEM available from us.

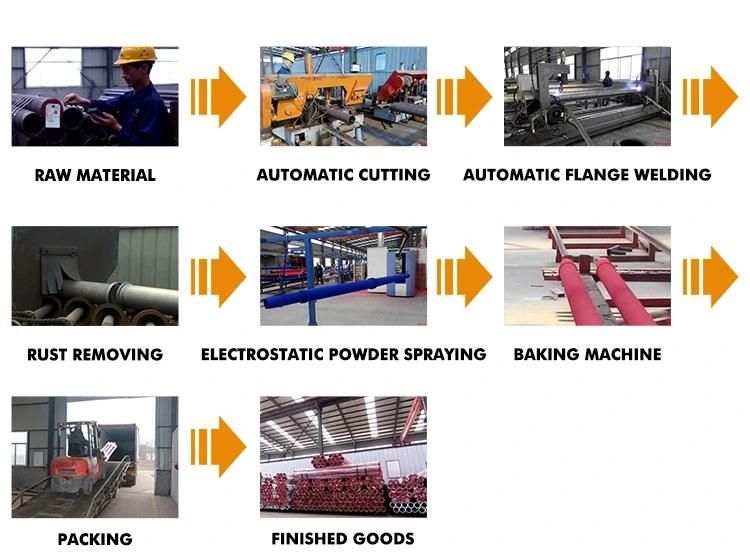

Production display

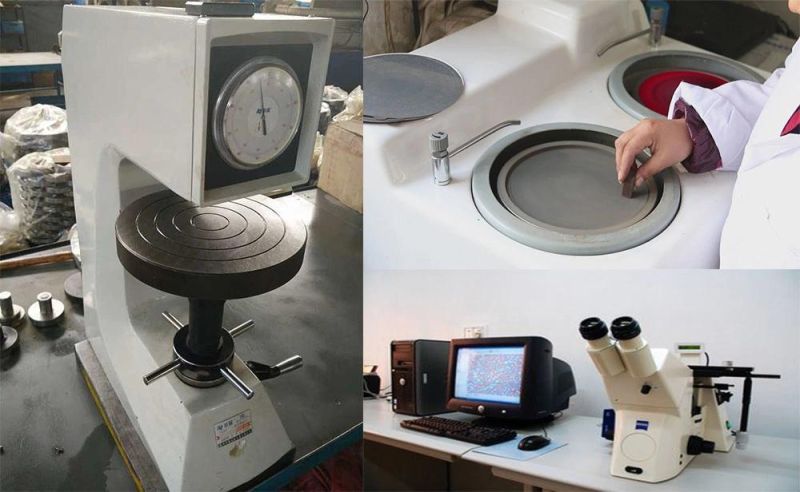

Product test

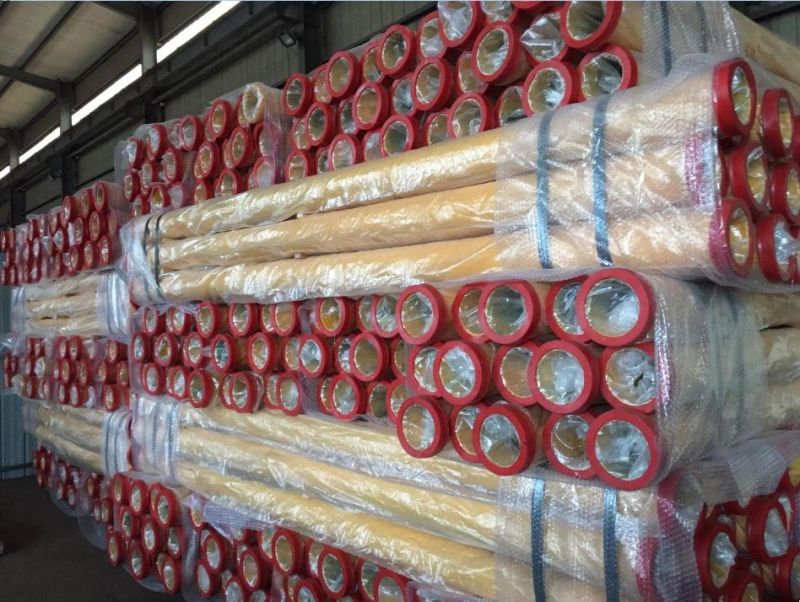

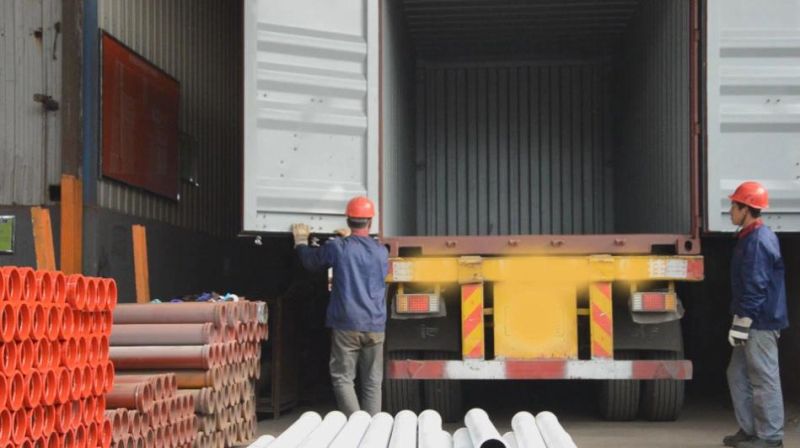

Packaging&Shipping
