Engineering & Construction Machinery

Kawasaki Hydraulic Bangbo Concrete Pump

HUNAN BANGBO MACHINERY CO., LTD.
  • After-sales Service:Provide
  • Warranty:One Year
  • Type:Concrete Pump
  • Shotcrete Type:Wet
  • Machining Process:Hydraulic
  • Structure:Cylinder Type

Base Info

  • Model NO.:HBT80.14.174RSK
  • Productivity:75m²,h
  • Feeding Height:1400mm
  • Vibrating Amplitude:2.6mm
  • Certification:ISO9001: 2000
  • Condition:New
  • Color:Red
  • Power:176kw
  • Max Therotic Output:80m3,H
  • Max Therotic Horizontal Distance:600m
  • Max Vertical Therotic Distance:220m
  • Main Hyd. Pump Brand:Kawasaki
  • Pumping Discharge Pressure(H/L):9,16
  • Conveying Capacity(H/L):80,50
  • Delivery Cylinder:200*1800
  • Oil Tank Capacity:170L
  • Outlet Opening Diamete:180mm
  • Weight:7500kg
  • Transport Package:Container
  • Specification:6900*2000*2700mm
  • Trademark:BANGBO
  • Origin:China
  • HS Code:8413400000
  • Production Capacity:50 Set,Sets Per Month

Description

Product nameBANGBO Diesel Mini Portable Trailer Concrete Machinery   Stationary  Pump for SaleModel Number Concrete trailer pump HBT80.16.176RSBrand Name BANGBOPower(W) 176KWWeight 7500KGDimension(L*W*H)6900*2000*2700mmCertification ISO90001.SAEWarranty One yearPower Type DieselTheor Concrete Output80
Kawasaki Hydraulic Bangbo Concrete Pump

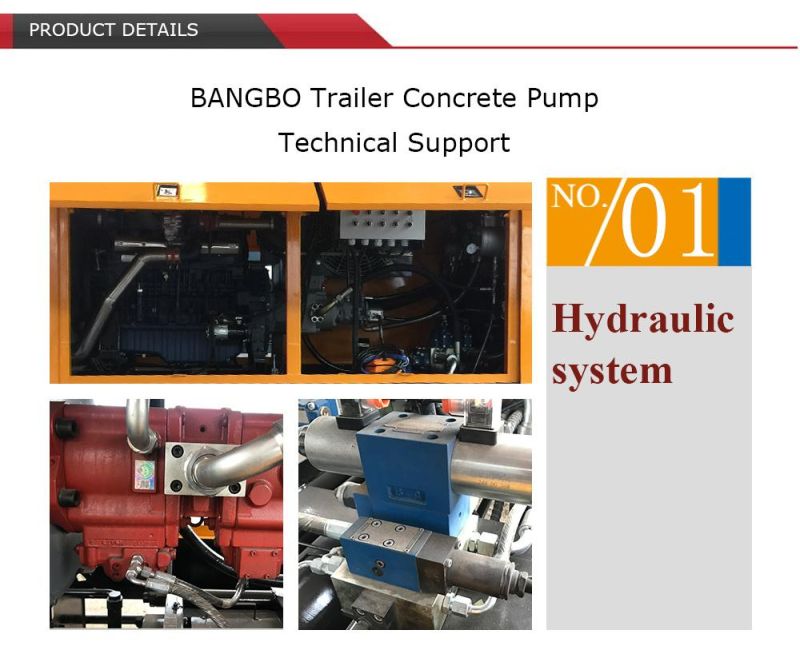

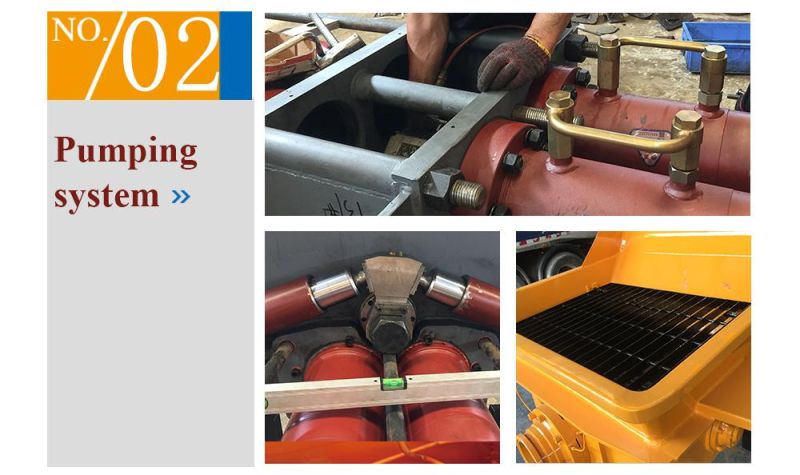

Efficient pump system



High-efficiency pumping technology
Adopt pressure difference sensing & reversing technology and main oil pump electric proportional control buffering technology to shorten the reversing time, optimize the
main oil cylinder and swing cylinder buffering & reversing time matching, and realize high-efficiency pumping.

Large-bore reversing cylinder

Adopt large-bore reversing cylinder, making the reversing powerful, and perfectly avoid
pipe blocking.

Large-power mixing motor
Forced feeding by large-displacement and large-torque steel ball motor. Mix normally when there is aggregate difference and the hopper is heightened. That will prevent the mixing motor from getting stuck and improve the aggregate absorbing performance.

New-type hopper
Optimize the hopper's inner cavity, improve the aggregate absorbing efficiency, and guard against aggregate inapplicability, and easily handle high-difficulty concrete.

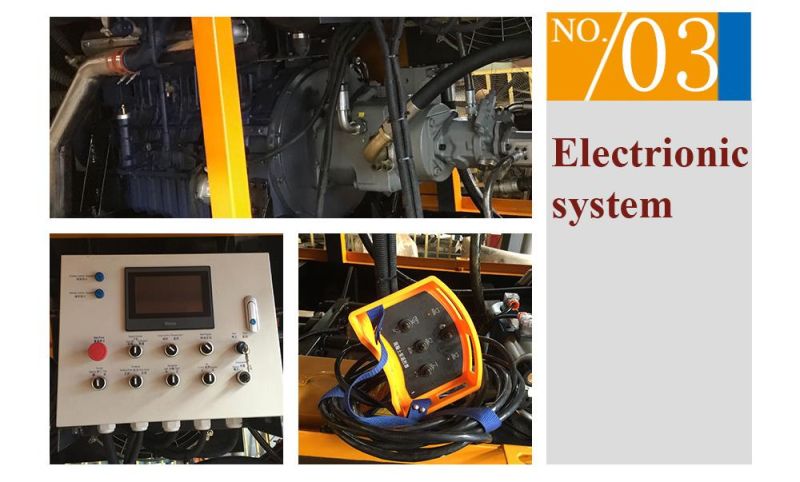

Intelligent control system



Fault self-diagnosis technology
Monitor the pump status at any time, as well as monitor and diagnose more than 50 faults in real time, reduce the troubleshooting time by 70%, and save the time and worry for you.

Dedicated motion controller
Adopt the dedicated pumping motion controller, integrate classic pumping algorithm and function library, making the arithmetic speed faster and performance more excellent. That perfectly integrates with the pumping condition.

Compulsory pumping technology
When the peripheral test loop incurs faults during the construction process, "Compulsory" function starting pump operation can be activated for emergency handling.

Kawasaki Hydraulic Bangbo Concrete PumpKawasaki Hydraulic Bangbo Concrete PumpKawasaki Hydraulic Bangbo Concrete PumpKawasaki Hydraulic Bangbo Concrete PumpKawasaki Hydraulic Bangbo Concrete Pump

Kawasaki Hydraulic Bangbo Concrete Pump


Q1: Are you trading company or manufacturer?

A: We are factory. We can design and manufacture products as customers' request.


Q2:How long is the warranty period ?
A:We offer 12 months warranty for the machine (main body) from the date of installation finished.

Q3: How long is your delivery time?

A: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.


Q4: What is your payment method?

A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery. We also support L/C, Western Union.


Q5: How many types of bangbo concrete mixer pumps do you have?

A: The motor ,diesel and electric.
If you need electric motor one, please let us know your power situation, such as in China, it is 380Voltege & 50 HZ. If you need diesel motor concrete mixer pump, the brand of diesel engine you like, it is Cummins or Deutz or Chinese Weichai,yuchai ?



Q6: How long and high is the pump distance?

A: We can provide 2 floors to 12 floors. Please let us know the vertical and horizontal delivery distance should reach. Or please let me know the tall building's total height.
