• Model NO.：YN958G
• Type：Large Loader
• Engine：Caterpillar Technology Shangchai Engine
• Dumping Height：3100mm
• Operating Weight：17000kg
• Load and Unload Method：Front Discharge
• Transport Package：1 Piece Disassembled, Naked Within 1 X 40hq Contai
• Specification：CE; ISO; GOST
• Trademark：YINENG
• Origin：Shandong
• HS Code：84295100
• Production Capacity：1000

Basic Info.

Model NO. YN958G Type Large Loader Engine Caterpillar Technology Shangchai Engine Dumping Height 3100mm Operating Weight 17000kg Load and Unload Method Front Discharge Transport Package 1 Piece Disassembled, Naked Within 1 X 40hq Contai Specification CE; ISO; GOST Trademark YINENG Origin Shandong HS Code 84295100 Production Capacity 1000

Product Description

1. FEATURES AND OPTIONALS:
    FEATURES:
   The most cost-effective
   *Caterpillar Technology Shangchai engine is adopted, with large torque backup and strong power.
   *Hangzhou Advance Gear Group WG180 torque converter and fix-shaft gearbox, with ZF technology.
   *Electro-hydraulic control, 4 forward and 3 reverse,
   *Single lever pilot control system makes operation easy and comfortable.
   *Strengthened axles owns large bearing capacities and high reliability.
   *Twin pump merging hydraulic system makes lower consumption and excellent performance.
   *The coaxes flow-amplified, hydraulic compensated steering makes operation easy and performace reliable.
   *Both travel system and working hydraulic system are forced-cooled, improving the efficiency obviously.
   *Air over hydraulic brake system; Eight caliper disc brakes.
   *Air break control, expand hoof type parking brake and emergency brake.
   *Large space articulated frame makes operation and traveling stable.
   *Working device with automatically levelling ability at high position.
   *Main articulated points take sealed, lubricated, dust-proof layers, which owns good durability.

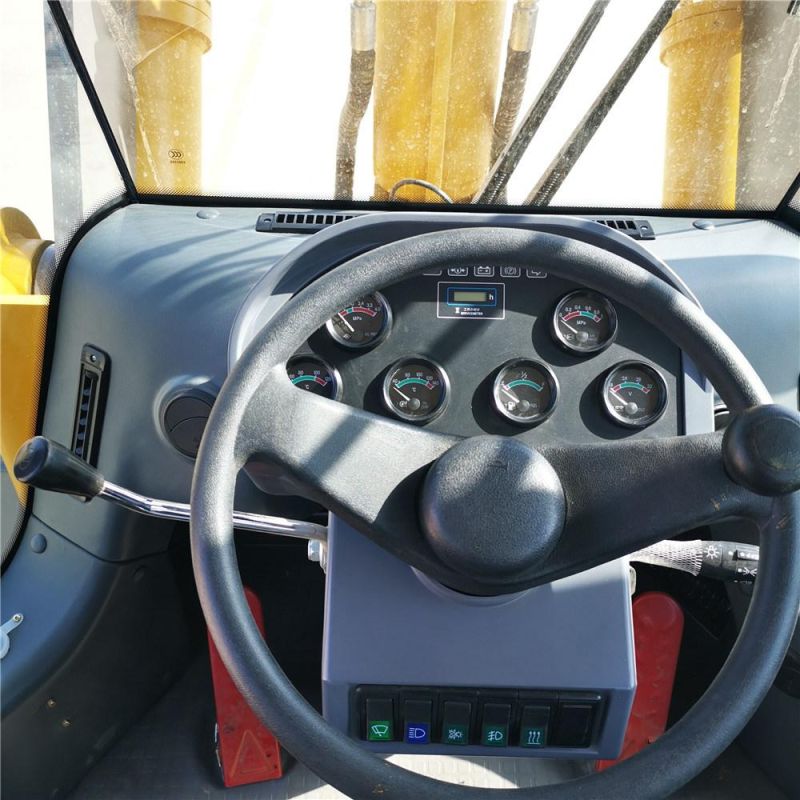

   *Integral, luxury instrument board.

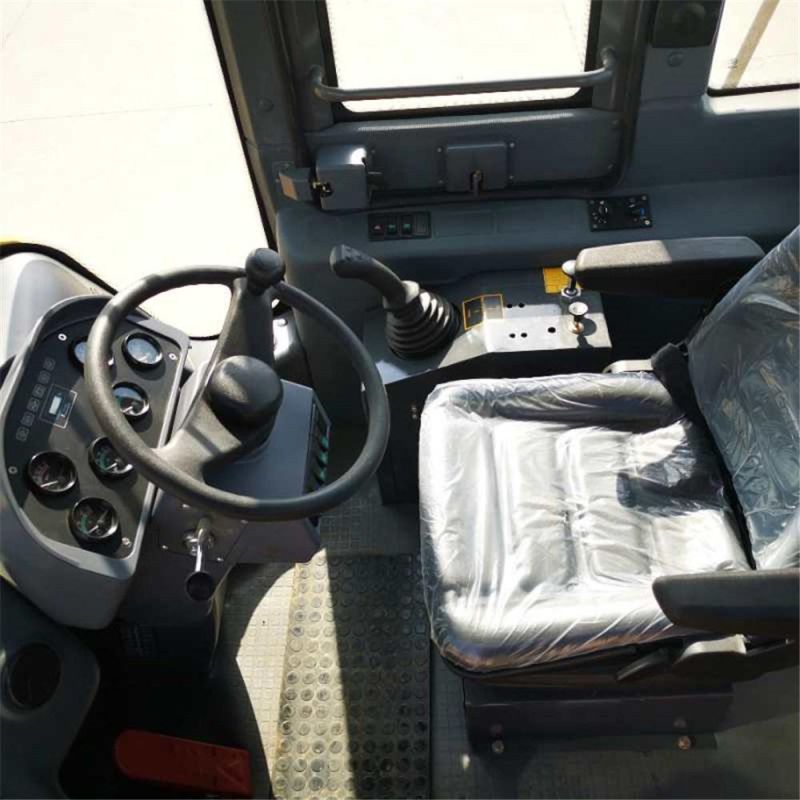

   *New, luxury cabin.
2.  OPTIONALS: Original Cummins engine
   (Model QSB6.7, Eur III)
   DongFeng Cummins Engine(Model: 6CTA8.3-C215, from DongFeng Cummins Co.); ZF Technology Gear Box (Model: WG180); Hydraulic Joystick Control; Air Conditioner  *CE Approved.*Obtained the certificate of ISO9001:2000;*Manufacturing license number: TS2510025-2009.   2-    SPECIFICATIONS:



Item	Specifications	Item	Specifications
Bucket capacity	3.0 m 3	Min. turning radius (outside of  rear wheels)	6288mm
Rated load	5000 kg	steering angle	(35º R/L)
Dumping height	3100 mm	Min. ground clearance	500mm
Dumping reach	1285mm	Wheel base	3200mm
Boom lifting time	6.5 S	Tread	2250mm
Total cycling time	12 S	Engine model	WD615G220
Max. speed	36 km/h	Rated power	162kW/2200rpm
Max. breakout force	175 kN	Tyre	23.5-25
Max.drawing force	150 kN	Overall dimensions	8110*3070*3400mm
Max. Gradeability	30°	Operating weight	17000kg

Company Profile

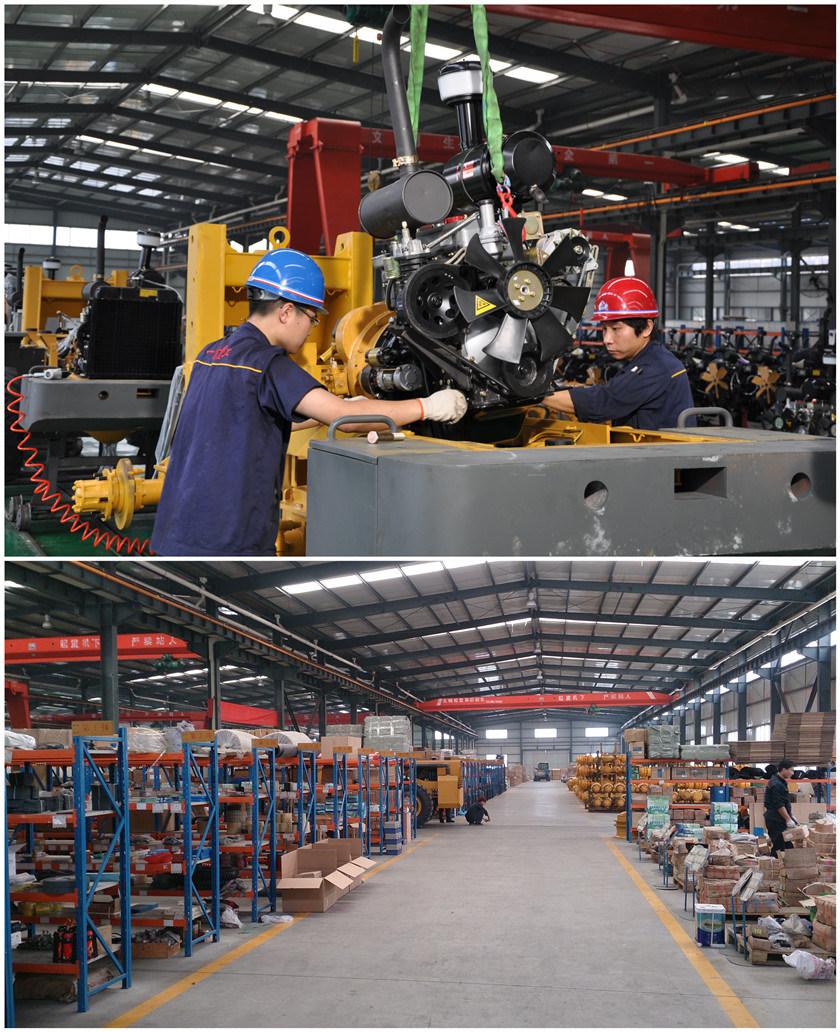

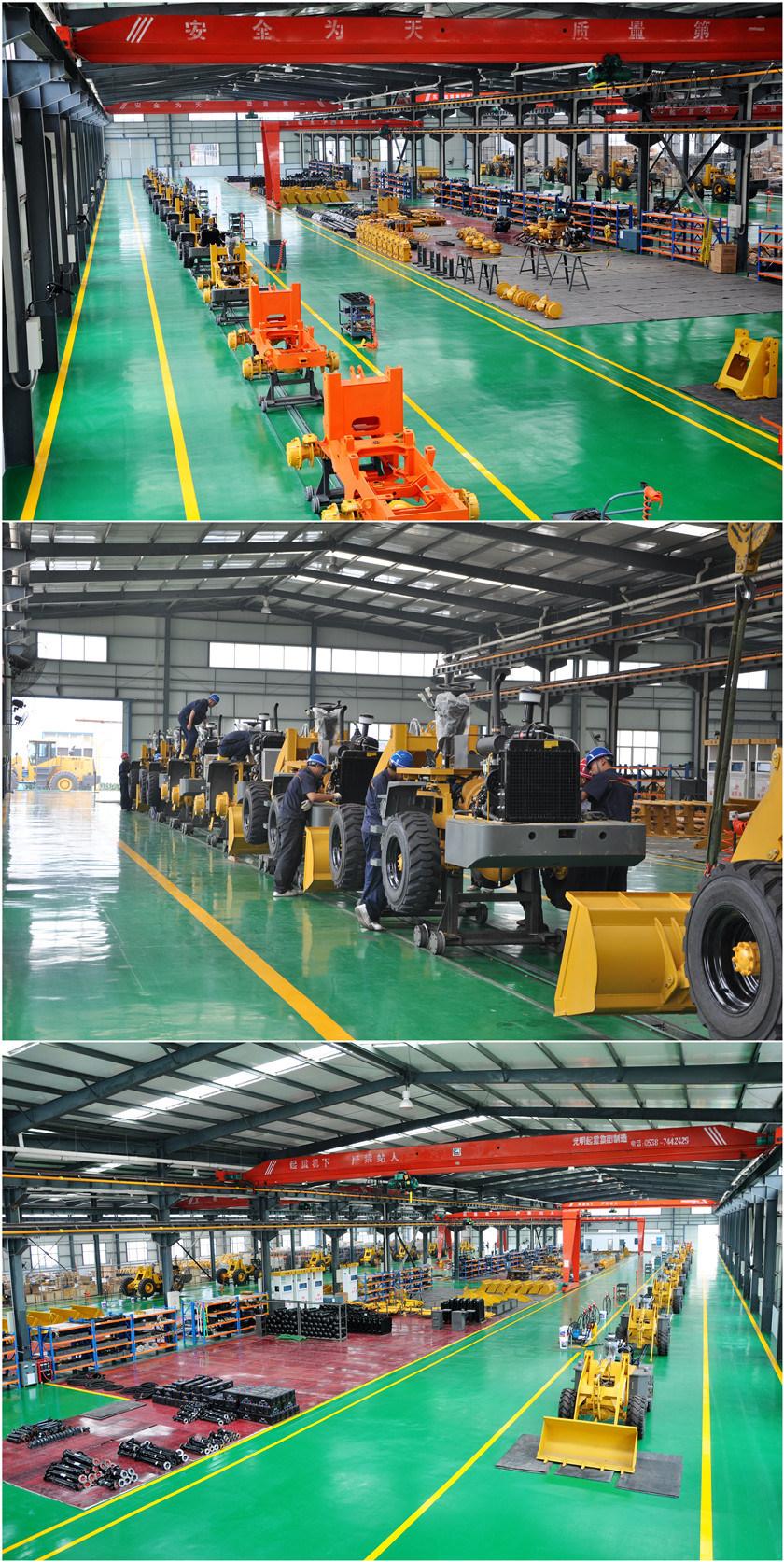

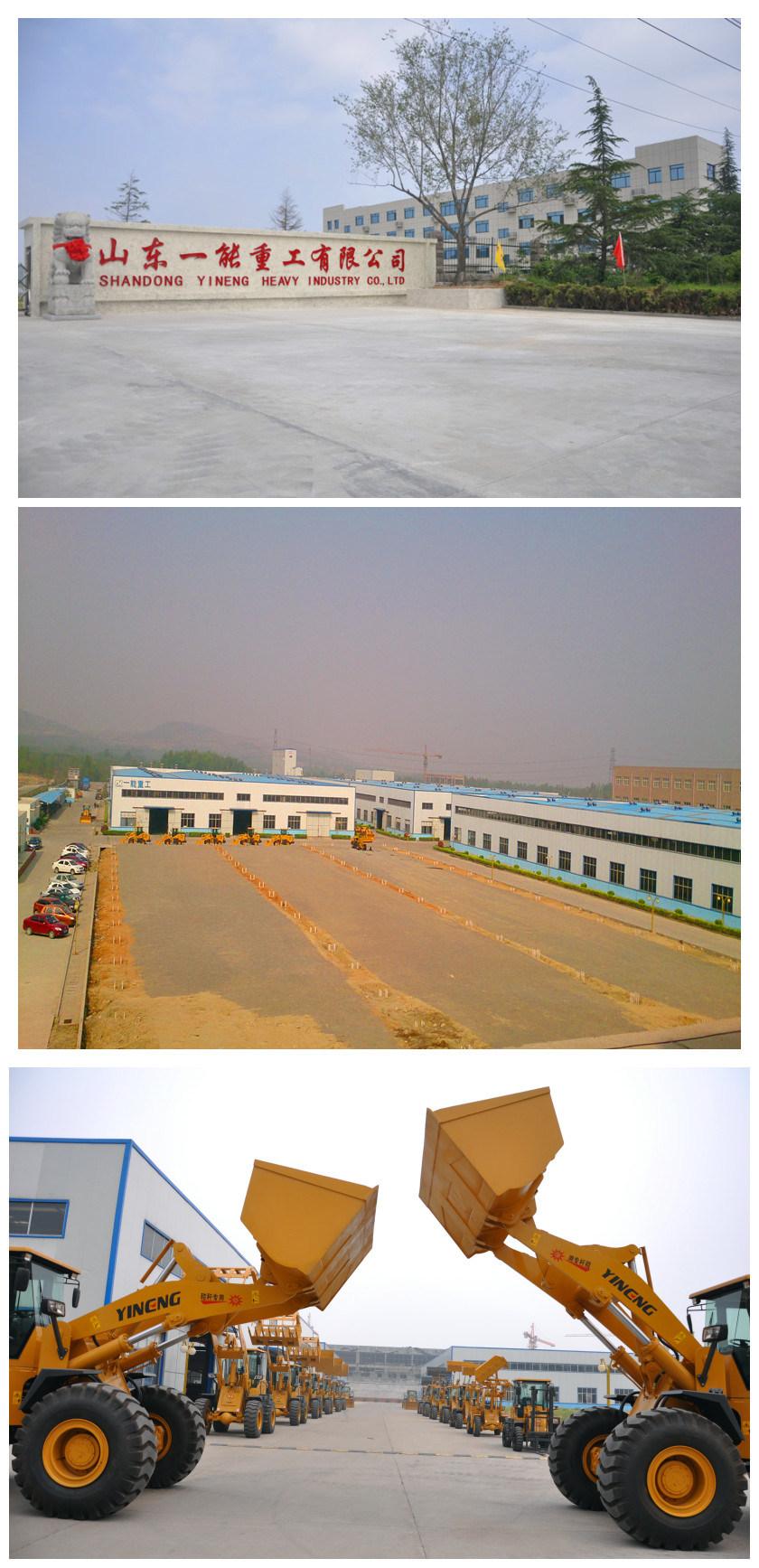

Founded in 1999, Shandong Yineng Heavy Industry Co., Ltd is a large-scale construction and agricultural equipment manufacturing enterprise integrating R&D, production and sales. The company has more than 400 employees, 8 senior engineers and 12 professional technicians. The products cover wheel loaders, underground mining machine, grass grabber, off-road forklift and etc, with 7 series, more than 100 models and equipment in total. Yineng has passed the ISO9001:2000 international quality management system certification and assessment of State Engineering Machinery Quality Supervision & Testing Center.
The company has been invited to participate in large-scale international exhibitions such as the Canton Fair, the Hanover Agricultural Machinery Exhibition in Germany, and the Bauma Fair for more than ten years. With first-class technical standards, top-notch manufacturing processes and personalized customization services, Yineng has established a broad customer network around the world, with customers all over Germany, Russia, Brazil, Iran, Saudi Arabia, Australia, Thailand, South Africa, etc. More than 40 Many countries and regions.
