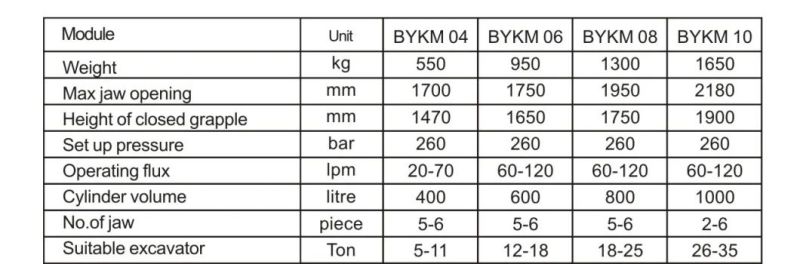

• Model NO.：BYKM04-BYKM10
• Number of Jaws：4-6 Pieces
• Max Jaw Opening：1700-2180mm
• Height of Closed Grapple：1470-1900mm
• Weight：550-1650kg
• Operating Flux：20-120lpm
• Set up Pressure：260bar
• Cylinder Volume：400-1000litre
• After-Sales Service Provided：Online Support
• Transport Package：Wooden Case
• Specification：2250*730*1150mm
• Trademark：Beiyi
• Origin：Wuxi, Jiangsu Province, China
• HS Code：8431410000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. BYKM04-BYKM10 Number of Jaws 4-6 Pieces Max Jaw Opening 1700-2180mm Height of Closed Grapple 1470-1900mm Weight 550-1650kg Operating Flux 20-120lpm Set up Pressure 260bar Cylinder Volume 400-1000litre After-Sales Service Provided Online Support Transport Package Wooden Case Specification 2250*730*1150mm Trademark Beiyi Origin Wuxi, Jiangsu Province, China HS Code 8431410000 Production Capacity 30 Sets/Month

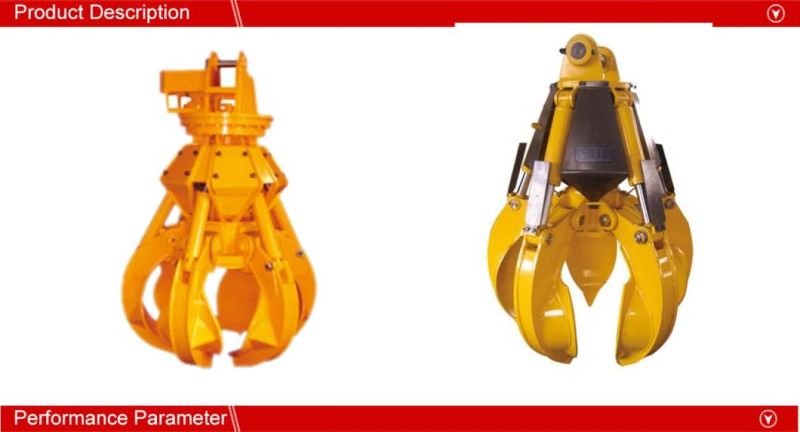

Product Description

Product Description

Hydraulic Grab is a high efficient equipment to handle waste steel ,iron,mineral,rubbish or other irregular massive material which replace human under various conditions.The unique designed jaw curve is perfect for grabing waste steel,iron and other irregular massive material.It owns 2-6 jaw,each jaw drived by an individual oil cylinder to insure the materials won't leak.


Advantages

Hydrauilc grab belongs to hydraulic structural product. It is combined by hydraulic cylinder,grab bucket (jaw), connection columns, ear plate, earmuffs, bucket teeth, tooth block and other spare parts.The key driving parts is hydraulic oil cylinder. Excavator used hydraulic grab is divided into rotary and non-rotary two kinds .The non-rotary grab use the excavator oil pipeline which means it do not need additional hydraulic valve block and pipeline.Oppositely,the rotry grab need addtional hydraulic valve block and pipeline to operate.


Product Uses

1.Digging construction foundation, deep hole or load soil,sand,coal,macadam etc.
2.Digging and loading on the limited side of the channel or space
3.Loading,stacking and transportation waste steel,crushed aggregates, saw dust, ballast in iron and steel enterprises,port,wharf,railway station,storage etc.

1. Q:How to chose the suitable model?
A: Please kindly advise your excavator weight or model, then we will help you to decide the suitable model.

2. Q:Is your size can be custome made?
A:Yes, we can custom made according to your requests.

3.Which payment your company accept?

A:We accept T/T,  Western Union, L/C payment.

4. Q:Do you offer after-sale service?
A: Yes, we will offer you machine operation instructions. 6 months of warranty time for the motor will be offered to our customer dating from the receipt day. Besides, we will offer life long technical instruction.

5.Q:How To Order:
1. Please tell us the model with quantity and other requirement which you needed.
2. We issue the Proforma Invoice to you after confirmed the price and other details.
3. We arrange the order production upon receipt of confirmed PI and your deposit or original L/C.
4. After the goods is ready to ship, we will inform you the shipment date and other informations by email at the same time.
5. We will help to track your goods until you receive them safely.
