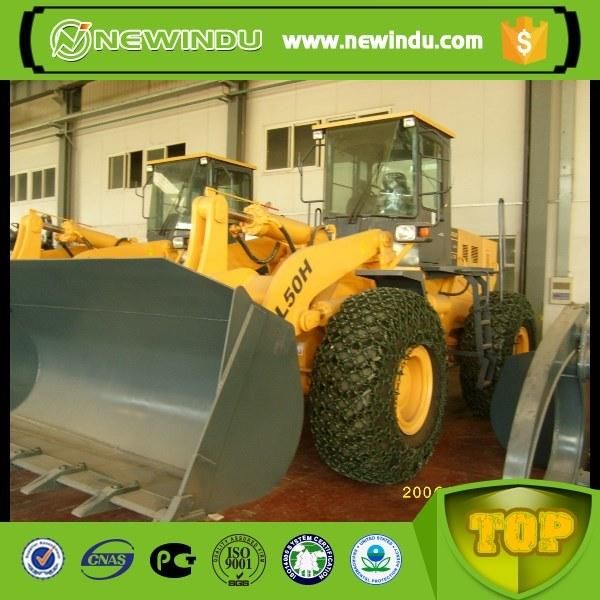

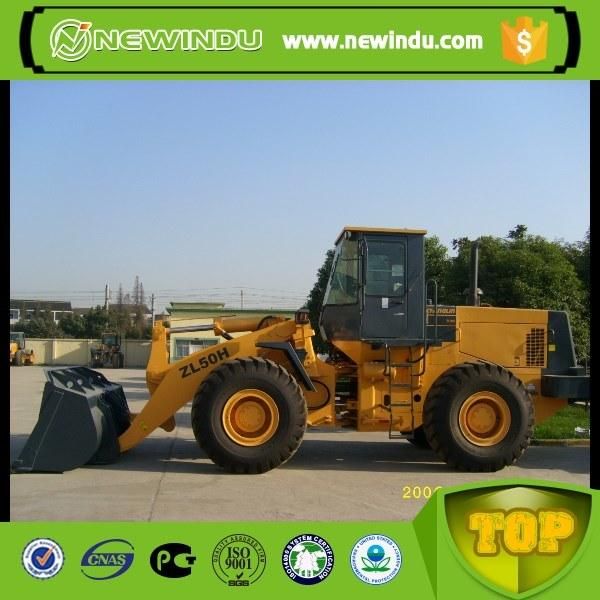

• Model NO.：ZL50H
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Overall Weight：2690kg
• Max. Traction Force：35kn
• Dimension：5520*1960*2850mm
• Bucket Capacity：0.54cbm
• Engine Mode：B490bt
• Dump Height：2420mm
• Transport Package：by Roro, Bulk Cargo or Container Transprot
• Specification：1 Ton
• Trademark：Caise
• Origin：Henan, China
• HS Code：84295100
• Production Capacity：50 Uint, Month

Overall Dimension

1

Length(with bucket on ground)

Aerican engine

C6121 engine

8365(mm)

8215mm

2

Width(to outside of wheels)

2800(mm)

3

Bucket width

2946(mm)

4

Height(To the top of the cab)

3450(mm)

5

Wheel base

3350(mm)

6

Tread

2200(mm)

7

Min. ground clearance

450(mm)

Main Technical Specification

1

Rated load

5000(Kg)

2

Operating weight

16300KG

3

Rated bucket capacity

3.0(m3)

4

Max. breakout force

160kN

5

Max. dump clearance

3050(mm)

6

Dump reach

1107(mm)

7

Dump angle at any position

≥450

8

Digging depth(with bucket bottom horizontal)

165(mm)

9

Min. turning radius

(1) Outside of bucket

6675(mm)

(2) Outside of rear wheel

5879(mm)

10

Pivot angle frame

400

11

Oscillating angle of rear axle

+13o

12

Lifting time of bucket

≤5.8(sec.)

13

Lowering time of bucket

≤3.8(sec.)

14

Dumping time

≤1.2(sec.)

15

Traveling speed(Km/h),3 forward and 3 reverse

(1) 1st gear

7.05/9.0

(2) 2nd gear

11.7/16.0

(3) 3rd gear

34.6/38.24

Diesel engine

1

Model

6CT AA 8.3-C215 (TIER2)

ShangChai C6121 engine

2

Type

Direct injection. Turbocharge. Water cooling

3

Rated output

160 (kW)

158(Kw)

4

Inter-bore of cylinder/stroke

114/135 (mm)

121/152(mm)

5

Total exhaust of cylinder

8.3 (L)

10.5(L)

6

Model of starting motor

42MT

KB-24V

7

Power of start motor

8.2(KW)

7.5(KW)

8

Voltage of starting motor

24(V)

24(V)

9

Rated speed

2200(r/min)

2200(r/min.)

10

Max. Torque

998(N.M)

>843(N.m)








Our company
Newindu Construction Engineering (Shanghai) Co., Ltd. is professional in construction machinery for nearly 10 years, exporting with good quality and low price, having excavator, truck crane, bulldozer, wheel loader, motor grader, drilling rig, dump truck, road roller, forklift, reach stacker, and also including the spare parts, etc.
