• Model NO.：SEM921
• Walking Mode：Wheeled
• Type：Medium-sized Grader
• Operating Weight(Standard)：15930
• Gear：6 in The Front 6 and 3 in The Back
• Rated Power：162 Kw
• Travel Speed (Forward / Reverse)：40 , 25 Km,H
• Max. Tractive Force (F=0.9)：78 Kn
• Unique Selling Point：High Operating Efficiency
• Location：Shandong China
• Color：Yellow
• Attachments：Rear Ripper
• Engine：Shangchai
• Gearbox：Yd13 Power Shift Gearbox
• Usage：Construction of Subgrade and Pavement
• Features：Flexible and Accurate Movements, Easy to Operate
• Hydraulic Valve Brand：Imported
• Transport Package：Iron Frame Wooden Box
• Specification：8854*2630*3360mm
• Trademark：SEM
• Origin：China
• HS Code：8429209000
• Production Capacity：500pices,Year

Item SEM919SEM921Overall weight (kg)1507015930weight - front axle(kg)42364744weight - back axle(kg)1083411186Front / back axle load distribution28% /72%30% /70%Overall dimension(mm)8703*2630*33608854*2630*3360Max. Tractive Force(KN)≥78≥85Max. forward speed(km/h)4040Max. backward speed(km/h)2525EngineShangchaiShangchaiModelSC9DK190.1G3SC9DK220G3Rated power(kw)140162Rated revolution(rpm)2200.02200.0Displacement(L)8.88.8TransmissionHangzhou advance gearboxHangzhou advance gearboxGear6 in the front 6 and 3 in the back6 in the front 6 and 3 in the backHydraulic systemload sensing, proportional priority with pressure compensationload sensing, proportional priority with pressure compensationWorking pumpVariable Piston PumpVariable Piston PumpWorking valveProportional priority with pressure compensationProportional priority with pressure compensationTireDiagonal tire with inner tubeDiagonal tire with inner tubeLayer/pattern12pr, E2/L212pr, E2/L2Model17.5-2512pr, E2/L2Max. articulation angle(°)±20±20Min. turning radius(m)≤7.8≤7.8Shovel floatingStandardStandardShovel length(m)4.04.3

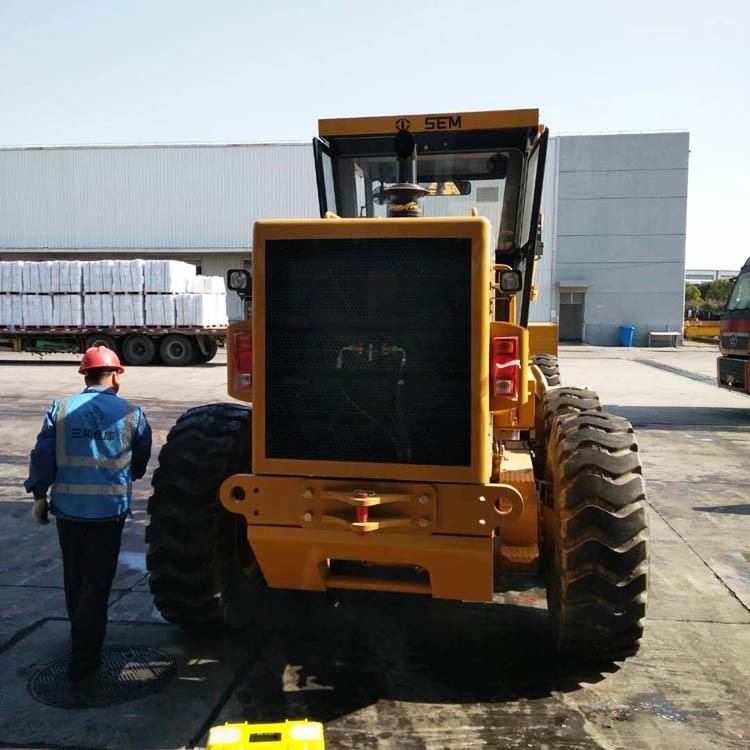

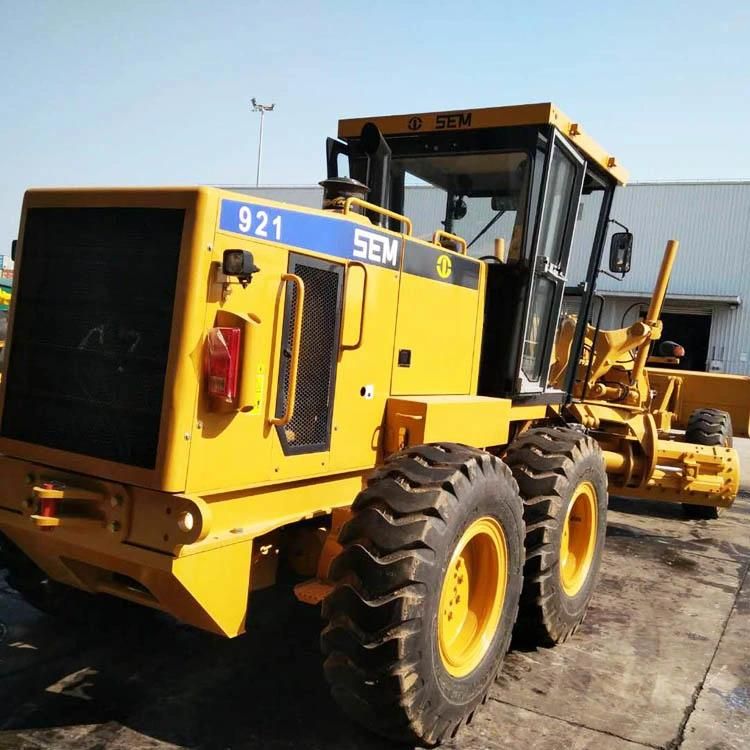

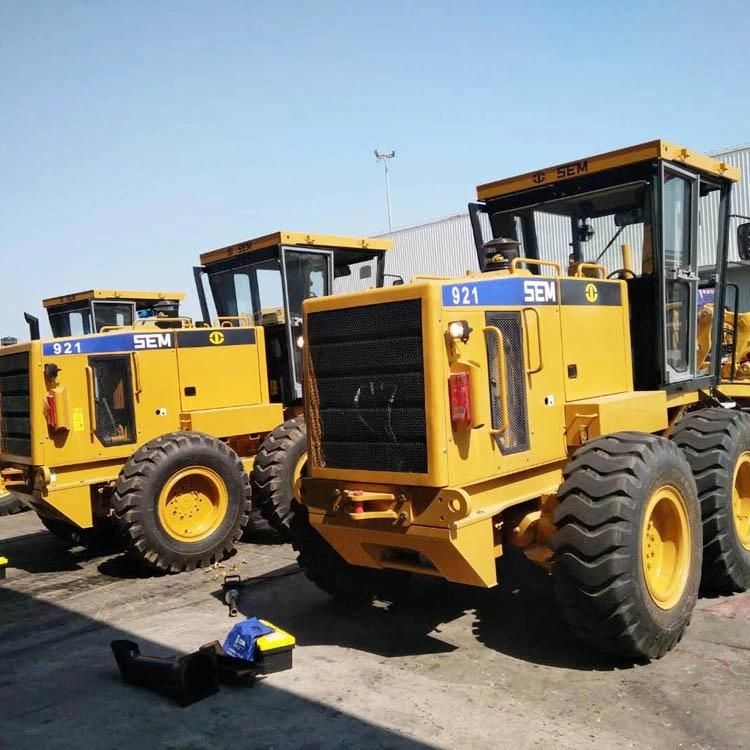

Detailed Images













Company Profile
