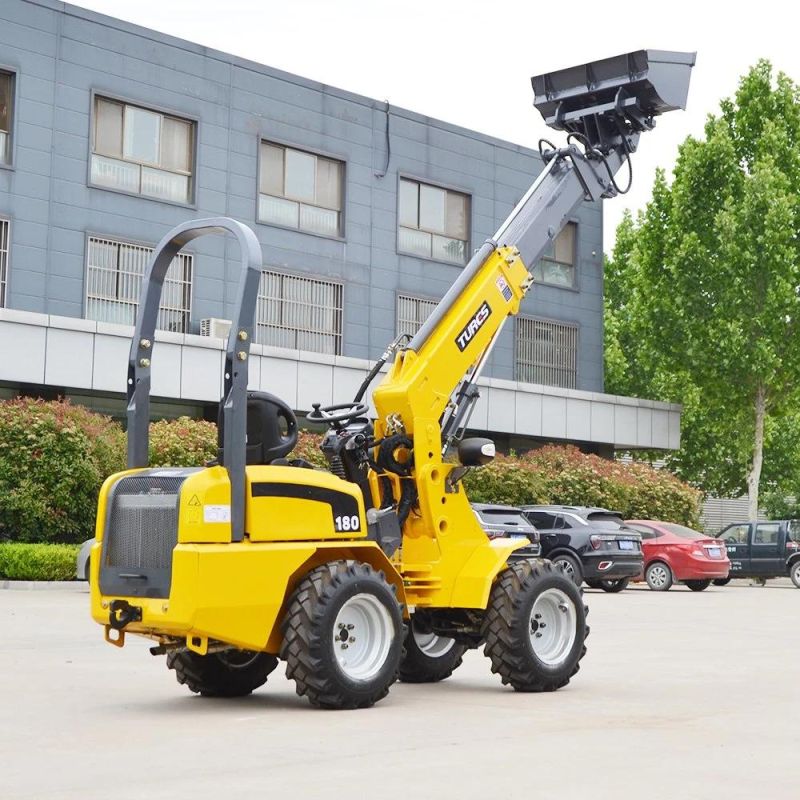

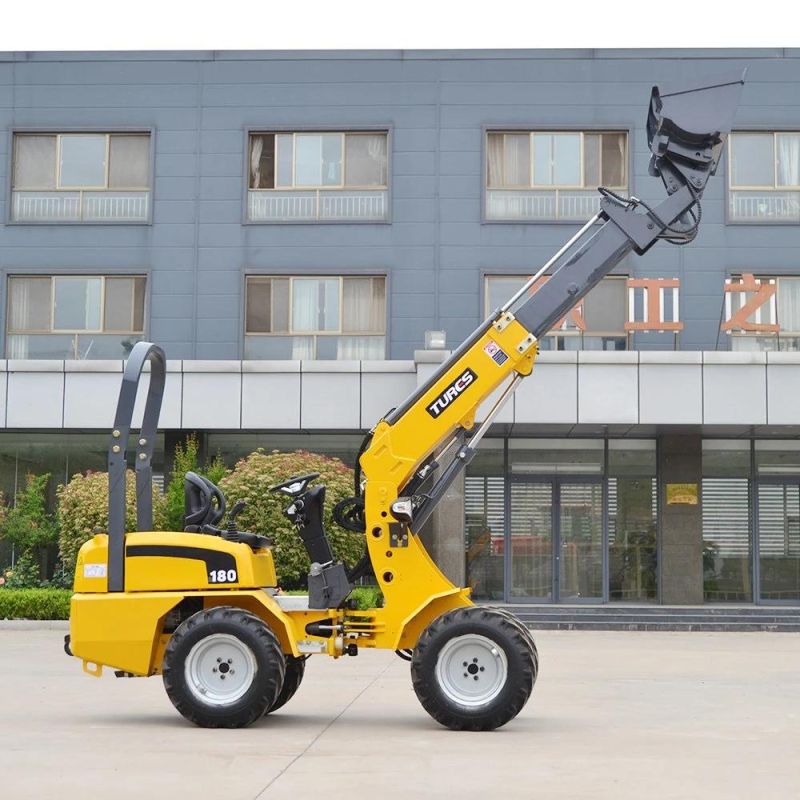

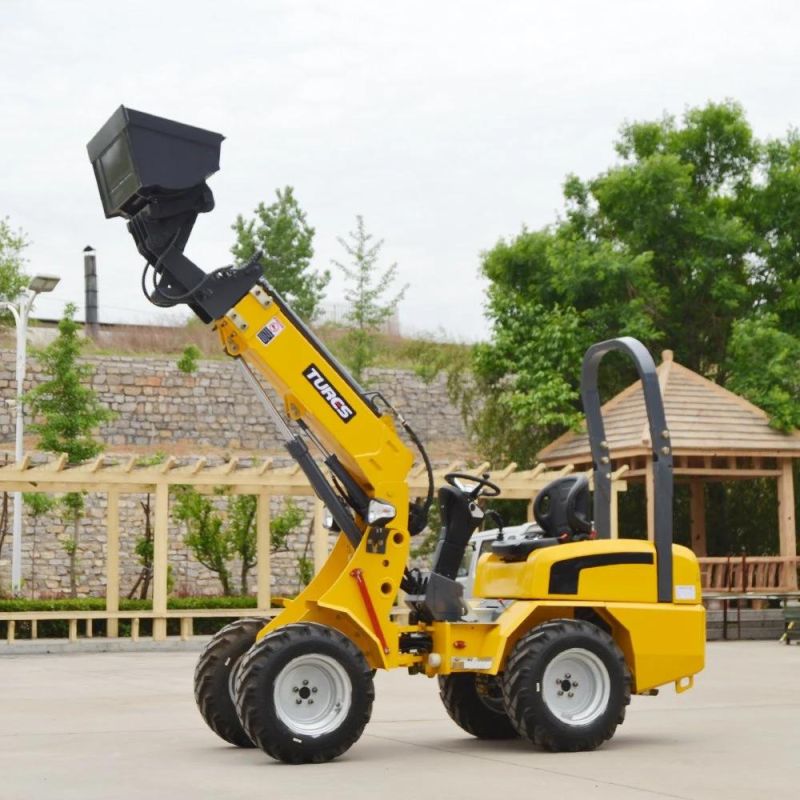

Heracles Hr180t Articulated Mini Telescopic Front Wheel Loader in Europe

Qingzhou Heracles Industry & Trade Co.,Ltd.
  • After-sales Service：Online Support
  • Warranty：1 Year
  • Certification：TUV, ISO, CE
  • Condition：New
  • Rated Load：<1t
  • Transmission：Hydraulic - Mechanical

Base Info

  • Model NO.：HR180T
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled
  • Type：Small Loader
  • Bucket Capacity：0.3cbm
  • Max. Loading Capacity of Main Boom：1000kg
  • Max. Loading Capacity of Small Boom：600kg
  • Max. Speed(F1/R1)：12km,H
  • Max. Breakout Force：15kn
  • Rated Power：19kw
  • Transport Package：Container
  • Specification：3820*1260*2310mm
  • Trademark：HERACLES
  • Origin：China
  • HS Code：8429510000
  • Production Capacity：1000 Pieces,Year

Description

Heracles Hr180t Articulated Mini Telescopic Front Wheel Loader in EuropeHeracles Hr180t Articulated Mini Telescopic Front Wheel Loader in EuropeHeracles Hr180t Articulated Mini Telescopic Front Wheel Loader in Europe

Heracles Hr180t Articulated Mini Telescopic Front Wheel Loader in EuropeH180T telescopic loader specificationsRated Load900kgBucket Capacity0.3m3Lifting Height of main boom2959mmDumping Height of main boom( dumping angle 45°)2051mmDumping reach of main boom587mmMax. Loading capacity of main boom1000kgLifting height of small boom3526mmDumping height of small boom (dumping angle 45°)2618mmDumping reach of small boom1085mmMax. Loading capacity of small boom600kgMax. Speed(F1/R1)12km/hMax. Traction force16.66KNMax. Breakout Force15KNDigging Deep65mmMax. Gradeability25°Max. Turning angle35°Dimension and weight Overall length (bucket on ground position)3820mmOverall width1260mmOverall Height2310mmWheel base1507mmTread890mmMin. Ground clearance220mmNet weight2100kgEngine Engine model3TNV88-G1TypeWater cooledRated Power19kwRated Speed2200r/minMax. Torque98.7N.mSpeed at Max. Torque1320r/minNumber of cylinders3Bore & stroke88*90displacement1.642LRated fuel consumption≤230Transmission Pump Pressure28MPaAxlebevel gear reductionMain drive reduction ratio3.75Driving4 wheel driveTire10.0/75-15.3Steering System TypeAll hydraulic steeringSystem Pressure16Steering pump typeGear pumpSteering diameter63Stroke171quantity1Braking System 1) Foot Brake TypeDisc brakeBrake drum diameter3002) Hand brake (parking brake) TypeDrumBrake Drum Diameter160/120Working hydraulic system Oil flow13.8ml/rWorking pressure16MpaTilting cylinder diameter & strokeø80*318Boom cylinder diameter & strokeø80*395Voltage12VBattery model6-QW-60BStarter TypeElectricAttachments:
