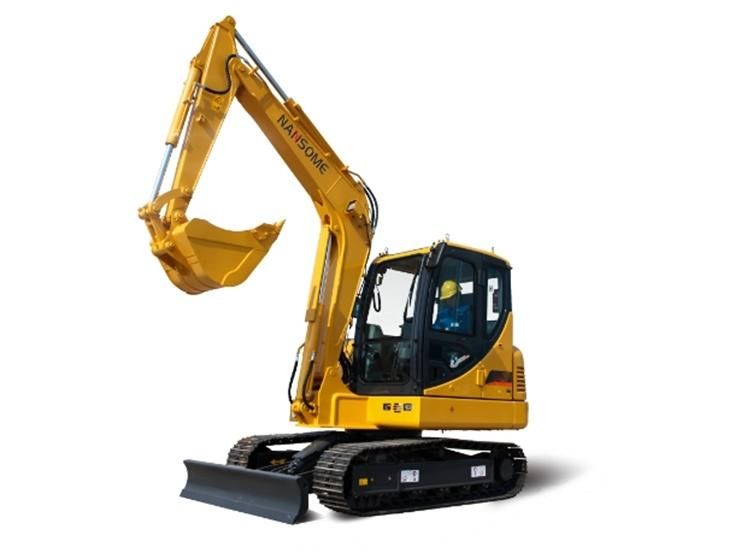

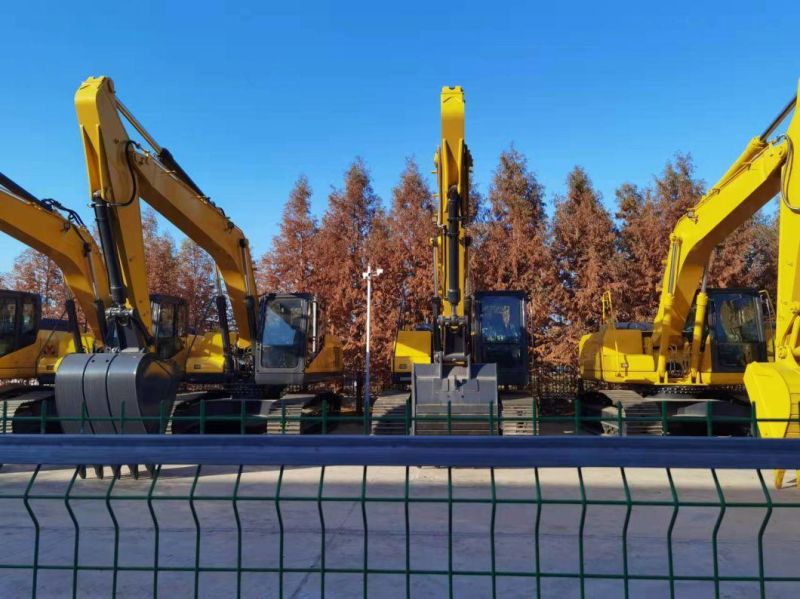

20 Tons of Medium Size Excavator
Hainan Shanming Construction Machinery Co., Ltd.- After-sales Service：Service Available
- Warranty：1 Year,2000 Working Hours
- Type：Crawler Excavator
- Usage：Special Excavator, Mining Excavator
- Bucket：Grab Shovel
- Transmission：Hydraulic Transmission
Base Info
- Model NO.：NE210
- Drive Type：Electric Drive
- Bucket Capacity：1.0~1.5m³
- Size：Medium-Sized
- Certification：CE, ISO9001: 2000
- Condition：New
- Sell：Factory Outlet
- Serve：Service Guarantees
- Quality：Quality First
- Cooperation：Cooperation Sincerely
- Price：Price Favorable
- Transport Package：Bulk Load
- Specification：21500kg
- Trademark：Nansome
- Origin：China
- Production Capacity：5000 Pieces ,Year
Description
Bucket digging force at power max (KN) ISO:145
Volume of hydraulic tank (L):246
A Overall length (mm):9560
B Overall width (mm):2780
C Overall height (to top of boom)(mm):3040
D Overall height (to top of cab)(mm):3120
E Counterweight ground clearance (mm):1065
F Min. ground clearance (mm):466
G Tail swing radius (mm):2720
H Track grounding length (mm):3445
J Track length (mm):4260
K Track gauge(mm):2180
L Track width (mm):2780
M Track shoe width (mm):600
N Turntable width (mm):2700
O Max. digging height (mm):9275
P Max. dumping height (mm):6560
Q Max. digging depth (mm) ):6515
R Max. vertical wall digging depth (mm) ):5915
S Max. digging depth for 2.5m horizontal plane (mm) ):6380
T Max. digging reach (mm) ):9865
U Max. digging reach at ground level (mm)):9680
Warranty period: one year or 2000 working hours whichever comes first. The warranty period can be extended upon mutual negotiation
about the price and payment terms.
Our local dealer can provide the after sales service and parts. we also can send our service machanics to do the service directly.
Different operation modes such as fast mode with priority on workload and economy mode with priority on fuel saving can be selected.
Product performance
Large workload and low fuel consumption
Cummins 6BTA5.9 engine is perfectly combined with advanced pressure-compensated CLSS hydraulic system
High efficiency, fast mode with priority on workload and economy mode with priority on fuel saving
The quick oil return system of the stick reduces the loss of oil pressure and can quickly complete the loading operation
High durability and reliability
Reinforced boom, stick and bucket greatly enhance the durability of the machine
Large counterweight improves the stability of the machine
Robust machine design ensures strong excavation and fast walking
Easy maintenance
The cleaning of the radiator is simple and easy
Standard equipment with oil-water separator and additional fuel filter to remove water and impurities mixed into the fuel
Product Parameter
Volume of hydraulic tank (L):246
A Overall length (mm):9560
B Overall width (mm):2780
C Overall height (to top of boom)(mm):3040
D Overall height (to top of cab)(mm):3120
E Counterweight ground clearance (mm):1065
F Min. ground clearance (mm):466
G Tail swing radius (mm):2720
H Track grounding length (mm):3445
J Track length (mm):4260
K Track gauge(mm):2180
L Track width (mm):2780
M Track shoe width (mm):600
N Turntable width (mm):2700
O Max. digging height (mm):9275
P Max. dumping height (mm):6560
Q Max. digging depth (mm) ):6515
R Max. vertical wall digging depth (mm) ):5915
S Max. digging depth for 2.5m horizontal plane (mm) ):6380
T Max. digging reach (mm) ):9865
U Max. digging reach at ground level (mm)):9680
Warranty period: one year or 2000 working hours whichever comes first. The warranty period can be extended upon mutual negotiation
about the price and payment terms.
Our local dealer can provide the after sales service and parts. we also can send our service machanics to do the service directly.
Different operation modes such as fast mode with priority on workload and economy mode with priority on fuel saving can be selected.
Product performance
Large workload and low fuel consumption
Cummins 6BTA5.9 engine is perfectly combined with advanced pressure-compensated CLSS hydraulic system
High efficiency, fast mode with priority on workload and economy mode with priority on fuel saving
The quick oil return system of the stick reduces the loss of oil pressure and can quickly complete the loading operation
High durability and reliability
Reinforced boom, stick and bucket greatly enhance the durability of the machine
Large counterweight improves the stability of the machine
Robust machine design ensures strong excavation and fast walking
Easy maintenance
The cleaning of the radiator is simple and easy
Standard equipment with oil-water separator and additional fuel filter to remove water and impurities mixed into the fuel
Product Parameter
engine type | Cummins 6BTA5.9 |
engine power | 133kW/2000rpm |
| Digging bucket capacity | 1.0m³ |
| total weight | 21500kg |
