• Model NO.：GR260
• Certification：ISO9001: 2000
• Condition：New
• Dimension(Lxwxh)：10280*3100*3550mm
• Operating Weight(Standard)：24000kg
• Max. Grade Ability：36%
• Maximum Depth of Cutting：500mm
• Circle Reversing Rotation：360
• Moldboard Width X Height：4572*787mm
• Tire Inflation Pressure：350 MPa
• Working Hydraulic Pressure：18MPa
• Min. Turning Radius Using Articulation：8.3m
• Transport Package：Comply with Export Packaging Requirements
• Specification：ISO
• Trademark：XCMG
• Origin：Jiangsu, China
• HS Code：84292090
• Production Capacity：10000 Unit,Units , Year

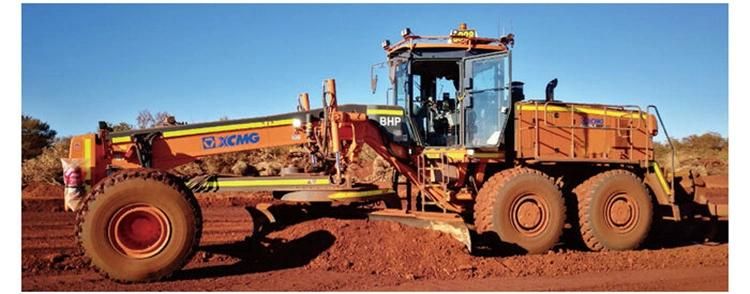

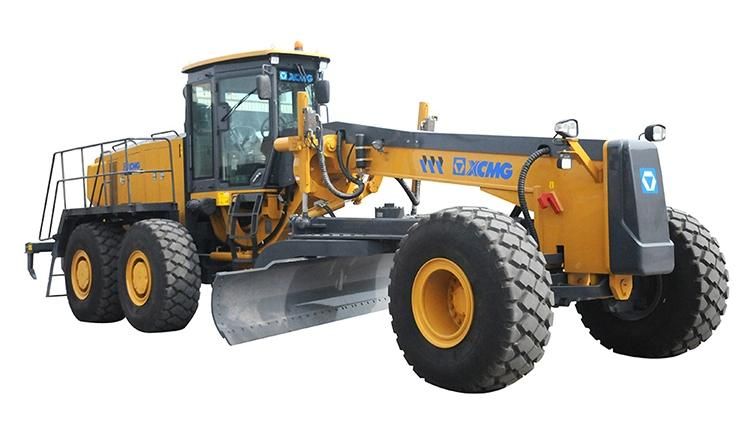

XCMG GR Series Motor Graders are mainly used in ground leveling ,canalling , slope scraping ,earthmoving ,scarification or snow removal work on road, airfield ,farmland ,and so on .They are necessary construction machines for national defense engineering ,mine construction, town and country roads building ,and farmland improvement..

Product Parameters

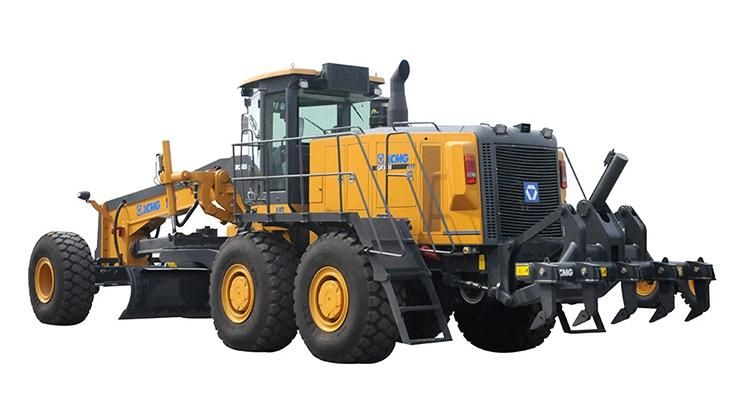

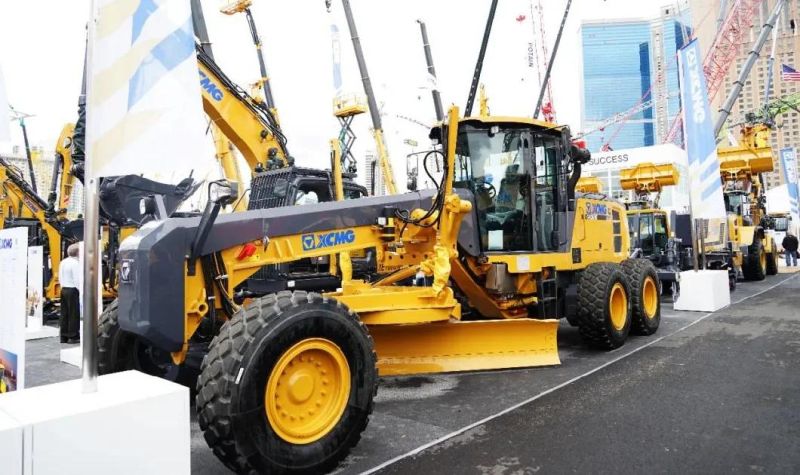

GR260Basic specificationEngine model6CTA8.3-C260Rated power/speed194kW/2200rpmDimension(LxWxH)10280×3100×3550mmOperating weight(Standard)24000kgPerformance specificationTravelling speed ,forward5,8,11,19,23,38 km/hTravelling speed ,reverse5,11,23 km/hTractive force(f=0.8)132KNMax. gradeability36%Tire inflation pressure350 MPaWorking hydraulic pressure18 MPaTransmission pressure1.3~1.8MPaOperating specificationMax. steering angle of front wheelsLeft / Right 50°Max. lean angle of front wheelsLeft / Right 17°Max. oscillation angle of front axleUp / down 15°Max. oscillation angle of balance boxBefore / after 15Frame articulation angleLeft / Right 27°Min. turning radius using articulation8.3mBladeMaximum lift above ground450mmMaximum depth of cutting500mmMaximum blade position angle90°Blade cutting angle28°-70°Circle reversing rotation360°Moldboard width X height4572×787mm Product Show

Company Profile

FAQ

1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the delivery time?
A: 30 days after receiving the deposit.

4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.

5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
