• Model NO.：SD22W
• Condition：New
• Color：Yellow
• Product Name：Shantui Bulldozers
• Model：SD22W
• Brand：Shantui
• Engine：Cummins
• Blade Type：Straight-Tilt Blade, Angle Blade
• Min. Ground Clearance：405 mm
• Ground Pressure：0.077 MPa
• Minimum Turning Radius：3.3 M
• Gradeability：30 Degrees
• Track Gauge：2000 mm
• Track Length on Ground：2730mm
• Blade Width：3725mm
• Blade Height：1315mm
• Blade Capacity：6.4m3
• Application：Mining Application, Rocks
• Transport Package：Container Packaging
• Specification：6790*3275*3402mm
• Trademark：Shantui
• Origin：Shandong, China
• HS Code：8429119000
• Production Capacity：100PCS,Month

Basic Info.

Model NO. SD22W Condition New Color Yellow Product Name Shantui Bulldozers Model SD22W Brand Shantui Engine Cummins Blade Type Straight-Tilt Blade/ Angle Blade Min. Ground Clearance 405 mm Ground Pressure 0.077 MPa Minimum Turning Radius 3.3 M Gradeability 30 Degrees Track Gauge 2000 mm Track Length on Ground 2730mm Blade Width 3725mm Blade Height 1315mm Blade Capacity 6.4m3 Application Mining Application, Rocks Transport Package Container Packaging Specification 6790*3275*3402mm Trademark Shantui Origin Shandong, China HS Code 8429119000 Production Capacity 100PCS/Month

Product Description

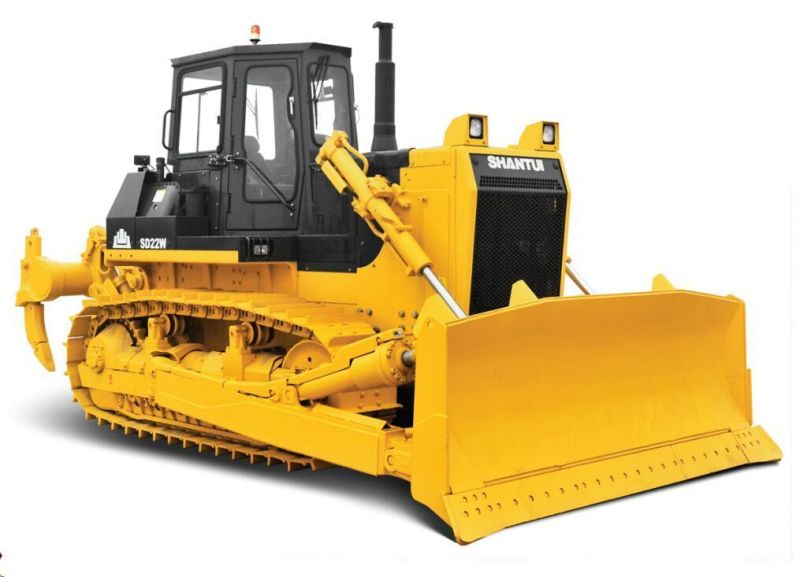

Official Price Shantui Rock Dozer SD22W 220HP Bulldozer for rock
SD22W Mining machinery equipment dozers / bulldozers
One tough dozer for mining, rock work etc
1. Engine : Cummins diesel engine NT855-C280S10
2. Net Power : 162KW / 220HP / 1800rpm
3. Operating weight : 23.44 t  SC8Shantui Bulldozers SD22W feature : This version of the SD22W has a reinforced undercarriage, arms and blade for the toughest of large obstacle jobs, such as large rocks and boulders. The blade is thicker and the arms plated for greater strength and durability. It is well-suited for heavy mining applications. It is one of Shantui's top sellers in Africa, where large-scale mining is prevalent.Bulldozers SD22W series technical specification :

SD22 (Standard version)	SD22C (Coal version)	SD22W (Rock version)	SD22F (Forestry version)	SD22D (Desert version)	SD22E (Extended version)	SD22R (Environmental sanitation version)	SD22S (Wetland version)
23450	24000	23600	24700	24600	24600	26000	25700
66	57.5	66	64	56	66	36	35.2
WP12/QSNT-C235	WP12/QSNT-C235	QSNT-C235	QSNT-C235	QSNT-C235	QSNT-C235	WP12/QSNT-C235	WP12/QSNT-C235
175/1800	175/1800	175/1800	175/1800	175/1800	175/1800	175/1800	175/1800
5495*3725*3402	5820*4200*3402	5495*3725*3402	5495*3725*3402	5495*3725*3402	5495*3725*3402	6290*4365*3745	6290*4365*3402
F1:0-3.6 F2:0-6.5 F3:0-11.2	F1:0-3.6 F2:0-6.5 F3:0-11.2	F1:0-3.6 F2:0-6.5 F3:0-11.2	F1:0-3.6 F2:0-6.5 F3:0-11.2	F1:0-3.6 F2:0-6.5 F3:0-11.2	F1:0-3.6 F2:0-6.5 F3:0-11.2	F1:0-3.6 F2:0-6.5 F3:0-11.2	F1:0-3.6 F2:0-6.5 F3:0-11.2
R1:0-4.3 R2:0-7.7 R3:0-13.2	R1:0-4.3 R2:0-7.7 R3:0-13.2	R1:0-4.3 R2:0-7.7 R3:0-13.2	R1:0-4.3 R2:0-7.7 R3:0-13.2	R1:0-4.3 R2:0-7.7 R3:0-13.2	R1:0-4.3 R2:0-7.7 R3:0-13.2	R1:0-4.3 R2:0-7.7 R3:0-13.2	R1:0-4.3 R2:0-7.7 R3:0-13.2
2000	2000	2000	2000	2000	2000	2250	2250
560/610/660	660	560/610/660	610/660	660	560/610/660	910	910
2730	2730	2730	2730	3050	3050	3480	3480
450	450	450	450	450	450	450	450
Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade	Coal blade	Rock straight tilting blade, rock angle blade, rock U-blade, and rock semi-U blade	Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade	Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade	Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade	Sanitation blade	Straight tilting blade
540	538	540	540	540	540	550	550
Single-shank three-shank	Single-shank three-shank	Single-shank three-shank	Single-shank three-shank	Single-shank three-shank	Single-shank three-shank	--	--
695 (Single-shank) and 666 (Three-shank)	695 (Single-shank) and 666 (Three-shank)	695 (Single-shank) and 666 (Three-shank)	695 (Single-shank) and 666 (Three-shank)	695 (Single-shank) and 666 (Three-shank)	695 (Single-shank) and 666 (Three-shank)	--

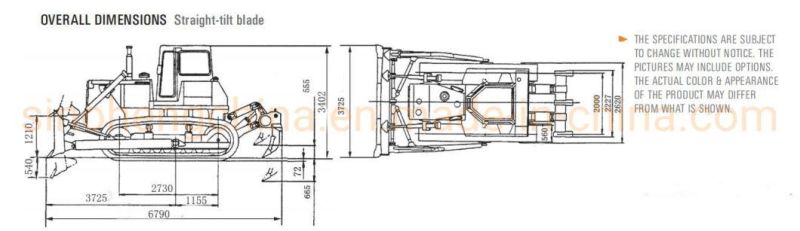

Bulldozers SD22 series drawing :

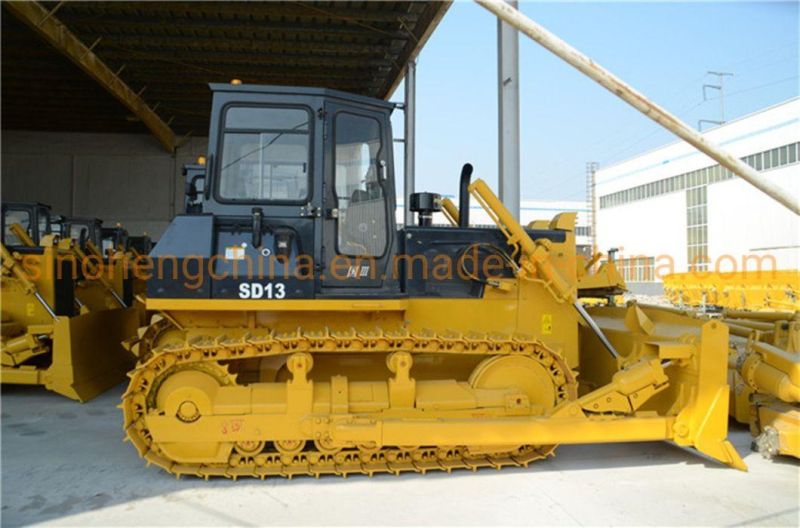

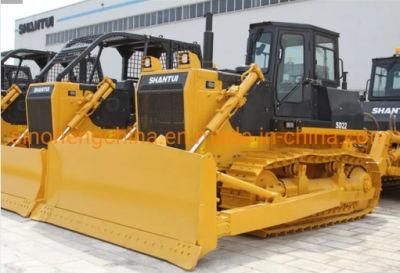

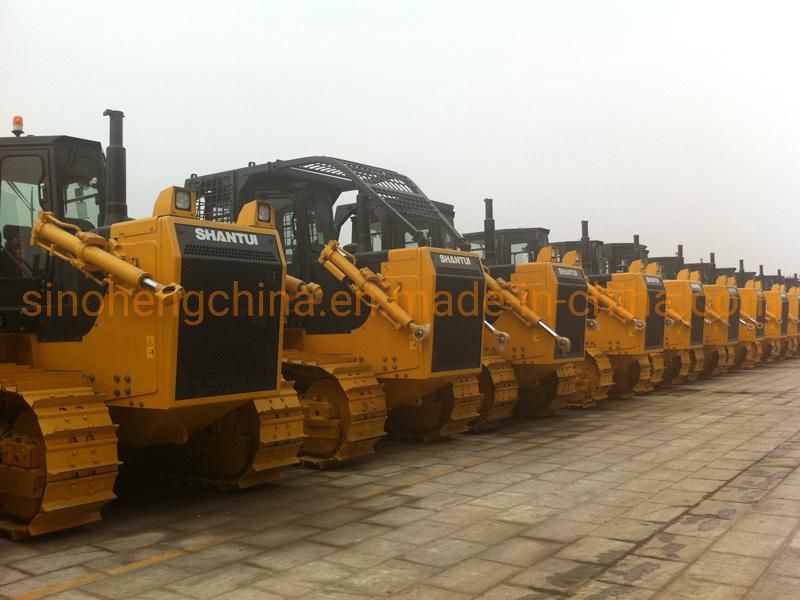

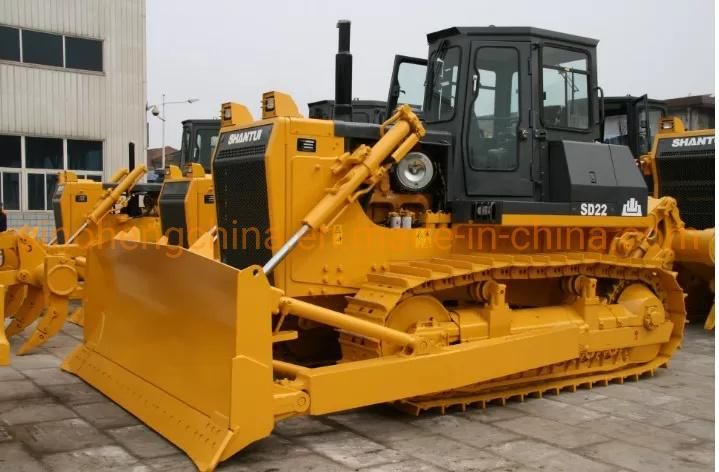

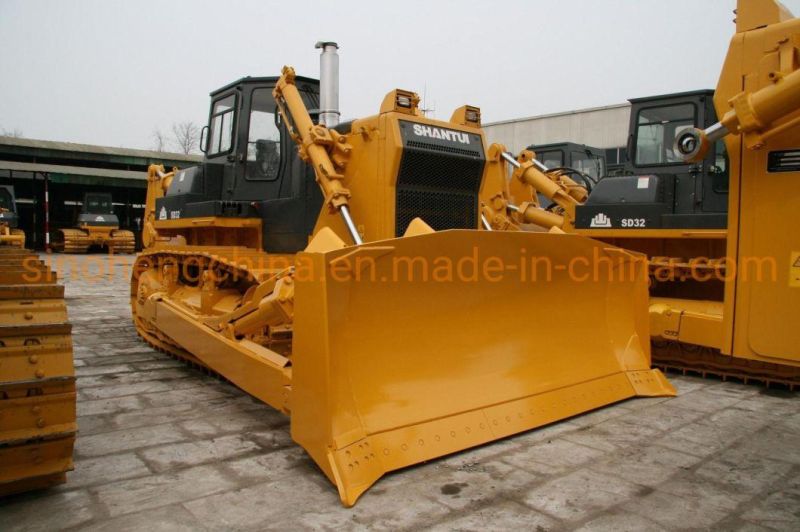

Shantui bulldozers in factory :

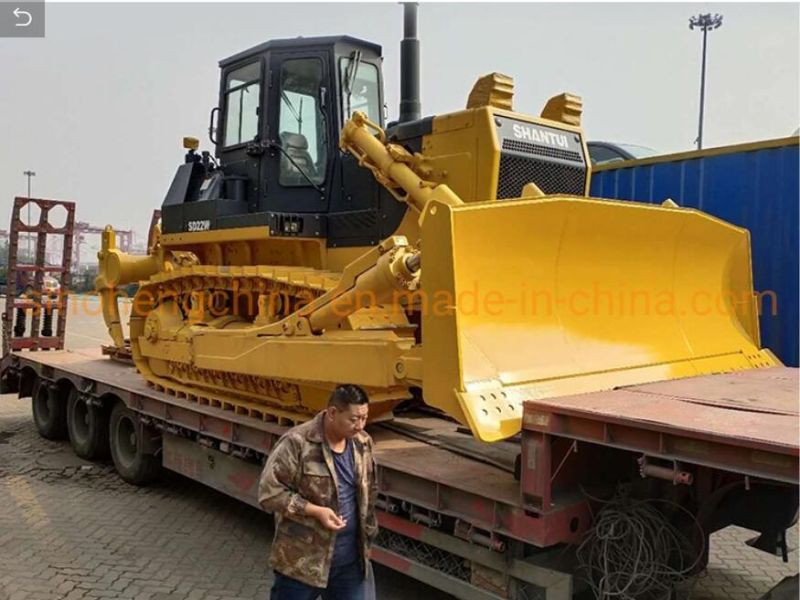

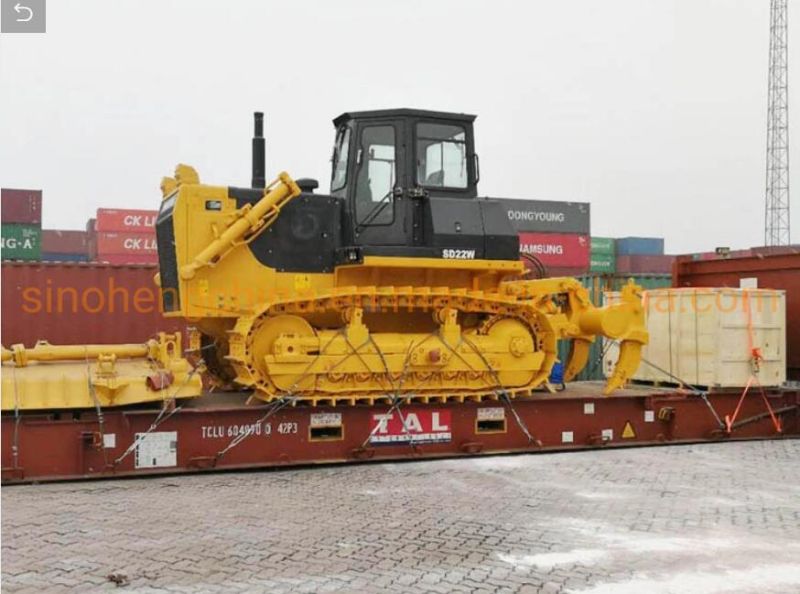

Shantui dozers/bulldozers shipping :

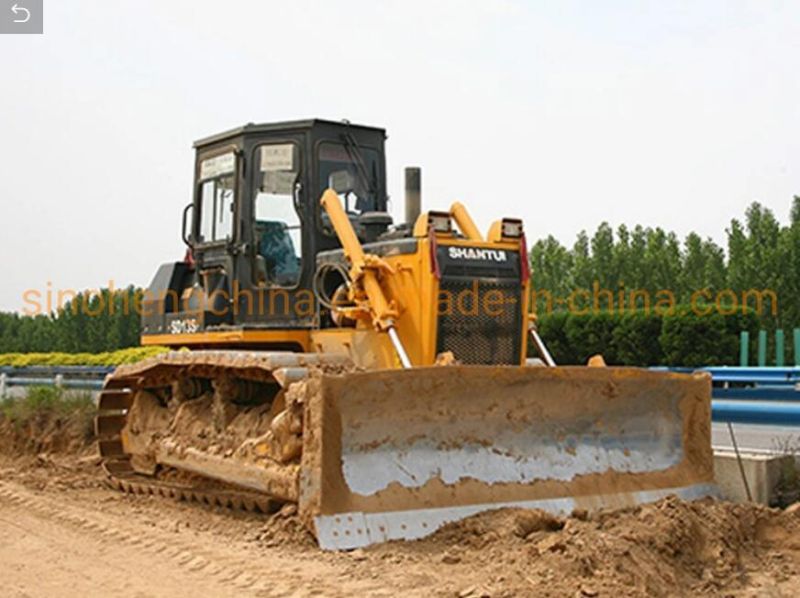

Shantui crawler dozers/bulldozers working cases :
Shantui machinery also including excavators , wheel loaders , motor graders , road rollers etc construction machinery , if you have any interesting in these construction machinery equipments with good condition , please feel free to contact with us .
 Looking forward to your inquiry , thank you for  your reading !
