Small Niveleuse Road Construction Machinery Scraper Py100

Hebei Xiaojiangniu Engineering Machinery Co., Ltd.
  • After-sales Service:Free Parts Offer
  • Warranty:12 Months
  • Certification:TUV, UL, ISO, RoHS, CE
  • Condition:New
  • Application:Railway, Mine, Farmland, Highway
  • Transmission:Hydraulic

Base Info

  • Model NO.:PY100
  • Walking Mode:Wheeled
  • Type:Small Grader
  • Overall Weight:6.3 Ton
  • Lxwxh:6500X2050X3050mm
  • Engine Type:Cummins Engine
  • Rated Power:100HP
  • Gears:Four Forwardfour Reverse
  • Tyre Type:16,70-20
  • Length of Blade:3040X500mm
  • Transport Package:Nude
  • Specification:6500x2050x3050mm
  • Trademark:Strongbull
  • Origin:China
  • HS Code:8429209000
  • Production Capacity:5000 Sets,Year

Description

General SpecificationOverall weight6300 kgLxWxH6500x2050x3050 mmEngine CumminsRated power100HPTypeInline,water-cooled,four-stroke,direct injectionDetail SpecificationMin.ground clearance of front axle450 mmMin.ground clearance of rear axle410 mmWheel tread1590 mmWheelbase(front/rear)4590 mm  Max. swing angle of front axle±16°Max. steering angle of front wheel±45°Steering angle of articulated frame±23°Blade InformationBlade size (LxHxT)3040x500x20 mmBlade plate diameter1250 mmSteering angle of blade360°Groud clearance of blade450 mmCutting depth of blade260 mmInclination angle of bladeForward 47° backward 5°Sliding range of bladeLeft 550mm right 550mmTransmission SystemMax. speed (Forward/reverse)40km/h   30km/hGearbox typeFixed shaft power stageTorque converterSingle-stage single-phase three-elementGearsForward 4 reverse 4Tire type16/70-20Hydraulic systemOpen type systemPressure16MpaFuel capacity90LHydraulic oil capacity70L

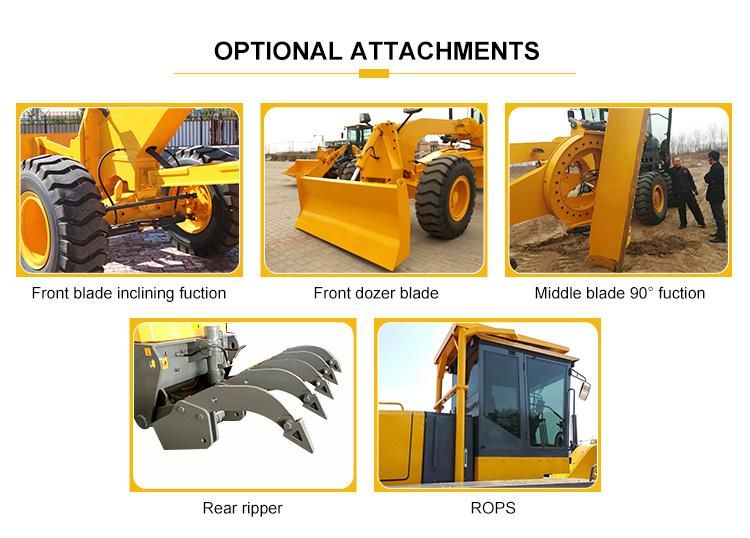

Small Niveleuse Road Construction Machinery Scraper PY100 motor grader is a kind of multipurpose grader with high speed, high efficiency and high precision. It is based on the advanced technology of Europe, mainly used in road levelling, landscaping, ground smoothing, slope scraping, bulldozing, snow clearing, placing materials, mixing and etc. Applying in highway, airport, road construction, irrigation and water conservancy. Due to the smart form and operation, it is specially used on rural construction and flatting ground of small area. Customers can choose the front bulldozer, the middle bulldozing device, the rear ripper and other appliances if they need. It can meet the diverse needs and have get very high reputation from customers.

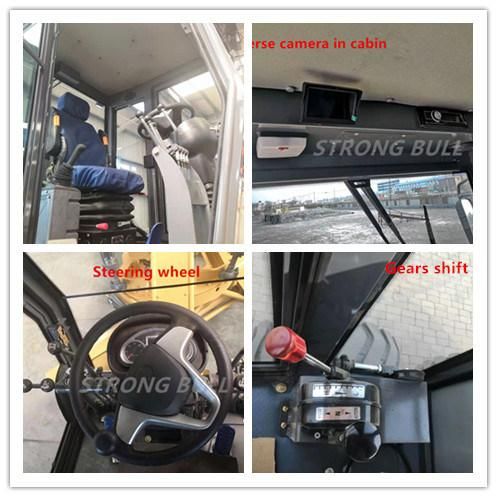

DETAILS INTRODUCTION

Small Niveleuse Road Construction Machinery Scraper Py100
Small Niveleuse Road Construction Machinery Scraper Py100

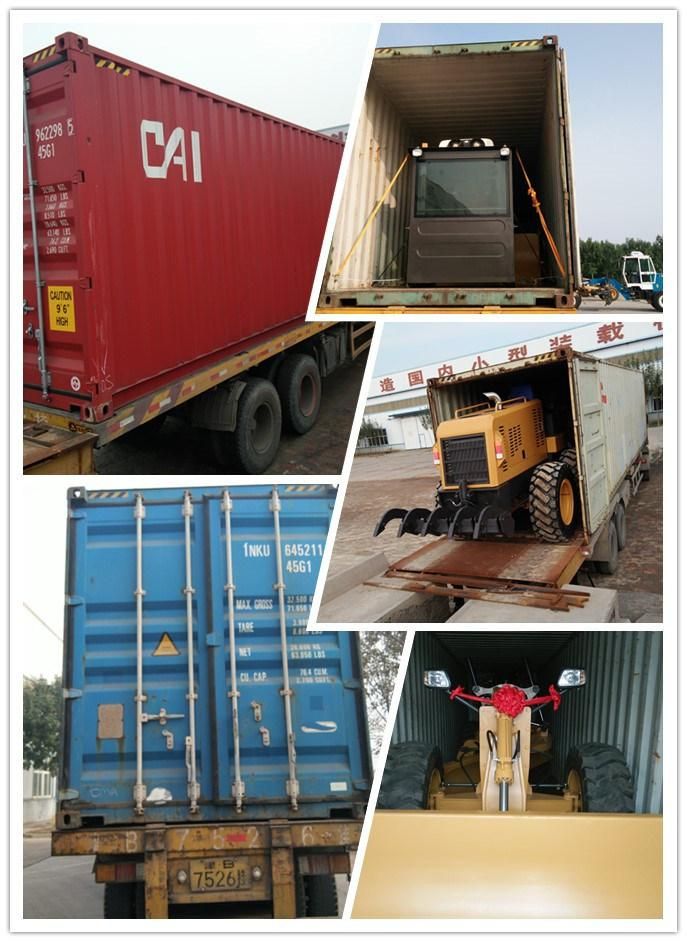

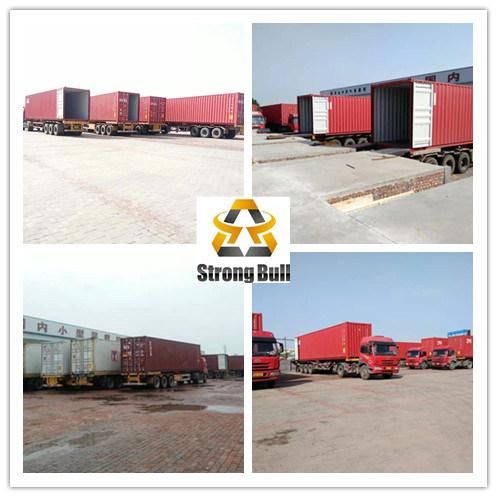

SHIPMENT&DELIVERY
40HC container can load 1 set PY100 motor garder with the cabin taken off.
Delivery in 20 days after pay deposit

Small Niveleuse Road Construction Machinery Scraper Py100
Small Niveleuse Road Construction Machinery Scraper Py100

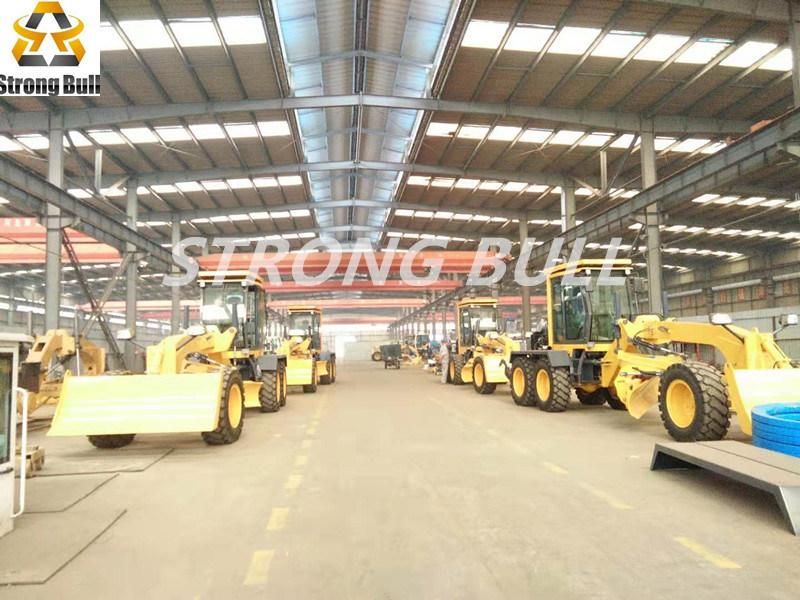

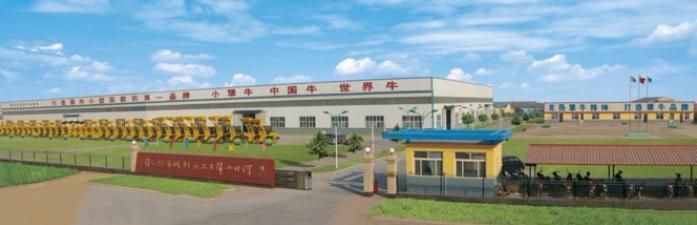

FACTORY SHOW

Hebei Xiaojiangniu Engineering Machinery Co.,Ltd is located in Huanghua city, Hebei province, very near to Tianjin and Beijing. Our factory is a professional manufacturer of motor grader, wheel loader, all terrain forklift and cold recycling mixer. We have three register brands which are Strong Bull , CGMG and XJN. Our machines are very popular selling all over the world with very good qulity and good after-sale service. Welcome come to visit our factory and sincerely hope cooperation to you!!

Small Niveleuse Road Construction Machinery Scraper Py100
Small Niveleuse Road Construction Machinery Scraper Py100

Small Niveleuse Road Construction Machinery Scraper Py100Small Niveleuse Road Construction Machinery Scraper Py100

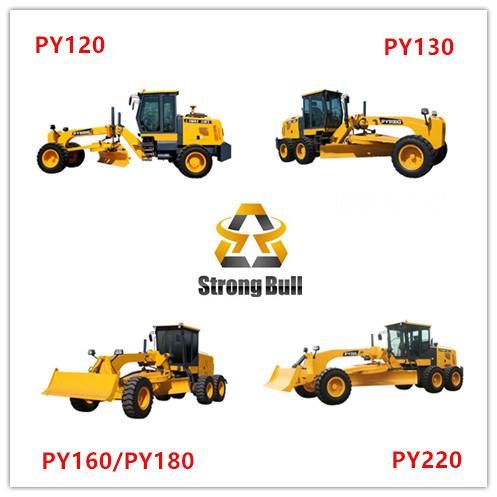

MOTOR GRADER HOT SALE ALL OVER THE WORLD
Small Niveleuse Road Construction Machinery Scraper Py100
EXHIBITION
Small Niveleuse Road Construction Machinery Scraper Py100
