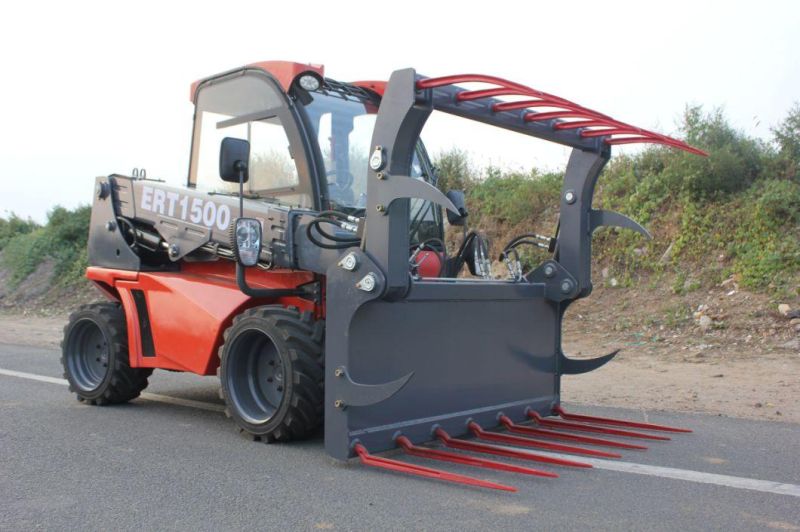

• Model NO.：Ert1500
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Rated Loading (Kg)：1350kg
• Overall Weight (Kg)：2800kg
• Rated Bucket Capacity (Cbm)：0.3cbm
• Max. Dumping Height mm：3410mm
• Maximum Dump Reach mm：980mm
• Engine Model：403D-15
• Rated Power Kw：20.9,24.6
• Rated Speed Rpm：2200,2800rpm
• Maximum Speed Km/H：8,16km,H
• Wheel Base mm：1700mm
• Ground Clearancemm：331mm
• Working Pressure MPa：21MPa
• Lifting Time：10s
• Transport Package：Container Load
• Specification：3350*1588*1955mm
• Trademark：Everun
• Origin：China
• HS Code：8429510000
• Production Capacity：50

Product Parameters

230g/kw.H      Standard working condition:2.0 Transmission SystemHydraulic Motor + 4 Wheel Drive Motors3.0 Standard Bucket   3.1  Bucket capacity:0.3 m3  3.2  Bucket Width:1588mm  3.3  Bucket type:Standard  3.4  Rated load:1400 kg including attachment4.0 Overall Dimensions   4.1  Overall length(bucket on ground)3350mm  4.2  Overall Height1955mm  4.3  Overall width1588mm 4.4  Max. lifting Height4010mm5.0 Operating Specifications   5.1  Steering system:Rear axle with hydraulic power steering  5.2  Min.turning radius: 3560mm  5.3  Driving system:Hydraulic Motor, Four Wheel Drive.  5.4  Operating Weight:                      2800 KG  5.5  Max. Driving Speed:   18km/h5.6  OtherQuick Coupling System ; Joystick ; Self-levelling6.0 Brake System   6.1  Service BrakeHydraulic Oil Cutting-Off Brake  6.2  Parking BrakeElectrical Parking Brake7.0  Tyre   7.1  Model26*12-16.5  7.2  Width275mm  7.3  Diameter658mm8.0  Wheel Base1720mm9.0  Track1150mm10.0 System Pressure    10.1  Driving system35Mpa ;46cc  10.2  Work system24Mpa ; 22L/min
