• Model NO.：RPLT-6000K
• Rotation：360 Degrees Non-Continuous
• Type：Handed Type
• Material：Aluminium Alloy
• Operating Voltage：110-240V
• Certification：CE, ISO
• Power Source：Diesel
• Contral System：Gu3303 Digital Controller
• Battery Type：Battery
• IP Rating：IP54
• Max. Height of Mast：3-Section S Teclescoping Mast 9m
• Lifetime of Lamp：5000 Hours
• Transport Package：Plywood Pallet,Plwood Case,Cartons
• Specification：Iron pallet 1800x1250x1450mm
• Trademark：Robust Power
• Origin：China
• HS Code：94054090
• Production Capacity：250set,Month

Basic Info.

Model NO. RPLT-6000K Rotation 360 Degrees Non-Continuous Type Handed Type Material Aluminium Alloy Operating Voltage 110-240V Certification CE, ISO Power Source Diesel Contral System Gu3303 Digital Controller Battery Type Battery IP Rating IP54 Max. Height of Mast 3-Section S Teclescoping Mast 9m Lifetime of Lamp 5000 Hours Transport Package Plywood Pallet/Plwood Case/Cartons Specification Iron pallet 1800x1250x1450mm Trademark Robust Power Origin China HS Code 94054090 Production Capacity 250set/Month

Product Description

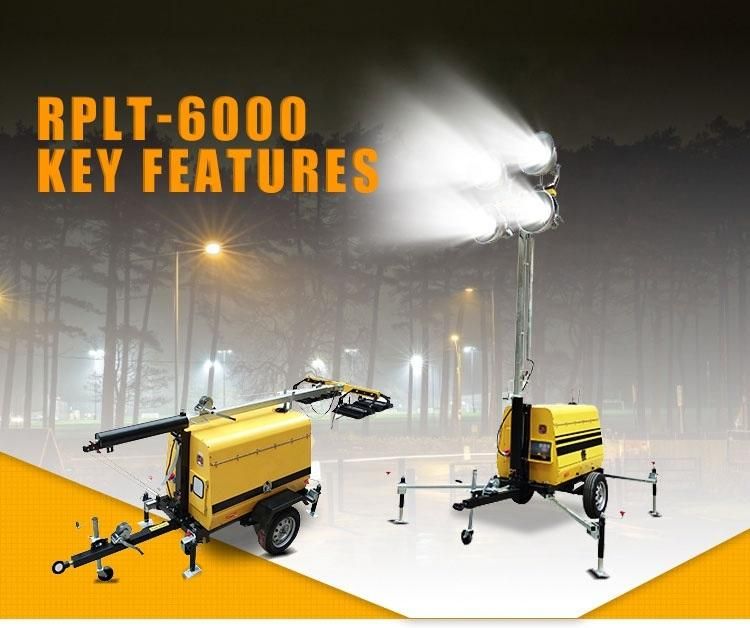

Portable Lighting Tower(RPLT-6000K) use Kubota water-cooled diesel engine matching with alternator.

•4*1000w Metal Halide lamps / 4*240w LED lamps
•Fuel consumption about 2ltr/hr(for full loading).
•80 ltr Fuel tank
•4* Manual Stabilizers
•digital controller
•9 m Manual galvanized mast height/ extension
•Kubota origin D1105 Engine,
•360° Manual galvanized Mast Rotation
•Emergency Stop

Model number	RPLT-6000K
Mast
Maximum extension of mast	9m(Hydraulic)
Elevation	Hydraulic
Raising/Lowing mast	Button(Hydraulic)
Stages	3
Turning angle	360 degree
Lamp
Total power of lamps	4x1000W
Type of lamp	Metal halide
Light capacity	4x110000 lumen
Voltage	230Volt
Frequency	50Hz
Lifetime of lamo	5000hours
Working temperature	≤ 85
Connection protection index	IP54
Tilted angle of Light bar	130 degrees electrical waving
Characteristics of the generator
Model	RD-10K
Generator set power	8KVA/8KW
Engine model	Japan KUBOTA D1105-BG
Engine speed	50Hz 3000rpm        60Hz 3600rpm
Intake system	Natural Aspiration
Type	Vertical 4 cycle liquid cooled diesel
Alternator Model	MEGATON MWL 18AFS1
No. of cylinders	3
Continuuous power for 50Hz(1500rpm)	8.4KW/11.3HP
Type	Burushless, self-excitation
Voltage regulation	Automatic
Frequency	50HZ
Fuel tank capacity	100L
Continue running time	50Hours
Fuel consumption at 100% load	2.0L/Hours
Trailer type
Road trailer with hitch ball
Dimension(LxWxHmm)
Storage	2650mm*1400mm*3250mm
working	2650mm*2400mm*9390mm

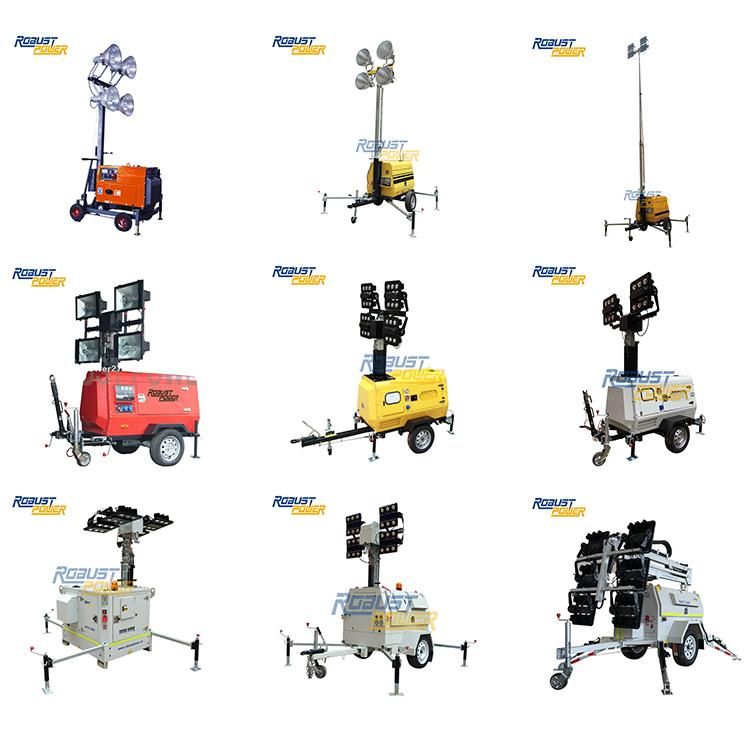

Robust Power Models:

No.	Model	Mast	Power of Lamps	Engine Model
1	RPLT1600	4.8M Manual	4*400W Metal Halide Lamp	RP186FA
2	RPLT1600	4.8M Manual	4*160W LED	RP186FA
3	RPLT1600	4.8M Manual	2*1000W Metal Halide Lamp	RP186FA
4	RPLT6000	9M Manual	4*1000W Metal Halide Lamp	Kubota D1105 (Japan)
5	RPLT6000	9M Manual	4*240W LED	Kubota D905 (Japan)
6	RPLT6800	8.6M Hydraulic	4*1000W Metal Halide Lamp	Kubota D1105 (Japan)
7	RPLT6800	8.6M Hydraulic	4*1500W Metal Halide Lamp	Kubota D1105 (Japan)
8	RPLT6800	8.6M Hydraulic	4*480W LED	Kubota D905 (Japan)
9	RPLT3800	7M Hydraulic	4*480W LED	Kubota Z482 (Japan)
10	RPLT6900	8.5M Hydraulic	4*480W LED	Kubota D1105 (Japan)
11	RPLT7200	10M Hydraulic	6*480W LED	Kubota D1105 (Japan)
12	RPLT7200	10M Hydraulic	4*720W LED	Kubota D1105 (Japan)
13	RPLT7600	9M Hydraulic	6*480W LED	Kubota D1105 (Japan)
14	RPLT7600	9M Hydraulic	4*720W LED	Kubota D1105 (Japan)
