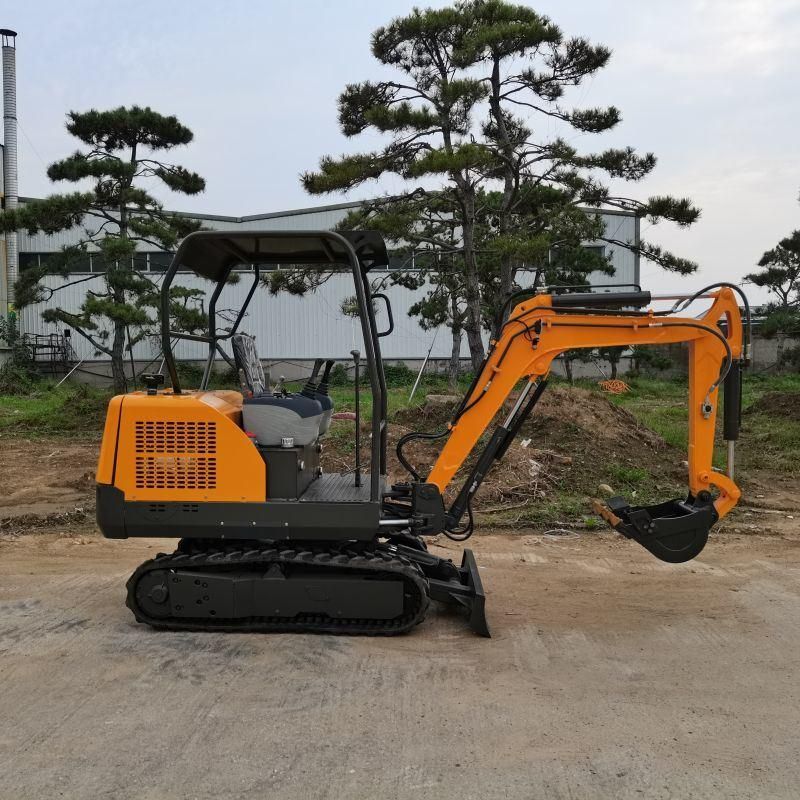

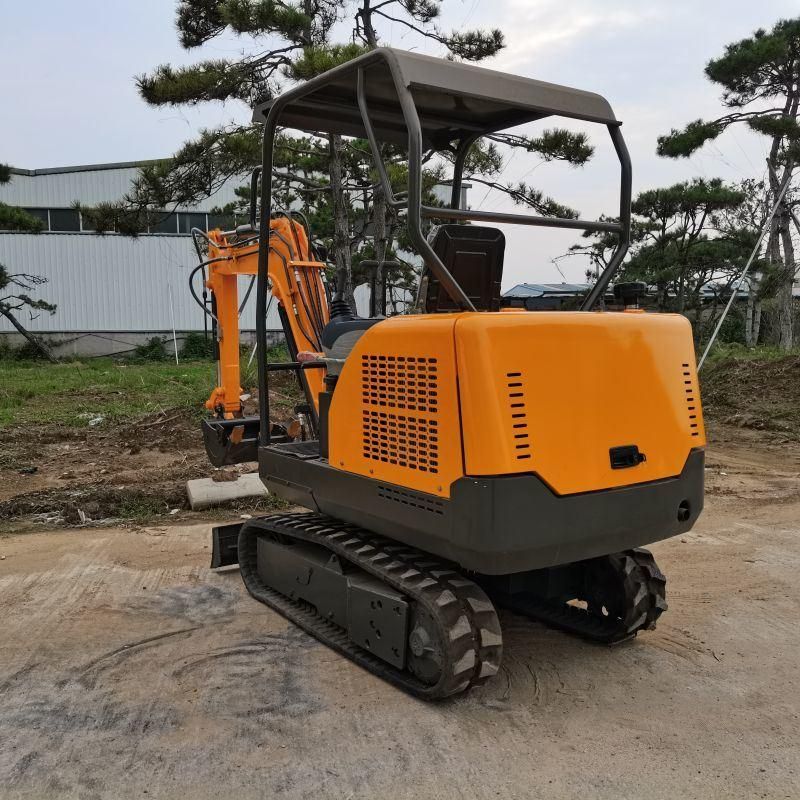

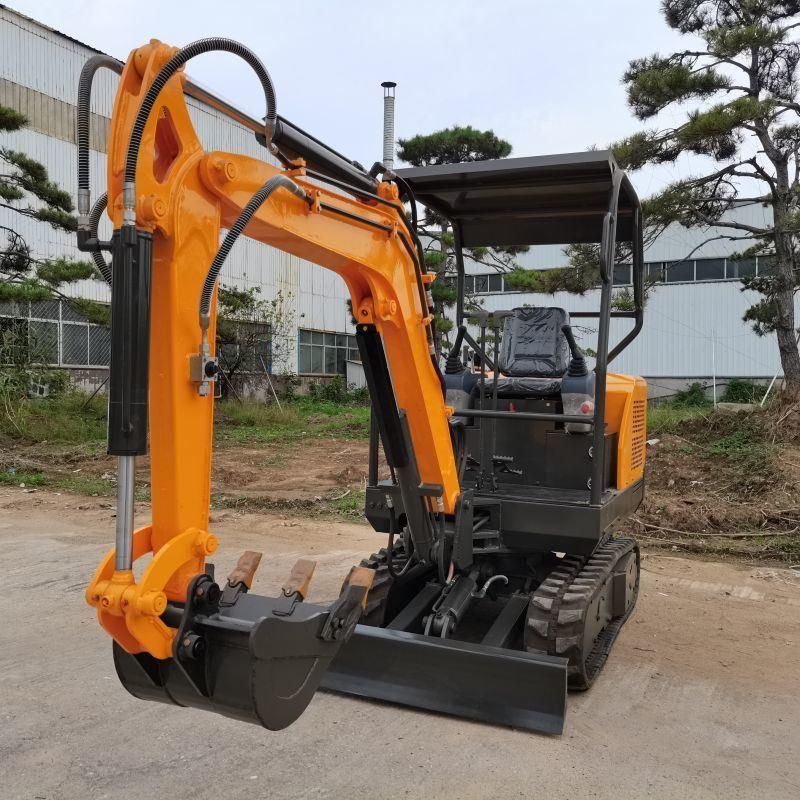

• Model NO.：LX30-9
• Drive Type：Electric Drive
• Bucket Capacity：0.1cbm
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Operating Weight：3 Ton
• Maximum Digging Depth：2500mm
• Max Digging Radius：4040mm
• Pump Displacement：25ml,R
• Max. Arm Digging Force：10kn
• Track Width：180mm
• Max.Dumping Height：3900 mm
• Max. Rotation Speed of The Pump：2500r,Min
• Bucket Width：490mm
• Climbing Angle：35deg
• Power：19.6kw
• Rated Speed：2.6km,H
• Maximum Digging Height：3714 mm
• Hydraulic System Pressure：16MPa
• Max. Bucket Digging Force：14kn
• Transport Package：Nude Packing
• Specification：4085*1100*2270mm
• Trademark：Crawler Excavator
• Origin：Shandong, China
• HS Code：8429521100
• Production Capacity：1000 Unit,Units Per Month

Operating Weight

3000kg

Digging bucket capacity

0.095cbm

Digging bucket width

500mm

Engine

3TNV88

Rated power

19.6kw/2200r/min

Main pump

Triple Pump

Max.rpm of the pump

2500r/min

Pressure

18Mpa

Pump displacement

28ml/r

Track width

230mm

Track length on ground

2300 mm

Track gauge

1150mm

Machine length

4180 mm

Machine width

1400 mm

Machine height

2128 mm

Ground clearance

458 mm

Whole machine weight

2600kg

Ground pressure

38 kpa

Max. Digging depth

2500 mm

Max. Digging height

3900 mm

Max. Dumping height

2600 mm

Max. Digging radius on ground

4040 mm

Swing angel of boom (L/R)

70°/50°

Travel speed

2.6 km/h

Grade ability

25°

Rotation degrees

360°
