• Model NO.：RF800; RF1200
• Certification：ISO9001: 2000, CE
• Condition：New
• Heating Temperature：180 ~ 210ºC
• Burner Type：Direct Injection Energy-Effcient Buner
• Motor：Bm Type Hydraulic Motor
• Tank Bottom of Type：Thickening Tank Bottom
• Paint Tank Capacity：600kg*2 & 400kg*2
• Engine：15HP Diesel Oil Engine
• Heating Method：Petroleum Liquefied Gas&Diesel Oil
• Weight：1300 Kg
• Transport Package：Wood Box Packing
• Specification：1700*1650*1750 mm
• Trademark：RoadFly
• Origin：China

Basic Info.

Model NO. RF800; RF1200 Certification ISO9001: 2000, CE Condition New Heating Temperature 180 ~ 210ºC Burner Type Direct Injection Energy-Effcient Buner Motor Bm Type Hydraulic Motor Tank Bottom of Type Thickening Tank Bottom Paint Tank Capacity 600kg*2 & 400kg*2 Engine 15HP Diesel Oil Engine Heating Method Petroleum Liquefied Gas&Diesel Oil Weight 1300 Kg Transport Package Wood Box Packing Specification 1700*1650*1750 mm Trademark RoadFly Origin China

Product Description

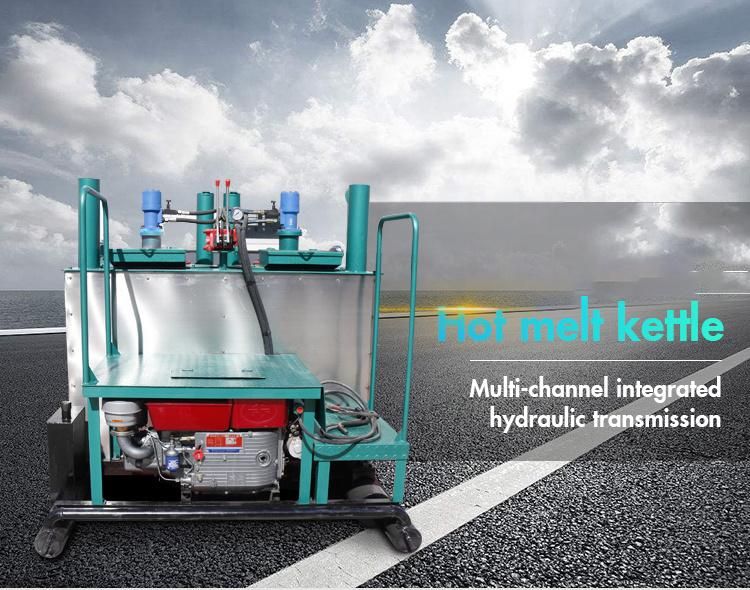

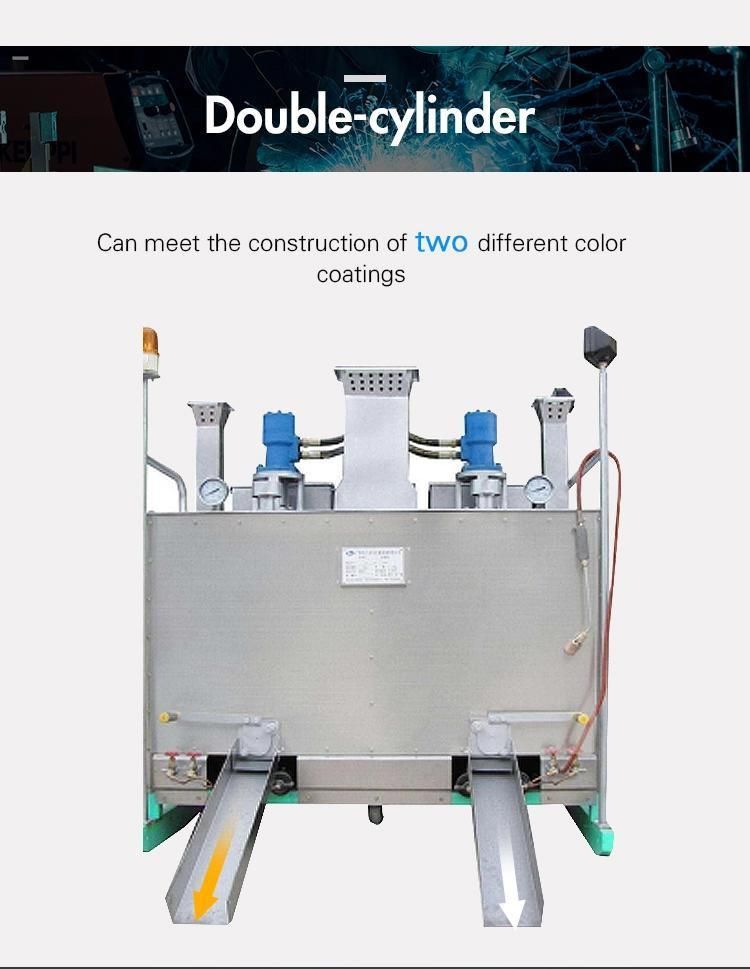

High Quality Double Cylinder Thermoplastic Paint Melting Pre-heater Boiler1.production description



Pre-heater is essential equipment in thermoplastic road marking paint application. Thermoplastic powder paint will be melted into liquid condition after being heated up to 180°c+, then it can be transferred to thermoplastic road marking machine for traffic line markings.

2.Specifications




Number Code	LM1200F or LM800F

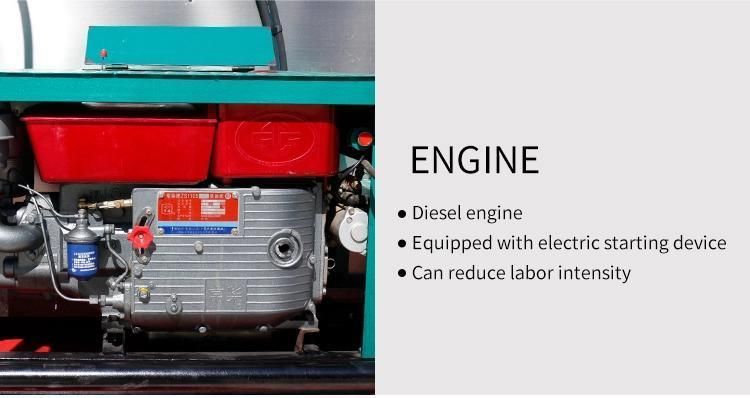

Engine	Changchai 15Hp diesel engine
Starting mode	Electrical starting, Hand start
Cubage of hydraulic oil box	90L

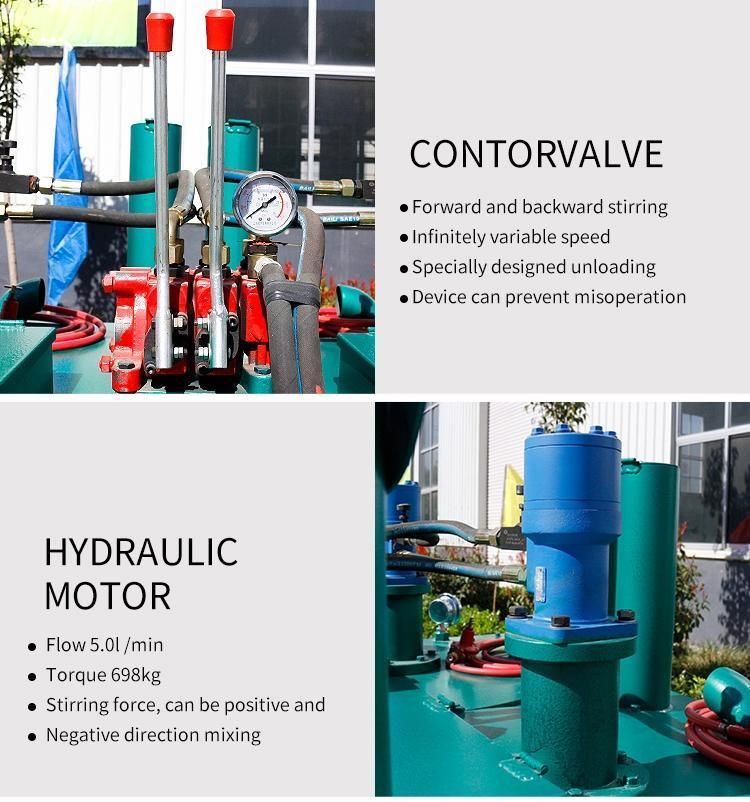

Motor	BM type hydraulic motor
Hydraulic driving system	Forward and reverse stir and stepless speed changing.
Manipulate	Integrated multiples hydraulic control valve
Overload Hydraulic Protection	Flooding facility of overload is designed for it to prevent maloperation
Paint boiler capacity	600kg*2 or 400kg*2
Burner	Direct injection energy-efficient burner
Fuel	Liquefied petroleum gas

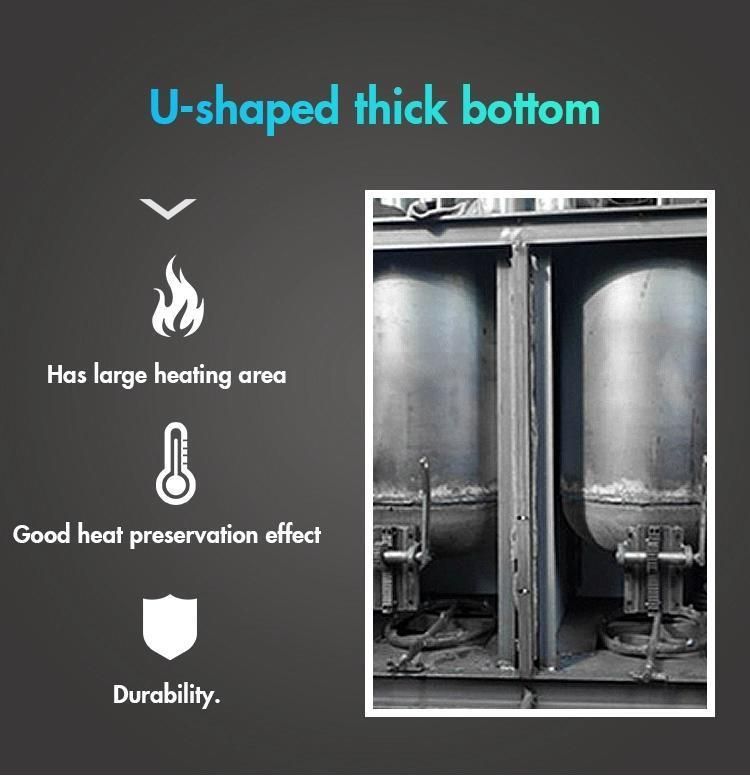

Tank bottom of type	Thickening tank bottom
Shape dimension	1700*1650*1750mm
Weight	1300kg

3.Features:






It is mainly used to heat and melt thermoplastic road marking paint, and work together with thermoplastic road marking machine to mark lines on expressways and city streets.
1.Liquefied petroleum gas and low temperature combustion system make the paint be burnt more compeletly and economically. It is equipped with electronic or manual ignition device.
2. Conducting oil or and Direct injection energy-efficient burner multilayer insulation system save time to melt the paint, keep the paint warm for longer time and saves 30% gas than normal pre-heater.
3. The automatic overload protection device can make sure the driving system be off work when an emergency occurs. The machine is also equipped with fire extinguishing device to ensure the safety of operators and machine. Hydraulic driving system and stepless speed changing with strong torque are adopted. The equipment boots efficient fusing, forward and reverse stir, simple operation and easy maintenance.

4.packaging&shipping

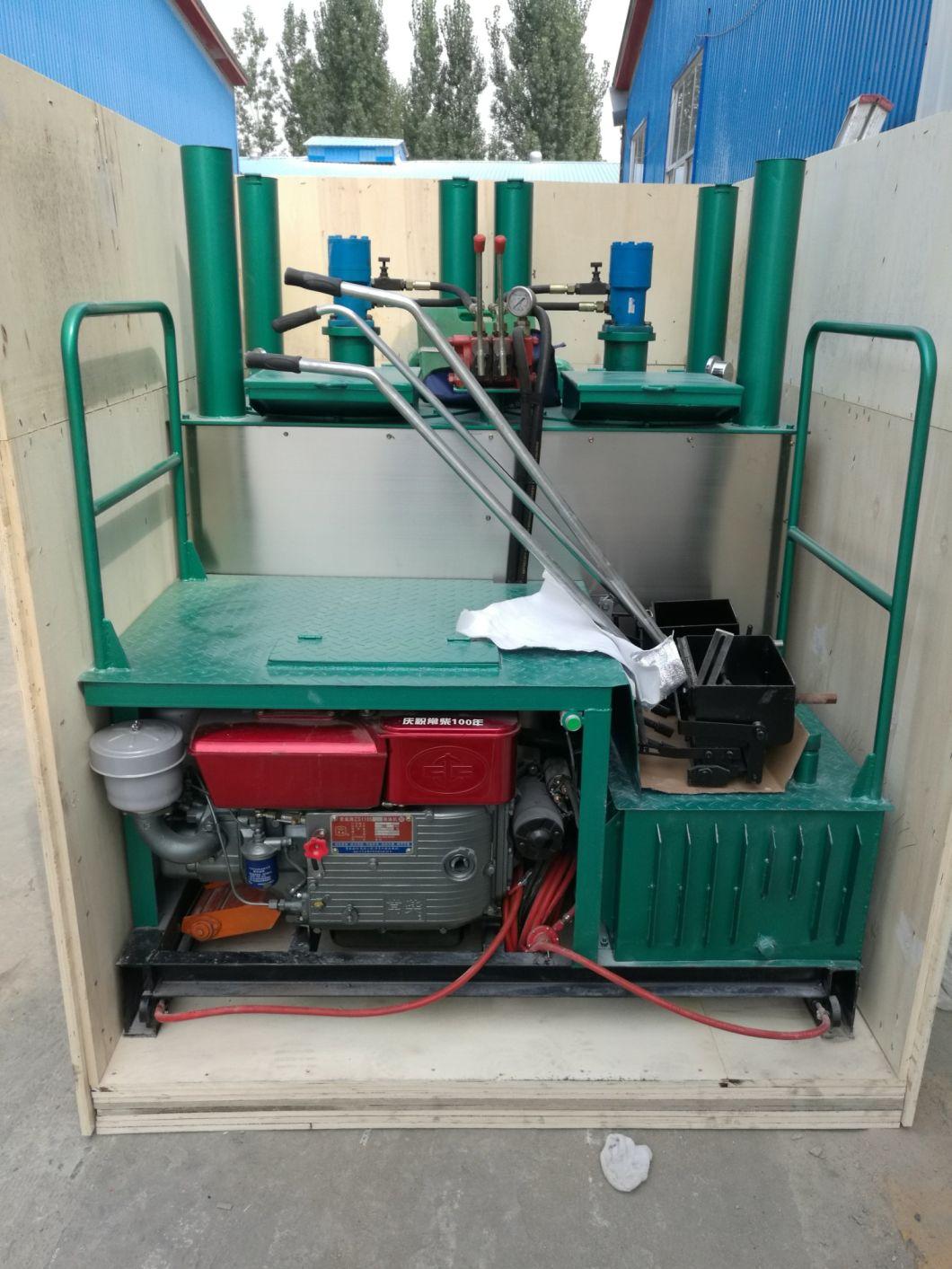

1). Packaging:  a.Wrapped by proctective film;

                           b.Packed by standard import & export wooden cases or carton boxes.

2). Shipping:     By logistics; by automobile; by train; by shipping; by air etc.

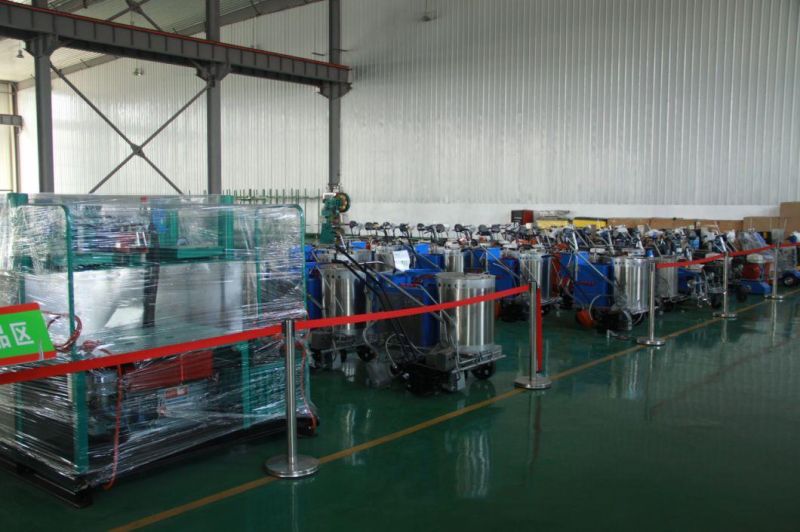

5.Factory


6.FAQ

1.Q:Are you a factory or trading company?

A:We are factory which in this field for more than 10 years.

2.Q:Where is your factory located? How can I visit there?

A:Our factory is located in Linyi City, Shandong Province, China, All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How does your factory do regarding quality control?

A:Quality is priority. All staffs always attach great importance to quality controlling from the very beginning to the very end.Our factory has gained ISO 9001 and SGS authentication.




Welcome you visit our factory anytime!
