• Model NO.：HQ910
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Loading Weight：1000kg
• Engine：Yunnei or Euro III or Yanmar for Option
• Cabin Glass：E4 Standard
• Lamp：E4 Standard
• Design：Europe Style
• Transport Package：3 Units in One 40 Container
• Specification：CE, ISO, SGS, ROP&FOPS
• Trademark：Haiqin
• Origin：Shandong, China
• HS Code：84295100
• Production Capacity：9000 Units , Year

Specifications of HQ910 Agricultural Machinery.  ItemSpecificationsItemSpecificationsRated loading weight  1000kgOperating weight3300kgRated bucket capacity0.54-0.7m 3Overall dimensions(LxWxH)4550x1430x2600mmBucket width1500mmEngine model YUNNEI Or  XINCHAI 490 EURO III Engine ( Yanmar or Perkins for option )Track base1160mmEngine typeIn-line arrangement, water cooled, four-cycle diesel engineWheel base1710mmEngine starting modeElectricMin. turning radius(outside of  rear wheels)3750mmRated power/Rated speed35KW/2400rpm             Min. Ground clearance230mmBrake modeFour-wheel hydraulic spread-shoed brakeDump height fully raised2420mmWarranty12 months Reach fully raised850mmColorAccording to the requirements of customersLifting time + Dumping time + Lowering time9STyre type12-16.5 or 31*15.5*15 wide tyreSteering angle35 degreeShipping portQingdao port, ChinaMax. Breakout Force35KNPacking details1 unit in a 20 container, 3 units in a 40 container.Driving modeFour-wheel driveDelivery time20 days after confirm the orderOEM Service  Yes

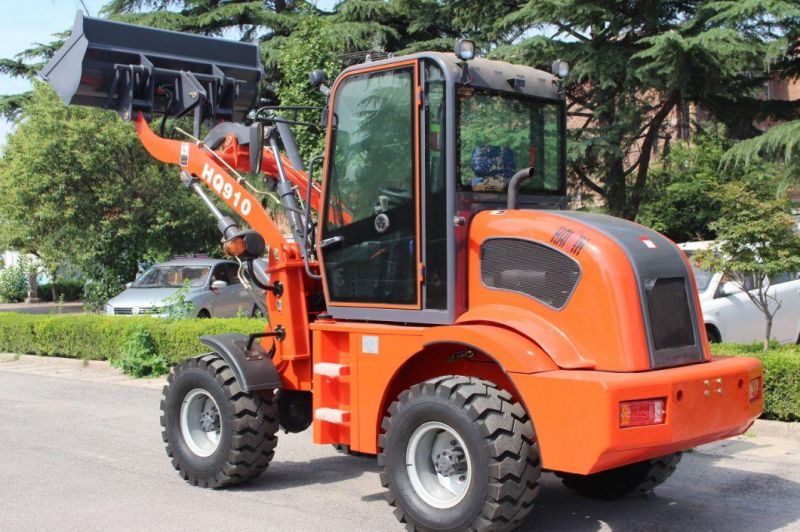

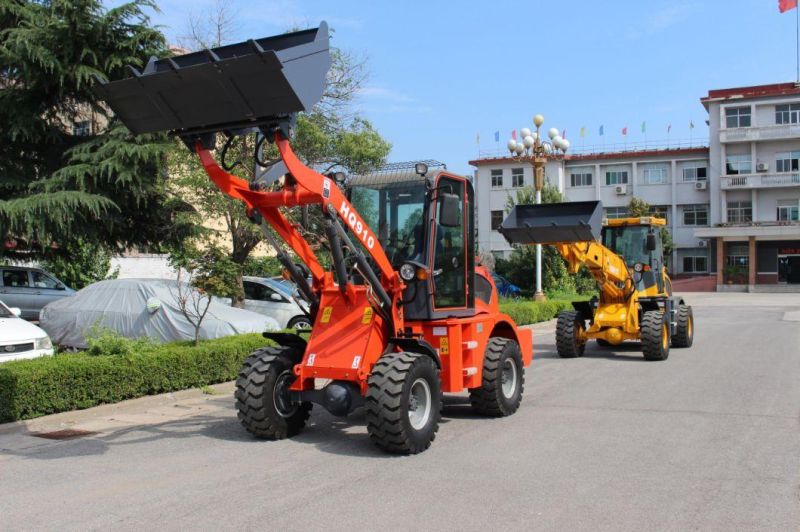

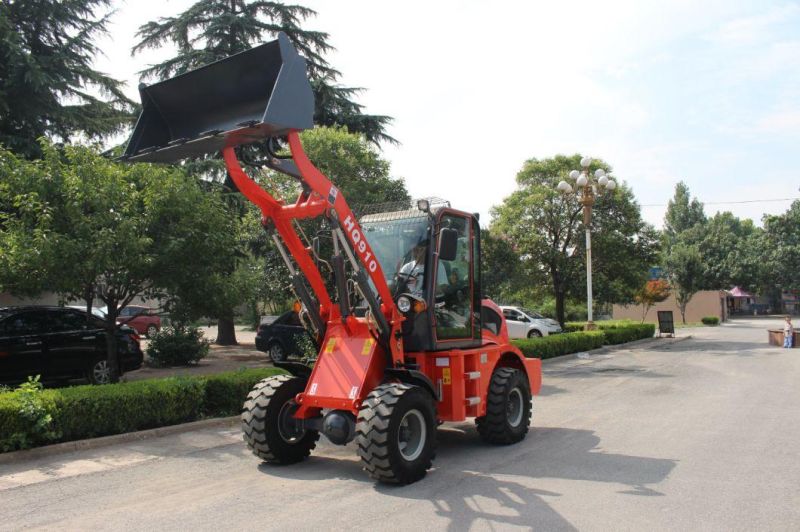

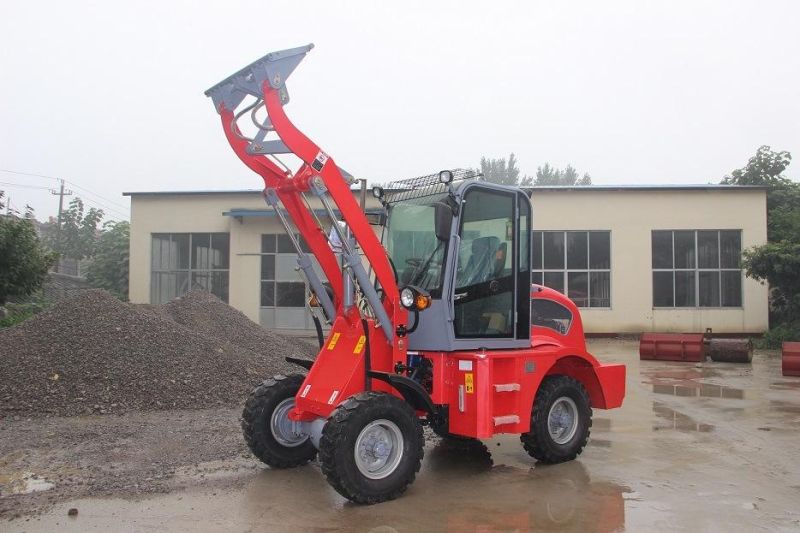

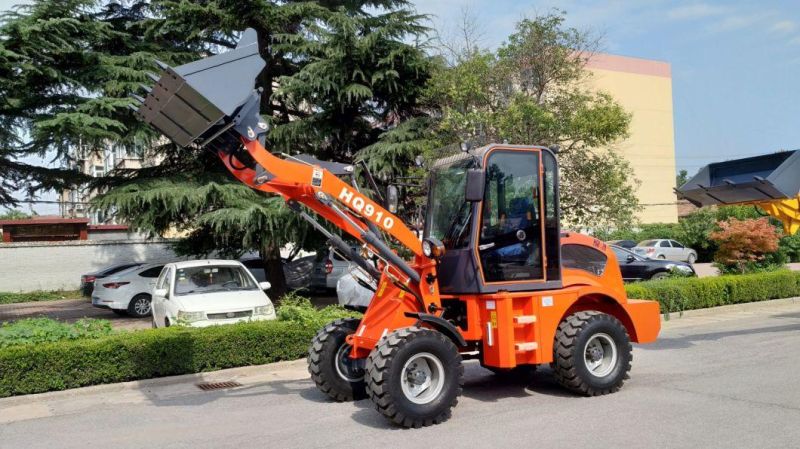

3, More details photos :






4, Warranty and sales- after service :
