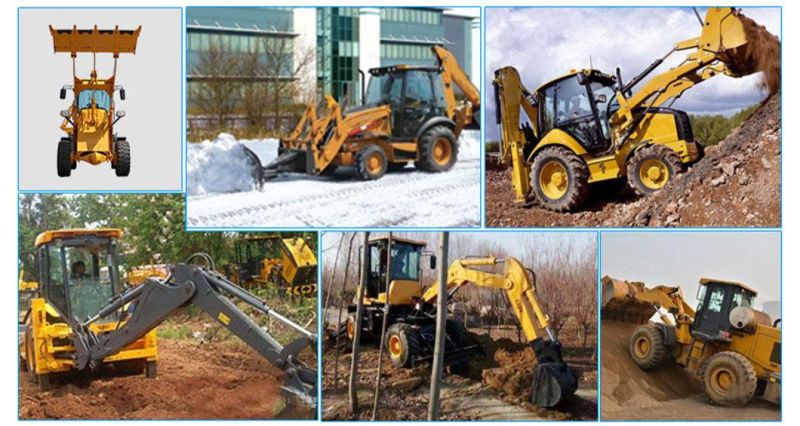

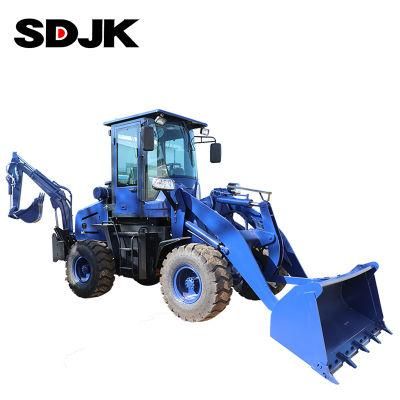

Jkz10-20 Backhoe Loader Witn Price in China
Shandong JK Machinery Co., Ltd.- Certification：ISO, CE
- Condition：New
- Rated Load：1-3t
- Transmission：Hydraulic - Mechanical
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：JKZ10-20
- Type：Small Loader
- Power：37,55,76,83kw
- Engine：Yunnei
- Hydraulic Cylinder Brand：Chaoshun
- Hydraulic Valve Brand：Boxinhuasheng
- Transport Package：Full Container
- Specification：10-20, 15-26, 15-28, 25-30
- Trademark：SDJK
- Origin：Shandong
- HS Code：5429510000
- Production Capacity：100sets,Month
Description
Diesel, 4-Cylinder, 4-Stroke, In-line, Water CoolingBackhoe Capacity 0.1 m³ 0.15 m³ 0.2 m³ 0.3 m³ Loader Capacity 0.75 m³ 1.0 m³ 1.25 m³ 1.5 m³ Backhoe Max. Digging Depth 2000 mm 2700 mm 2600 mm 2600 mm Backhoe Max. Digging Height 3300 mm 4200 mm 4300 mm 4400 mm Backhoe Max. Digging Radius 2900 mm 4600 mm 4600 mm 4600 mm Backhoe Max. Dumping Height 1850 mm 2200 mm 2300 mm 2300 mm Loader Max. Dumping Height 2800 mm 3300 mm 3500 mm 3500 mm Loader Max. Dumping Distance 800 mm 900 mm 900 mm 900 mm Backhoe Max. Breakout Force 25 kn (2550 kg) 28 kn (2856 kg) 28 kn (2856 kg) 28 kn (2856 kg) Loader Max. Breakout Force 36 kn (3672 kg) 36 kn (3672 kg) 42 kn (4284 kg) 42 kn (4284 kg) Travel Speed 0 - 26 km/h 0 - 26 km/h 0 - 30km/h 0 - 30 km/h Gradeability 30° 30° 30° 30° Min. Turning Radius 3500 mm 4000 mm 4500 mm 4500 mm Working Pressure 16 MPa 16 MPa 16 MPa 16 MPa Wheel Tread 1630 mm 1550 mm 1630 mm 1630 mm Wheel Base 2670 mm 2150 mm 2670 mm 2670 mm Tire Model 20.5 - 16 23.5 - 16 16/70 - 20 16/70 - 20 Tire Pressure 250 KPa 250 KPa 250 KPa 250 KPa Transmission Type Hydraulic Hydraulic Hydraulic Hydraulic Braking System Air Assist Air Assist Air Assist Air Assist
