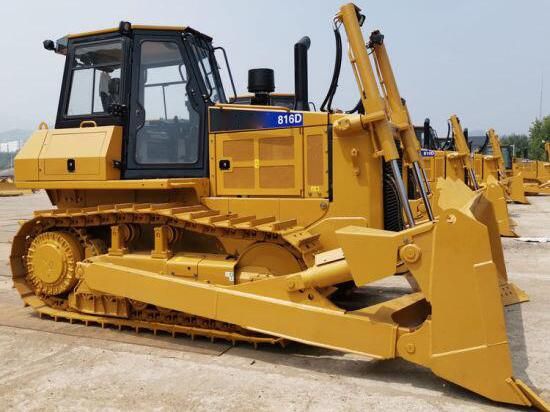

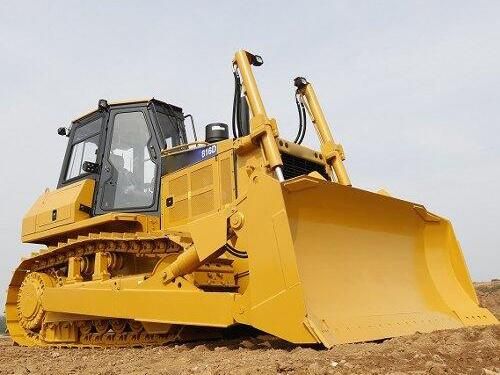

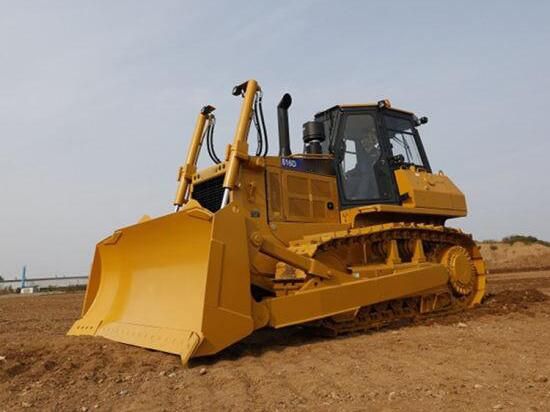

China New Sem 816D 160HP Bulldozer with Three Ripper
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service：Support
- Warranty：1 Year
- Type：Universal Type
- Transmission：Power Transmission
- Walking Mode：Crawler
- Load and Unload Method：Front Discharge
Base Info
- Model NO.：SEM816D
- Engine Power：74~147kw
- Certification：CE, ISO9001: 2000
- Condition：New
- Color：Yellow
- Operating Weight (Kg)：17230
- Ground Pressure (Kpa)：68
- Rated Power/Rated Speed (Kw/Rpm)：131, 175
- Overall Dimensions of Machine (mm)：6600*3164*3076
- Forward Speed (Km/H)：0 - 10 Km,Hr
- Minimum Streeing Radius(mm)：3610
- Center Distance of Track (mm)：2140
- Width of Track Shoes (mm)：560,610,660,710
- Ground Length mm：2430
- Digging Depth (mm)：430
- Transport Package：Null
- Specification：6600*3164*3076mm
- Trademark：SEM
- Origin：Shandong, China
- HS Code：8429111000
- Production Capacity：1000,Momth
Description
Overview
Product DescriptionOperating Weigh t 17,230 kg Ground Pressure 68 kPa Ground Clearance 410 mm Max.Slope 30° Engine Model WD10G178E25 Rated Power 131 kW / 175 hp Working Tool Blade Type SU Blade Capacity 4.3 m³ ( S 3.4 m³ ) Blade Width 3 , 140 mm ( S 3,490mm ) Blade height 1,240mm ( S 1,165mm ) Max. Blade Digging Depth 430 mm Max. Blade Lift Ground Clearance 1,041 mm Max.Output Rimpull 280 kN Maximum Digging Depth Of Ripper 584 mm Maximum Clearance Under Tip 615 mm Powertrain Type Electronic control, Dual-path, Hydrostatic Drive Travel Speed- F/R 0 - 10 km/hr (Infi nitely Variable Speed Control) Steering & Brake Hydrostatic Steering, Wet, Multiple-Disc Brakes Minimum Streeing Radius 3610 mm (Counter-rotated avaliable) Undercarrige Track Shoe Width 510 mm Track Shoe Quantity 37 piece Length Of Track On Ground 2,430 mm Track Gauge 1,880 mm Track Roller Quantity 6/Side Carrier Roller Quantity 2/Side Hydraulic System Type Pilot Control Implement Hydraulic System Pressure 19 Mpa Service Refi ll Capacities Cooling system 45 L Hydrostatic Oil 40 L Implement Oil 60 L Fuel 320 L Pivot Shaft Case (each side) 1.2 L
Product Parameters
