• Model NO.：SD13
• Engine Power：147~515kw
• Certification：CE, ISO9001: 2000
• Condition：New
• Color：Yellow
• Operating Weight (Kg)：13700
• Ground Pressure (Kpa)：53.8
• Rated Power/Rated Speed (Kw/Rpm)：105,1900
• Overall Dimensions of Machine (mm)：4492*3185*2950
• Forward Speed (Km/H)：F1:0-3.2 F2:0-5.9 F3:0-9.8
• Reversing Speed (Km/H)：R1:0-3.9 R2:0-7.1 R3:0-11.9
• Center Distance of Track (mm)：1880
• Width of Track Shoes (mm)：460
• Ground Length mm：2365
• Digging Depth (mm)：590
• Transport Package：Null
• Specification：5140*3388*3032mm
• Trademark：SHANTUI
• Origin：Shandong, China
• HS Code：8429111000
• Production Capacity：1000,Momth

Product Parameters

ITEM

UNIT

SD13

L×W×H (Ripper not included)

mm

4492×3185×2950

Operating weight (Ripper not included)

t

13.7

Engine

-

Shangchai SC8D143G2B1
C ummins 6CTA8.3-C145

Rated power

kW/rpm

95.5/1900 108/1900

Gradeability

°

30

Blade type

-

Straight tilt blade Angle blade

Blade width

mm

Straight tilt blade 3185×1090 Angle blade 3475×915

Dozing capacity

m3

Straight tilt blade 3.7 Angle blade 3.4

Ma× drop below ground of blade

mm

590

Lift height of blade

mm

930

Ripper type

-

Three-shank ripper

Ripping depth of ripper

mm

467

Lifting height of ripper

mm

559

Number of carriers (each side)

-

2

Number of track rollers (each side)

-

6

Number of track shoes (each side)

-

38

Width of track shoe

mm

460

Track gauge

mm

1880

Ground length and ground pressure

mm/MPa

2365-0.063

Pitch

mm

190

Forward speed

km/h

0-3.2

0-5.9

0-9.8

Reverse speed

km/h

0-3.9

0-7.1

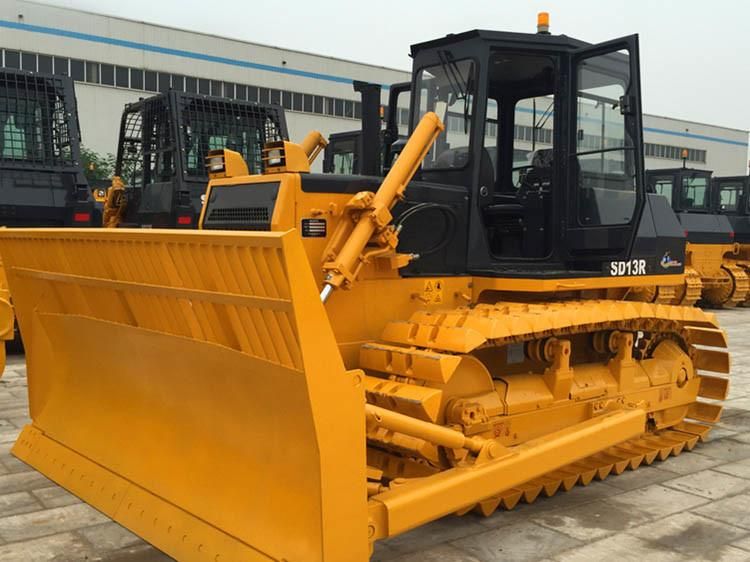

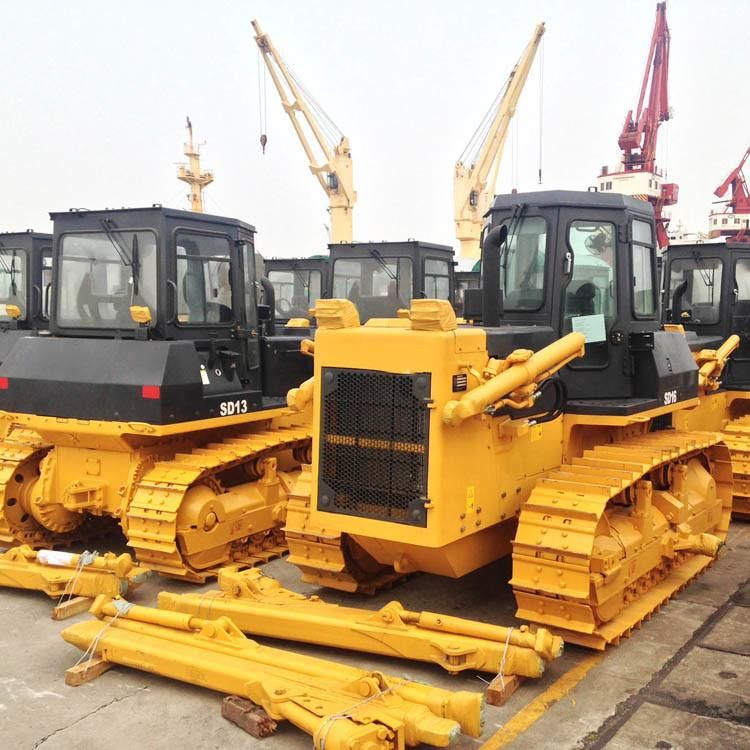

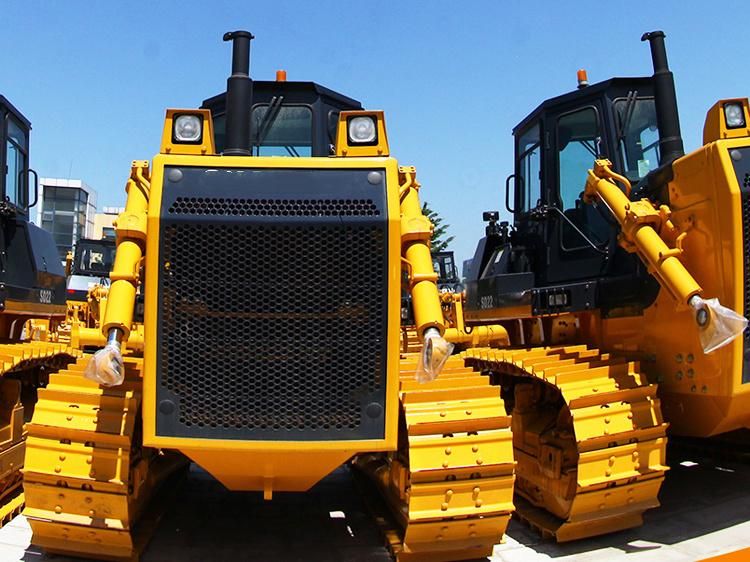

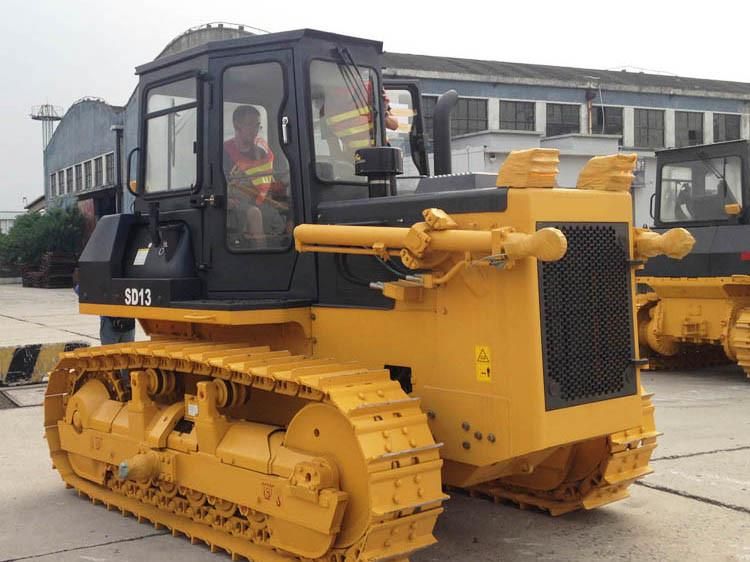

Detailed Photos
