• Model NO.：YC35SR
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Operating Weight：4000kg
• Standard Bucket Capacity：0.12m3
• Engine Model：Kubota V2403
• Overall Dimensions：4650X 2550 X1800mm
• Rated Power/Speed：31.2kw,2400r,Min
• Crawer Width：300mm
• Max. Digging Height：5100 mm
• Max. Dumping Height：3150 mm
• Max. Digging Depth：3120mm
• Hydraulic System：Doosan
• Crawler Track：Optional
• Transport Package：Nude
• Specification：CE, ROHS,SGS,GMP
• Trademark：YUCHAI
• Origin：Guangxi, China
• HS Code：8474390000
• Production Capacity：500 Units,Month

Working RangeBoom Length2281mmArm Length1170mmMax Digging Reach4791mmMax Digging Depth2706mmMax Digging  Height4278mmMax Dumping Height2988mmMini Swing Radius2130mmRear Swing Radius800mMax Ground Digging Range4642mmMax Vertical Digging Depth2575mmPerformance ParameterMachine  Weight4000kgEngine ModelKubota V2403Power31.2kw/2400rpmHydraulic System40.5+3.5mpaSwing System10rpmTravel Speed0-4.5km/Bucket Digging Force17.8knArm Digging Force13.4knGrade Ability30%Ground Pressure29kp
Overall DimensionOverall Length4650mmOverall Width2550mmOverall Height1800mmMini Ground Clearance225mmGround Contact Length of Track2125mmTrack Gauge1250mmBuck Capacity0.12m3

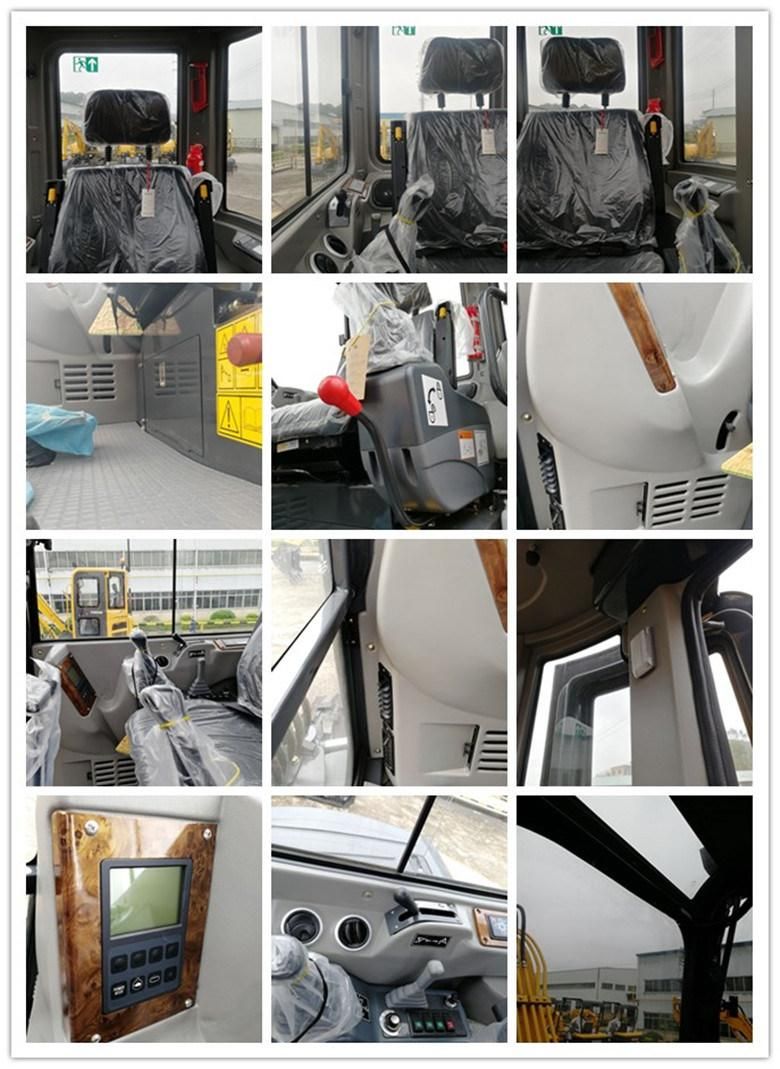

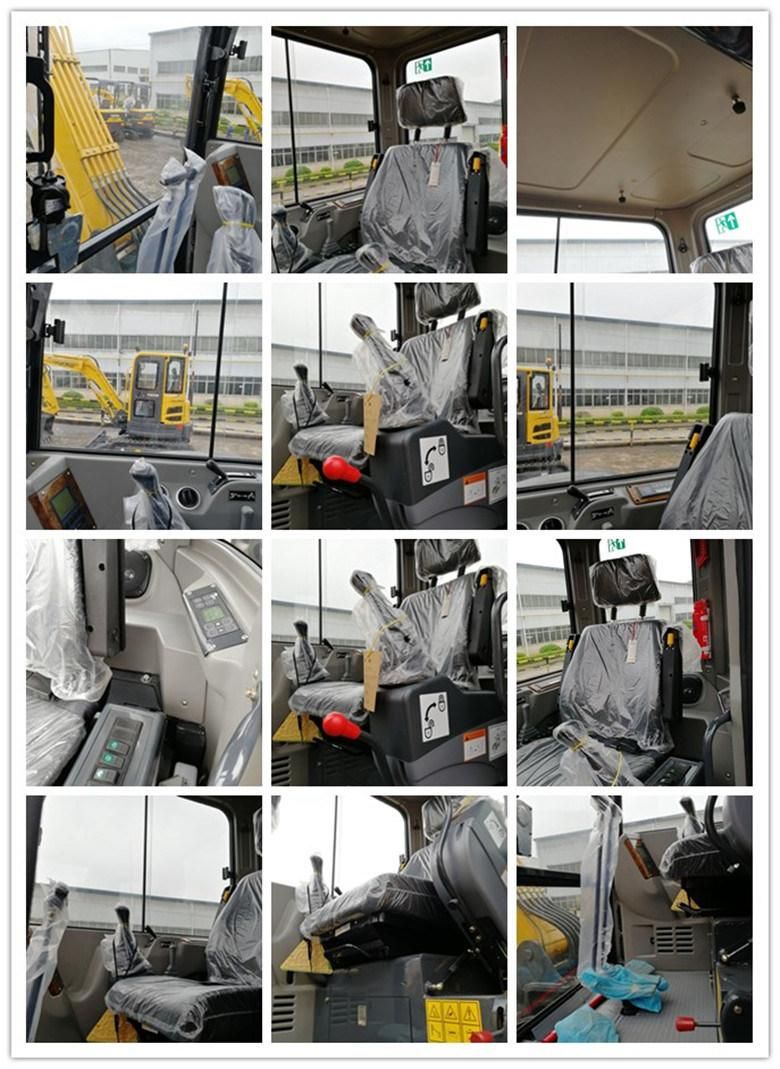

Detailed photo of the  Excavator

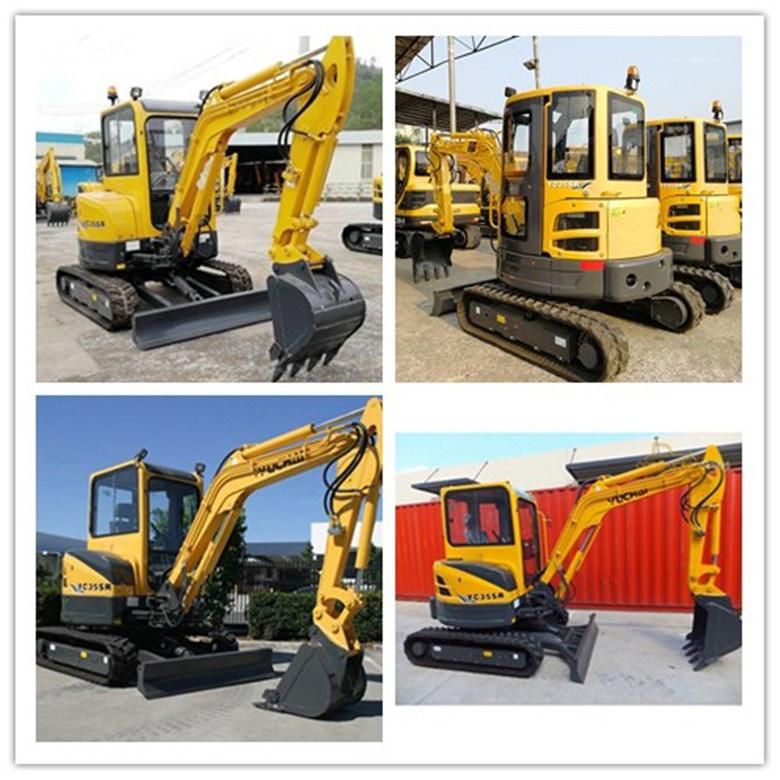

Whole Machinery Photo

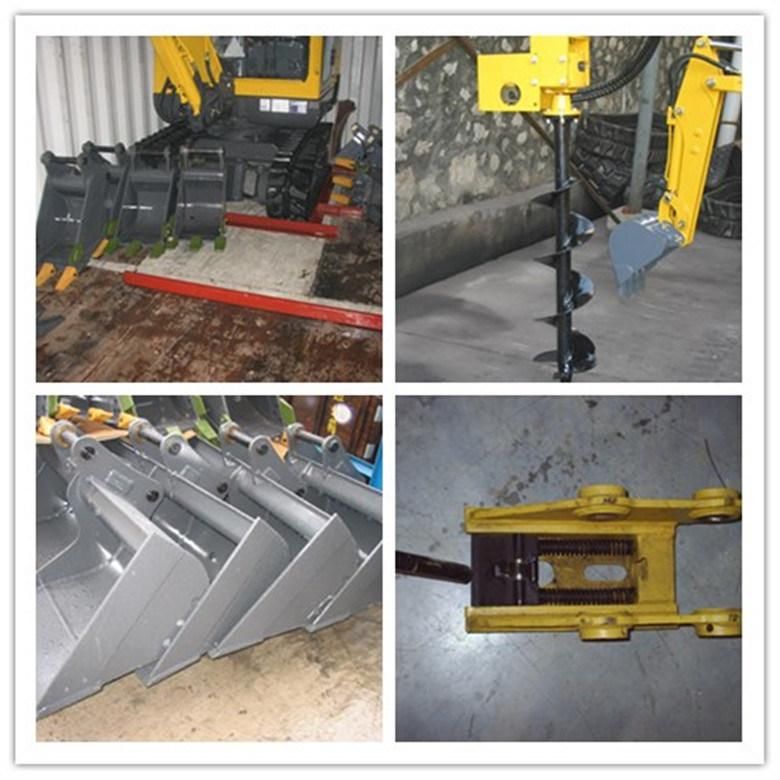

Implement Photo



Our Certificaiton
