• Model NO.：ZWY-120,55L
• Condition：New
• Rated Load：6-9t
• Transmission：Hydraulic Transmission
• Load and Unload Mode：Front Discharge
• Walking Mode：Crawler
• Type：Medium-sized Loader
• Excavation Width：5900 5300 mm
• Excavation Distance：2470 2080 mm
• Excavation Height：4635 3100 mm
• Excavation Depth：990 700 mm
• Unloading Height：1970-2693 (Variable) mm
• Unloading Distance：5123 (Variable) mm
• Transport Package：Standard Export Packaging
• Specification：standard
• Trademark：China Coal
• Origin：Shandong, China Mainland
• Production Capacity：100 Set Per Qurter
• Package size per unit product：30.00cm * 30.00cm * 30.00cm
• Gross weight per unit product：20.000kg

Basic Info.

Model NO. ZWY-120/55L Condition New Rated Load 6-9t Transmission Hydraulic Transmission Load and Unload Mode Front Discharge Walking Mode Crawler Type Medium-sized Loader Excavation Width 5900 5300 mm Excavation Distance 2470 2080 mm Excavation Height 4635 3100 mm Excavation Depth 990 700 mm Unloading Height 1970-2693 (Variable) mm Unloading Distance 5123 (Variable) mm Transport Package Standard Export Packaging Specification standard Trademark China Coal Origin Shandong, China Mainland Production Capacity 100 Set Per Qurter

Packaging & Delivery

Package size per unit product 30.00cm * 30.00cm * 30.00cm Gross weight per unit product 20.000kg

Product Description

Introduction of ZWY-120/55L Mucking Loader Muck Shovel Loader For Mining Engineering

ZWY-120/55L mucking loader applicable to construction machinery for tunnel excavation and loading, mining engineering, water conservancy projects and small and medium cross-section water diversion tunnels, mining slag (mining) machinery, special crawler type excavation loading for coal mines machines (Slagging Machines) are mainly used for the collection and transportation of rock and stone materials for tunnels and mines with narrow production space, such as coal mines, phosphate mines, iron ore, and metal non-metallic mines.zmwm11

Features of ZWY-120/55L Mucking Loader Muck Shovel Loader For Mining Engineering

It is a machine that combines the robot and the conveyor, and the collection and conveying functions are combined into one. The production device adopts the electro-hydraulic control system, which is safe and environment-friendly, with low energy consumption and efficiency. High characteristics. It is an advanced excavation and mining equipment that is indispensable for mines and caverns. It is an alternative to labor and other machinery. The dedicated crawler-type excavation loader (slag remover) in the mine uses  to scoop the rock and dig the rock into its own scraper conveyor through a bucket. The conveyor unloads the rock from the tail into dump trucks and shuttle carts. Or other reprint equipment. At the same time, backhoes can also be used to dig remote rocks, and buckets can also be used to clean the work surface.

ZWY-120/55L crawler muck loader adopts electric full hydraulic drive, compact structure, large propulsion power, wide range of extraction, full-section rock loading, no dead angle, no artificial auxiliary cleaning work surface; special crawler type for coal mine The main action of the excavating loader (slag remover) is controlled by a pilot valve, the operation is simple and easy, the work is smooth and without impact, the performance is reliable, and the maintenance is convenient; The dedicated crawler type excavating loader (slag remover) in coal mine has excellent humanized design The hydraulic system adopts air-cooled, seated, driving shed, over-travel limit, high oil temperature, oil circuit blockage, motor overload and other alarm systems, greatly reducing the labor intensity of workers. The driver is safe, relaxed and comfortable when operating this unit.

Parameter of ZWY-120/55L Mucking Loader Muck Shovel Loader For Mining Engineering

Project	Unit	Technical Parameter
Product Model	Track Type	ZWY-120/55L
Total weight	KG	13600
Loading capacity	m3/h	120
Excavation width	mm	5900 5300
Excavation distance	mm	2470 2080
Excavation height	mm	4635 3100
Excavation depth	mm	990 700
Unloading height	mm	1970-2693 (variable)
Unloading distance	mm	5123 (variable)
Walking speed	m/s	0.54±5%
Scraper chain speed	m/min	44
Applicable roadway slope	(o)	≤32
Maximum working pressure	mpa	≤32
Ground pressure	mpa	≤ 0.1

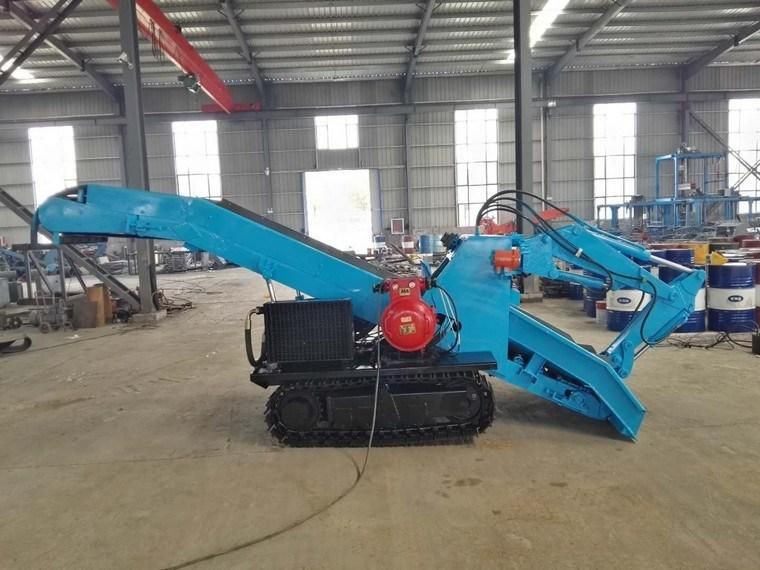

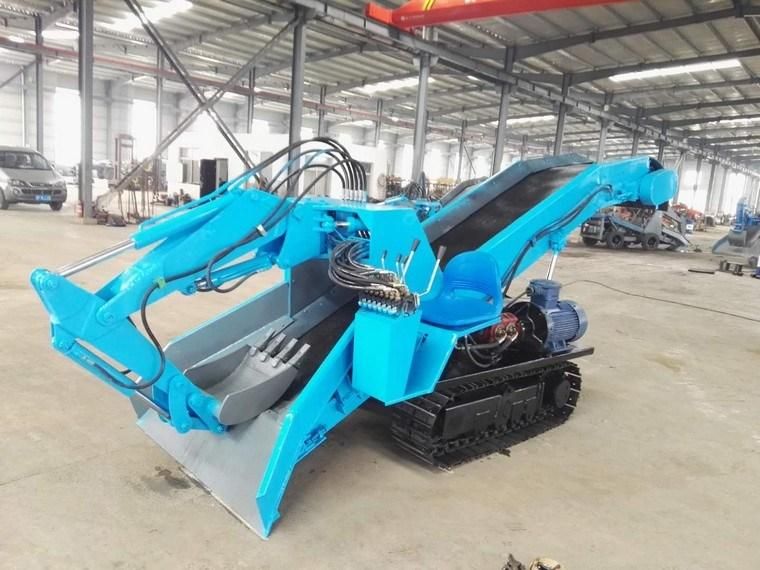

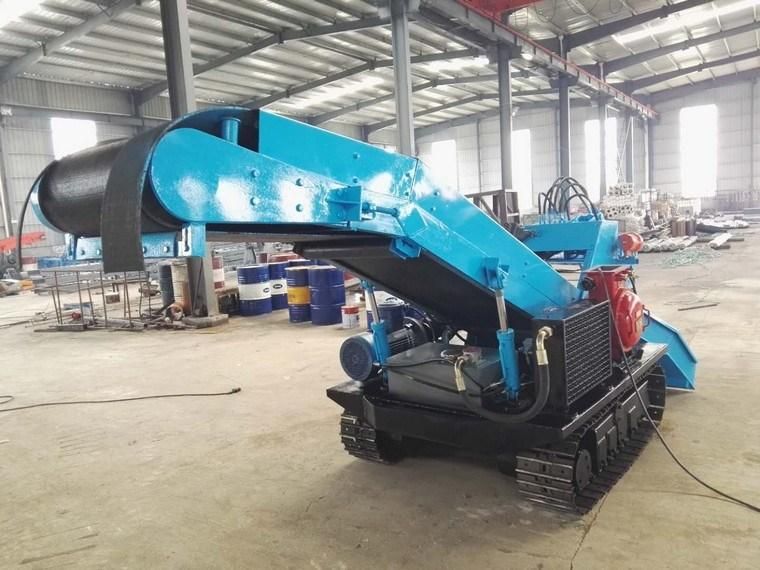

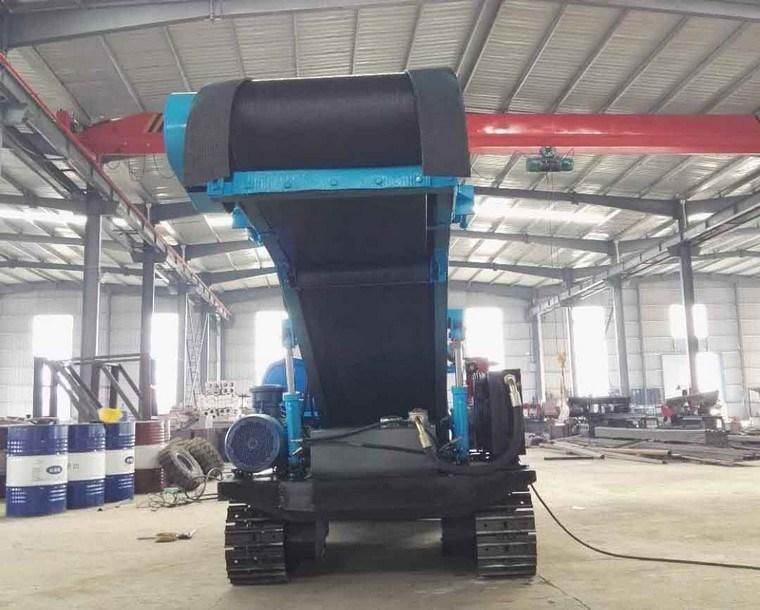

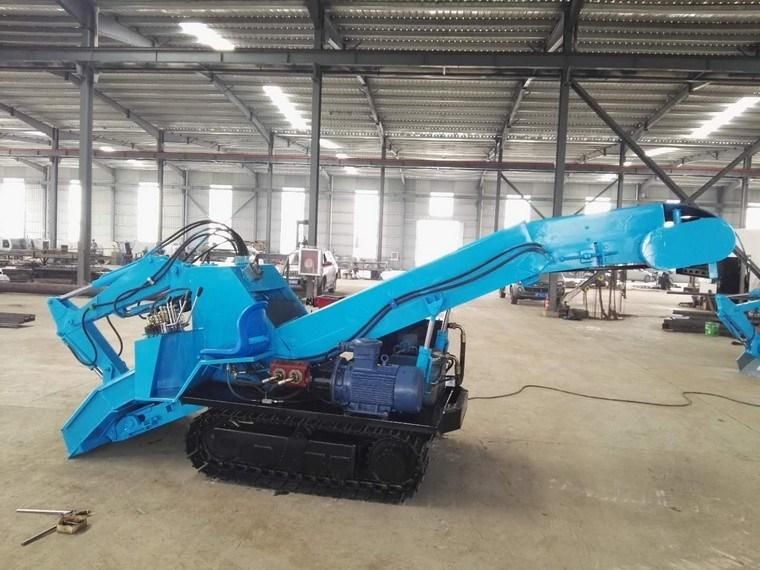

Photos of ZWY-120/55L Mucking Loader Muck Shovel Loader For Mining Engineering
