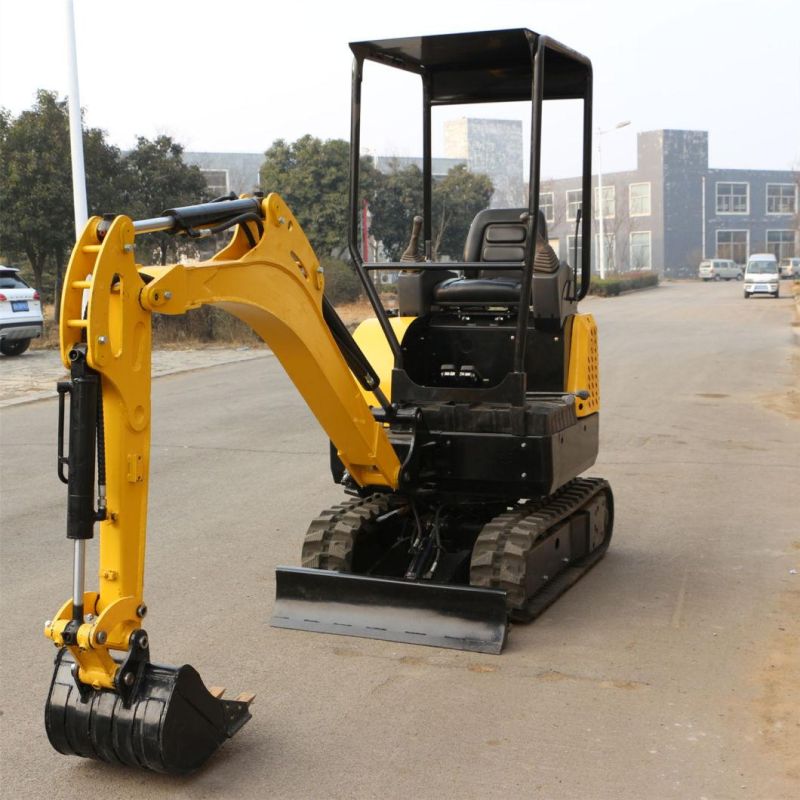

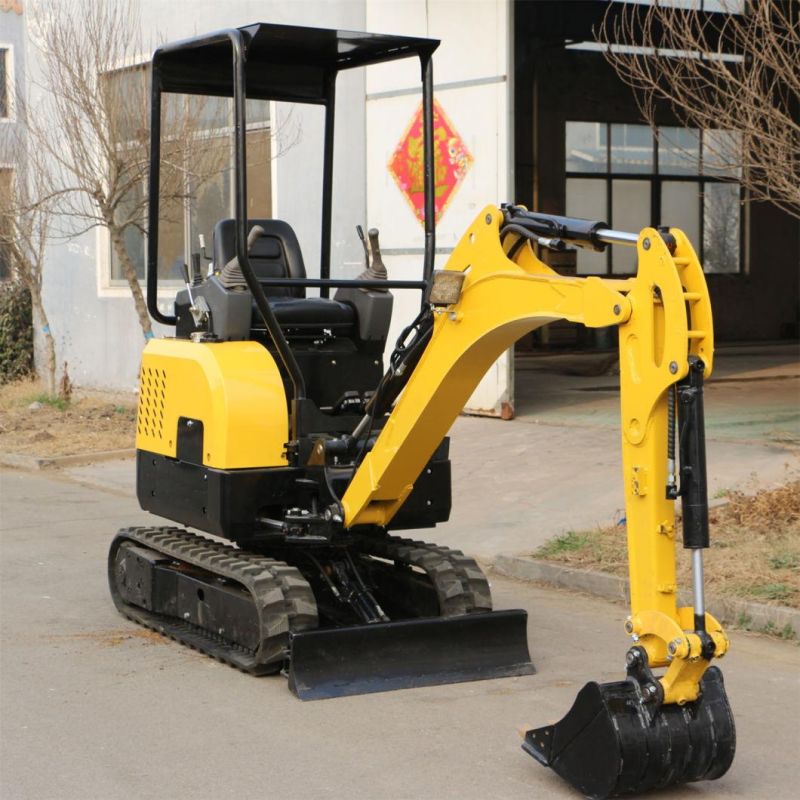

1.6ton Multifunction Hydraulic Backhoe Excavator
Shandong Yonghong Machinery Co., Ltd.- Type：Crawler Excavator
- Usage：Mining Excavator, GM Excavator
- Bucket：Backhoe
- Transmission：Hydraulic Transmission
- Drive Type：Internal Combustion Drive
- Bucket Capacity：0.04m3
Base Info
- Model NO.：YH16
- Size：Small-Scale
- Certification：ISO9001: 2000
- Condition：New
- Weight：1650kg
- Tail Turning Radius：665mm
- Track Ground Length：1210mm
- Track Width：230mm
- Maximum Diggin：3281mm
- Maximum Unloading Height：2393mm
- Maximum Digging Depth：2033mm
- Maximum Vertical Digging Depth：1605mm
- Maximum Digging Distance：3941mm
- Maximum Excavation Distance on The Groun：3878mm
- Transport Package：Suitable for Long Distance Transportation.
- Specification：YH16
- Trademark：YHONG
- Origin：China
- HS Code：84295212
- Production Capacity：400sets,Year
Description
WORKING RANGE
Boom length
1829mm
Arm length
950mm
Max digging reach
3941mm
Max digging depth
2033mm
Max digging height
3281mm
Max dumping height
2393mm
Mini swing radius
1625mm
Rear swing radius
665mm
Max ground digging range 3878mm
Max vertical digging depth 1605mm
PERFORMANCE PARAMETER
Machine weight
1650kg
Engine model YANGMA3TNV70
Engine Power 10.3KW/2200rpm
Hydraulic system
16MPa
Swing speed
10rpm
Travel speed
2-5km/h
Bucket digging force
14.8KN
Arm digging force
10.2KN
Grade ability
≤30o
Ground pressure
28Kpa
Bucket width
450mm
Bucket capacity
0.04m3
OVERALL DIMENSIONS
Overall Length
3694mm
Overall width
1000mm
Overall height
2411mm
Mini ground clearance
160mm
Ground contact length of track
1210mm
Track width
230mm
