• Model NO.：Lt780-9t
• Size：Medium-Sized
• Certification：CE, ISO9001: 2000
• Condition：New
• Item：Ltmg Lt780-8t Wheel Excavator
• Operating Weight：6700kg
• Rated Power：50kw,2400rpm
• Hydraulic Working Pressure：21MPa
• Max.Digging Force：46kn
• Max.Traction Force：65kn
• Gradeability：59%(30°)
• Min.Ground Clearance：260mm
• Wheel Tread：2500mm
• Max.Digging Reach：7045mm
• Max.Digging Depth：3735mm
• Max.Digging Height：7280mm
• Travel Speed：32km,H
• Engine：Yuchai
• Transport Package：Nude Fixed in Container
• Specification：6145mm*2100mm*2865mm
• Trademark：LTMG
• Origin：China
• Production Capacity：300uints,Year

Basic Info.

Model NO. Lt780-9t Size Medium-Sized Certification CE, ISO9001: 2000 Condition New Item Ltmg Lt780-8t Wheel Excavator Operating Weight 6700kg Rated Power 50kw/2400rpm Hydraulic Working Pressure 21MPa Max.Digging Force 46kn Max.Traction Force 65kn Gradeability 59%(30°) Min.Ground Clearance 260mm Wheel Tread 2500mm Max.Digging Reach 7045mm Max.Digging Depth 3735mm Max.Digging Height 7280mm Travel Speed 32km/H Engine Yuchai Transport Package Nude Fixed in Container Specification 6145mm*2100mm*2865mm Trademark LTMG Origin China Production Capacity 300uints/Year

Product Description

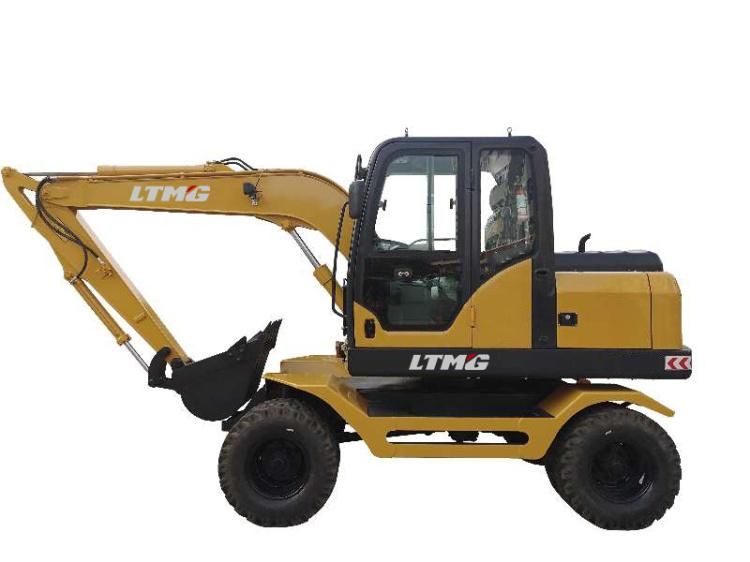

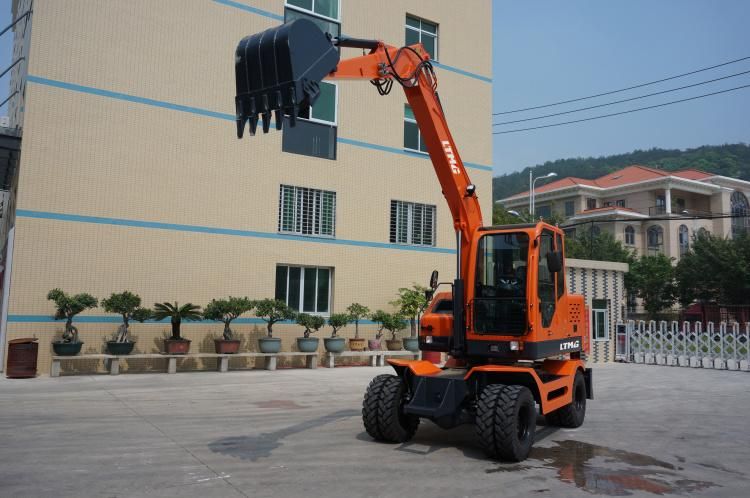

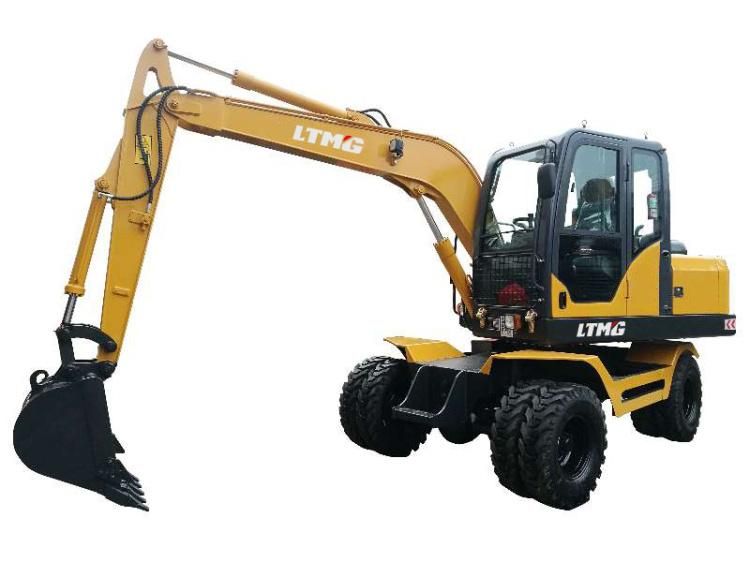

Product Show

Working Range
Boom lenghth	3650mm
Arm length	2250mm
Max.digging reach	7045mm
Max.digging depth	3735mm
Max.digging height	7280mm
Max.dumping height	5530mm
Min.platform tail turning radius	1755mm
Rated load	300kg
Dimmension
Platform width	1930mm
Overall width	2100mm
Overall height	2865mm
Wheel tread	2500mm
Distance from the digging arm to rotating center	4390mm
Overall length	6145mm
Min.Ground clearance	260mm
Height for dozer blade(Optional)	500mm
Dozer blade rising distance/lowering distance	486/86mm
Technical data
Rated power	50Kw/2400rpm
Operating weight	6700Kg
Bucket capacity	0.3m³
Hydraulic working pressure	21Mpa
Max.digging force	46KN
Gradeability	59%(30°)
Travel speed	32km/h
Max.traction force	65KN
Swing speed of platform	10.5rpm
Fuel tank capacity	110L
Hydraulic tank capacity	125L

Product Features

1.Adopt YUCHAI engine meeting National III standard,high torque,low emission,strong power.

2.Gear pump system,easy to maintain.

3.Increase pump displacement,improve working efficiency by 17%

4.Optimize the transmission system and prolong the service life effectively.

5.Longer wheel base,operate smoothly.

6.Optimize intake and exhaust system,reduce noise by 2 decibels.

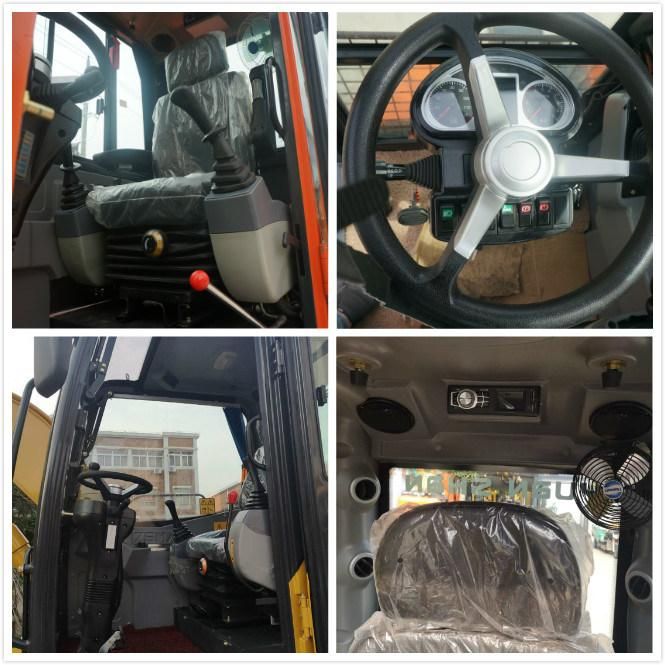

7.Luxurious cab with broad vision,comfortable for driving.

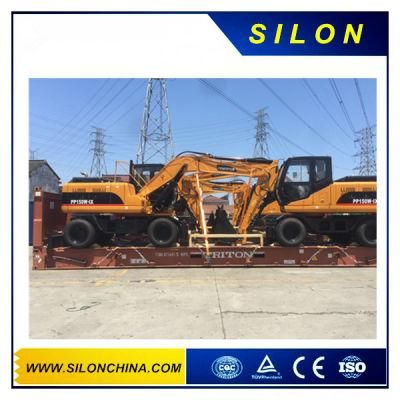

Packing&Shipping

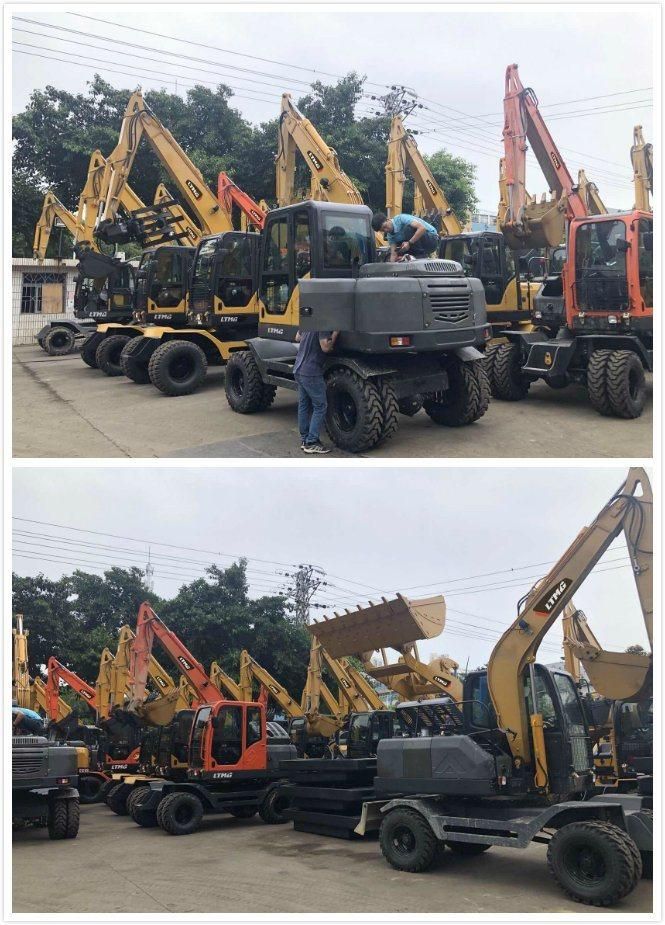

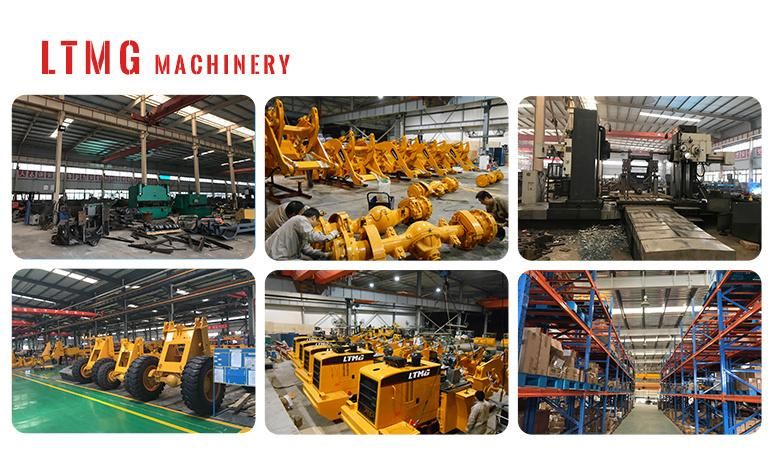

Factory Show

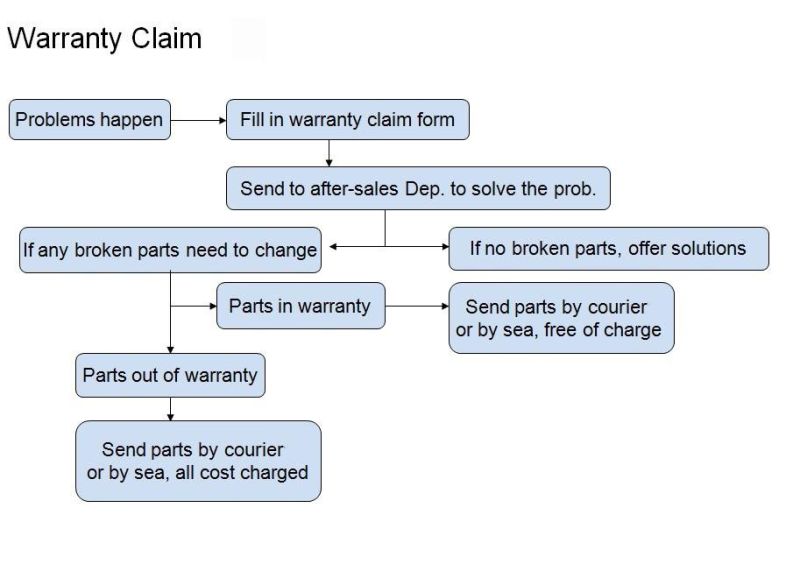

After sales service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.






FAQ

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.


2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days
