• Transmission：Hydraulic Transmission
• Load and Unload Mode：Front Discharge
• Walking Mode：Crawler
• Type：Medium-sized Loader
• Loading Abilitytm3 /H：80
• Digging Widthtmm：5480
• Digging Distancetmm：2480
• Digging Heighttmm：2856
• Digging Depthtmm：655
• Dumping Heighttmm：1858
• Dumping Distancetmm：3407
• Traveling Speedtkm/H：3.9
• Scraper Type：Tractor-Scraper
• Engine Power：<74kw
• Transport Package：Standard Export Packaging
• Specification：80 cubic
• Trademark：China Coal
• Origin：Shandong, China Mainland
• Production Capacity：100 Set Per Qurter

Basic Info.

Transmission Hydraulic Transmission Load and Unload Mode Front Discharge Walking Mode Crawler Type Medium-sized Loader Loading Abilitytm3 /H 80 Digging Widthtmm 5480 Digging Distancetmm 2480 Digging Heighttmm 2856 Digging Depthtmm 655 Dumping Heighttmm 1858 Dumping Distancetmm 3407 Traveling Speedtkm/H 3.9 Scraper Type Tractor-Scraper Engine Power <74kw Transport Package Standard Export Packaging Specification 80 cubic Trademark China Coal Origin Shandong, China Mainland Production Capacity 100 Set Per Qurter

Product Description

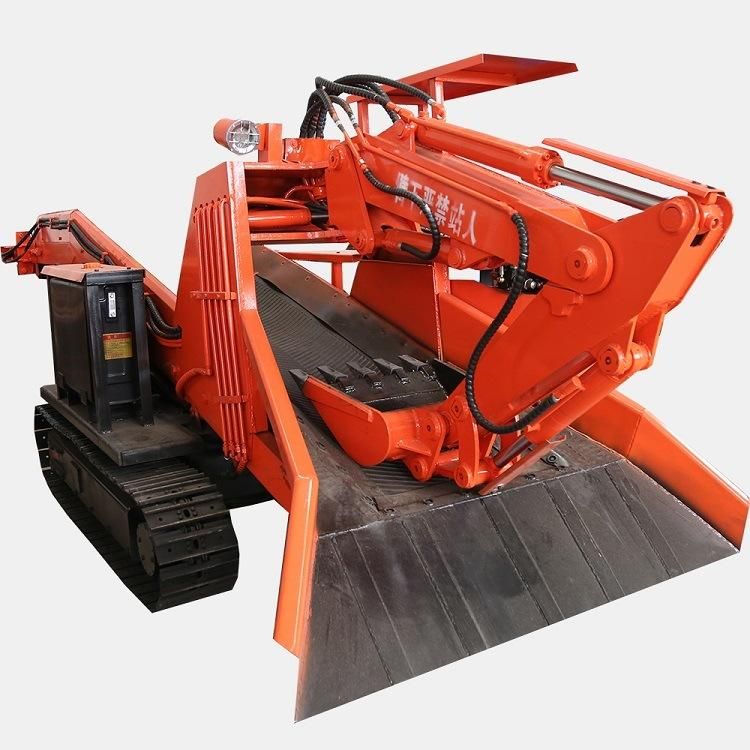

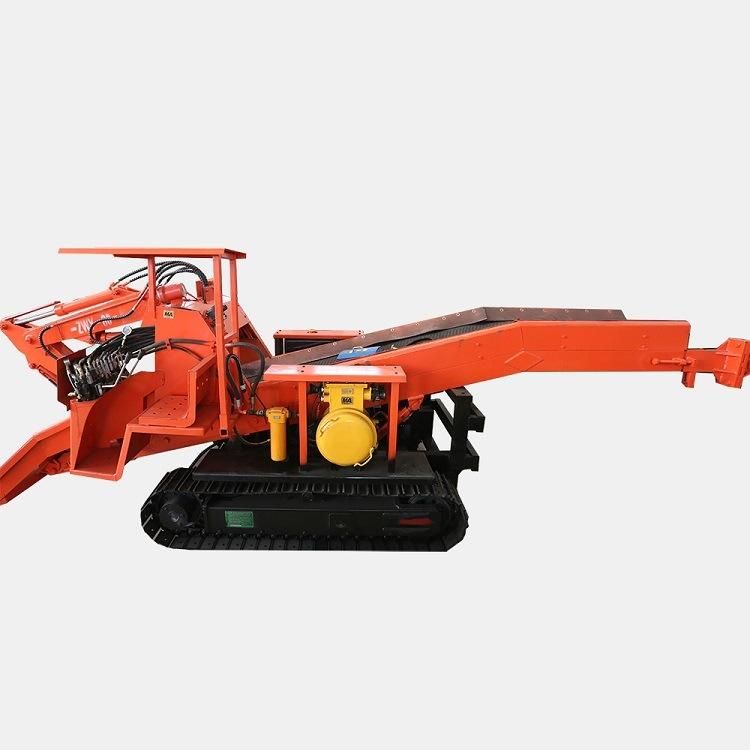

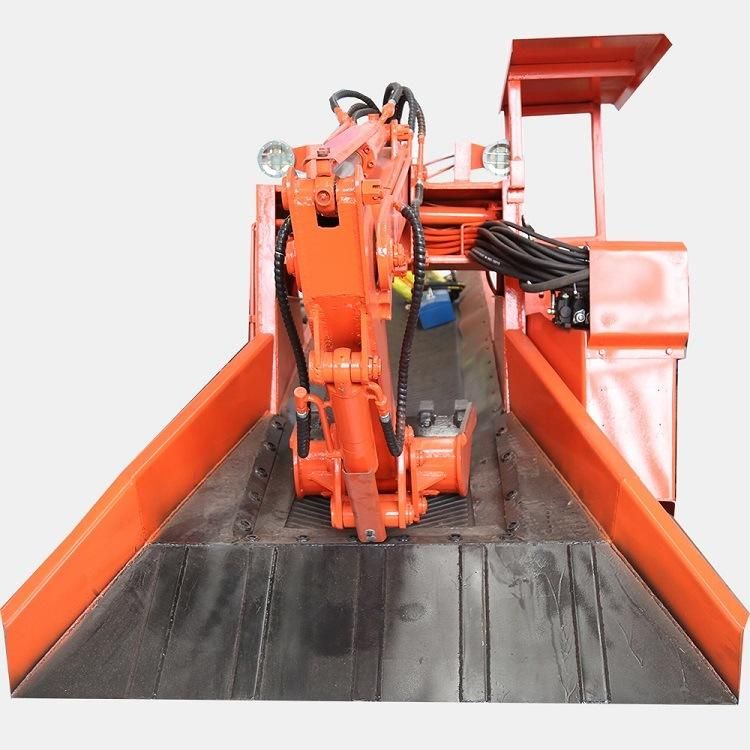

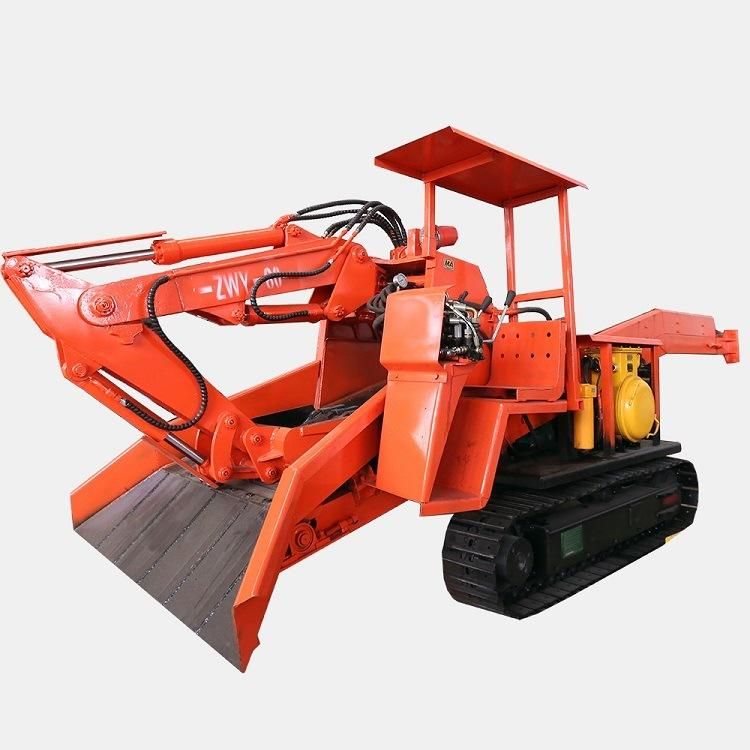

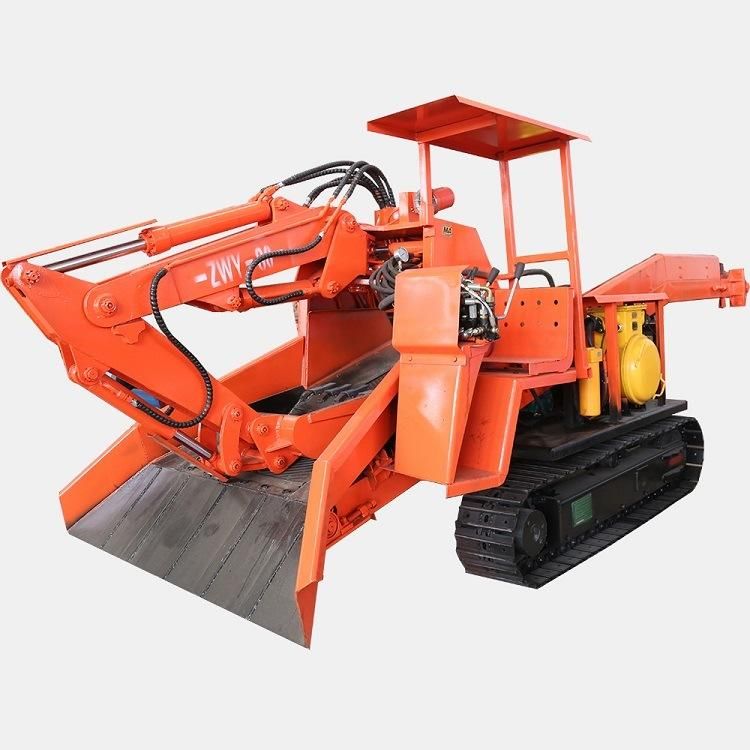

Introduction of LHD Underground Mining Tunnel Coal Rock Crawler Mucking Loader Machine

LHD Underground Mining Tunnel Coal Rock Crawler Mucking Loader Machine is a widely used Crawler Mucking Loader adopted Heavy Gradient Special Model<32 with Imported starter motor stable property as well as Imported constant power variable pumps.

Dimensions During Transport   length*width*height 8340mm*1840mm*2150mm
Dimensions during Operating   length*width*height 9820mm*1840mm*2856mm

Main Parameter of LHD Underground Mining Tunnel Coal Rock Crawler Mucking Loader Machine


No.	Item	Unit
1	Operating Weight	KG	≈9450
2	Loading Ability	m3 /h	≈80
3	Digging Width	mm	5480
4	Digging Distance	mm	2480
5	Digging Height	mm	2856
6	Digging Depth	mm	655
7	Dumping Height	mm	1858
8	Dumping Distance	mm	3407
9	Traveling Speed	km/h	3.9
10	Speed of Scraper Chain	m/min	45
11	Single Chain Single Motor
12	Gradeability	°	25
13	Adaptive Tunnel Slope	°	15
14	Min. Turning Radius	m	6.5
15	Working Pressure	MPa	27.5
16	Ground PRessure	kPa	75
17	Ground Clearance	mm	350
18	Total Power	kw	45
19	Operate Mode		hydraulic Control
20	Conveyor Inner Width	mm	1080
21	Adaptive Tunnel Dimensions	mm	590*660
22	Max Boom Angel	°	50
