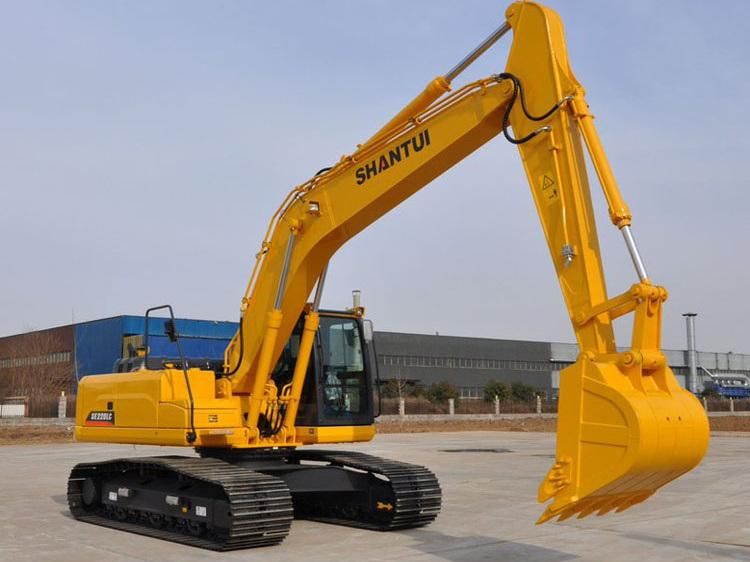

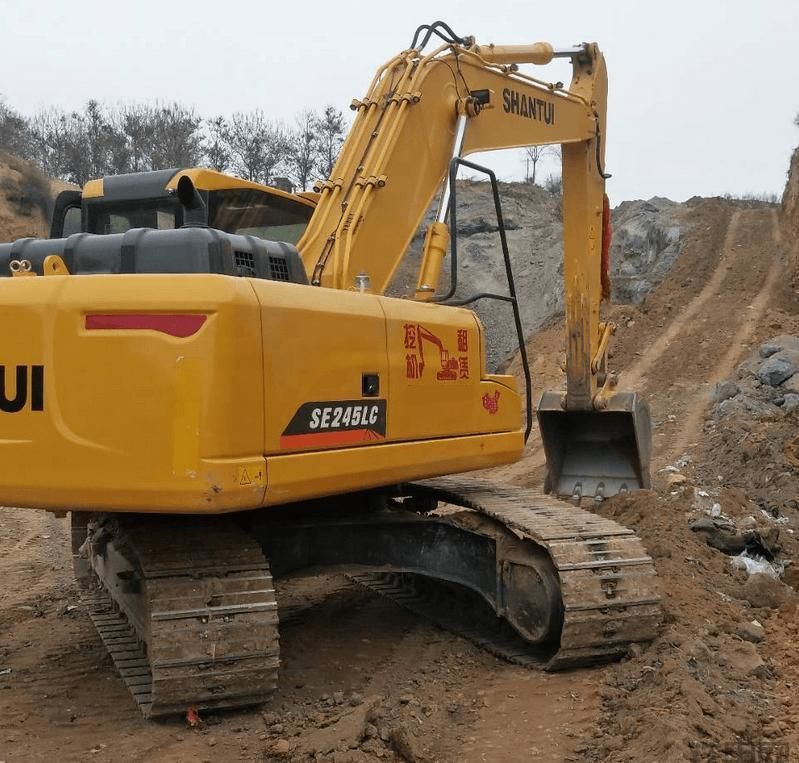

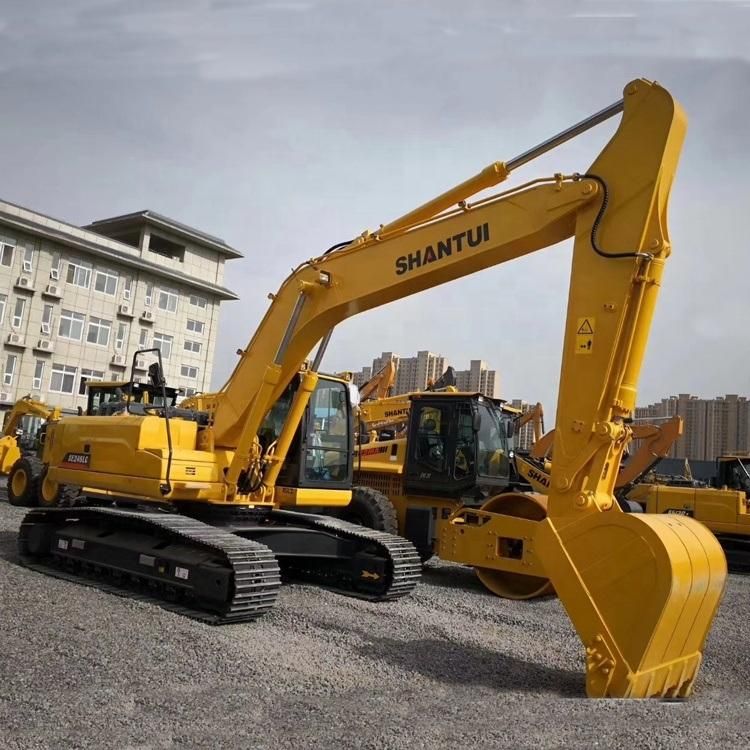

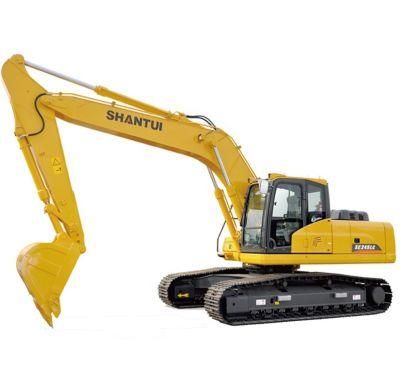

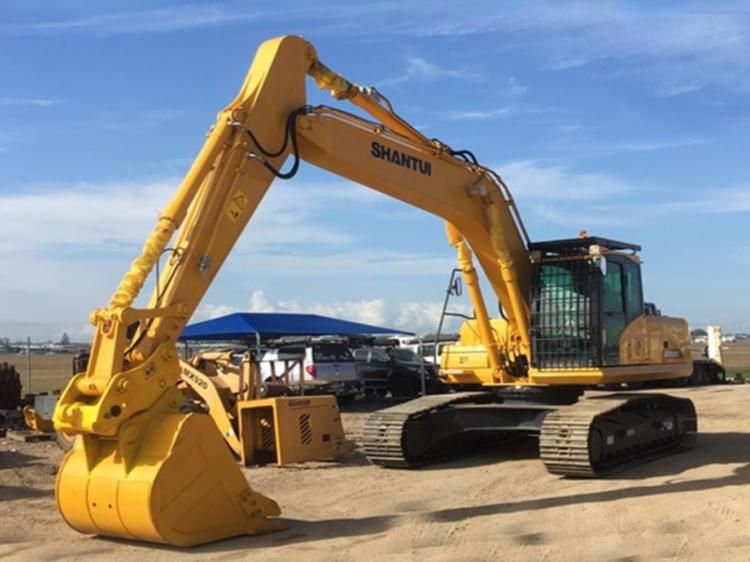

• Model NO.：SE245LC
• Drive Type：Internal Combustion Drive
• Bucket Capacity：1.0~1.5m³
• Size：Medium-Sized
• Certification：CE, ISO9001: 2000
• Condition：New
• Engine Model：Cumins Qsb7
• Rated Power：150kw,2050rpm
• Max.Torque：825n.M,1100~1700rpm
• Emission Standard：Tier 3
• Max. Digging Height：10180mm
• Max. Dumping Height：7200 mm
• Max. Digging Depth：6864 mm
• Max. Vertical Digging Depth：5978 mm
• Max. Digging Reach：10200 mm
• Min. Swing Radius：3276 mm
• Boom Length：5850 mm
• Arm Length：3045 mm
• Transport Package：Nube
• Specification：9985*3180*3075mm
• Trademark：SHANTUI
• Origin：Shandong, China
• HS Code：8429521200
• Production Capacity：10000 Units,Year

Product ParametersSE245LCEngine Engine modelCumins QSB7Rated power150kw/2050rpmMax.torque825N·M/1100~1700rpmDisplacement6.7 LEmission   standardTier 3Operation   Range Operating   weight24800 kgMax. digging   height10180mmMax. dumping   height7200 mmMax. digging   depth6864 mmMax. vertical   digging depth5978 mmMax. digging   reach10200 mmMin. swing   radius3276 mmDimensions Overall   length9985 mmOverall width3180 mmOverall   height3075 mmTail swing   radius3000 mmMin. ground   clearance465 mmCounterweight   ground clearance1083 mmUndercarriage/Working   Device Std. track   shoe width600 mmBucket   capacity1.2 m³Carrier   roller(per side)2Track   roller(per side)9Track gauge2580 mmBoom length5850 mmArm length3045 mmPerformance Travel speed3.5/5.1 km/hGradeability35°Ground   pressure47.9 kPaTractive   force274 kNBucket   digging force172 kNArm digging   force125 kNService   Refill Capacities Fuel tank330 LEngine   coolant28 LEngine oil22 LHydraulic   tank270/400 LHydraulic   System TypeNegative flow   Hydraulic system with Variable Displacement Piston PumpPump flow2X238+19 L/minSwing System Swing speed0-11r/minThe parameters are   for reference only, please contact your sales representative for details.Detailed Photos
