• Model NO.：wtl-a200
• Application：Crane Safety Monitoring System
• Certification：CE, ISO9001: 2000
• Condition：New
• Task：Program
• Structure：Combination
• Mathematical Model：Linear
• Signal：Continuous
• Function：Automatic Control, Protection
• Customized：Customized
• Material：Stainless Steel
• Transport Package：Non Fumigation Wooden Box, Standard Improt Paper C
• Specification：wtl-a200 lmi
• Trademark：WTAU
• Origin：China
• HS Code：8531809000
• Production Capacity：5000 Per Year
• Package size per unit product：50.00cm * 50.00cm * 50.00cm
• Gross weight per unit product：33.000kg

Basic Info.

Model NO. wtl-a200 Application Crane Safety Monitoring System Certification CE, ISO9001: 2000 Condition New Task Program Structure Combination Mathematical Model Linear Signal Continuous Function Automatic Control, Protection Customized Customized Material Stainless Steel Transport Package Non Fumigation Wooden Box/ Standard Improt Paper C Specification wtl-a200 lmi Trademark WTAU Origin China HS Code 8531809000 Production Capacity 5000 Per Year

Packaging & Delivery

Package size per unit product 50.00cm * 50.00cm * 50.00cm Gross weight per unit product 33.000kg

Product Description

Product Description

WTL-A200 Load moment indicator is composed of sensor, operational amplifier, control actuator and overload indicator, etc. It integrate 3 into 1, which are display, control and warning. When the crane lifting a load, the sensor is occurring deformation. Meantime, converting weight of load into electrical signal, after operation and amplification, indicate the value of weight. When the load reaches 90% of rating, it gives an alarm; When value of weight surpass the rating, the power will be turn off at once. It is widely used in over head travelling crane, elevator and portal/tower crane.


Load Moment Indicator(safe load indicator or Crane computer lmi/sli/rci) is a device which is installed on various sorts of cranes like mobile, crawler, tower, gantry, portal, marine and offshore crane. It alert the operator if the lift is exceeding the safe operating range. In some cases, the device will physically lock out the machinery in circumstances it determines to be unsafe.
It controls the lifting equipment to function as per the manufacturer's suggested safe load charts. Each of the measured parameters like load weight, working radius, control limit,angle and extension of the crane boom, etc will then further be displayed in the operator's cabin.

Detailed  Images

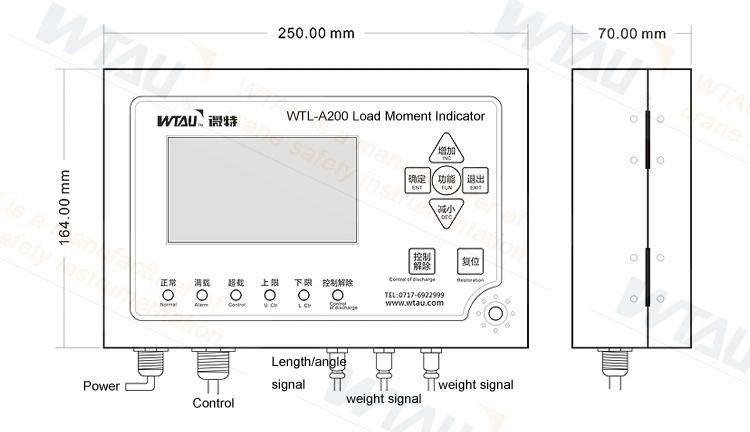

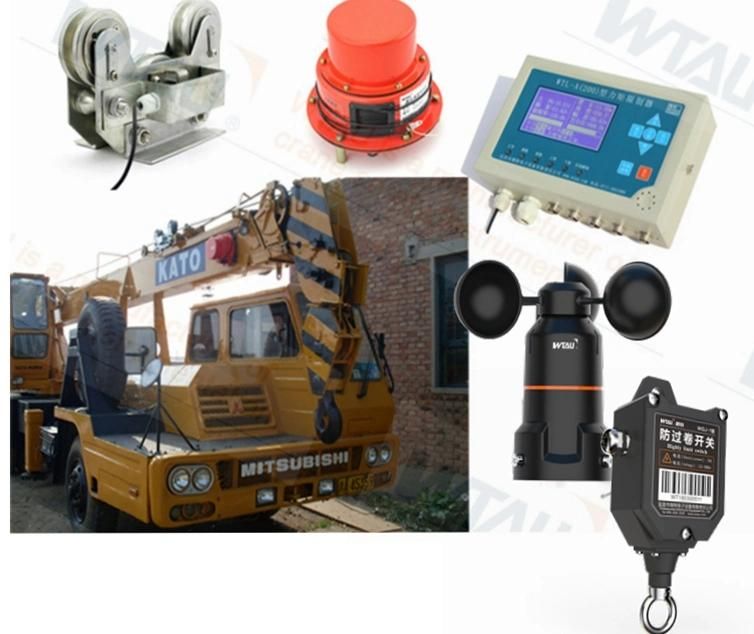

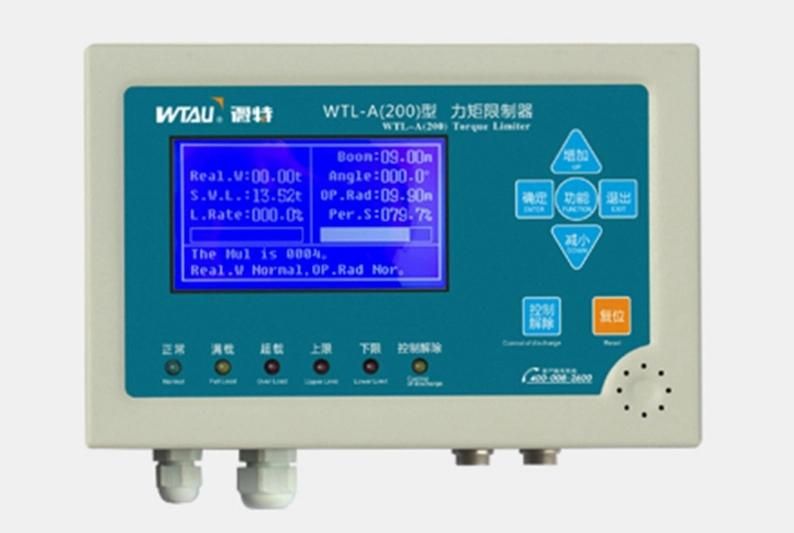

Complete set of  WTL-A200 Safe Load Indicator



Technical Parameters

Weight Measurement Range: 0T~400T
Resolving Ability: 0.1T
Synthetic Errors: ≤5%F.S.;
Working Condition: -20°C~60°C
Relative Moisture under Working Condition: 90%RH(20°C)
Working Voltage: AC 220V ±25%
IP Grade:weight sensor with IP68;Monitor with IP65

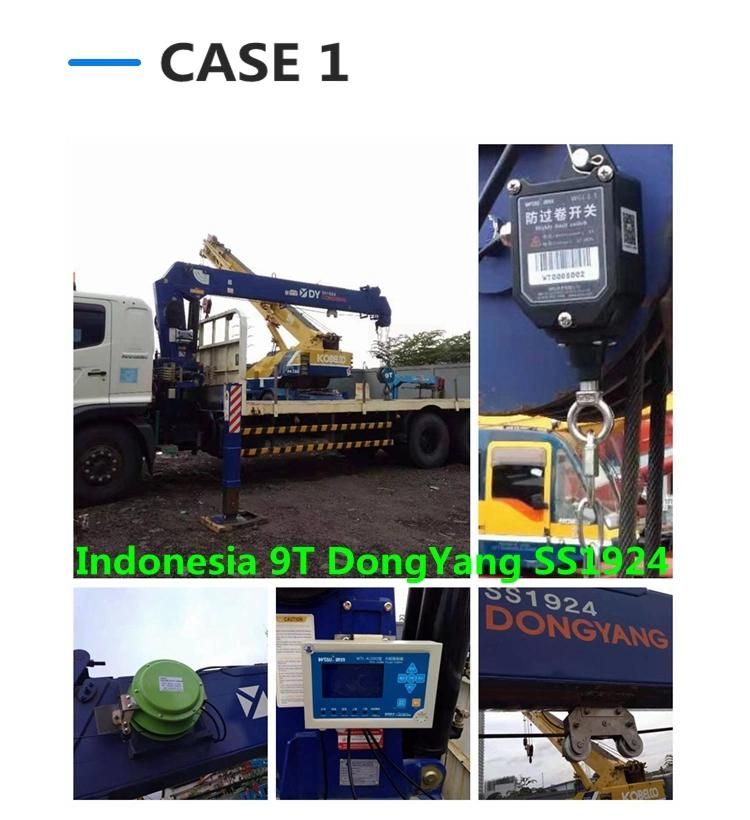

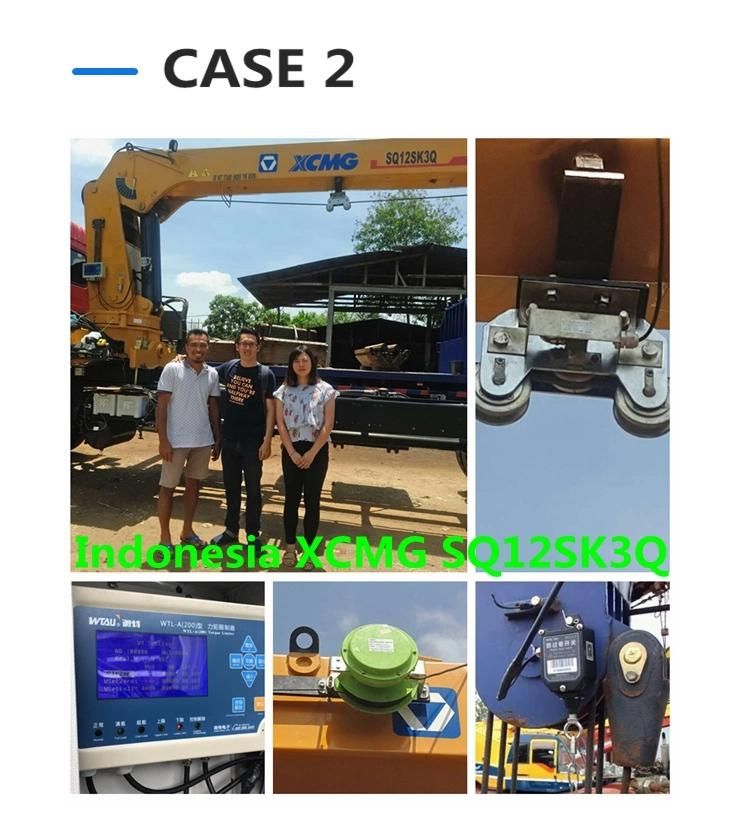

Application Cases



Certificates



Company  Introduction



Weite Technologies Co.,Ltd

Founded in 2002, it is national hi-tech enterprise located in Yichang, China. It has been focusing on R&D and OEM manufacturing of lifting safety protection devices such as Load Moment Indicator, Safe monitoring systems, overload limiter, Load cell, Anemometers etc.We continuously concentrate on ensuring lifting equipments run safely as long-term pursuing goal.

"The trusted Safety Partner for Global Top 100 Crane Owning Companies like Tat Hong, Asiagroup, Big Crane and Fortune 500 corps" . Nowadays, WTAU products are widely used in marine industry,electrical, chemical, steel, metallurgy, construction, ports and other industries, and have been wide spreaded to over 60 countries and regions.




Global Partners



FAQ
1) Is your company well-reputated? How to prove that?
It is a China Top 3 brand focusing on Crane Safety Protection Equipment. We are also Safety Partners for Global Top 100 Crane Owning Companies like Tat Hong, Asiagroup, Big Crane and Fortune 500 corps" . Nowadays, WTAU products are widely used in marine industry,electrical, chemical, steel, metallurgy, construction, ports and other industries, and have been wide spreaded to over 60 countries and regions.

2) How to assure the quality?
The Product Warranty for the total item is 12 months. Any problem after installation, we will change the new one for free.

3) How to install the LMI?
English User Manual(include all the details of each item) will be offered for installation and trouble shooting(refer to the pic below). Also free Remote Instant Technical assistance would be offered by our english engineers. Or we can send our engineers to assist you locally.

4) How much is your LMI system?
Send me the crane model, hook number, working conditions(Luffing Tower Working Condition, Pilling) and special requirement and the like. Your contact info is a must.

5) How can I place order?
A: You can contact us by email about your order details, or place order on line.

6) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T and Paypal, Western Union are the most usual ways we are using.

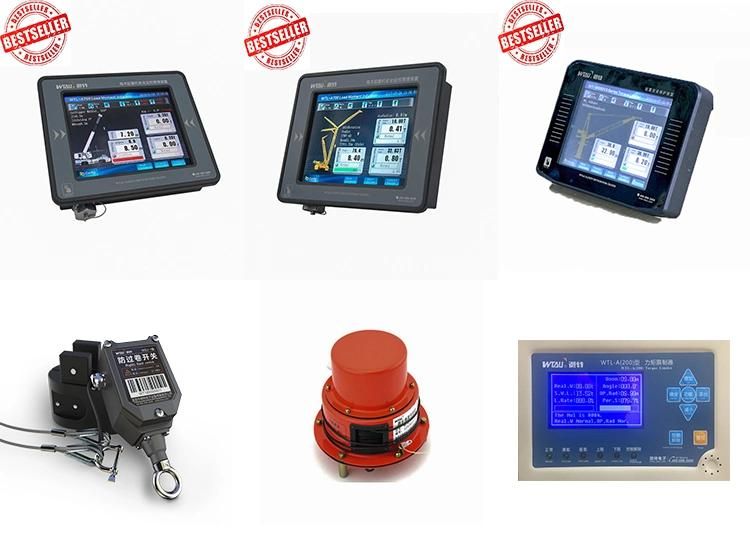

Related  Products
