• Productivity：12cbm
• Feeding Height：1400mm
• Vibrating Amplitude：1.4mm
• Certification：ISO9001: 2000
• Condition：New
• Color：Yellow
• Engine：Yunnei or Yuchai Engine
• Drive：Automatic with 4 Wheel Drive

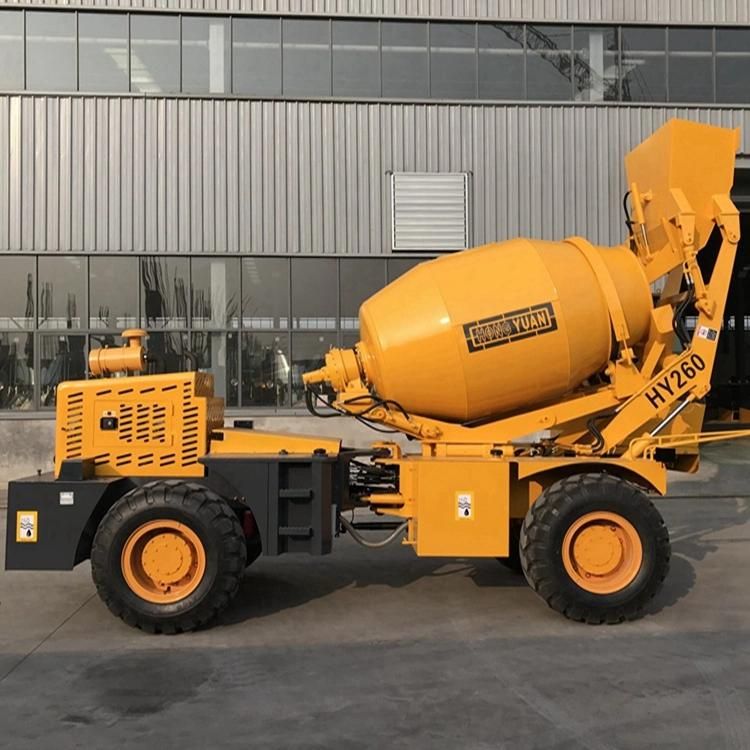

• Model：Hy260
• Transport Package：Nude Package
• Trademark：Hongyuan
• Origin：China
• Production Capacity：100 Sets, Year

Basic Info.

Productivity 12cbm Feeding Height 1400mm Vibrating Amplitude 1.4mm Certification ISO9001: 2000 Condition New Color Yellow Engine Yunnei or Yuchai Engine Drive Automatic with 4 Wheel Drive Model Hy260 Transport Package Nude Package Trademark Hongyuan Origin China Production Capacity 100 Sets/ Year

Product Description


Equipped with driving camera, automatic water feeding & metering system, electronic water suction pump, etc. The mixing drum can be slewed hydraulically through 270 degrees for high discharge over 1.8m on the four sides of the vehicle. The drum can also be lifted up 20° by two hydraulic cylinders at bottom for the convenience of concrete discharge.


1. The vehicle size is small, which is suitable for limited site and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer's houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc
2. High strength steel plate, which enhances the load capacity and high stability of vehicle.
3. The material of rolling ring and mixing drum adopts 16mn high strength steel which uses forging normalizing manufacturing process.
4. Mixing blade is designed with varying pitching angles, which simplifies the feeding device, ensures the speed faster and mixing performance better.



Engine
Model		YCD4J22G
Type		Direct injection,4 cylinders,turbo charge
Displacement	cc	4330
Cooling		Water
Max. Power	kw	85
Max.Torque	nm	390
Transmission
Walking Pump		Closed piston Eaton walking pump
Speed		2 forward gears 2 reverse gears
Gear 1 Speed(forward&reverse)	km/h	0-5
Gear 2 Speed(forward&reverse)	km/h	5-22
Wheel
Tires		15.5/65-18
Max. Load	kg	5150
Brake
Wheel Brake		Air brake
Parking Brake		Negative type with internal wheel hub discs on the front axle
Water System
Water Pump		24V "Self-priming" volumetric water pump with quick-suction
Internal Suction Pump Max.Capacity	L/min	90
External Suction Pump Max.Capacity	L/min	150
Tanks Total Capacity	L	2×285
Water Feeding Contral		Electromagnetic button inside cabin
Mixing and Unloading
Type		Double-cone drum with double-spiral mixing screws and convex bottom
Geometrical Drum Volume	L	5300
Drum Rotation Speed	rpm	20
Concrete Producing Volume	m³/Batch	3.5
Drum Rotation Degree	degree	270
Hydraulic System
Pump Brand		Eaton
Max. Flow Rate	L/min	64/39/20
Maximum Pressure	mpa	42
Mixing Motor		Eaton (closed circuit)
Control		Multi-function joystick
Loader
Volumetric Capacity	L	600
Control		Mechanical lever
Cabin
Standard		Heater,tilting front window,suspension seat
Service Refill Capacities
Fuel Tank	L	120
Hydraulic System Capacity	L	220
Engine Oil	L	16
Weight
Operating Weight	kg	8500
Max. Gross Weight	kg	16900
Load-carry Capacity	kg	8400

Detailed Photos


Company Profile

 FAQ

Q: How can we guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment.

Q:What can you buy from us?
A:Construction Machinery.

Q: Why should you buy from us not from other suppliers?

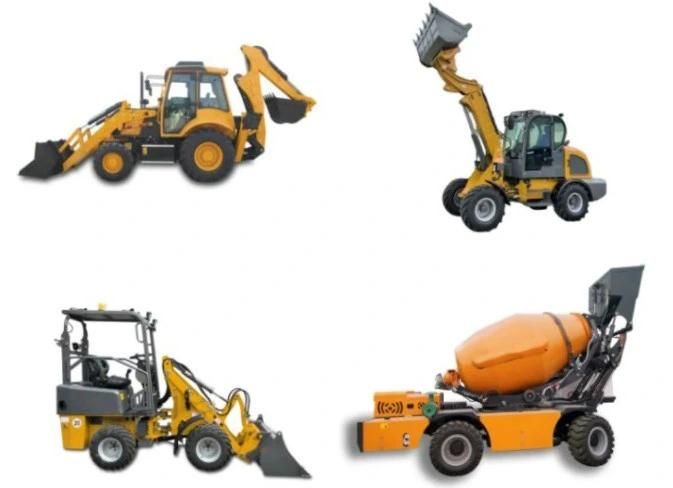

A:As a combination of production and trade ,industry and trade integration of business enterprises., we have our own skid steer loader, backhoe loader, wheel loader, telescopic loader, mini excavator and self loading concrete mixer.
